3554001002_1
In stock 17471 Pièces
€1.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000 4000
Lot price VAT included €1.85 €3.70 €4.45 €26.50 €106.00

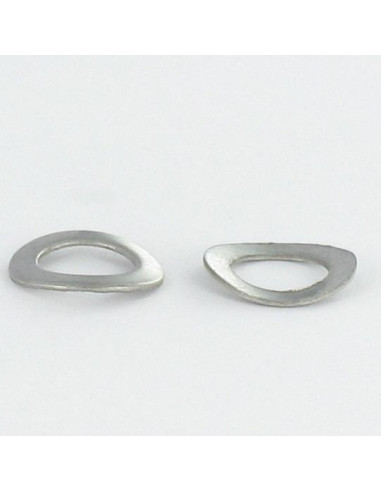

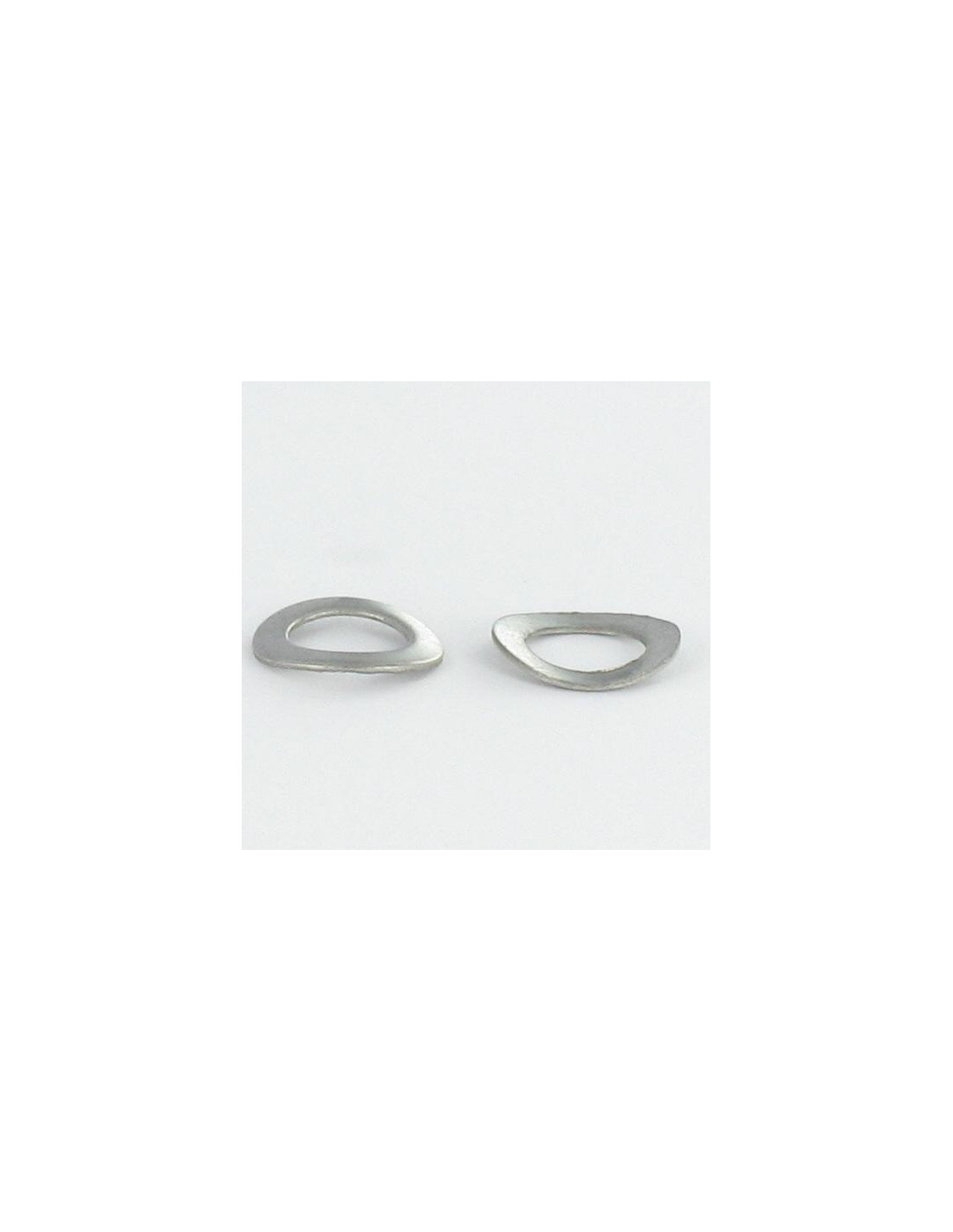

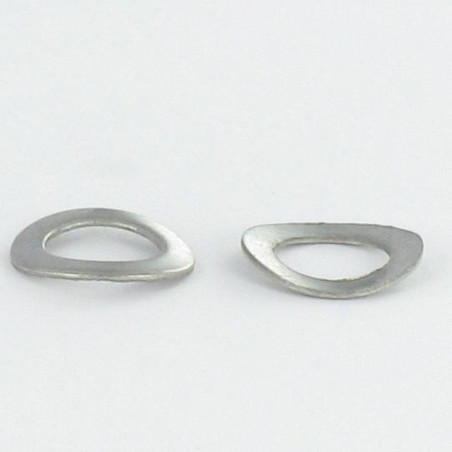

Washer ONDUFLEX M10 Zinc Plated Type to 1 Wave
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units
  • 4000 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M10
Diameter External
M10
Material
Steel
Coating
ZINC PLATED White
COLOR
Grey
Norm
VS3554 DIN 137A
WEIGHT For THERE unit
1.6 GR
17471 Items
3663072061194
Washer ONDUFLEX M10 Zinc Plated Type to 1 Wave
Diameter = M10, Thickness = MM, Coating = Zinc Plated, Material = Steel, Norm = VS3554 DIN 137A

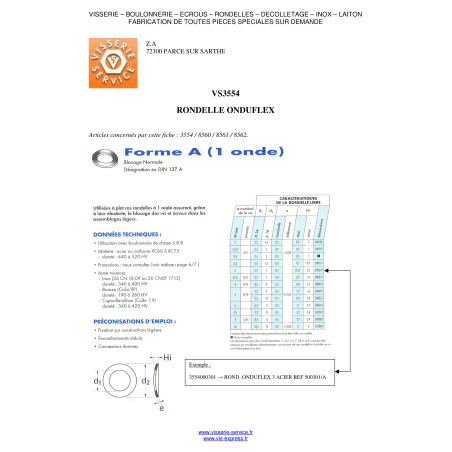

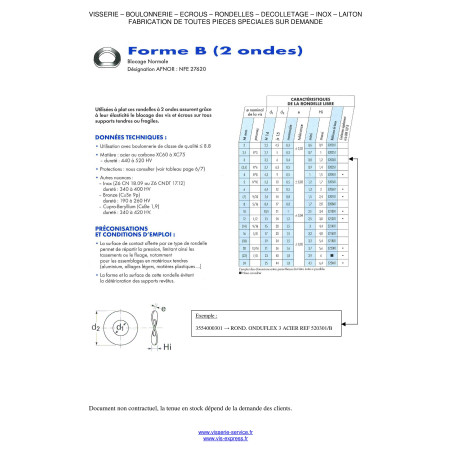

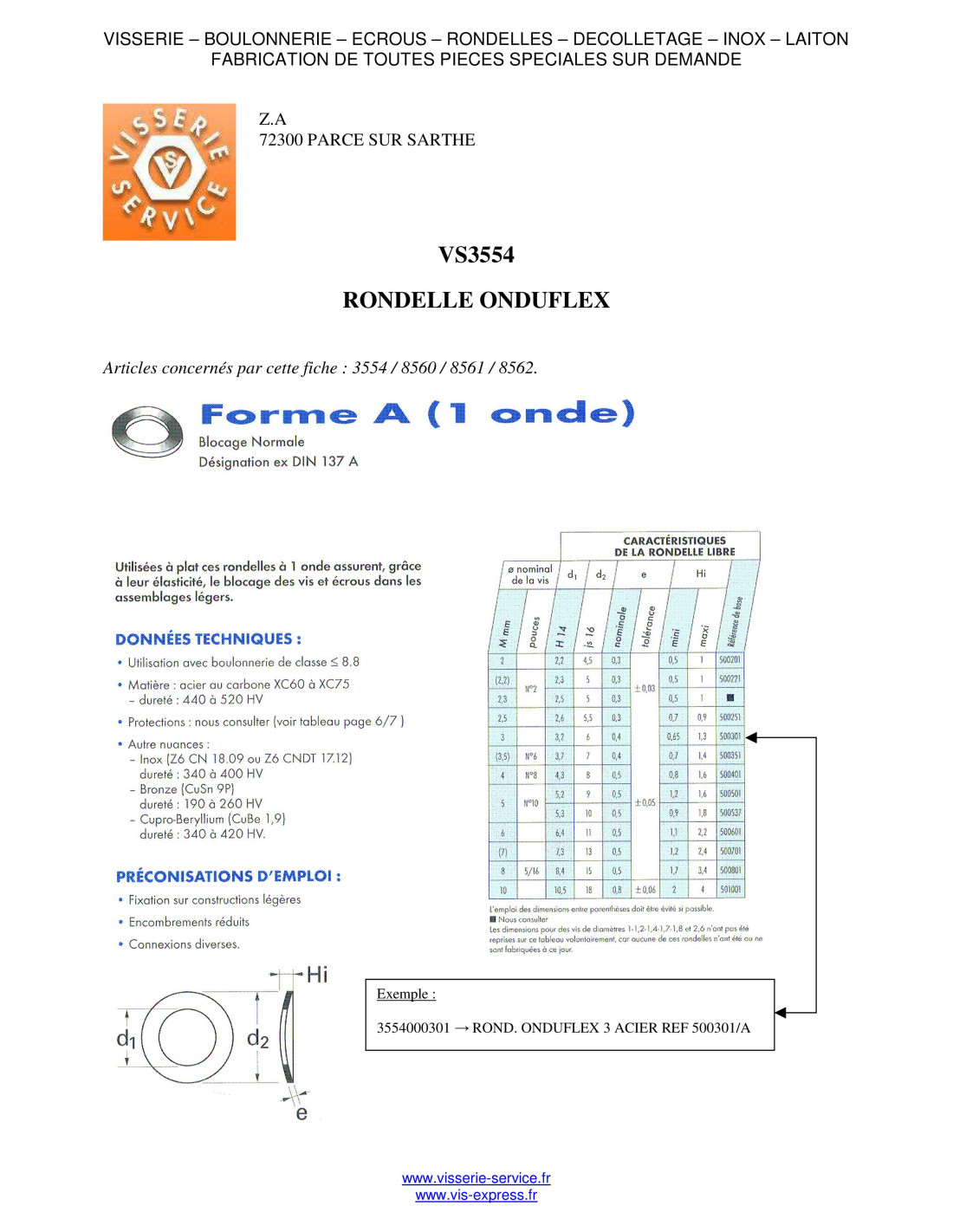

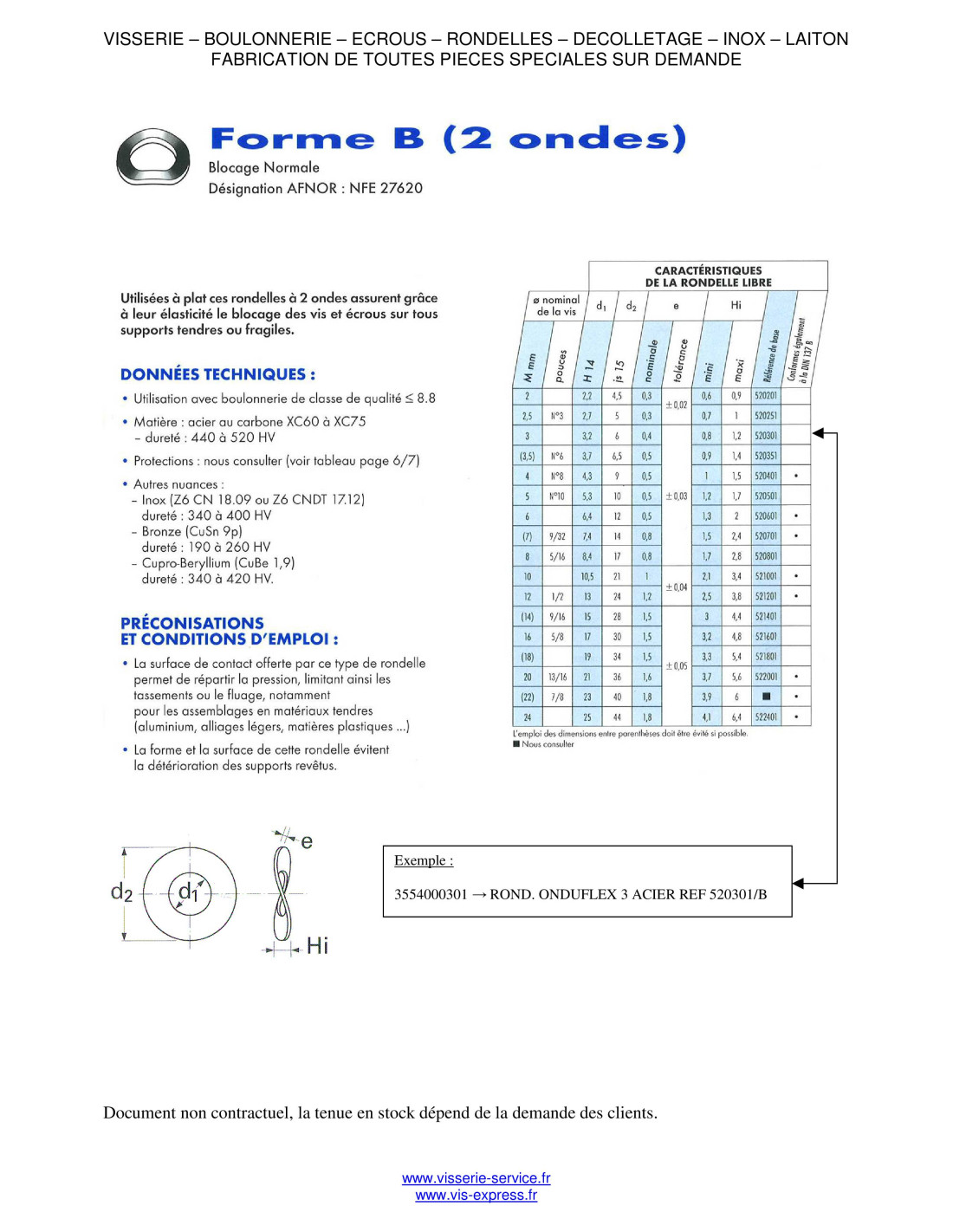

dimensional guide (mm)
Diameter 2 2.5 3 3.5 4 5 6 7 8 10 12 14 16 18 20 22 24
Interior diameter 2.2 2.7 3.2 3.7 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21 23 25
Exterior diameter 4.5 5 6 6.5 9 10 12 14 17 21 24 28 30 34 36 40 44
Tickness 0.3 0.3 0.4 0.5 0.5 0.5 0.5 0.8 0.8 1 1.2 1.5 1.5 1.5 1.6 1.8 1.8

Other Reference : 3617501886520 0093626 1142022 3149953 5650085 5650085 3149953 7293614 5650085 5650085 /CDE /CDE 900050 615044 3663072061194
