1 x Caged Nut Stainless Steel Zinc Plated C4805B M5 Thickness Material 1.7 to 2.5

4336000502_1
In stock 9652 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.70 €3.40 €12.70 €55.10 €206.00

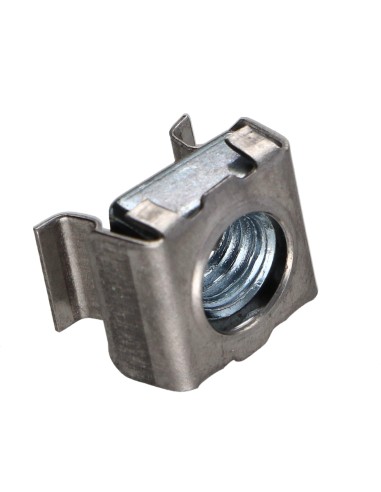

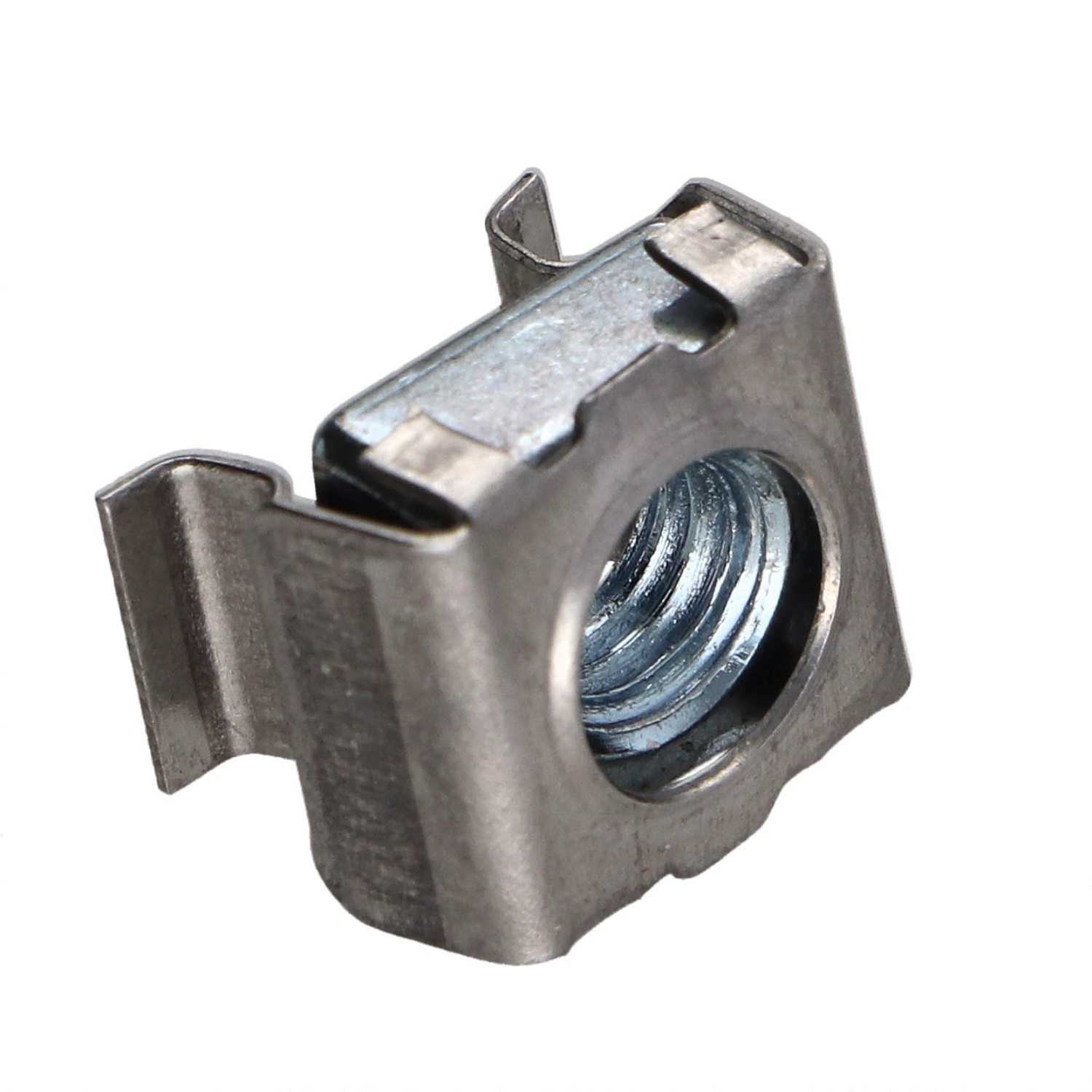

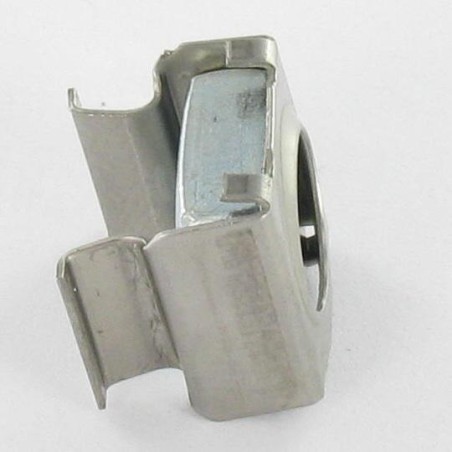

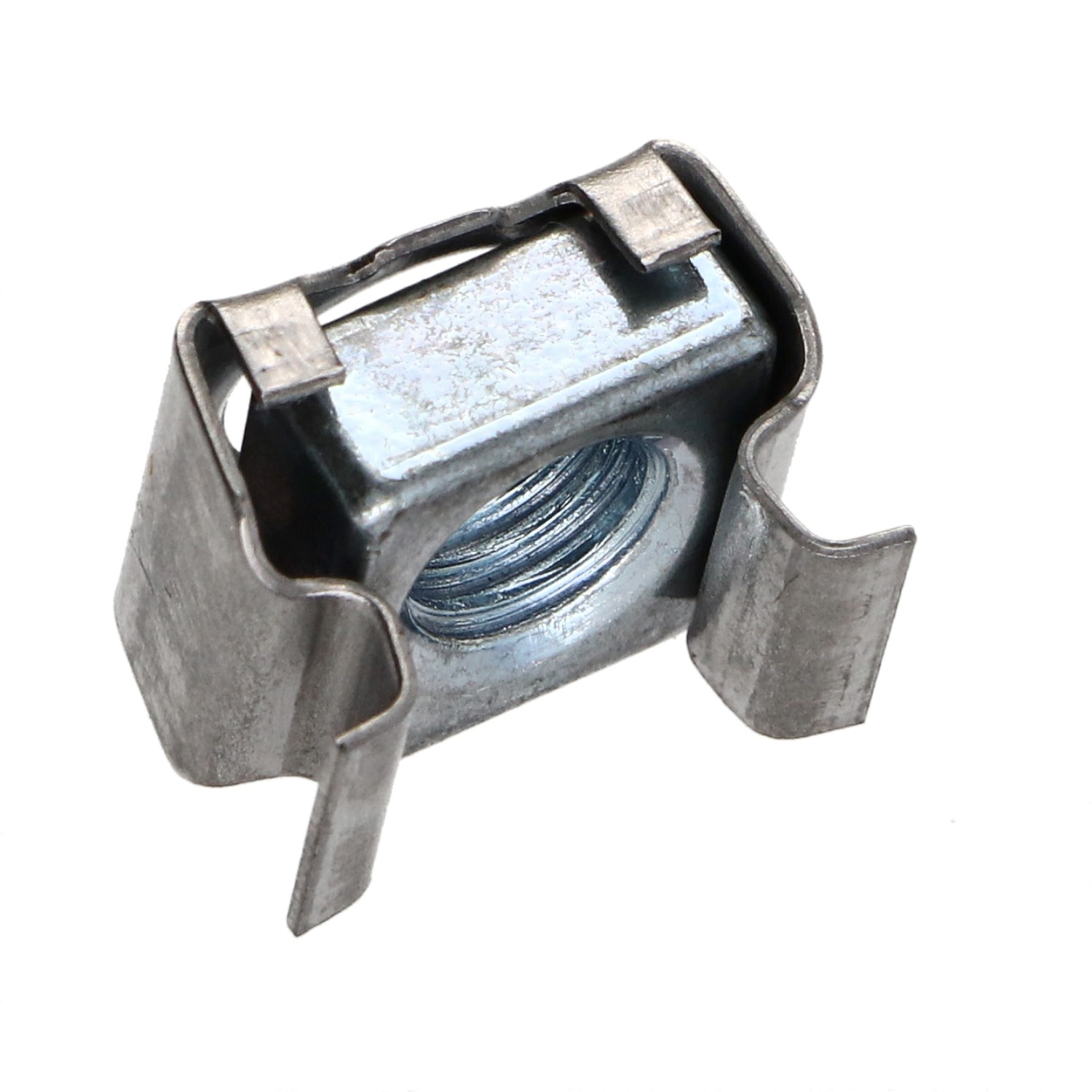

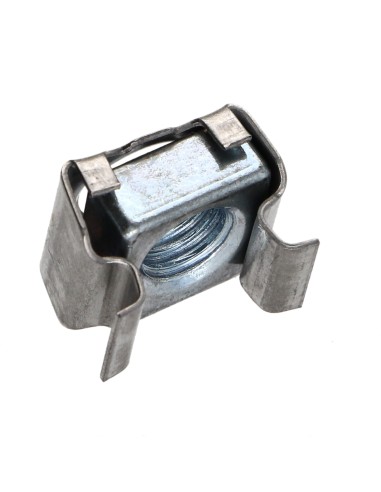

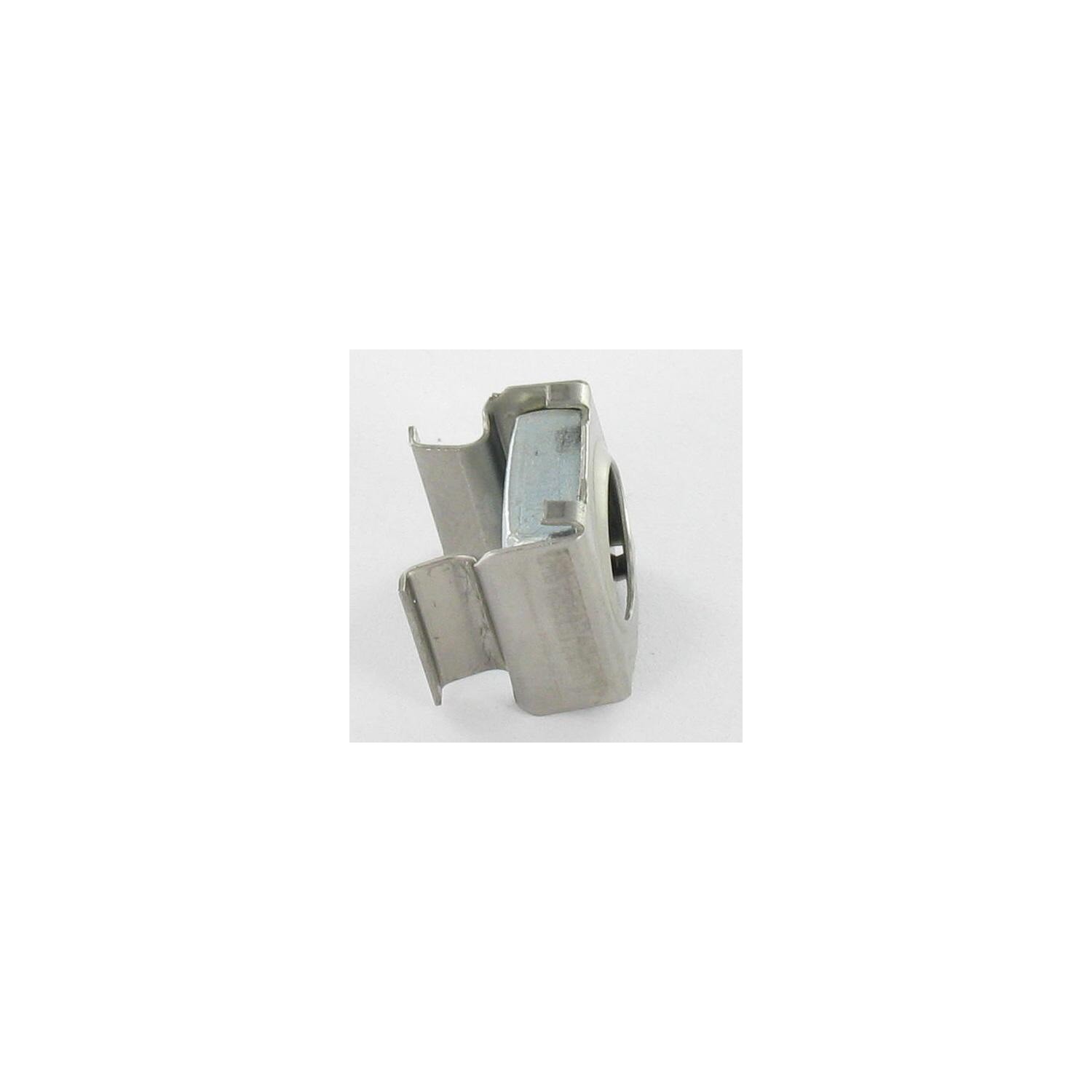

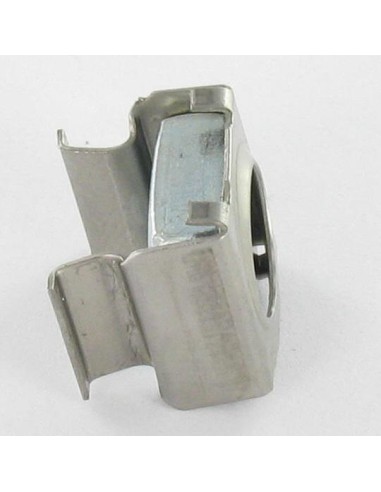

Caged Nut Stainless Steel Zinc Plated C4805B M5 Thickness Material 1.7 to 2.5
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
M5
Product Family
Nut
Use
External
Grip range
1.7 to 2.5 MM
Unit weight
3.6 GR
9652 Items
3663072090897
Caged Nut Stainless Steel Zinc Plated C4805B M5 Thickness Material 1.7 to 2.5
Diameter = M5, Use = External, Product Family = Nut

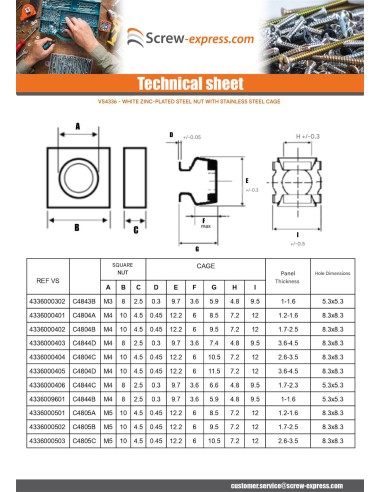

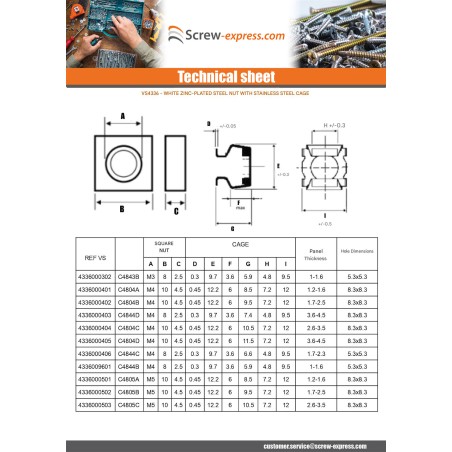

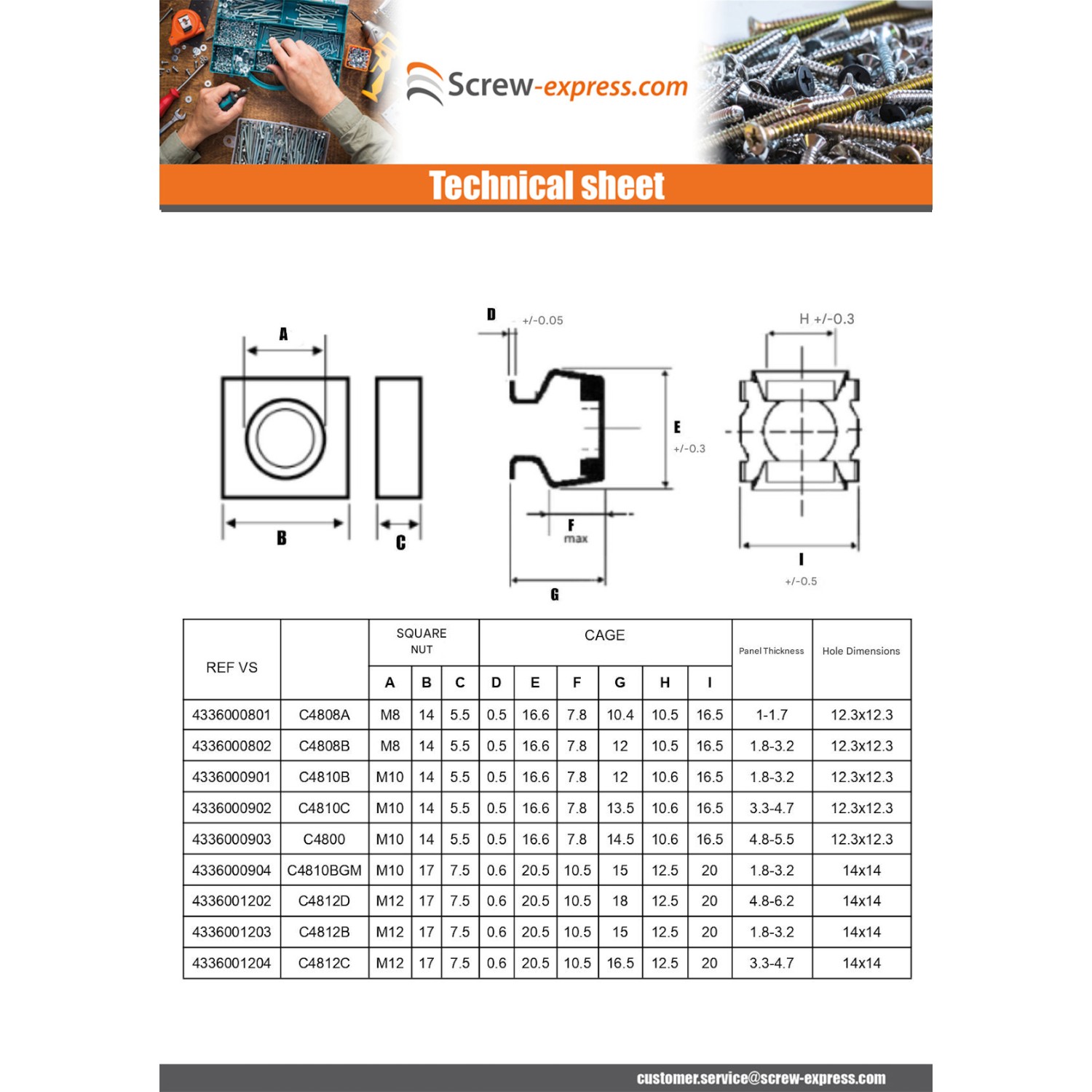

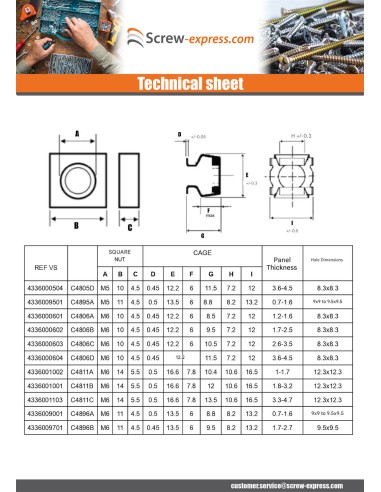

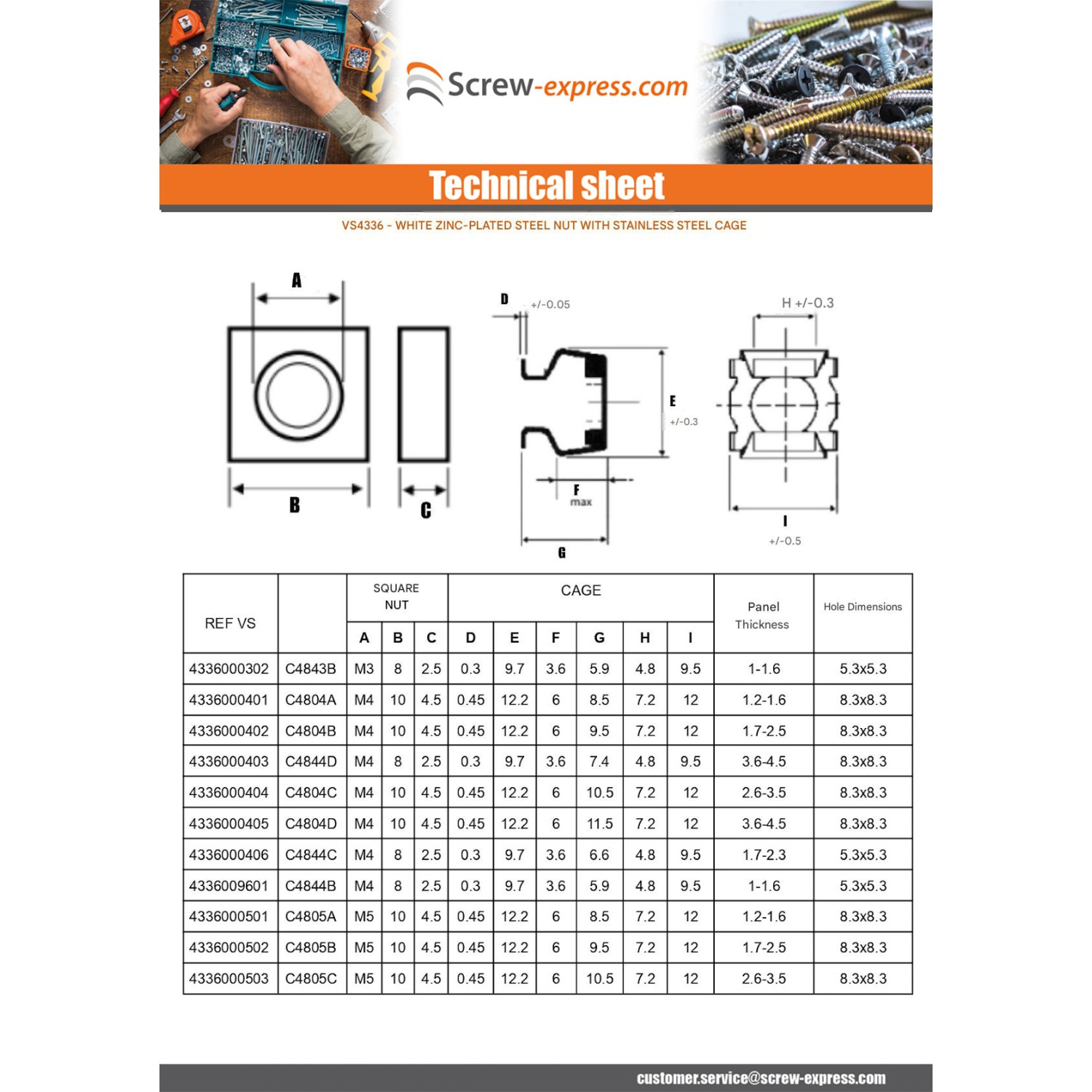

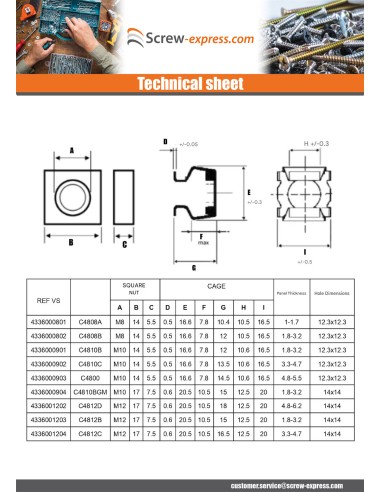

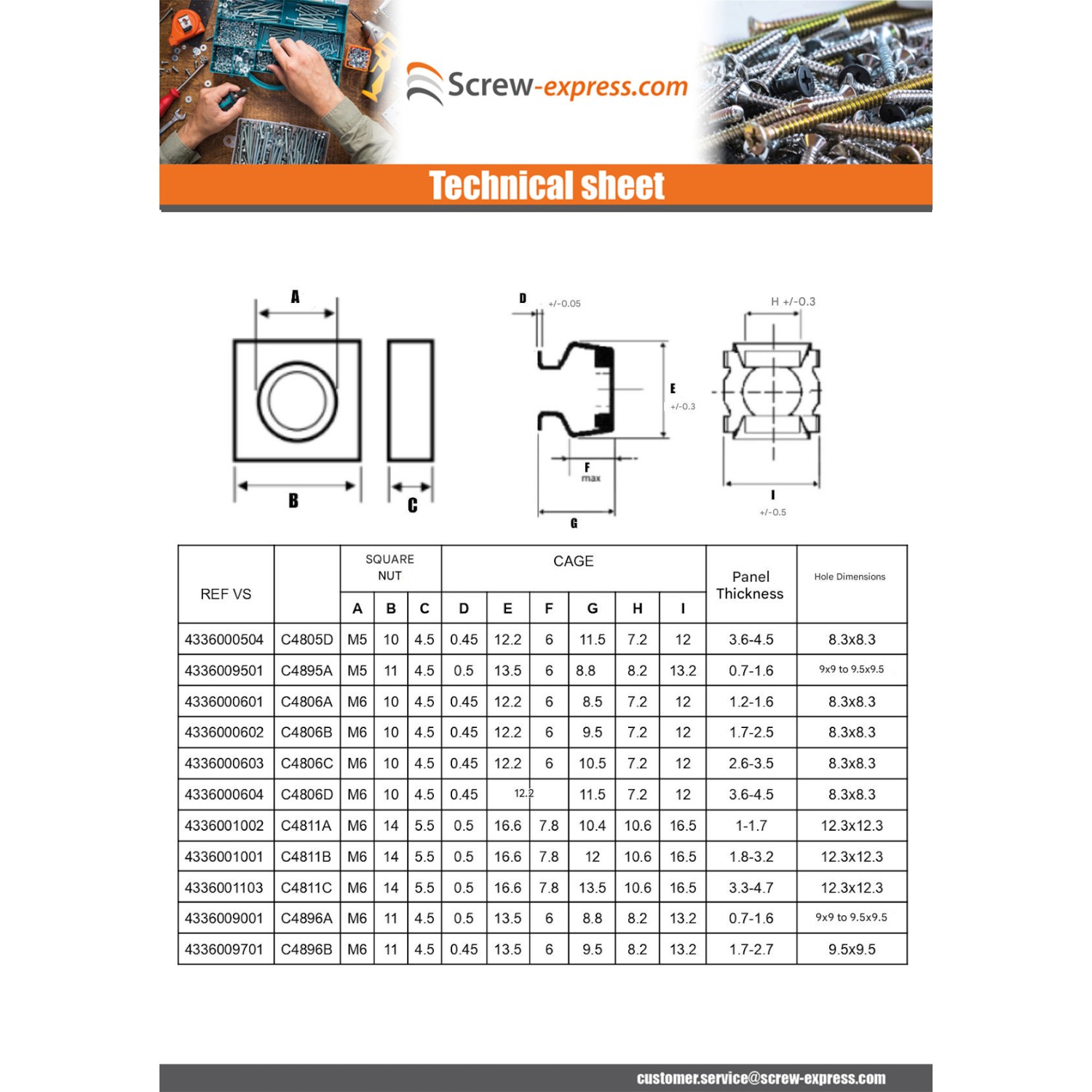

dimensional guide (mm)
Diameter M3 M4 M4 M4 M4 M5 M5 M5 M5 M5 M6 M6 M6 M6 M6 M6 M6 M6 M6 M10 M12 M12 M12
EPAISEUR PANNEAU 1A1.6 1A1.6 2.4A3.1 1.2A1.6 1.7A2.5 1.2A1.6 1.7A2.5 2.6A3.5 3.6A4.5 0.7A1.6 1.2A1.6 1.7A2.5 2.6A3.5 3.6A4.5 1A1.7 1.8A3.2 3.3A4.7 0.7A1.6 1.7A2.7 3.3A4.7 1.8A3.2 3.3A4.7 4.8A6.2
REF. C4843B C4844B C4844D C4804A C4804B C4805A C4805B C4805C C4805D C4895A C4806A C4806B C4806C C4806D C4811A C4811B C4811C C4896A C4896B C4810C C4812B C4812C C4812D
DIMENSION CARRE 9.3 9.3 9.3 12 12 12 12 12 12 13 12 12 12 12 16 16 16 13 13 16 20 20 20
HAUTEUR 5.9 5.9 7.4 8.5 9.5 8.5 9.5 10.5 11.5 8.8 8.5 9.5 10.5 11.5 10.4 11.9 13.4 8.8 10 13.4 14.7 16.2 17.7

Other Reference : DG835B FI ECROUCAGEC80 78300.4805B PC112/5 37979 N87040 65351 65351 AY 2003082 026686 ECRCM5 14925 LN02 73 5860 85978 515869 1.85.399.00 W182170-015 2M0108 3663072090897
