1 x Caged Nut Stainless Steel Zinc Plated C4806B M6 Thickness Material 1.7 to 2.5

4336000602_1
In stock 44793 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.70 €3.40 €12.70 €55.10 €206.00

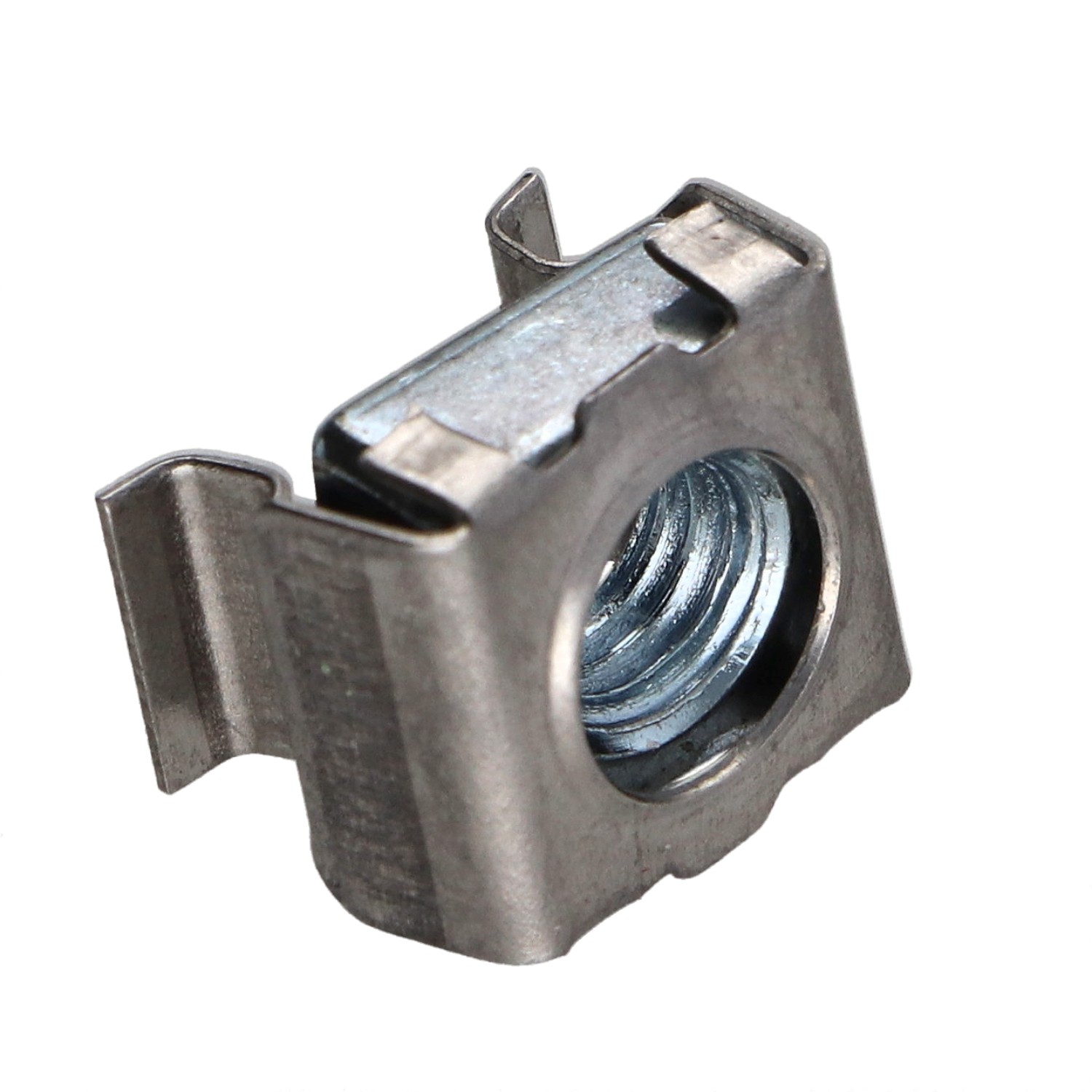

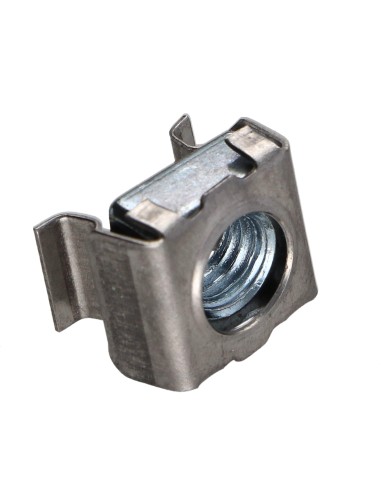

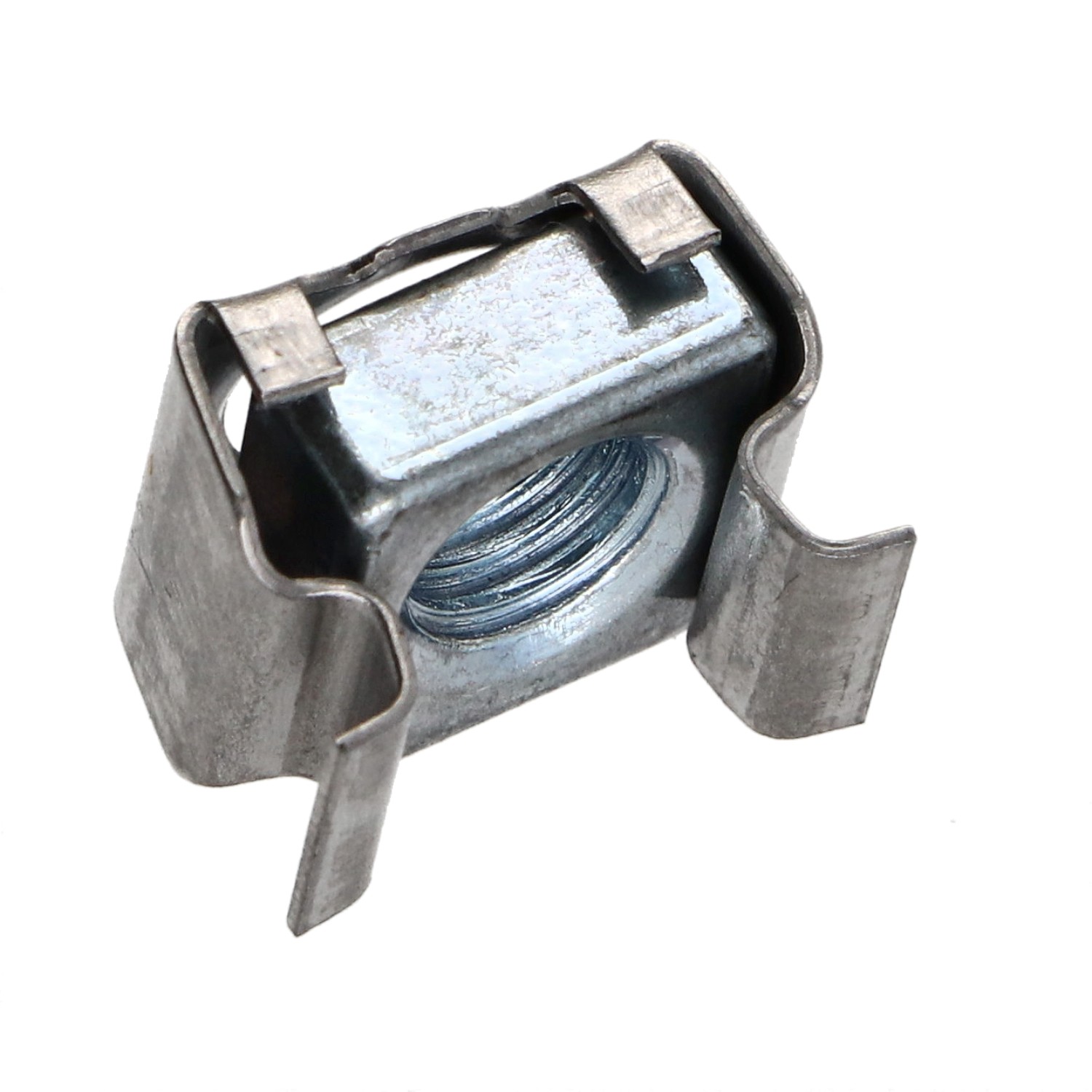

Caged Nut Stainless Steel Zinc Plated C4806B M6 Thickness Material 1.7 to 2.5
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
M6
Product Family
Nut
Use
External
Grip range
1.7 to 2.5 MM
Unit weight
3.28 GR
44793 Items
3663072090927
Caged Nut Stainless Steel Zinc Plated C4806B M6 Thickness Material 1.7 to 2.5
Diameter = M6, Use = External, Product Family = Nut

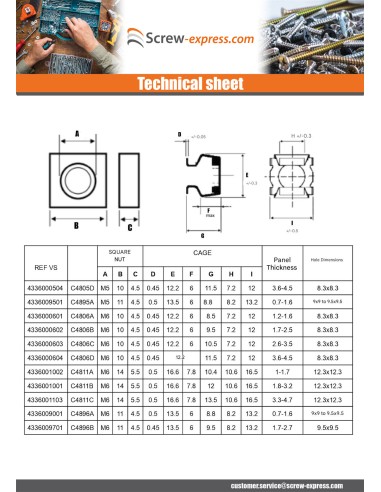

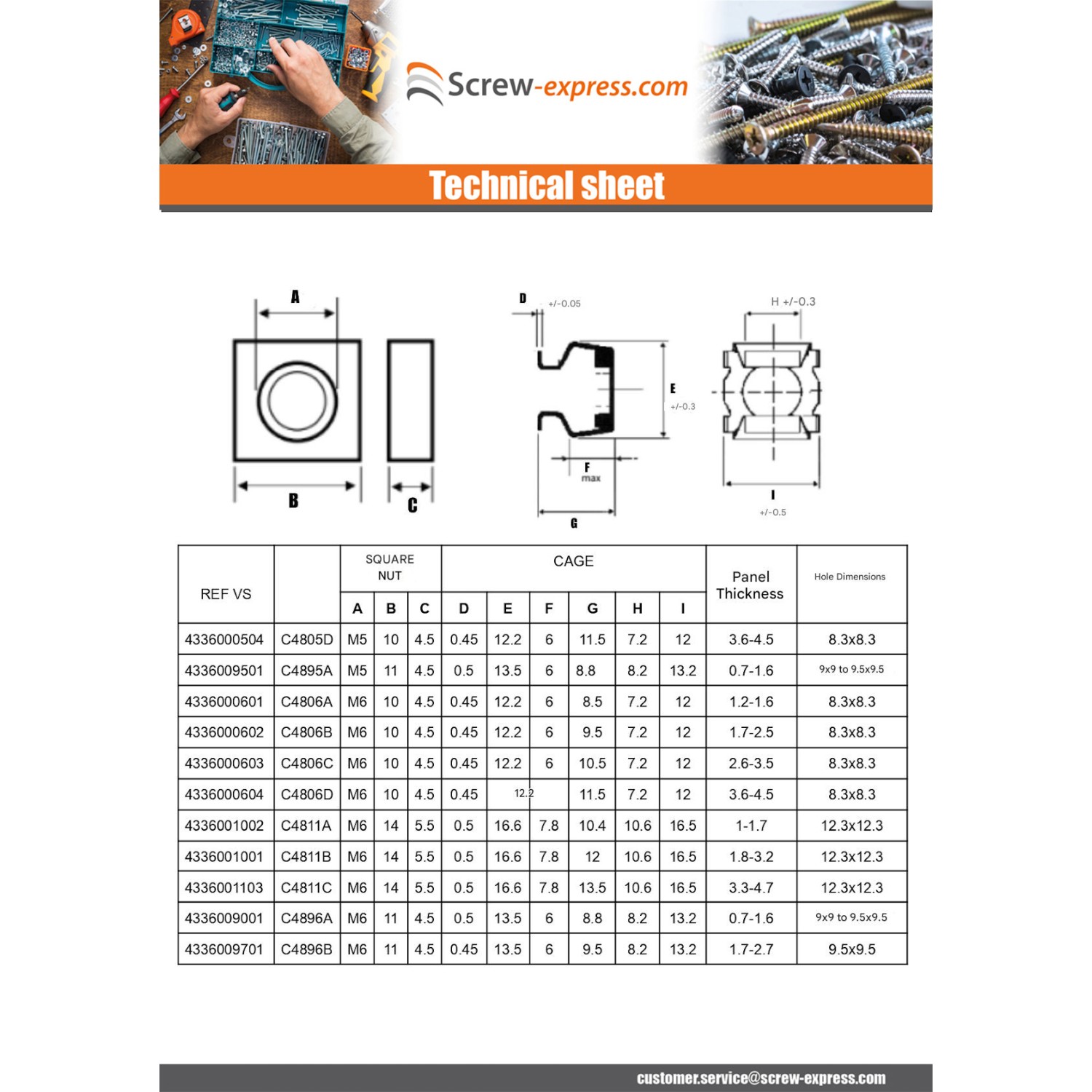

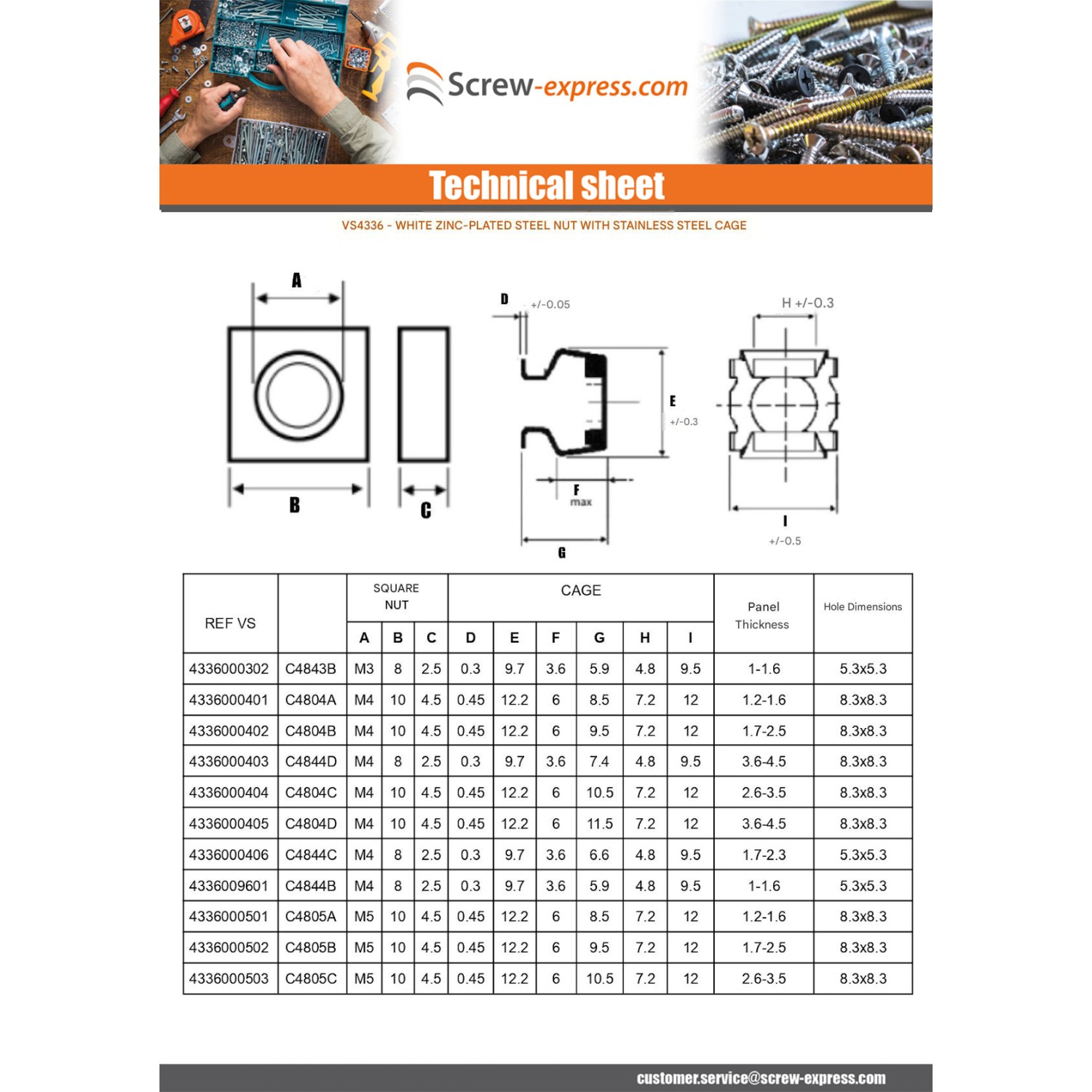

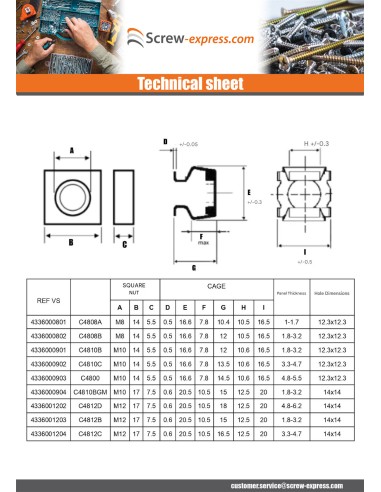

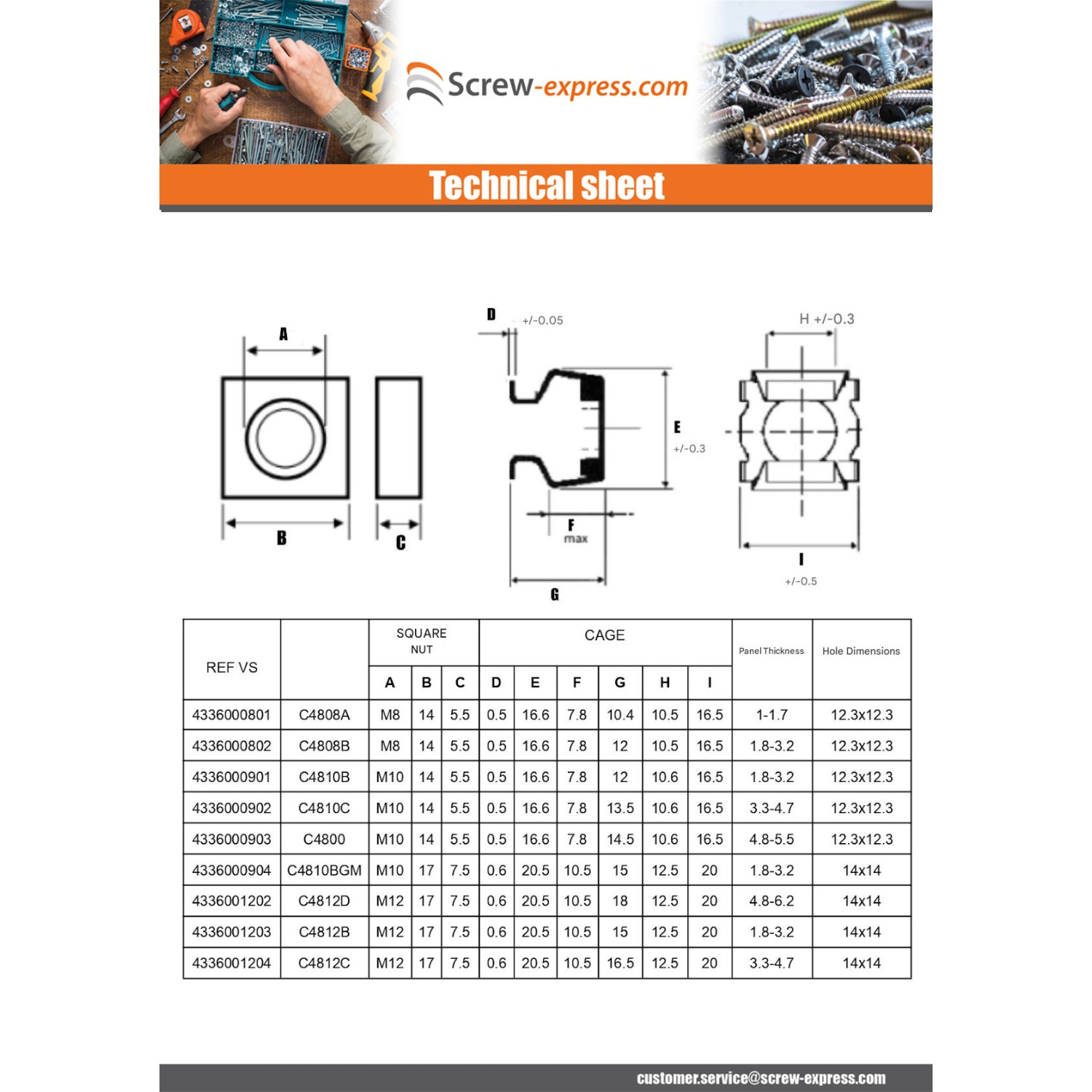

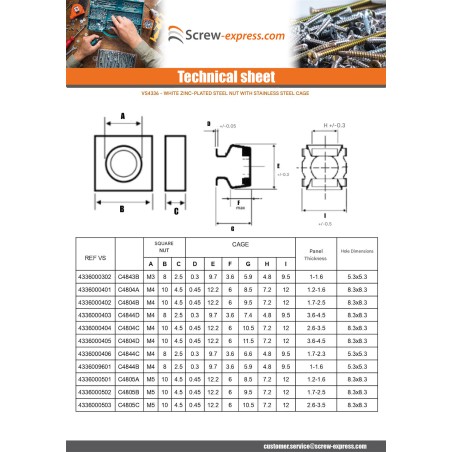

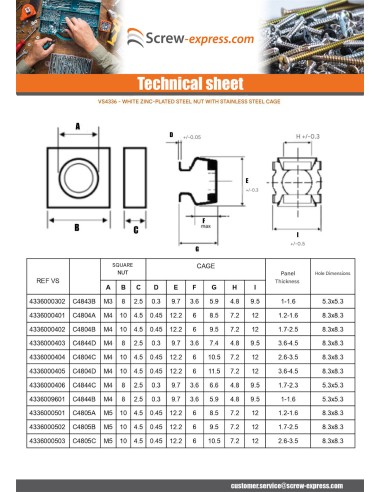

dimensional guide (mm)
Diameter M3 M4 M4 M4 M4 M5 M5 M5 M5 M5 M6 M6 M6 M6 M6 M6 M6 M6 M6 M10 M12 M12 M12
EPAISEUR PANNEAU 1A1.6 1A1.6 2.4A3.1 1.2A1.6 1.7A2.5 1.2A1.6 1.7A2.5 2.6A3.5 3.6A4.5 0.7A1.6 1.2A1.6 1.7A2.5 2.6A3.5 3.6A4.5 1A1.7 1.8A3.2 3.3A4.7 0.7A1.6 1.7A2.7 3.3A4.7 1.8A3.2 3.3A4.7 4.8A6.2
REF. C4843B C4844B C4844D C4804A C4804B C4805A C4805B C4805C C4805D C4895A C4806A C4806B C4806C C4806D C4811A C4811B C4811C C4896A C4896B C4810C C4812B C4812C C4812D
DIMENSION CARRE 9.3 9.3 9.3 12 12 12 12 12 12 13 12 12 12 12 16 16 16 13 13 16 20 20 20
HAUTEUR 5.9 5.9 7.4 8.5 9.5 8.5 9.5 10.5 11.5 8.8 8.5 9.5 10.5 11.5 10.4 11.9 13.4 8.8 10 13.4 14.7 16.2 17.7

Other Reference : DG836B FI 0001041 7322306 9718950 ECROUCAGEC48 0411073 05170231 05170231 78300.4806B AC001236 EC/AC/CG/M06 VIS SER 0035 ECI6.17.25 C4806BA WUR093300614 008740 673433 ecm6x1.7 65253 65253 ECRCAGM6ZC ECROC4896-AM 06AECAG4806 K300230601 993633 ECRCM5 141087 12467 K300230601 K300230601 K300230601 1017122 021415 VIS006EC002 EC 0043 A EC0300 BAB00001 06AECAG4806 121200000 V001289 ECC4806B 10107 M78692157 141081 EC 0043 A 115727 5 BR 61100 V001289 9507200 ECG-M06-005-B FE0371 2M0030 CO511002 319199 9718950 25450006 23100043 9718950 480006 3663072090927
METALTECH LEGIRET B. (vis-express.fr)
2025-12-21

PV mounting For photovoltaic shade structures


Kevin M. (vis-express.fr)
2025-08-24

Installing cage nuts on TV screen brackets
