1 x Machine Screw Socket Head Hexagon Recess...

1 x Machine Screw Socket Head Hexagon Recess Hexagon Socket 1.5 M3X10 Cone Point Zinc Plated micro screw

4618301002_1
In stock 4309 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £3.04 £6.12 £7.29 £9.20

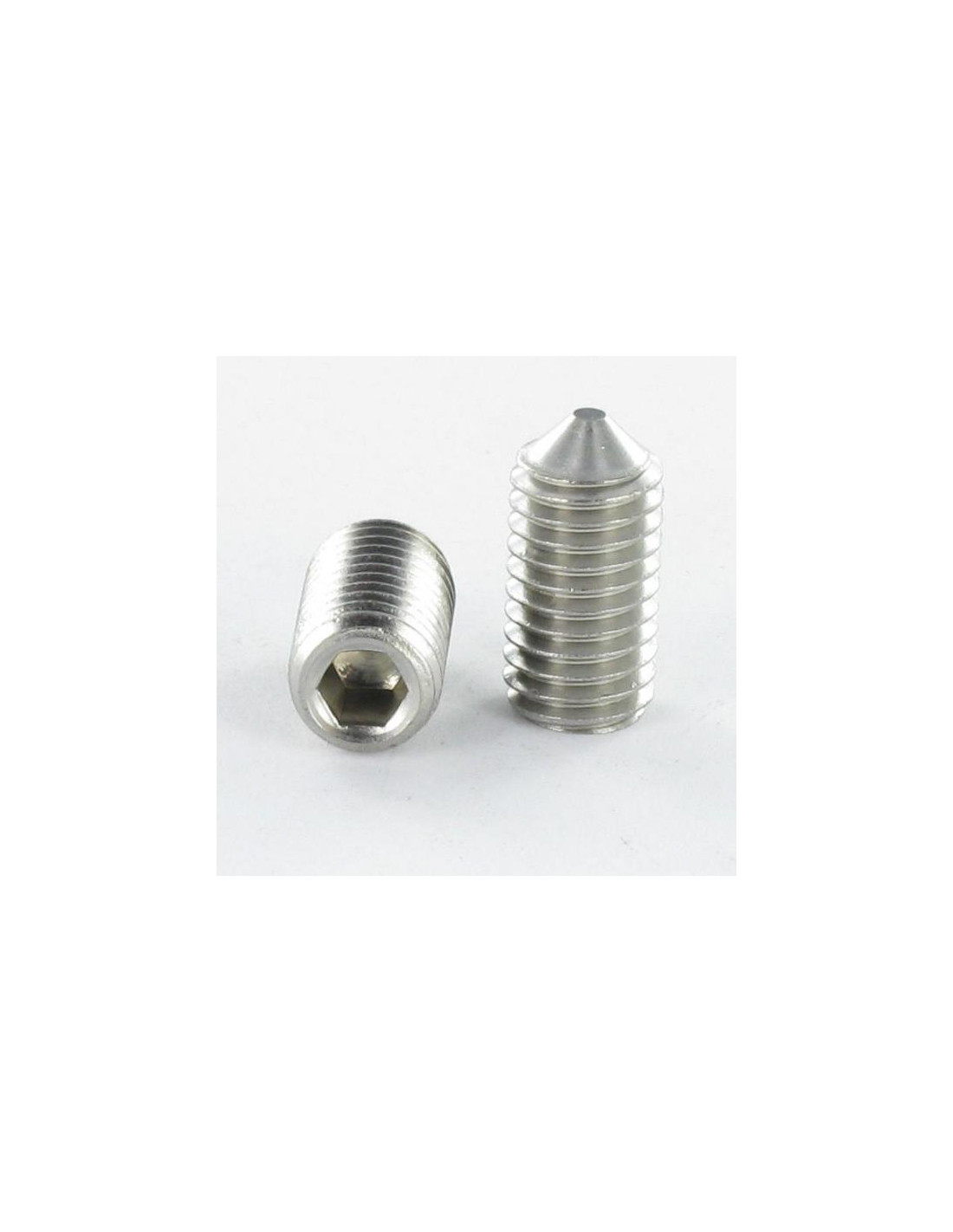

DIN 914 - Machine Screw Socket Head Hexagon Recess Hexagon Socket 1.5 M3X10 Cone Point Zinc Plated micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
10
Thread
Metal
Drive Type
Socket Cap
Size Drive Type
Hexagon Socket 1.5
Pitch
Standard pitch 50
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 914
Product Family
Screw Set Screw / MICROVIS
Sub product family
Set Screw HEXA. With Hole
Tip
Cone Point
Diameter in mm
2.974 - 2.835
Unit weight
0.35 GR
4309 Items
3663072103283
Machine Screw Socket Head Hexagon Recess Hexagon Socket 1.5 M3X10 Cone Point Zinc Plated micro screw
Diameter = M3, Length = 10, Coating = ZINGUE White, Sub Product Family = Set Screw HEXA. With Hole, Material = Steel, Pitch = Standard pitch 50, Drive Type = Socket Cap, Norm = DIN 914, Product Family = Screw Set Screw / MICROVIS, Size Drive Type = Hexagon Socket 1.5


dimensional guide (mm)
Diameter M2 M2.5 M3 M4 M5 ML6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M30
Across flats 0.9 1.3 1.5 2 2.5 3 4 5 6 6 8 10 10 12 12 14

Other Reference : 3617501063020 VIVMASTHC3X1 3663072103283
