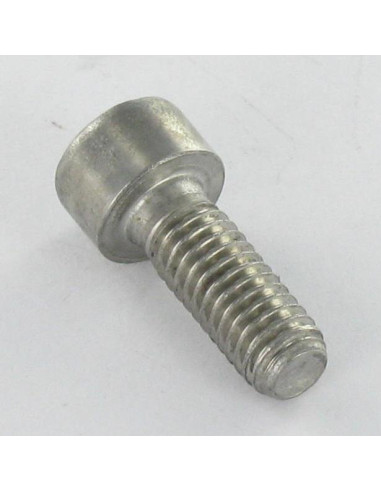

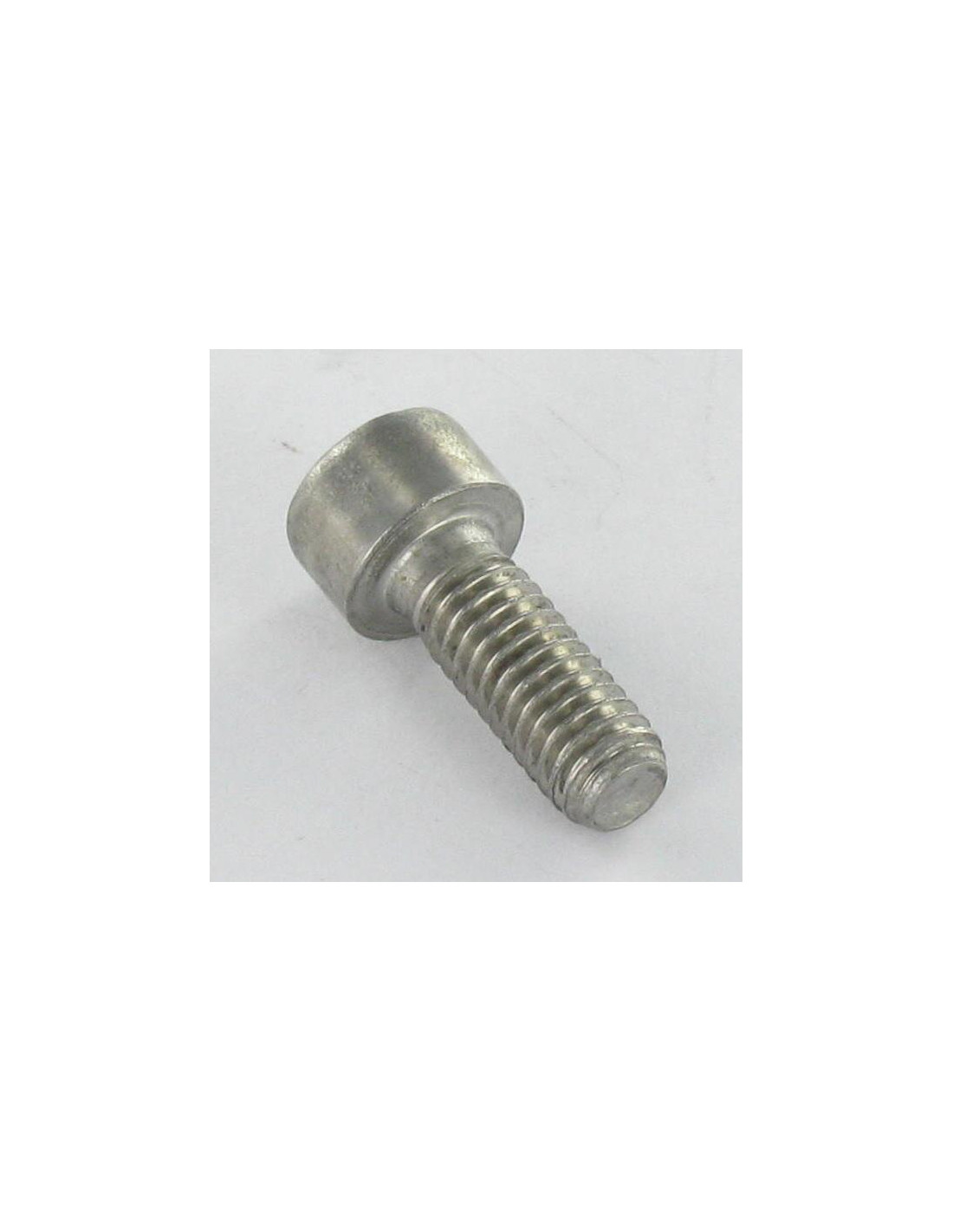

1 x Machine Screw Socket Head M10X16 Hexagon...

1 x Machine Screw Socket Head M10X16 Hexagon Socket 8 Full Thread Stainless Steel A4

8820101618_1
In stock 727 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included €3.85 €7.70 €12.30 €41.10
DIN 912 ISO 4762 - Machine Screw Socket Head M10X16 Hexagon Socket 8 Full Thread Stainless Steel A4
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
M10
Length
16
Thread
Metal
Drive Type
Socket Cap
Size Drive Type
Hexagon Socket 8
Pitch
Standard pitch 150
Material
Stainless Steel A4
COLOR
Grey
Norm
DIN 912 ISO 4762
Product Family
Machine Screw
Sub product family
Head Socket Head BTR
Diameter in mm
9.968 - 9.752
Unit weight
20.9 GR
727 Items
3663072185456
Machine Screw Socket Head M10X16 Hexagon Socket 8 Full Thread Stainless Steel A4
Diameter = M10, Length = 16, Material = Stainless Steel A4, Pitch = Standard pitch 150, Drive Type = Socket Cap, Norm = DIN 912 ISO 4762, Product Family = Machine Screw, Size Drive Type = Hexagon Socket 8


dimensional guide (mm)
DiameterM1.4M1.6M2M2.5M3M4M5M6M7M8M10M12M14M16M18M20M22M24M27M30M33M36M42M48M56
Across flats1.31.51.522.53456681012141417171919222427323641
Head diameter2.633.84.55.578.5101213161821242730333640455054637284
Head tickness1.41.622.5345678101214161820222427303336424856
Thread length1415161718202224262832364044485256606672788496108124

Other Reference : 6420110X16 FVISCHC916 PMM1172 020700310 3663072185456
