1 x Machine Screw Socket Head M6X8 Full Thread Class 8.8 Hexagon Socket 5 Zinc Plated +FRF
1 x Machine Screw Socket Head M6X8 Full Thread Class 8.8 Hexagon Socket 5 Zinc Plated +FRF
1 x Machine Screw Socket Head M6X8 Full Thread...
1 x Machine Screw Socket Head M6X8 Full Thread...

1 x Machine Screw Socket Head M6X8 Full Thread Class 8.8 Hexagon Socket 5 Zinc Plated +FRF

4620600890_1
In stock 12097 Pièces
€0.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €0.50 €1.95 €5.85 €39.10

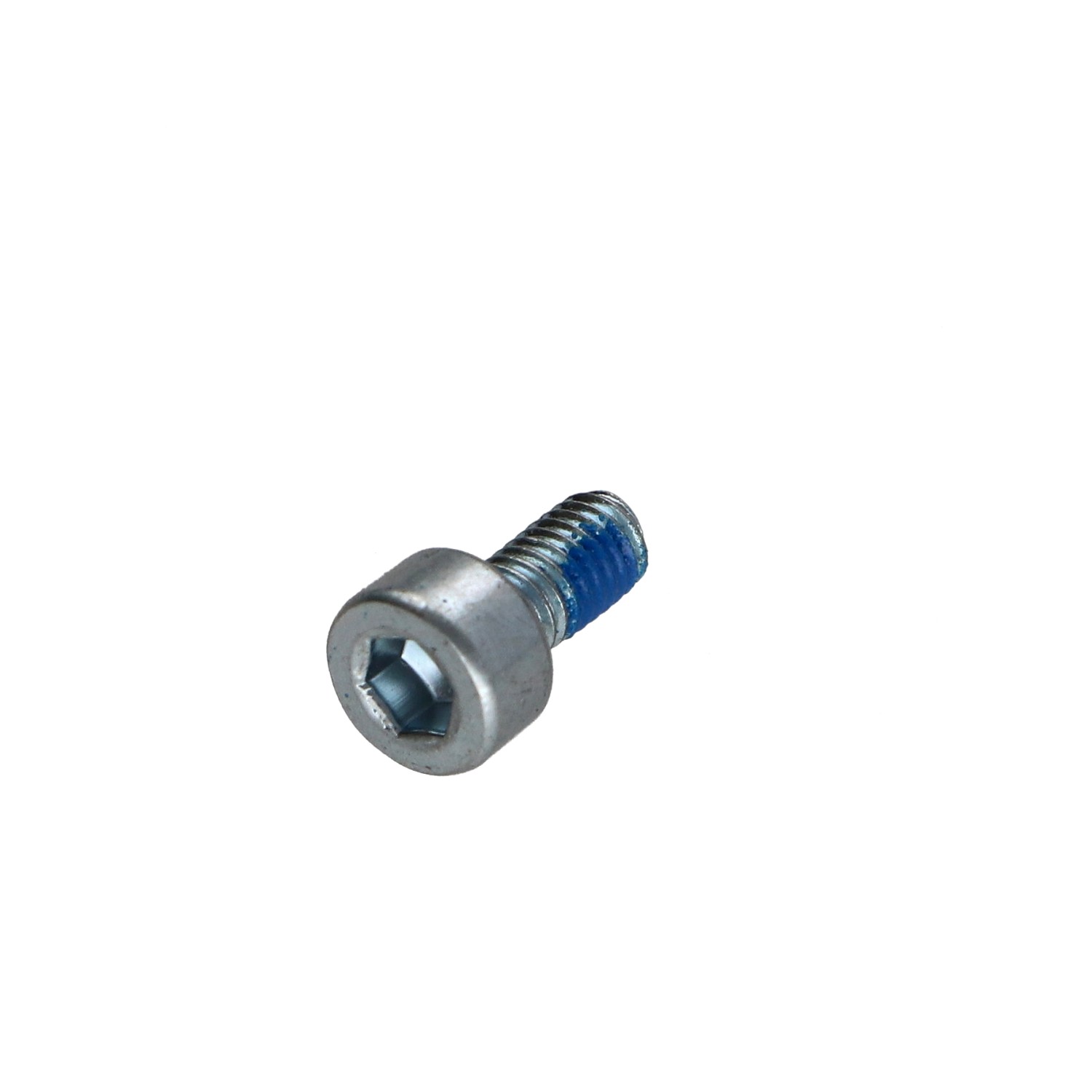

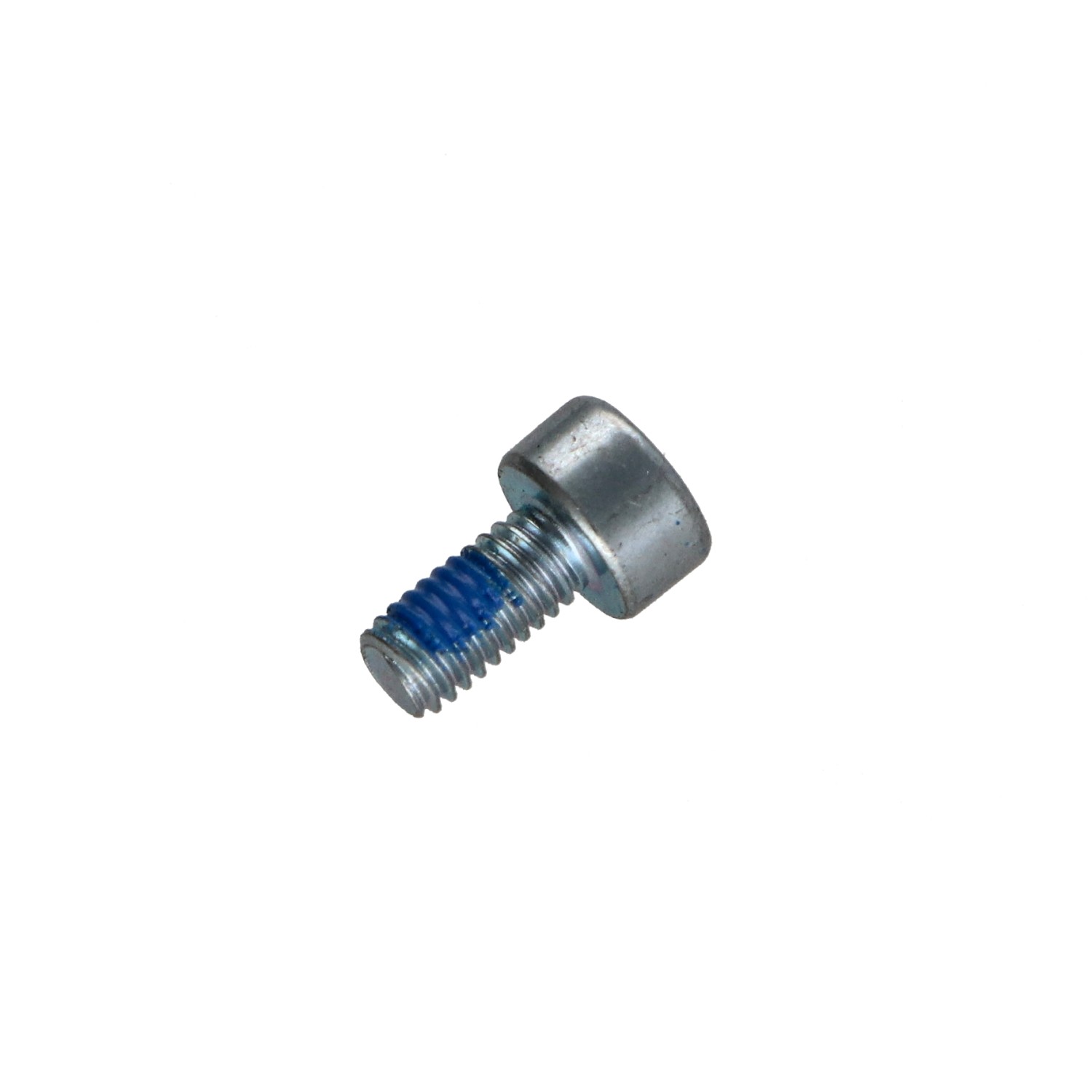

DIN 912 ISO 4762 - Machine Screw Socket Head M6X8 Full Thread Class 8.8 Hexagon Socket 5 Zinc Plated +FRF
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

12097 Items
3663072130784
Machine Screw Socket Head M6X8 Full Thread Class 8.8 Hexagon Socket 5 Zinc Plated +FRF
Diameter = M6, Length = 8, Coating = Zinc Plated, Class = Class 8.8, Material = Steel, Pitch = Standard pitch 100, Drive Type = Socket Cap, Norm = DIN 912 ISO 4762, Product Family = Machine Screw, Size Drive Type = Hexagon Socket 5


dimensional guide (mm)
Diameter M1.4 M1.6 M2 M2.5 M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M42 M48 M56
Across flats 1.3 1.5 1.5 2 2.5 3 4 5 6 6 8 10 12 14 14 17 17 19 19 22 24 27 32 36 41
Head diameter 2.6 3 3.8 4.5 5.5 7 8.5 10 12 13 16 18 21 24 27 30 33 36 40 45 50 54 63 72 84
Head tickness 1.4 1.6 2 2.5 3 4 5 6 7 8 10 12 14 16 18 20 22 24 27 30 33 36 42 48 56

Other Reference : 3617502069304 3663072130784
