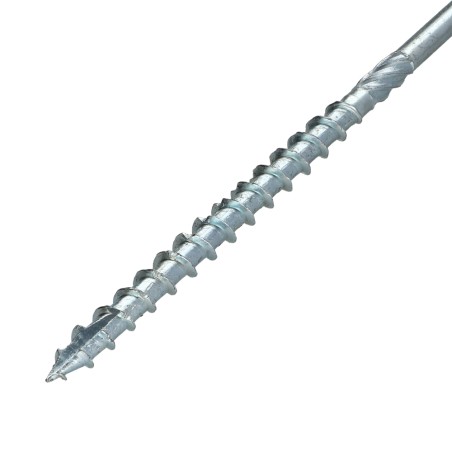

1 x Framing screws TEKOR Countersunk Head With Serration T40 8X400 Thread Length: 80 cut Type 17 Drilling Point Zinc

1 x Framing screws TEKOR Countersunk Head With...

1 x Framing screws TEKOR Countersunk Head With Serration T40 8X400 Thread Length: 80 cut Type 17 Drilling Point Zinc

Name: 1 x Framing screws TEKOR Countersunk Head With Serration T40 8X400 Thread Length: 80 cut Type 17 Drilling Point Zinc
Brand: Tekor
SKU: 2040840002
Price: 4.25 EUR
Availability: InStock

Reference 2040840002_1

In stock 660 Pièces

€4.25 Incl VAT

Decreasing prices by quantity

Number of pieces	1	5	20	50
Lot price VAT included	€4.25	€14.30	€57.25	€143.15

Framing screws TEKOR Countersunk Head With Serration T40 8X400 Thread Length: 80 cut Type 17 Drilling Point Zinc Plated

Packaging

1 unit
5 units
20 units
50 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: 8
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 400
Drive Type: Torx
Size Drive Type: T40
Material: Steel
Coating: ZINGUE White

ZINGUE White

Zinc plating 3 to 5 µm

All our zinc-plated parts meet this specification (unless otherwise stated).

🛡️ Corrosion protection: low
Thin 3 to 5 µm zinc coating, suitable for environments with low exposure.

🧂 Salt spray resistance: 24 to 96 h
Indicative resistance before the appearance of rust, depending on the coating finish.

🏠 Recommended environment
Indoor applications or environments with very low exposure to moisture.

🔩 Threads preserved
The low coating thickness limits dimensional variations and helps maintain thread accuracy.
COLOR: Grey
Brand: Chipboard Screw Tekor
Product Family: Wood Screws
Sub product family: Countersunk Head
Tip: Drilling Point Type 17
Unit weight: 12 GR

In stock 660 Items

ean13 3663072195943

Application

Structural timber assemblies / light framing: rafters, purlins, joists, frame studs, reinforcements, braces
Timber frame construction: fixing of frame components and bracing
Assembly of pergolas, carports, shelters, wooden frames
Fixing panels to a wooden structure (OSB/CTBX)

Description

Framing screws TEKOR Countersunk Head With Serration T40 8X400 Thread Length: 80 cut Type 17 Drilling Point Zinc Plated
Diameter = 8, Length = 400, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T40, Brand = Chipboard Screw Tekor

dimensional guide (mm)

Diameter	5	6	8	10
Head diameter	10	12	14	18

Other Reference : 3617500584298 3663072195943

Use Cases

Jean-Marc R. (vis-express.fr)
2025-08-03

These screws will be used in the renovation of a frame These TEKOR frame screws Countersunk head TF Slot TORX T40 8X400 Threaded on 80 Anti-splitting point cut type 17 Steel will be used for a frame renovation

Anthony L. (vis-express.fr)
2025-05-04

To fix a b ti support on the brick. Geberit Duofix b ti on brick wall with 13cm polystyrene insulation
