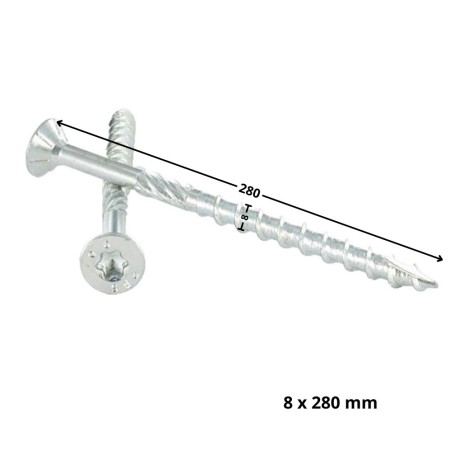

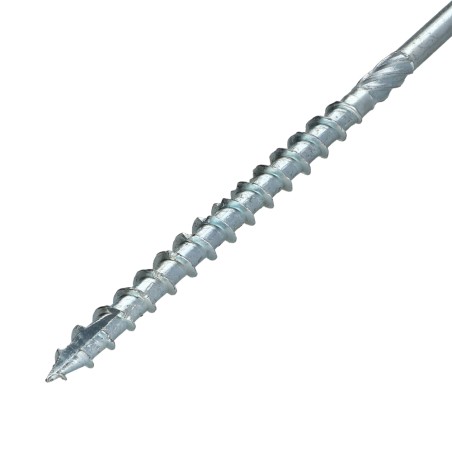

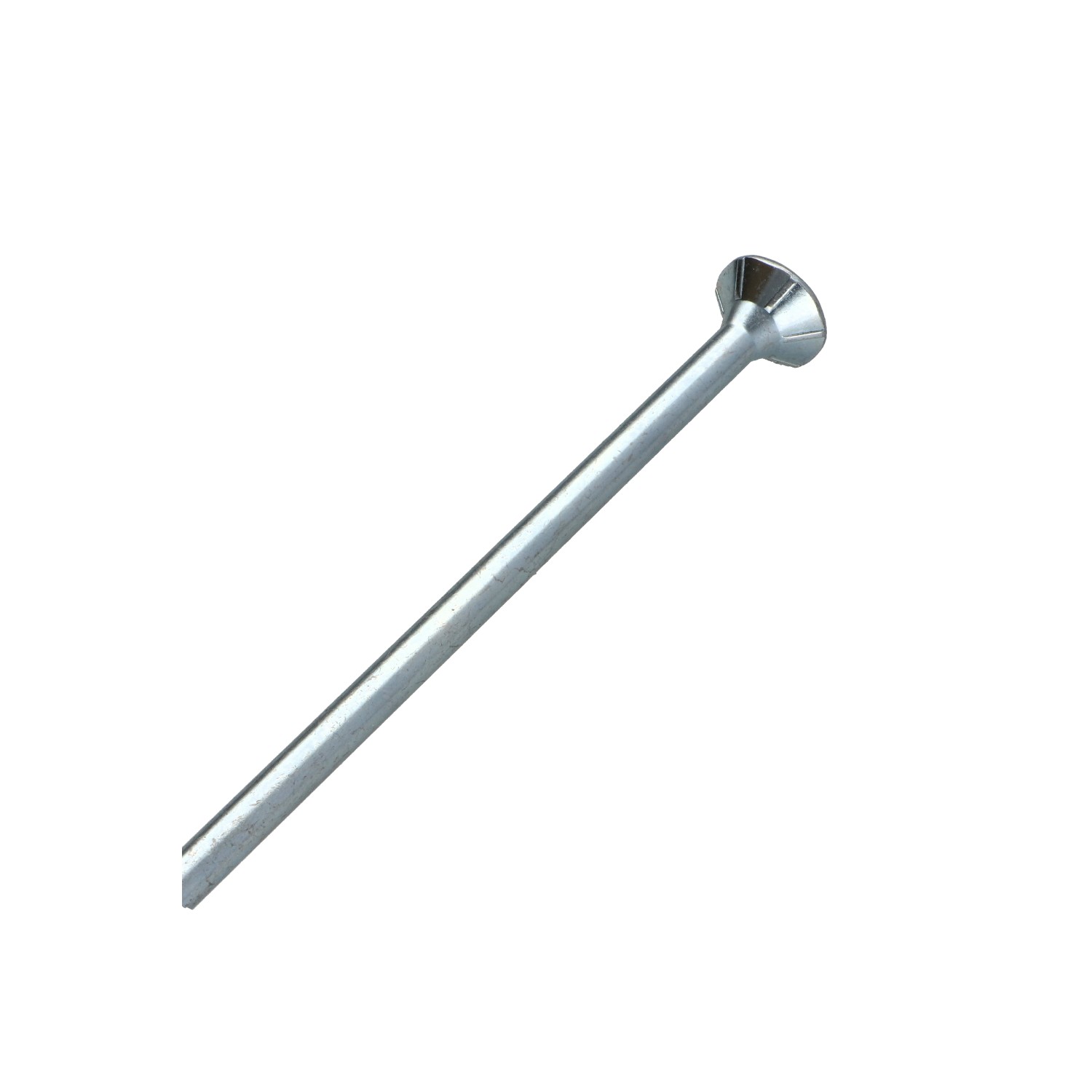

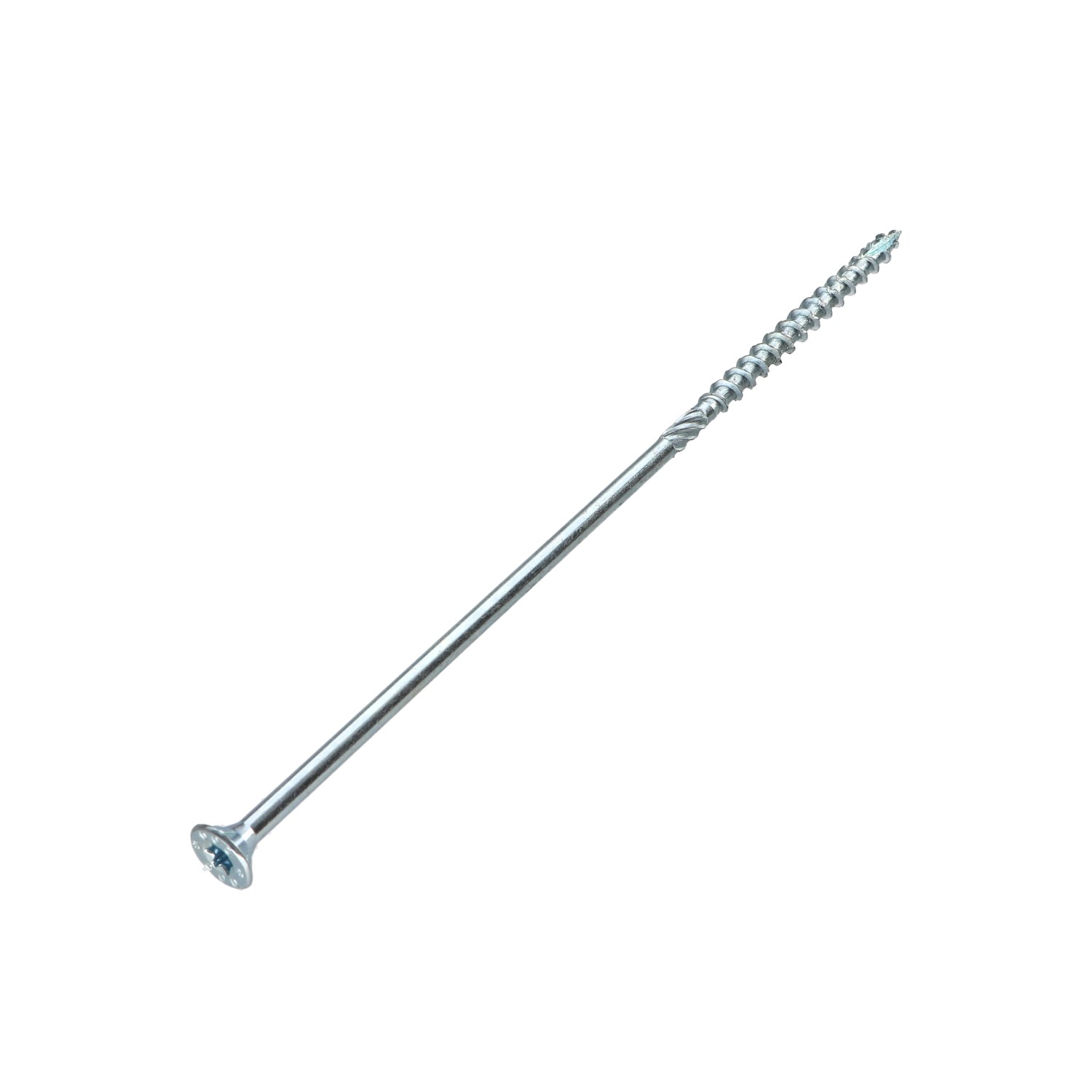

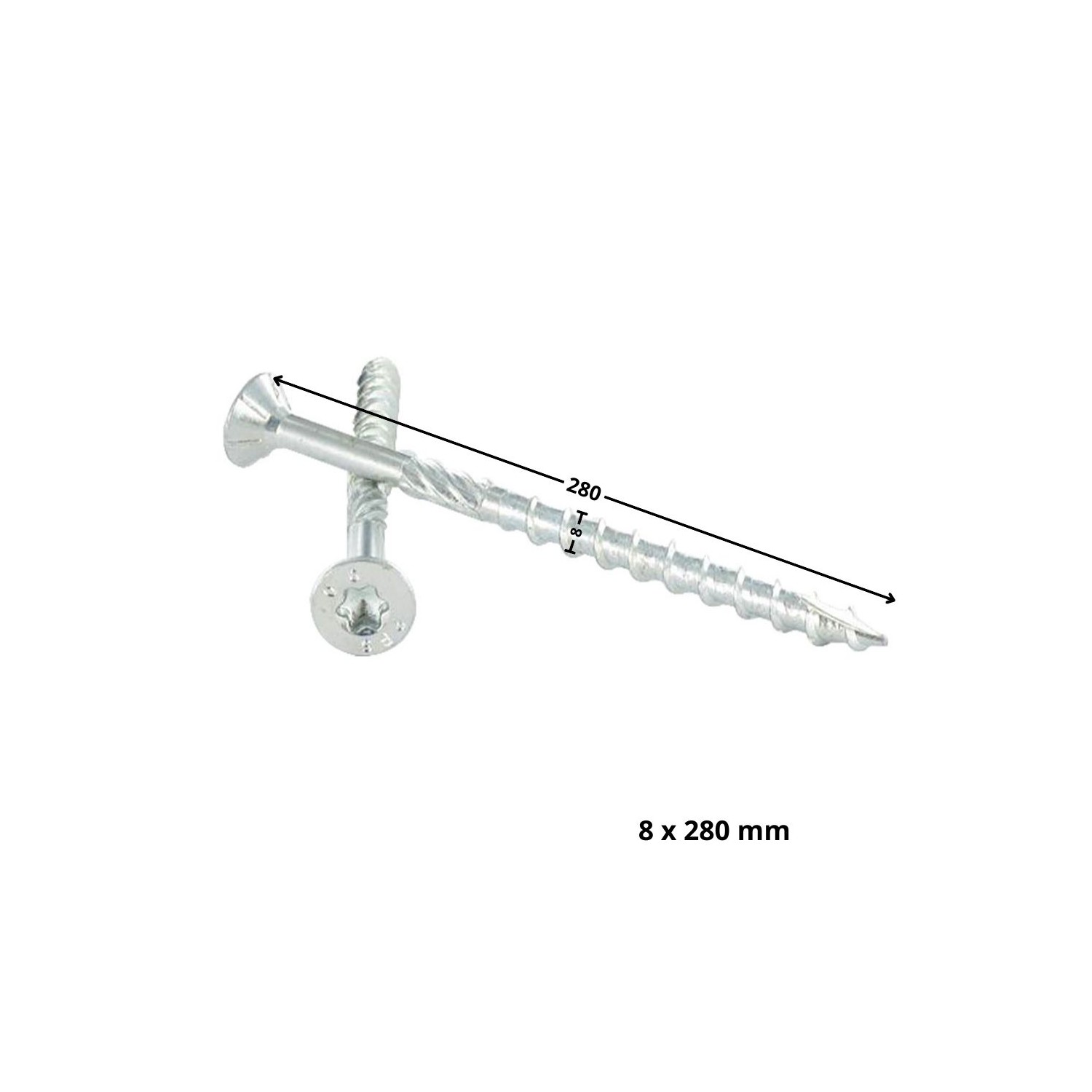

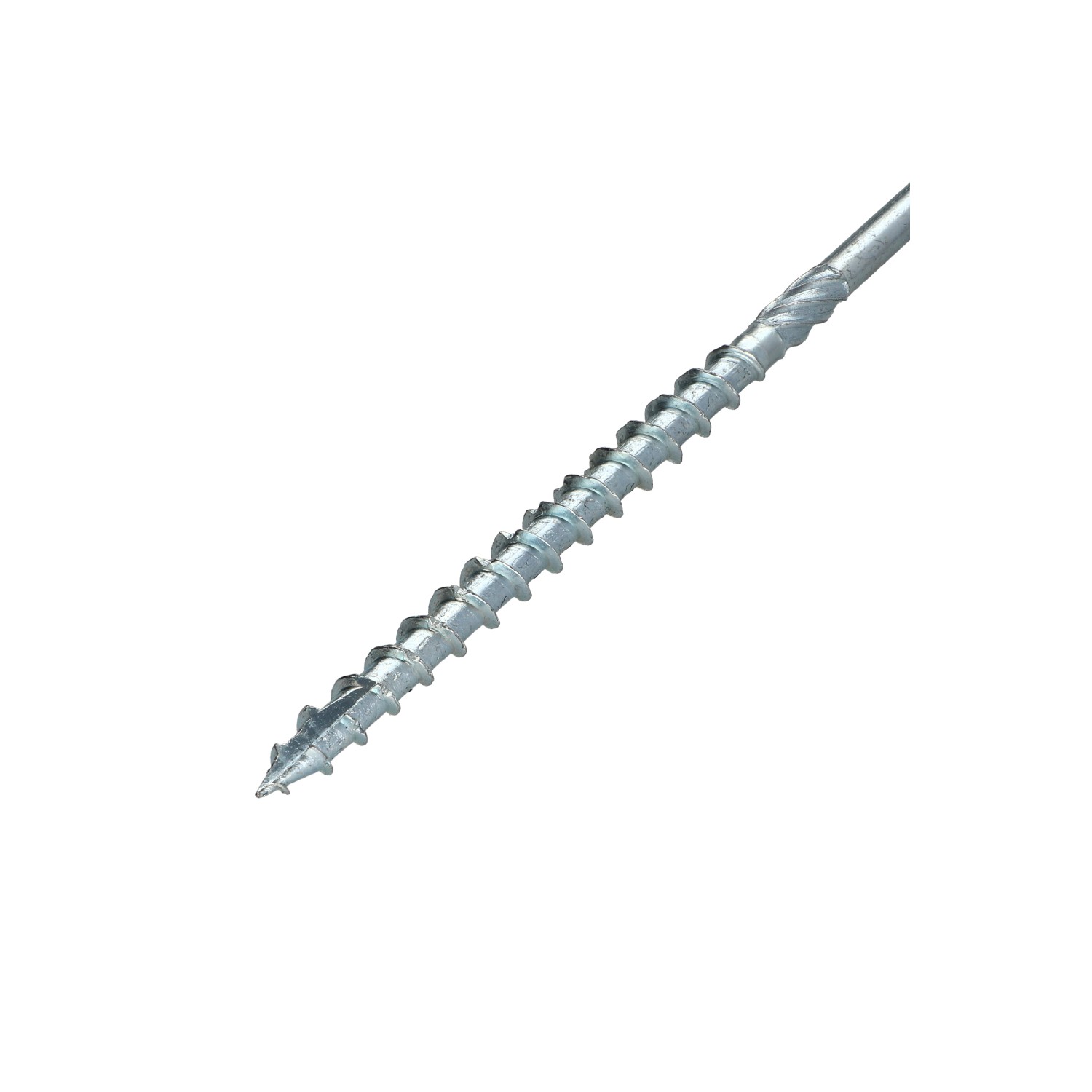

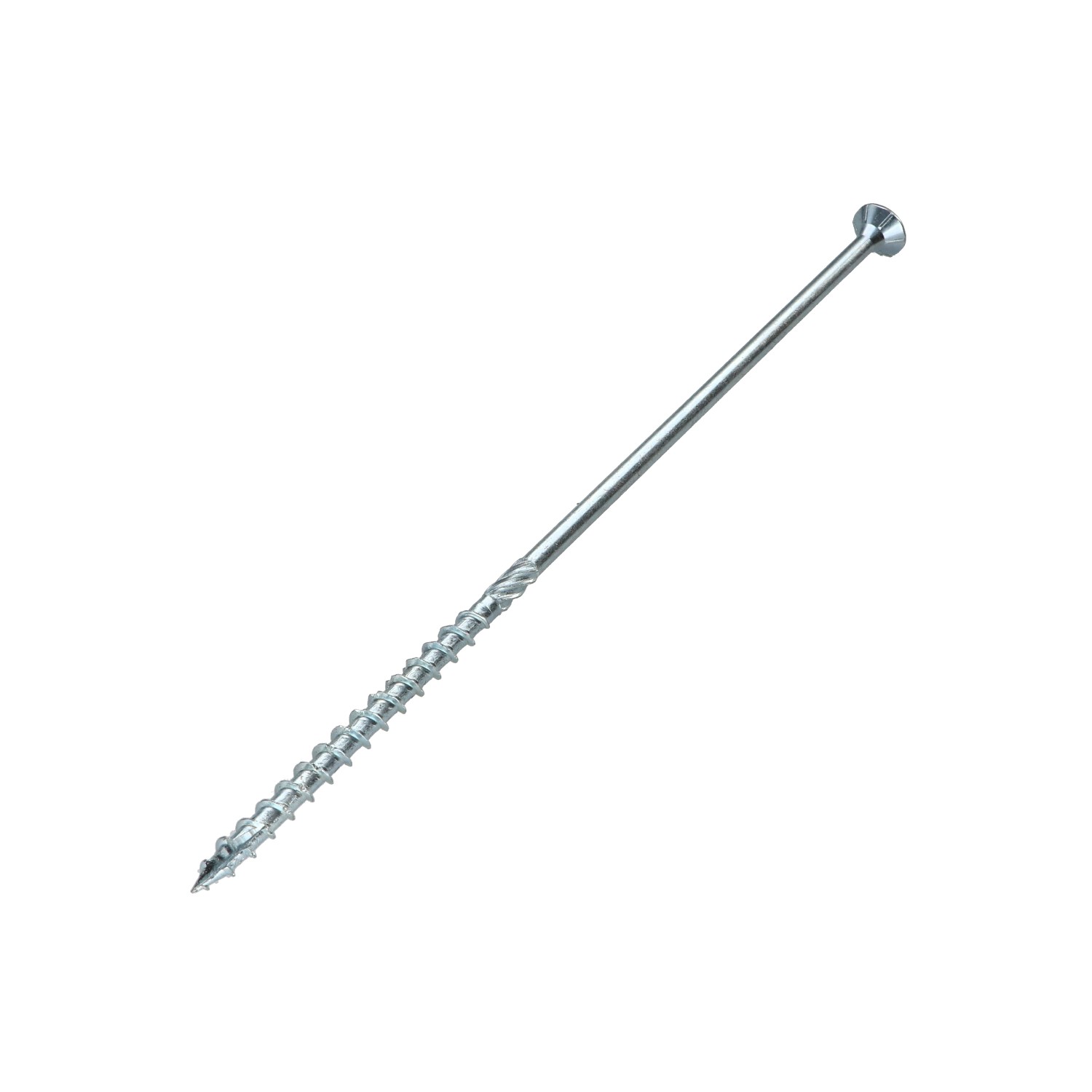

1 x Framing screws TEKOR Countersunk Head With Serration T40 8X280 Thread Length: 100 cut Type 17 Drilling Point Zinc

1 x Framing screws TEKOR Countersunk Head With...

1 x Framing screws TEKOR Countersunk Head With Serration T40 8X280 Thread Length: 100 cut Type 17 Drilling Point Zinc

Name: 1 x Framing screws TEKOR Countersunk Head With Serration T40 8X280 Thread Length: 100 cut Type 17 Drilling Point Zinc
Brand: Tekor
SKU: 2040828002
Price: 1.85 EUR
Availability: InStock

Reference 2040828002_1

In stock 12291 Pièces

€1.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	5	20	50	200
Lot price VAT included	€1.85	€4.90	€19.55	€48.85	€195.50

Framing screws TEKOR Countersunk Head With Serration T40 8X280 Thread Length: 100 cut Type 17 Drilling Point Zinc Plated

Packaging

1 unit
5 units
20 units
50 units
200 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: 8
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 280
Drive Type: Torx
Size Drive Type: T40
Material: Steel
Coating: ZINGUE White

ZINGUE White

Zinc plating 3 to 5 µm

All our zinc-plated parts meet this specification (unless otherwise stated).

🛡️ Corrosion protection: low
Thin 3 to 5 µm zinc coating, suitable for environments with low exposure.

🧂 Salt spray resistance: 24 to 96 h
Indicative resistance before the appearance of rust, depending on the coating finish.

🏠 Recommended environment
Indoor applications or environments with very low exposure to moisture.

🔩 Threads preserved
The low coating thickness limits dimensional variations and helps maintain thread accuracy.
COLOR: Grey
Brand: Chipboard Screw Tekor
Product Family: Wood Screws
Sub product family: Countersunk Head
Tip: Drilling Point Type 17
Unit weight: 60 GR

In stock 12291 Items

ean13 3663072195912

Application

Structural timber assemblies / light framing: rafters, purlins, joists, frame studs, reinforcements, braces
Timber frame construction: fixing of frame components and bracing
Assembly of pergolas, carports, shelters, wooden frames
Fixing panels to a wooden structure (OSB/CTBX)

Description

Framing screws TEKOR Countersunk Head With Serration T40 8X280 Thread Length: 100 cut Type 17 Drilling Point Zinc Plated
Diameter = 8, Length = 280, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T40, Brand = Chipboard Screw Tekor

dimensional guide (mm)

Diameter	5	6	8	10
Head diameter	10	12	14	18

Other Reference : 8032975250953 08327 3663072195912

Use Cases

Claude B. (vis-express.fr)
2026-08-30

Used to fix 200*40 rafters

Emilien L. (vis-express.fr)
2026-08-16

Timber frame assembly

Mickael P. (vis-express.fr)
2026-03-15

Garage frame TEKOR T frame screws, fresh e Crant TORX T40 8X280

Bruno V. (vis-express.fr)
2026-01-18

roof frame roof frame assembly

Marc H. (vis-express.fr)
2025-04-06

Used to assemble a carport frame.

Fabrice F. (vis-express.fr)
2025-03-16

Installation of interior partitions made of logs. Renovation site for a chalet. Modification of the layout of the chalet by recovering the cut logs and reusing them to create new partitions. The logs will be screwed together with the screws ordered on your site. The logs measure 6cm thick and 18cm high.

Gauvain F. (vis-express.fr)
2024-12-08

Fixing rafters to beams for terrace

Jerome J. (vis-express.fr)
2023-11-26

To tinker To tinker
