1 x Framing screws TEKOR Countersunk Head With Serration T40 10X160 Thread Length: 80 cut Type 17 Drilling Point Zinc

1 x Framing screws TEKOR Countersunk Head With...

1 x Framing screws TEKOR Countersunk Head With Serration T40 10X160 Thread Length: 80 cut Type 17 Drilling Point Zinc

Name: 1 x Framing screws TEKOR Countersunk Head With Serration T40 10X160 Thread Length: 80 cut Type 17 Drilling Point Zinc
Brand: Tekor
SKU: 2040116002
Price: 1.85 EUR
Availability: InStock

Reference 2040116002_1

In stock 1474 Pièces

€1.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	5	20	50	200
Lot price VAT included	€1.85	€4.20	€16.90	€42.20	€168.90

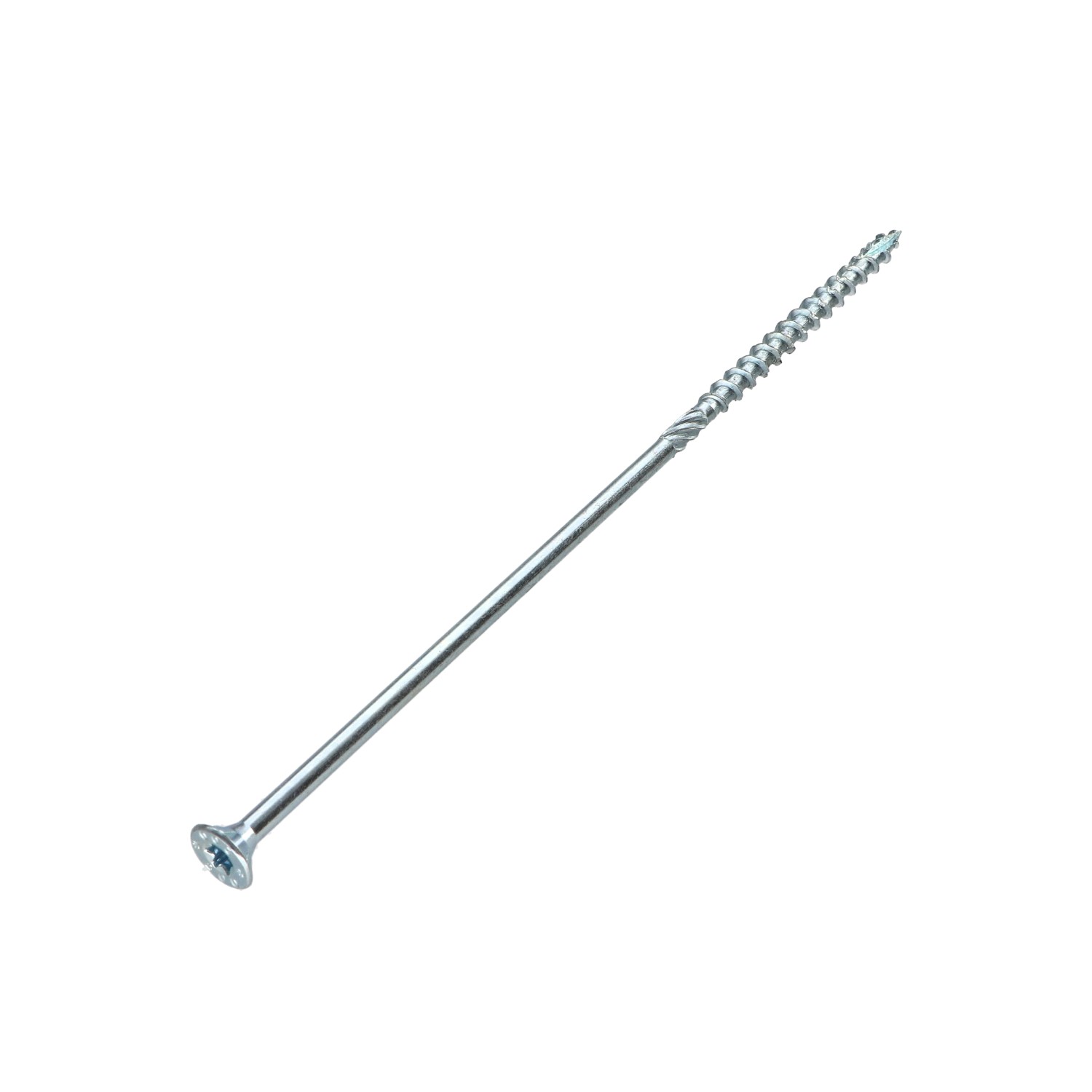

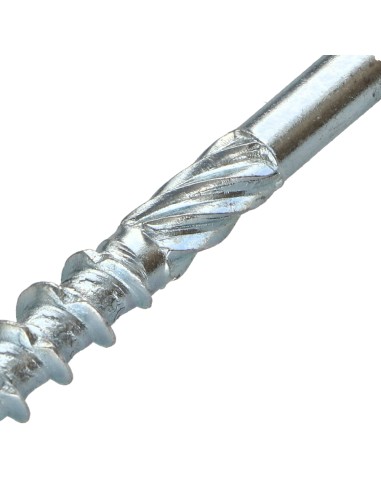

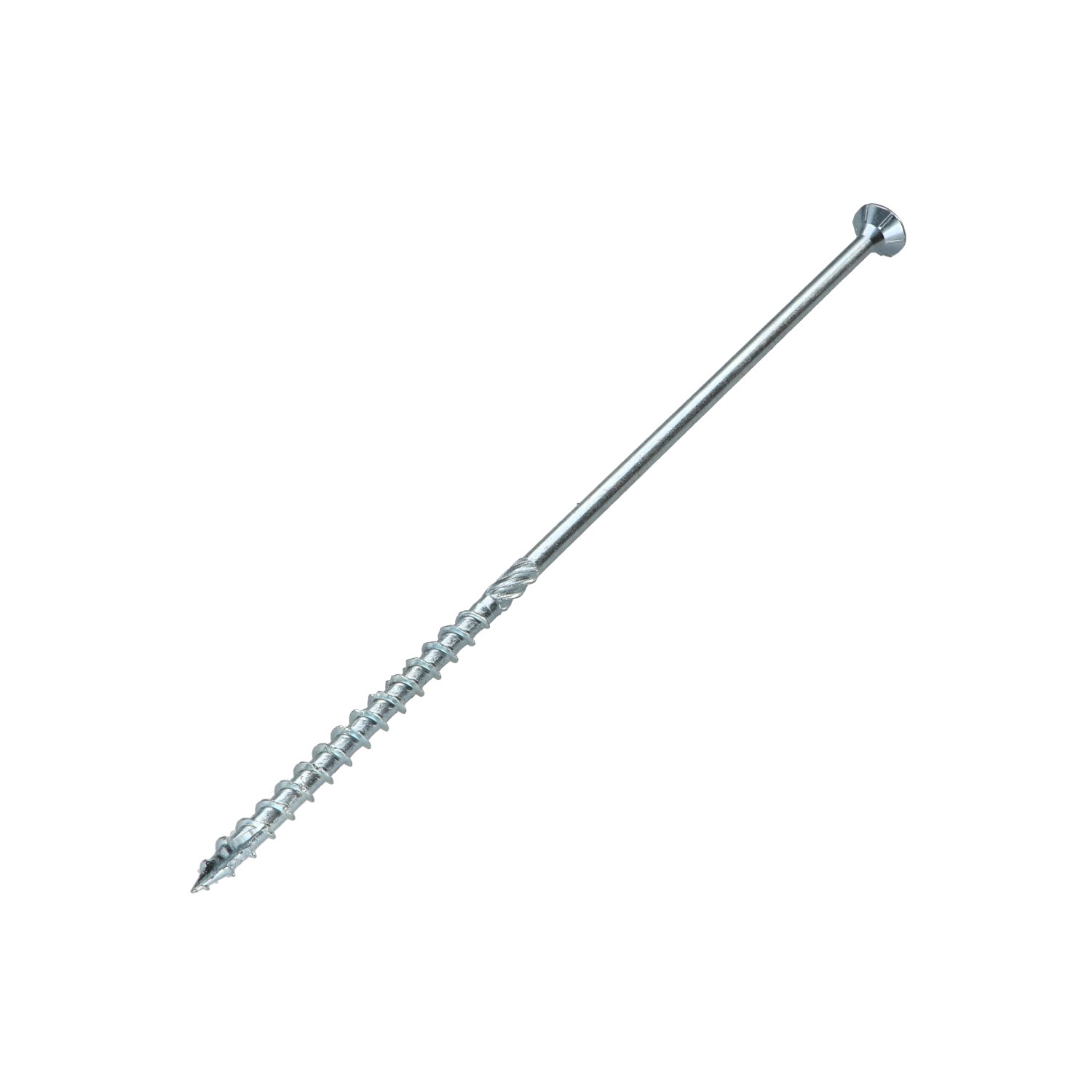

Framing screws TEKOR Countersunk Head With Serration T40 10X160 Thread Length: 80 cut Type 17 Drilling Point Zinc Plated

Packaging

1 unit
5 units
20 units
50 units
200 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

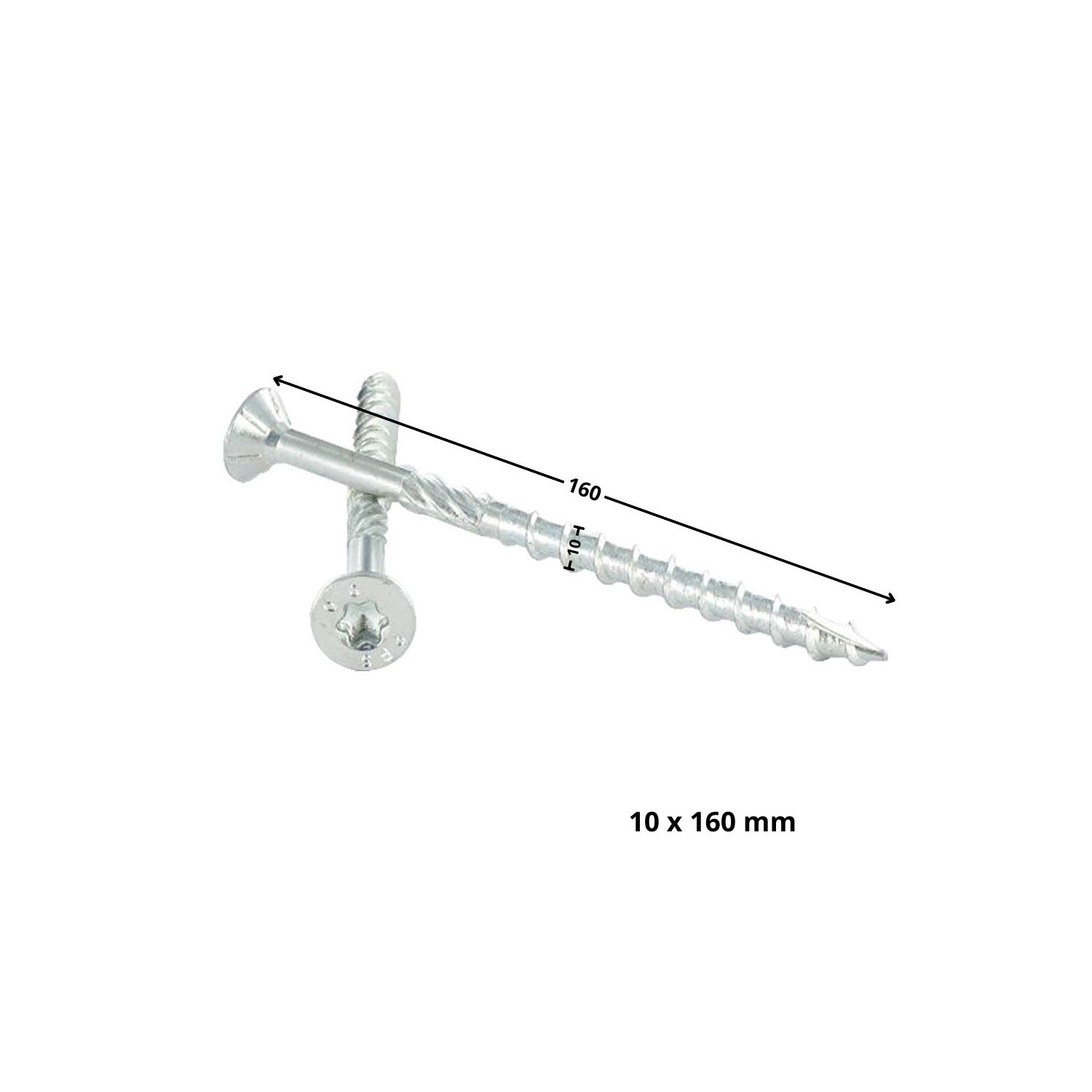

Diameter: 10
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 160

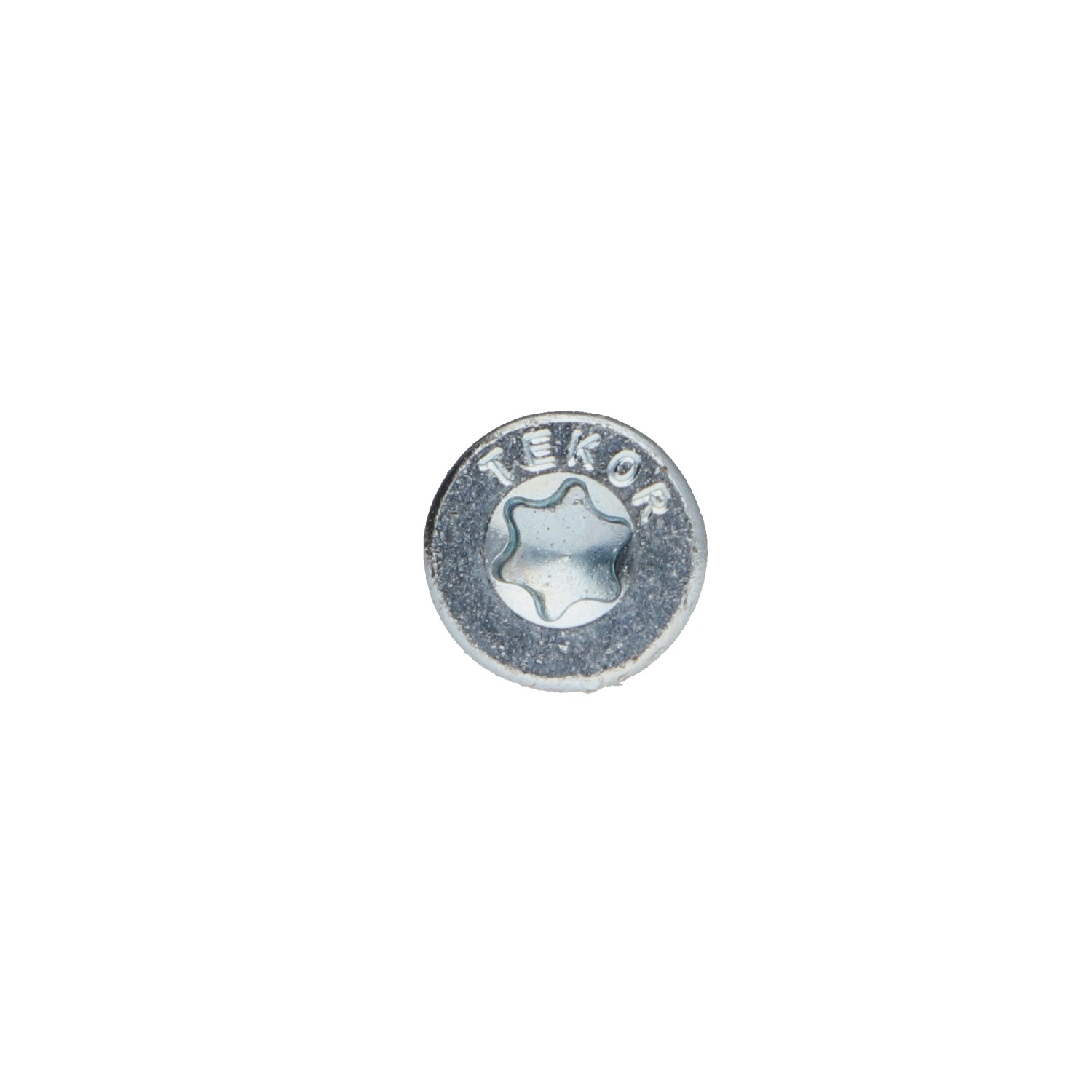

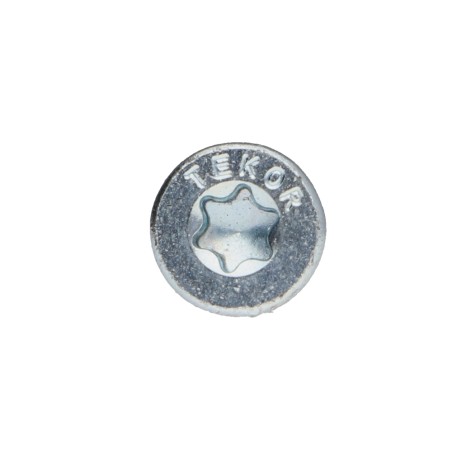

Drive Type: Torx
Size Drive Type: T40
Material: Steel
Coating: ZINGUE White

ZINGUE White

Zinc plating 3 to 5 µm

All our zinc-plated parts meet this specification (unless otherwise stated).

🛡️ Corrosion protection: low
Thin 3 to 5 µm zinc coating, suitable for environments with low exposure.

🧂 Salt spray resistance: 24 to 96 h
Indicative resistance before the appearance of rust, depending on the coating finish.

🏠 Recommended environment
Indoor applications or environments with very low exposure to moisture.

🔩 Threads preserved
The low coating thickness limits dimensional variations and helps maintain thread accuracy.
COLOR: Grey
Brand: Chipboard Screw Tekor
Product Family: Wood Screws
Sub product family: Countersunk Head

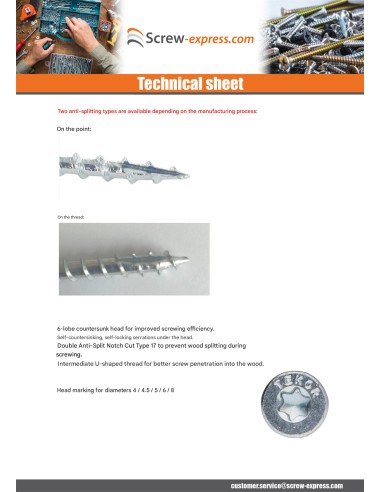

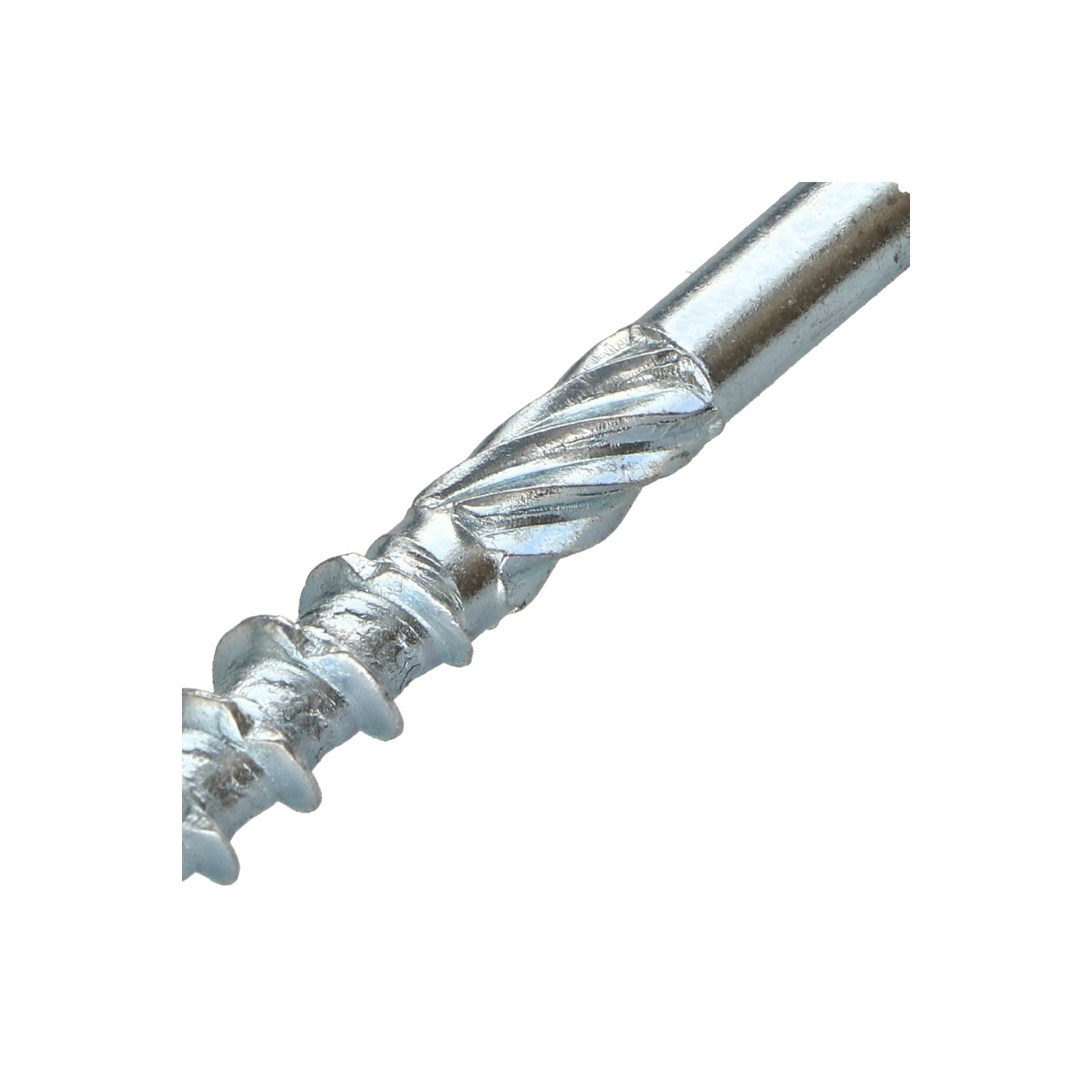

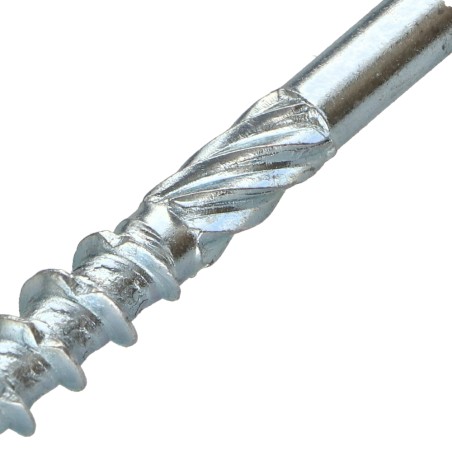

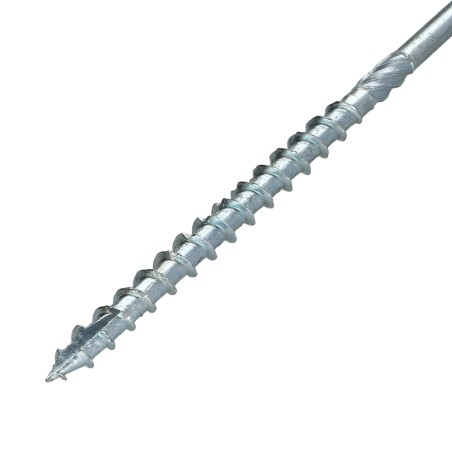

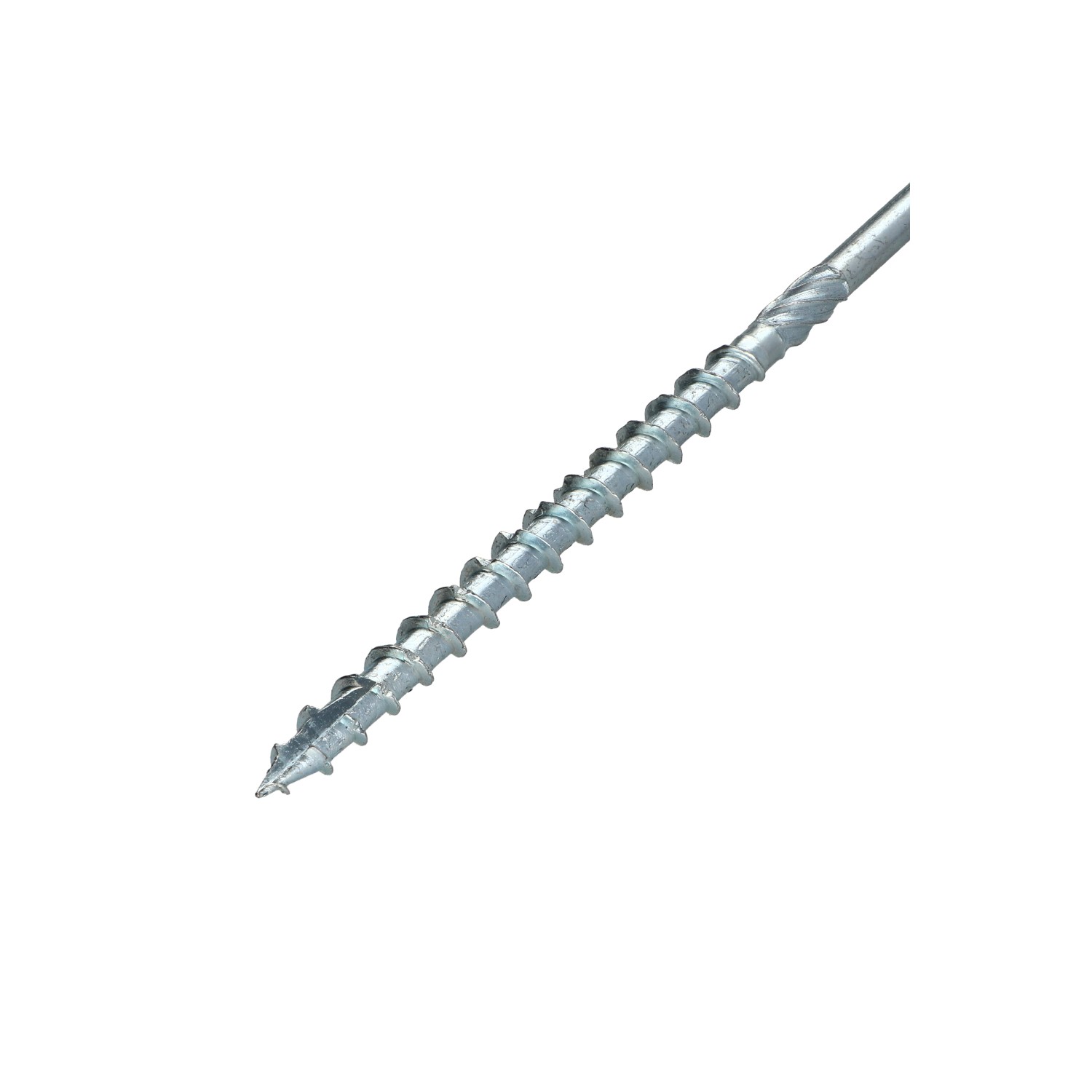

Tip: Drilling Point Type 17
Unit weight: 52.9 GR

In stock 1474 Items

ean13 3663072244627

Application

Structural timber assemblies / light framing: rafters, purlins, joists, frame studs, reinforcements, braces
Timber frame construction: fixing of frame components and bracing
Assembly of pergolas, carports, shelters, wooden frames
Fixing panels to a wooden structure (OSB/CTBX)

Description

Framing screws TEKOR Countersunk Head With Serration T40 10X160 Thread Length: 80 cut Type 17 Drilling Point Zinc Plated

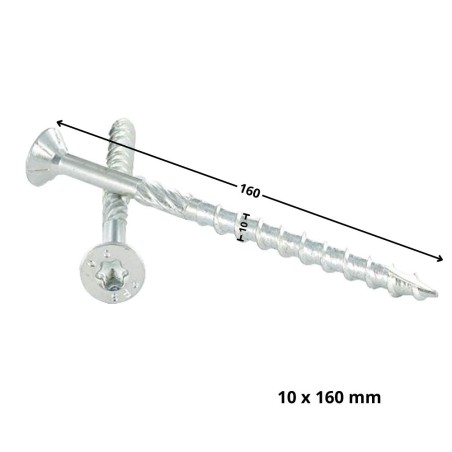

Diameter = 10, Length = 160, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T40, Brand = Chipboard Screw Tekor

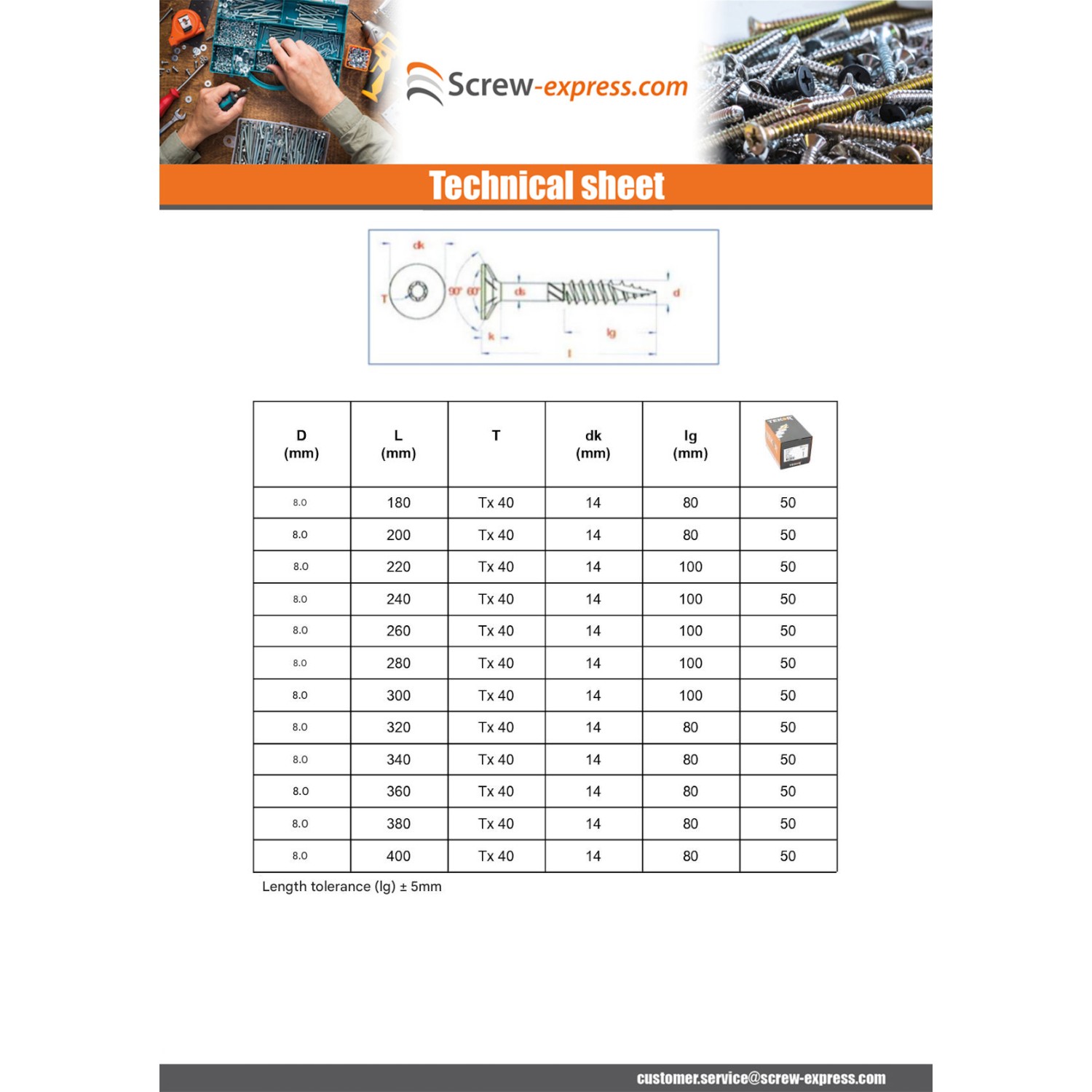

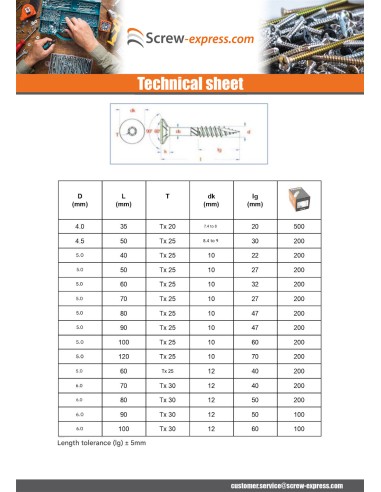

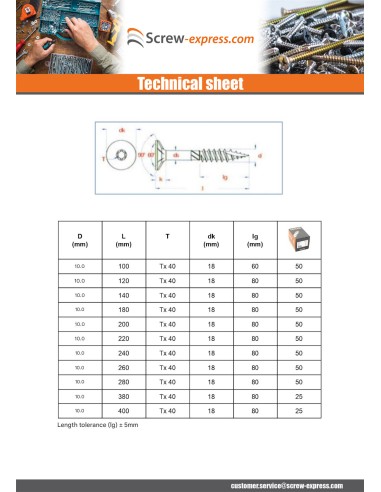

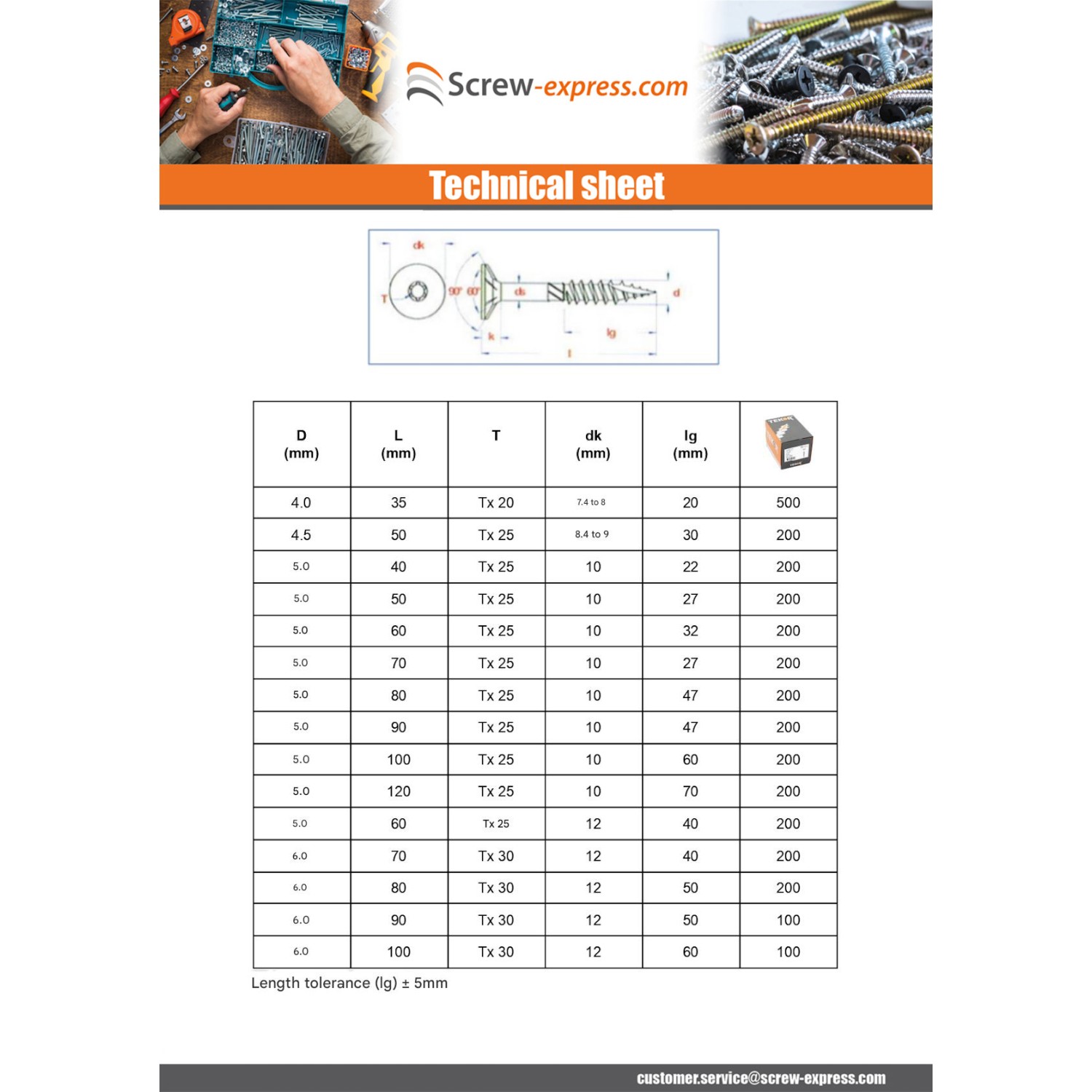

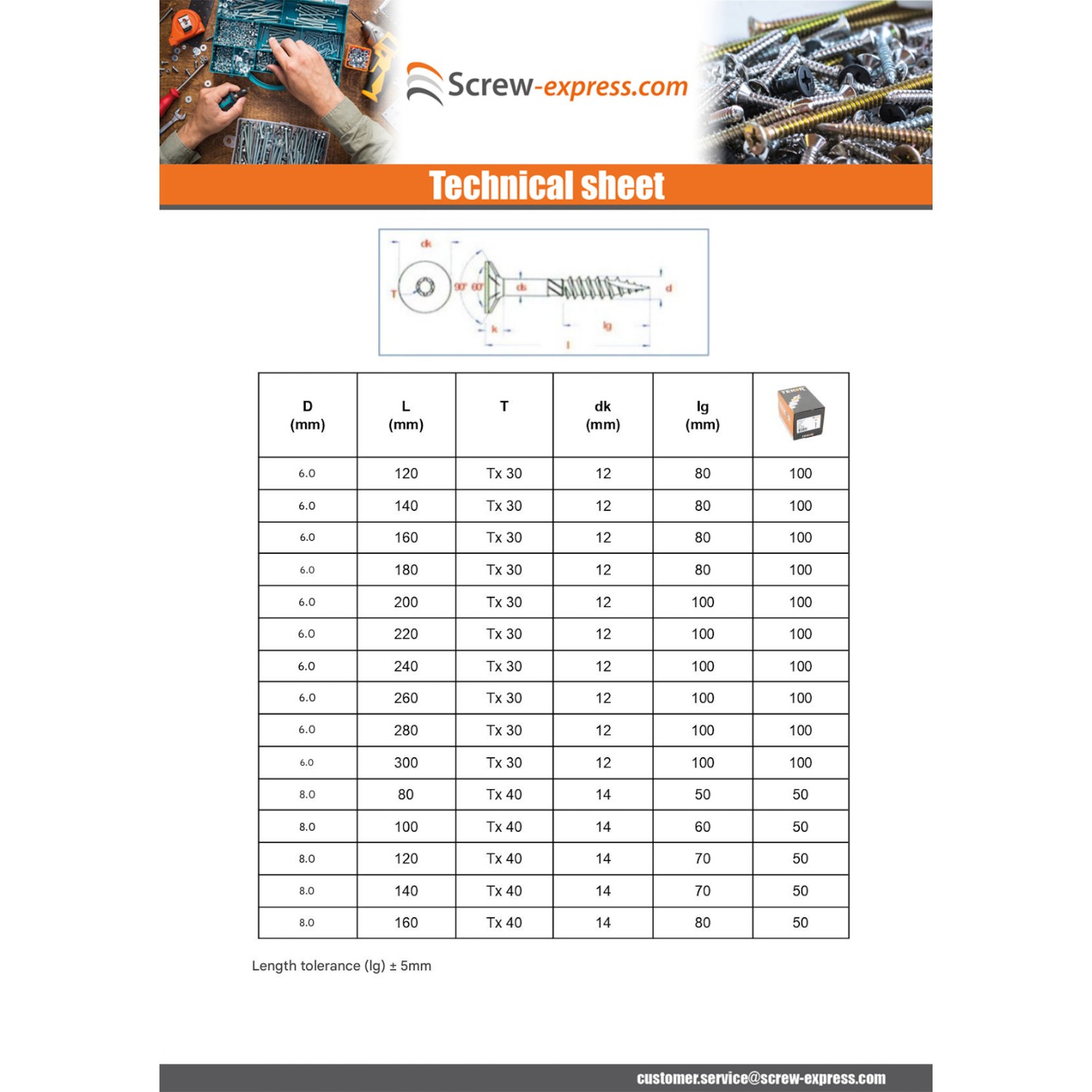

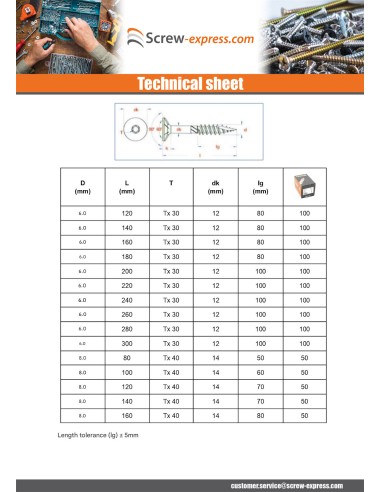

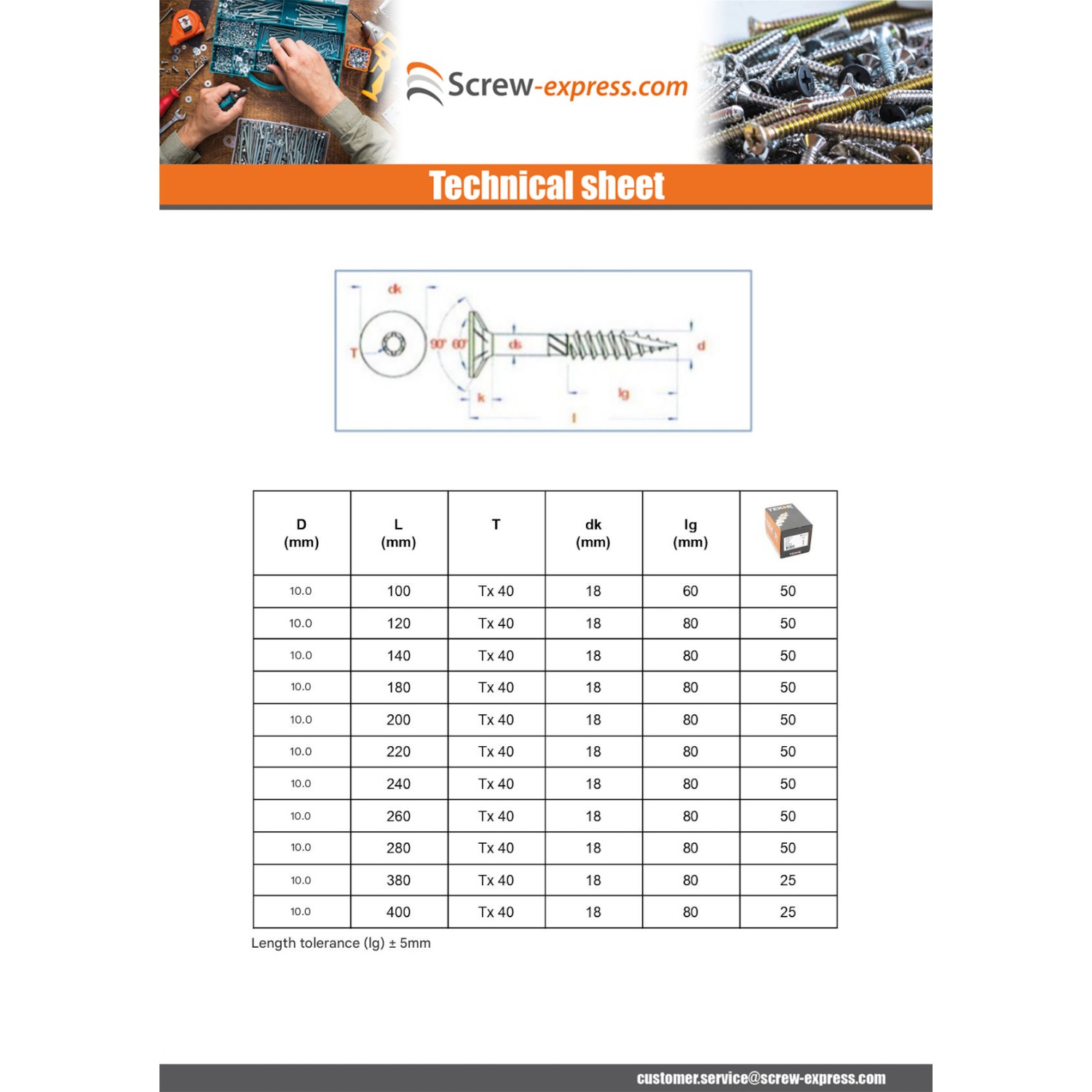

dimensional guide (mm)

Diameter	5	6	8	10
Head diameter	10	12	14	18

Other Reference : 3617500553126 3663072244627

Use Cases

Yves D. (vis-express.fr)
2026-01-11

beam fixing to purlin 100*130 beam, 220*75 purlin

Yves D. (vis-express.fr)
2026-01-11

fixing joist to beam purlin 220*75, beam 130*100

Didier M. (vis-express.fr)
2025-11-30

Adding a piece of wood to a roof frame. 95x95 rafter

Didier M. (vis-express.fr)
2025-11-30

Fixing a rafter to a timber frame 95mm x 95mm rafter

David D. (vis-express.fr)
2024-12-15

Frame assembly Framework beam

Pascal R. (vis-express.fr)
2024-05-12

Fixing planks 225*80 lg 5.5 m

Pascal R. (vis-express.fr)
2024-05-12

I will use it to fix the bastaing of my joists I recommend adding the treatment of the screw, galvanized or zinc plated. Perhaps specify what power of machine used

Nicolas H. (vis-express.fr)
2024-05-12

This product will be used by me to screw spacers between the joists. The smooth part will be in the joist and the threaded part in the spacer. The joists are spaced 51cm apart on the axis because they have a length of 4.97m. The spacers will solidify everything and will also make up for the spaces between the joists and the OSB floor.
