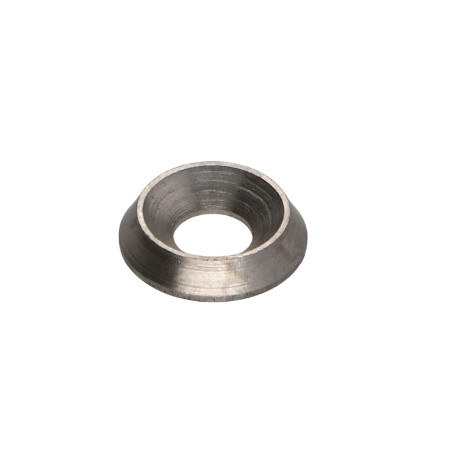

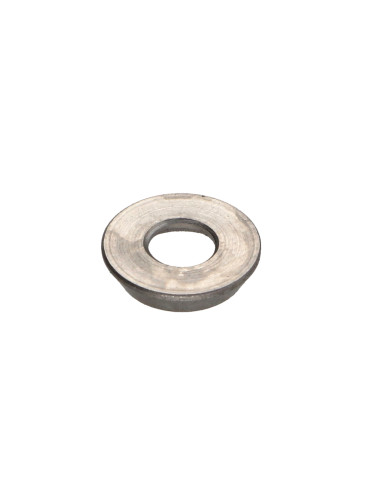

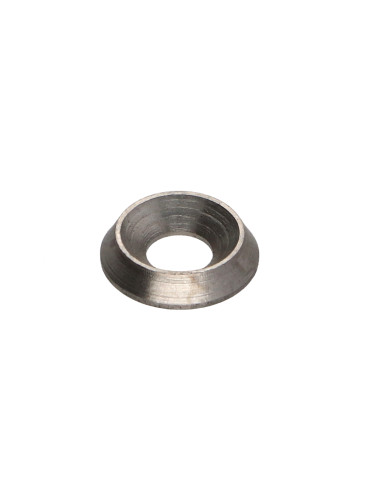

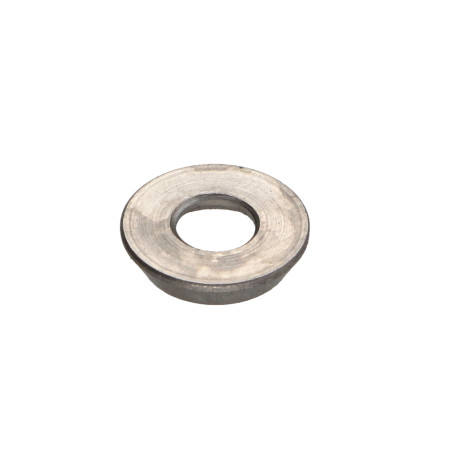

1 x Cup Washer: Full Stainless Steel A2 M4

1 x Cup Washer: Full Stainless Steel A2 M4

Name: 1 x Cup Washer: Full Stainless Steel A2 M4
Brand: Screw Express
SKU: 8550004018
Price: 0.39 GBP
Availability: InStock

Reference 8550004018_1

In stock 37734 Pièces

£0.39 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	200	800
Lot price VAT included	£0.39	£0.96	£2.86	£16.66	£63.17

NFE 27619 - Cup Washer: Full Stainless Steel A2 M4

Packaging

1 unit
10 units
30 units
200 units
800 Units

Dimensions shown in millimeters (mm)

Product Details

Diameter: M4
Thickness: MM
Linch Pin Screw: M4
Material: Stainless Steel Stainless Steel A2
COLOR: Grey
Norm: NFE 27619
Unit weight: 1.04 GR

In stock 37734 Items

ean13 3663072168770

Description

Cup Washer: Full Stainless Steel A2 M4
Diameter = M4, Thickness = MM, Material = Stainless Steel Stainless Steel A2, Norm = NFE 27619

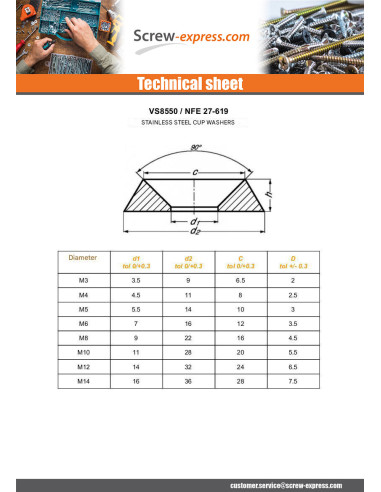

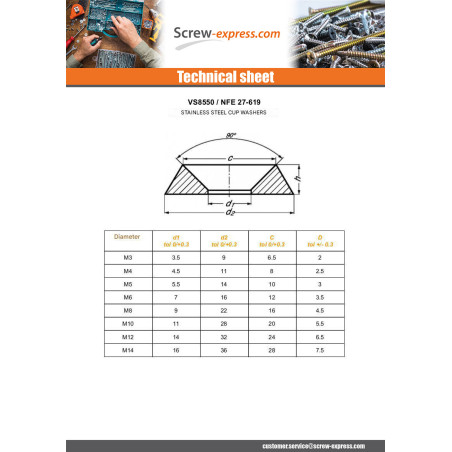

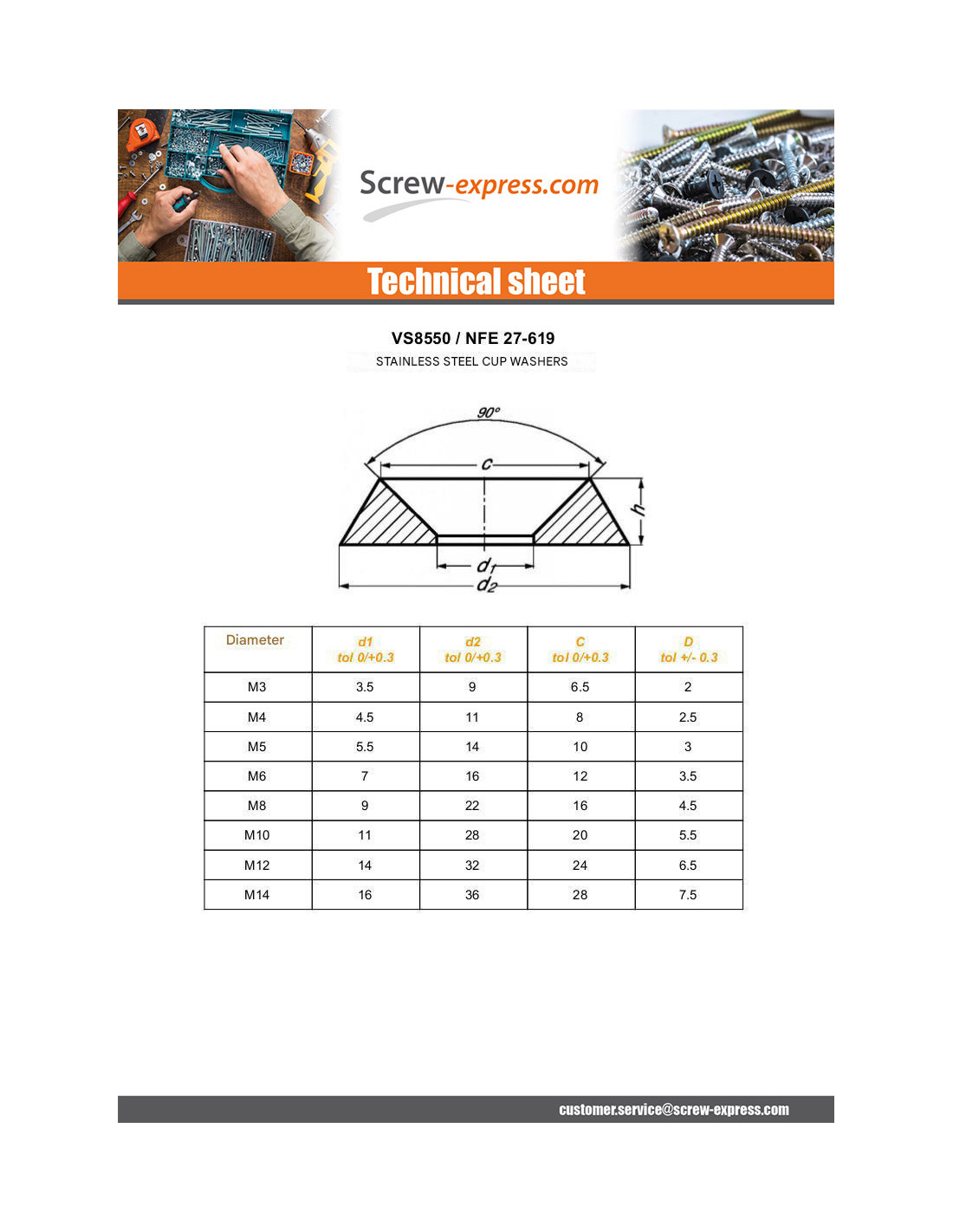

dimensional guide (mm)

DIAMETRE NOMINAL	M3	M4	M5	M6	M8	M10	M12	M14
DIAMETRE INTERIEUR	3.5	4.5	5.5	7	9	11	14	16
DIAMETRE EXTERIEUR	9	11	14	16	22	28	32	36
DIAMETRE CUVETTE	6.5	8	10	12	16	20	24	28
EPAISSEUR	2	2.5	3	3.5	4.5	5.5	6.5	7.5

Other Reference : 625194 VIS000000019 115/R049 AN 2VIS1RO013 57997 4633 VIS000000019 VIRCUIN4 VIS000000019 25VIS00033 10872 3663072168770

Use Cases

Jean-Michel A. (vis-express.fr)
2026-01-25

Bathroom Bathroom furniture: dimensions 80 x 42 x 80.

Raphael V. (vis-express.fr)
2024-09-01

maintenance assembly by gluing of cp panel for boat amateur construction boat 12m catamaran

Antoine K. (vis-express.fr)
2024-01-21

Used in van fittings, these cup washers allow you to obtain an aesthetically more attractive result. The fact that it is made of stainless steel provides a certain long life in different uses. We use them with different types of screws: whether metric screws or wood screws.
