8550000318_1
In stock 15695 Pièces
£1.39 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £1.39 £2.78 £3.38 £5.03

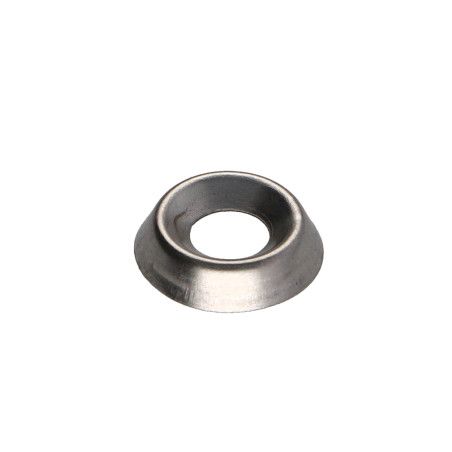

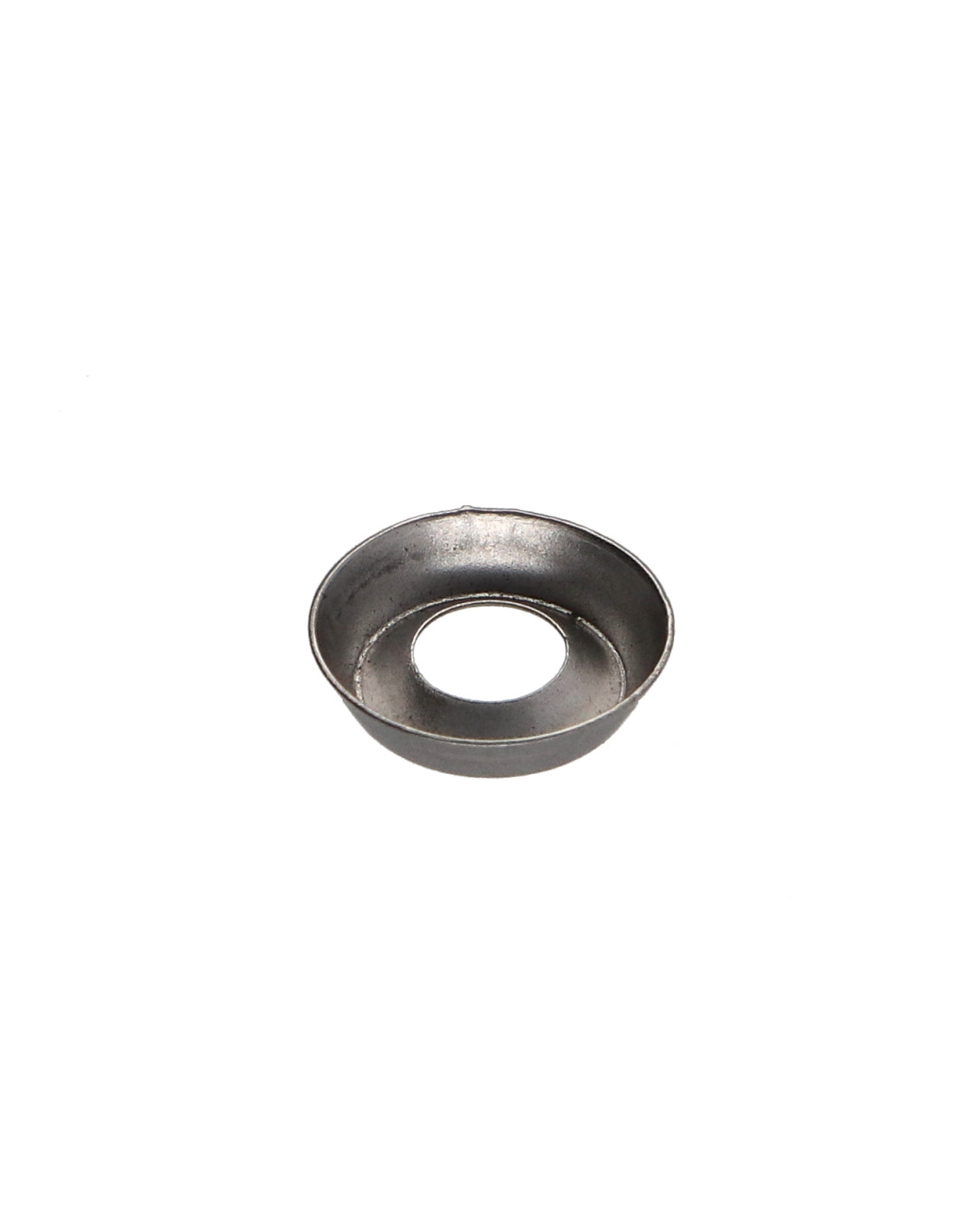

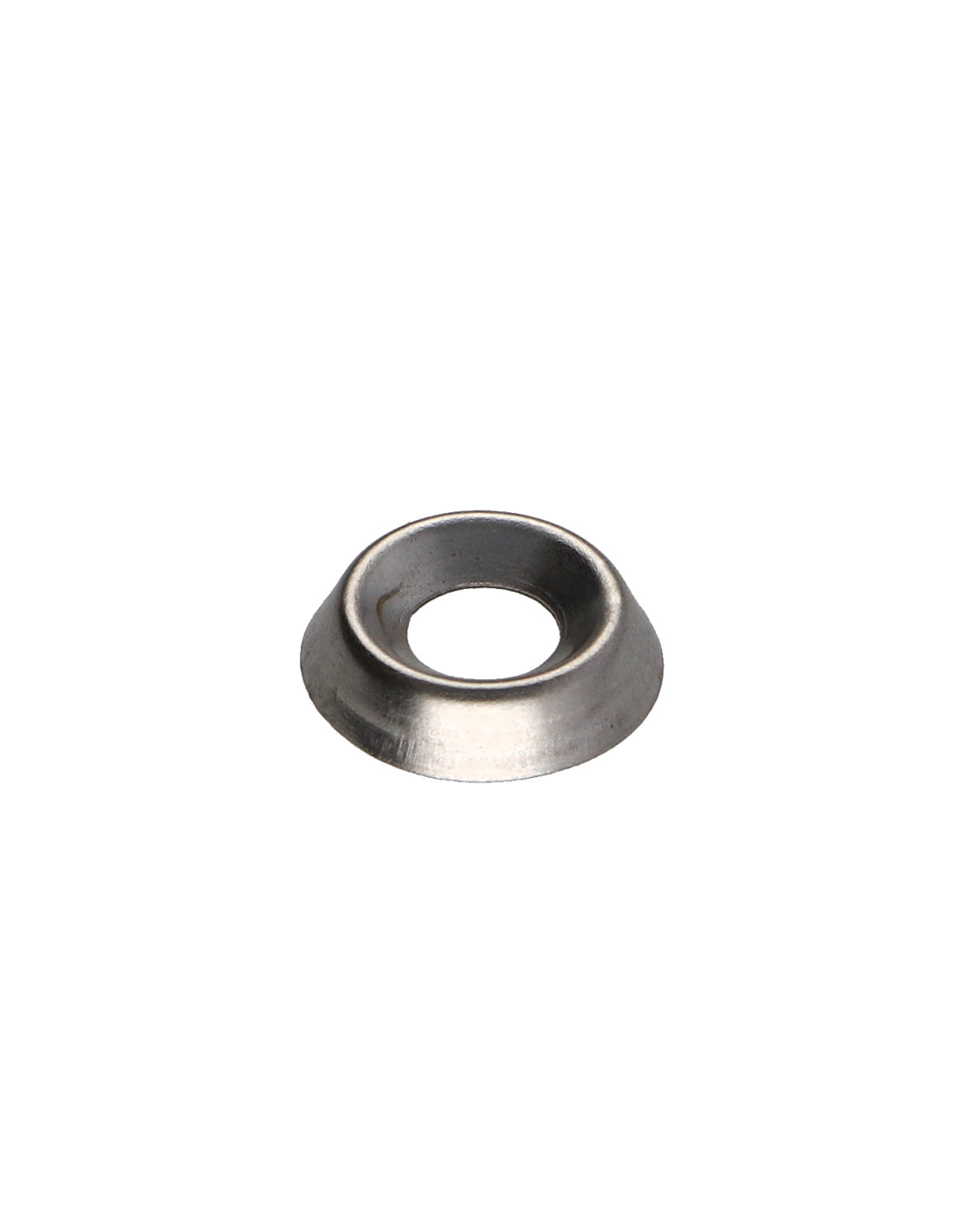

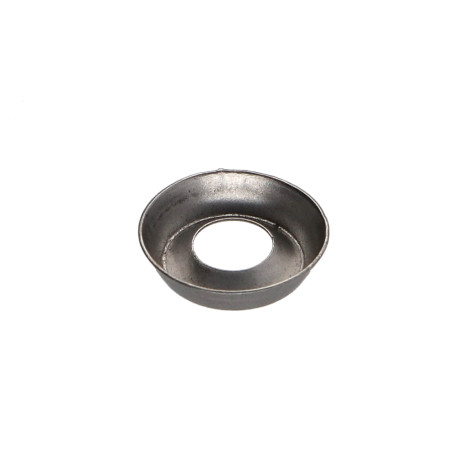

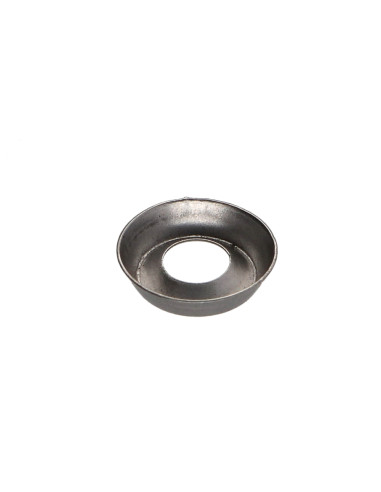

NFE 27619 - Cup Washer: With Hole Stainless Steel A2 M3
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M3
Thickness
MM
Linch Pin Screw
M3
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
NFE 27619
Unit weight
0.12 GR
15695 Items
3663072168725
Cup Washer: With Hole Stainless Steel A2 M3
Diameter = M3, Thickness = MM, Material = Stainless Steel Stainless Steel A2, Norm = NFE 27619

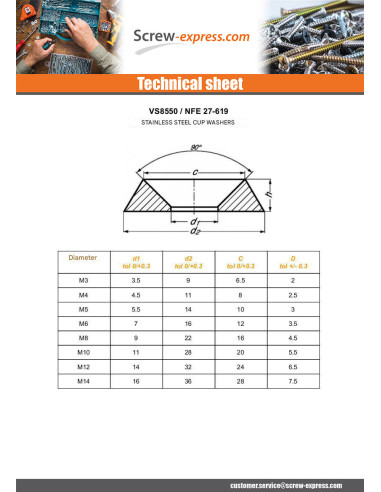

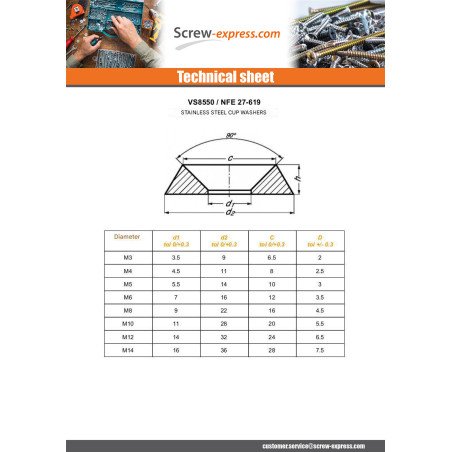

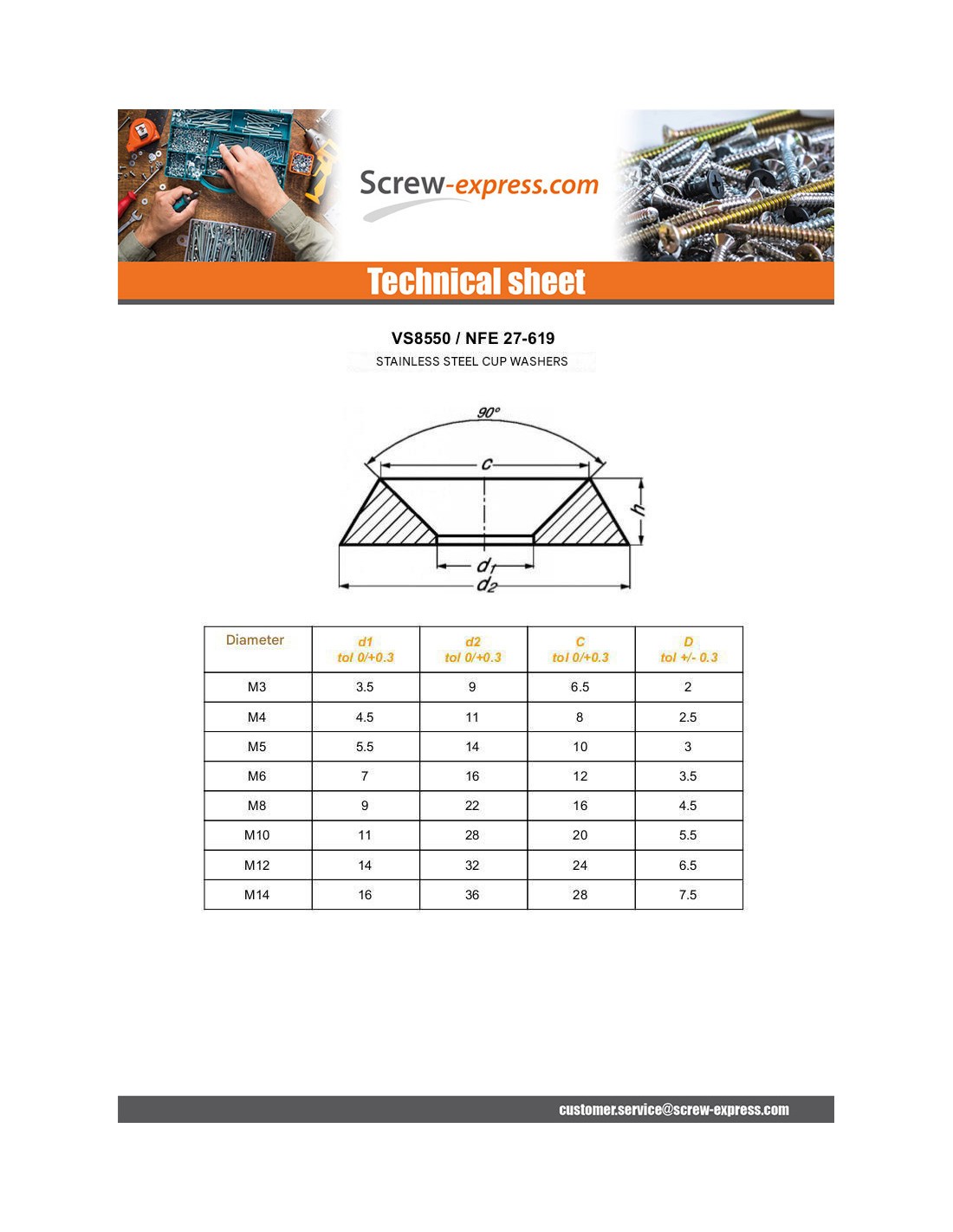

dimensional guide (mm)
DIAMETRE NOMINAL M3 M4 M5 M6 M8 M10 M12 M14
DIAMETRE INTERIEUR 3.5 4.5 5.5 7 9 11 14 16
DIAMETRE EXTERIEUR 9 11 14 16 22 28 32 36
DIAMETRE CUVETTE 6.5 8 10 12 16 20 24 28
EPAISSEUR 2 2.5 3 3.5 4.5 5.5 6.5 7.5

Other Reference : 625183 1308201 VIRCI030000 RONDCUV3INOX 1308201 FA71610 3663072168725
