1 x Cup Washer: With Hole Stainless Steel A2 M6
1 x Cup Washer: With Hole Stainless Steel A2 M6
1 x Cup Washer: With Hole Stainless Steel A2 M6
1 x Cup Washer: With Hole Stainless Steel A2 M6
1 x Cup Washer: With Hole Stainless Steel A2 M6
1 x Cup Washer: With Hole Stainless Steel A2 M6

1 x Cup Washer: With Hole Stainless Steel A2 M6

8550000618_1
In stock 43677 Pièces
£1.39 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £1.39 £2.78 £3.38 £11.63

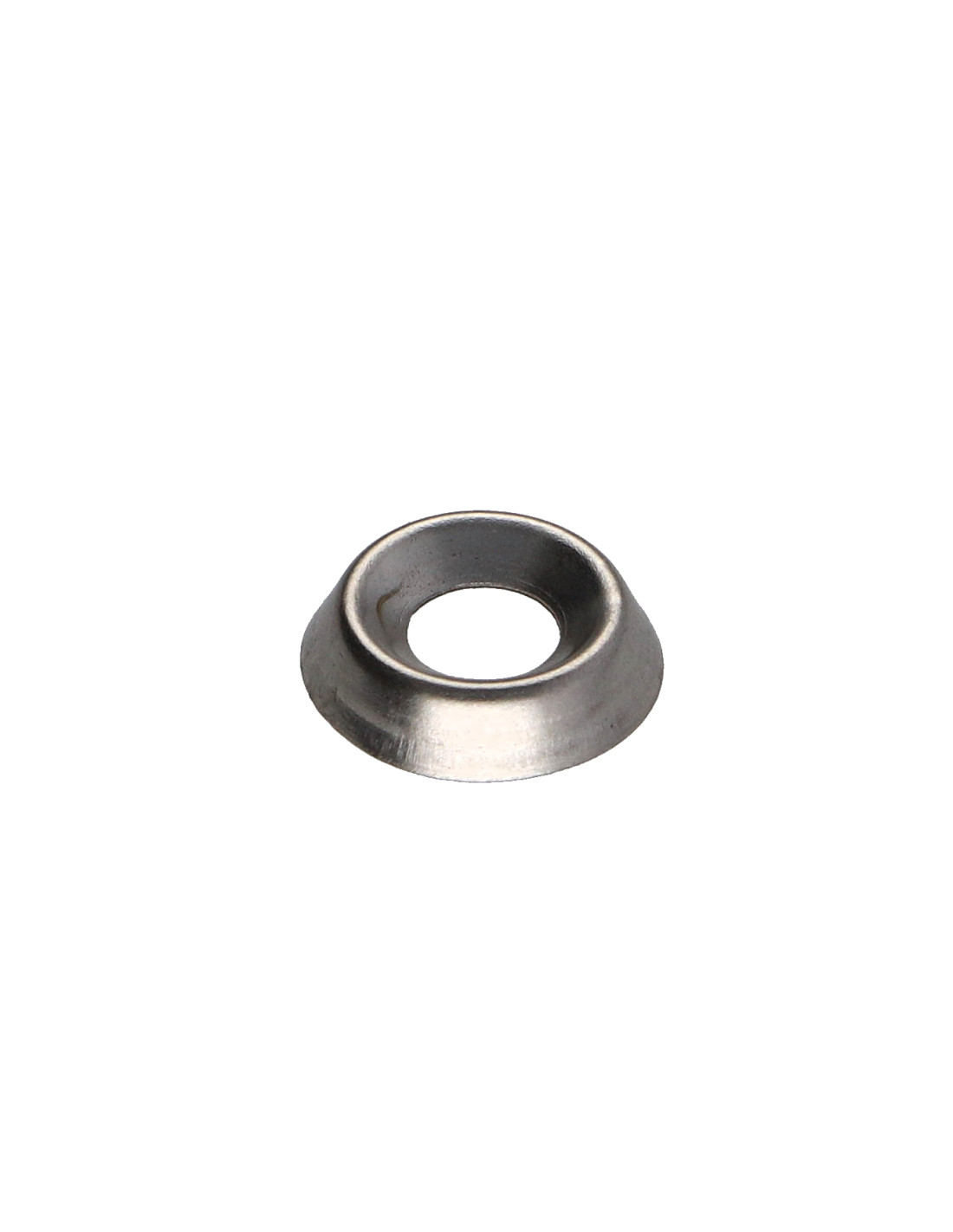

NFE 27619 - Cup Washer: With Hole Stainless Steel A2 M6
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M6
Thickness
MM
Linch Pin Screw
M6
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
NFE 27619
Unit weight
0.42 GR
43677 Items
3663072185197

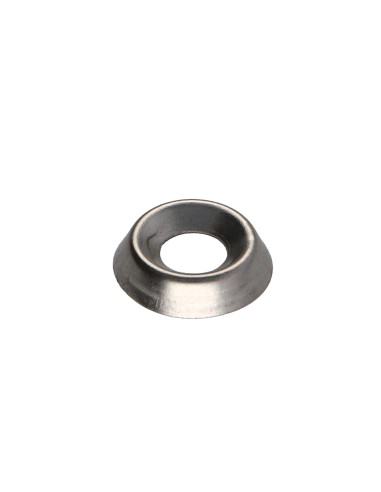

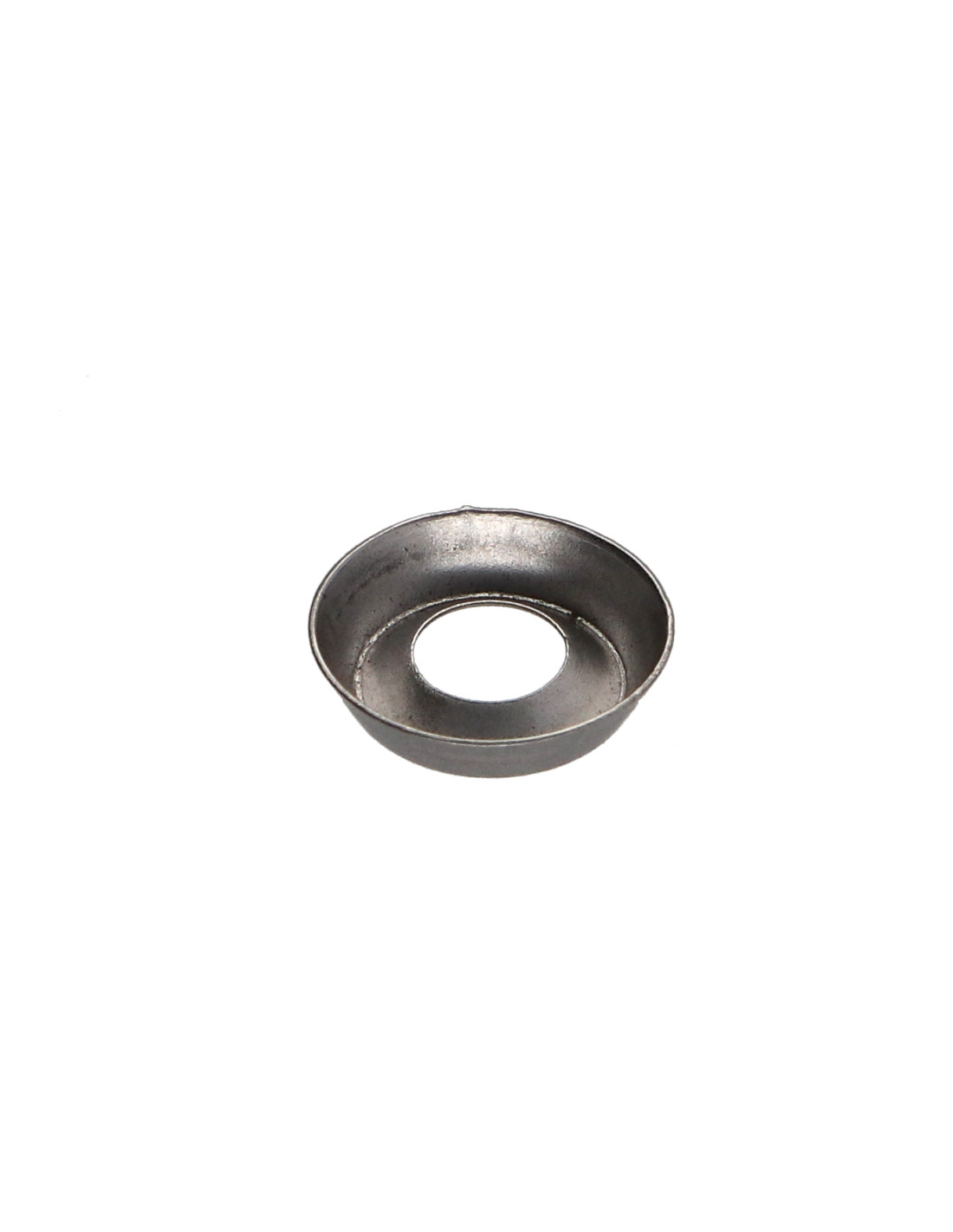

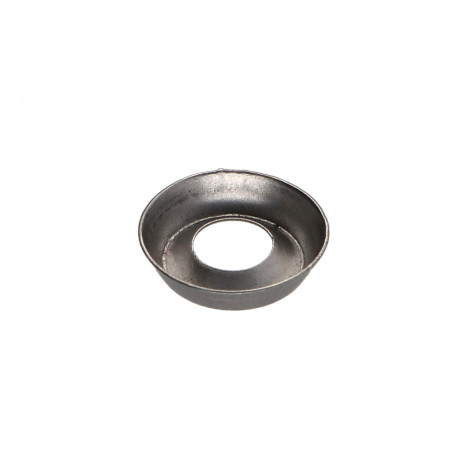

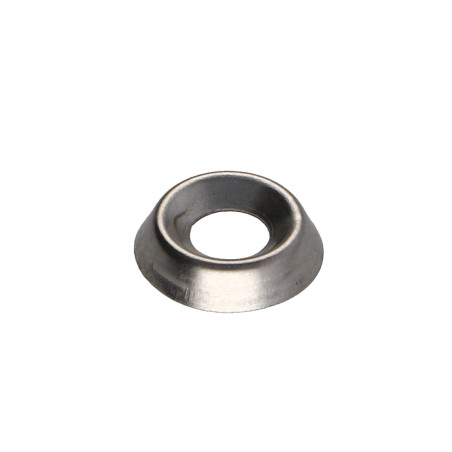

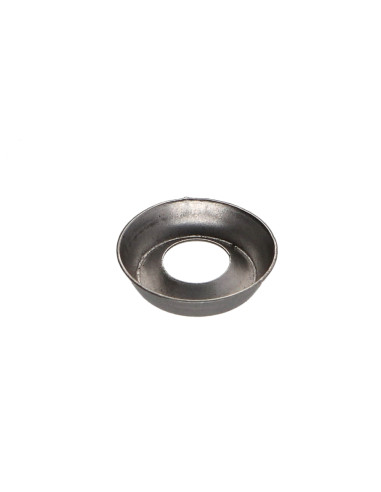

Cup Washer: With Hole Stainless Steel A2 M6
Diameter = M6, Thickness = MM, Material = Stainless Steel Stainless Steel A2, Norm = NFE 27619

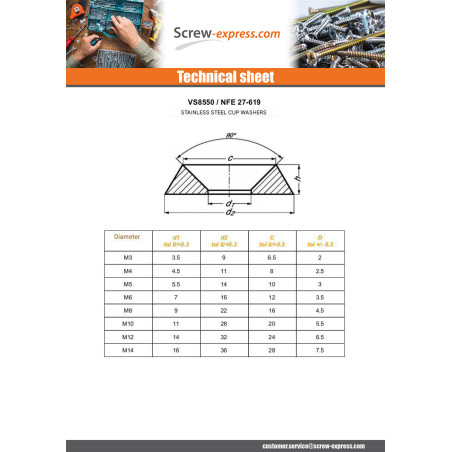

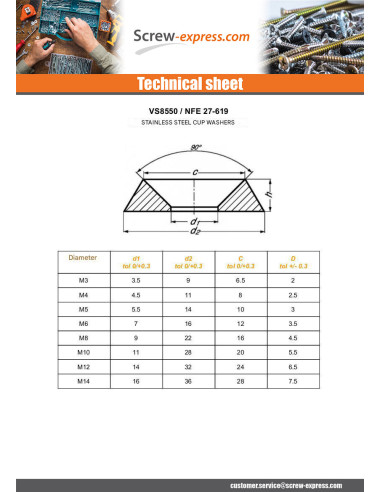

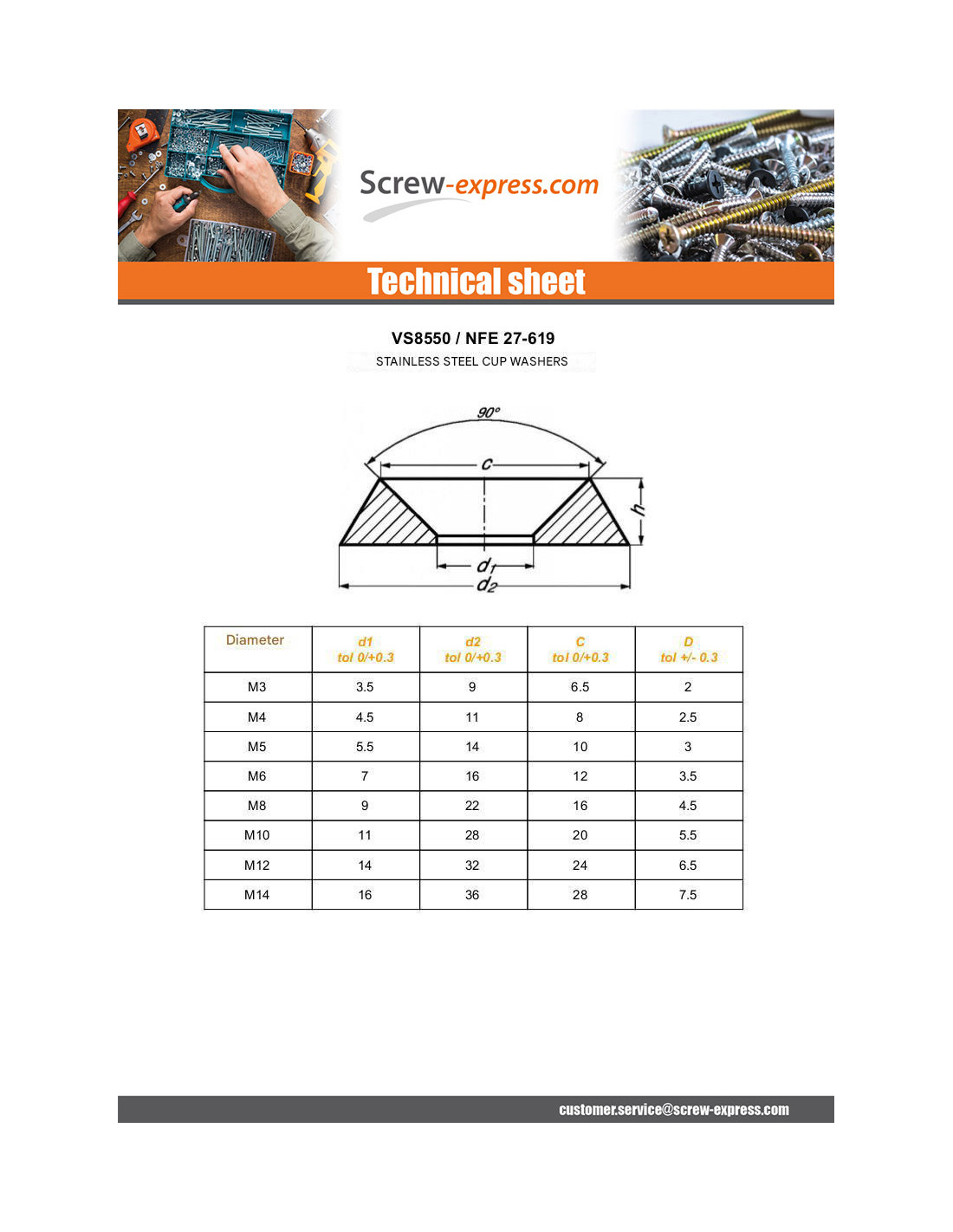

dimensional guide (mm)
DIAMETRE NOMINAL M3 M4 M5 M6 M8 M10 M12 M14
DIAMETRE INTERIEUR 3.5 4.5 5.5 7 9 11 14 16
DIAMETRE EXTERIEUR 9 11 14 16 22 28 32 36
DIAMETRE CUVETTE 6.5 8 10 12 16 20 24 28
EPAISSEUR 2 2.5 3 3.5 4.5 5.5 6.5 7.5

Other Reference : 625186 RCP6A2 ER88 50027060 314/6 CUVETINOX6 0609523 11399043 6ROND10A206 27619M6A2 0609523 ROND-CUV6-A CUVCREUSE RCP6A2 T38770 T38770 RONDCUV6INOX 127.2.6 3663072185197
QUENTIN B. (vis-express.fr)
2024-05-12

Fixing the interior cladding of a tractor cabin On a Fiat 1580dt
