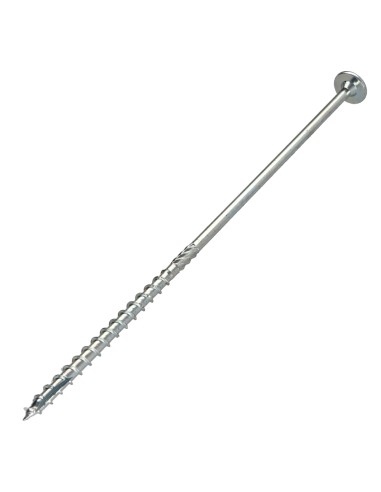

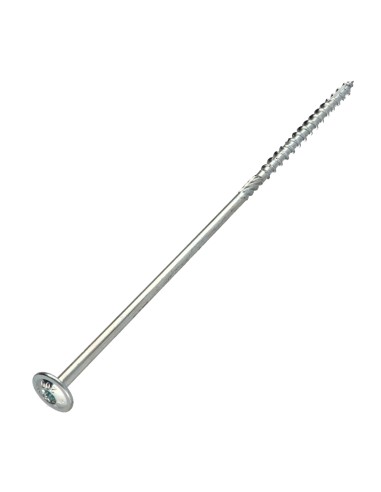

1 x Chipboard Screw Tekor Disc Head Screw T40 cut Type 17 Drilling Point 8X280 Partial Thread Zinc Plated
1 x Chipboard Screw Tekor Disc Head Screw T40 cut Type 17 Drilling Point 8X280 Partial Thread Zinc Plated
1 x Chipboard Screw Tekor Disc Head Screw T40 cut Type 17 Drilling Point 8X280 Partial Thread Zinc Plated
1 x Chipboard Screw Tekor Disc Head Screw T40 cut Type 17 Drilling Point 8X280 Partial Thread Zinc Plated
1 x Chipboard Screw Tekor Disc Head Screw T40 cut Type 17 Drilling Point 8X280 Partial Thread Zinc Plated
1 x Chipboard Screw Tekor Disc Head Screw T40 cut Type 17 Drilling Point 8X280 Partial Thread Zinc Plated
1 x Chipboard Screw Tekor Disc Head Screw T40 cut Type 17 Drilling Point 8X280 Partial Thread Zinc Plated
1 x Chipboard Screw Tekor Disc Head Screw T40 cut Type 17 Drilling Point 8X280 Partial Thread Zinc Plated
1 x Chipboard Screw Tekor Disc Head Screw T40 cut Type 17 Drilling Point 8X280 Partial Thread Zinc Plated
1 x Chipboard Screw Tekor Disc Head Screw T40 cut Type 17 Drilling Point 8X280 Partial Thread Zinc Plated
1 x Chipboard Screw Tekor Disc Head Screw T40...
1 x Chipboard Screw Tekor Disc Head Screw T40...
1 x Chipboard Screw Tekor Disc Head Screw T40...
1 x Chipboard Screw Tekor Disc Head Screw T40...
1 x Chipboard Screw Tekor Disc Head Screw T40...
1 x Chipboard Screw Tekor Disc Head Screw T40...
1 x Chipboard Screw Tekor Disc Head Screw T40...
1 x Chipboard Screw Tekor Disc Head Screw T40...
1 x Chipboard Screw Tekor Disc Head Screw T40...
1 x Chipboard Screw Tekor Disc Head Screw T40...

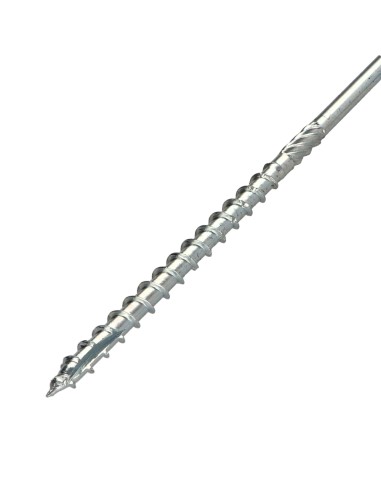

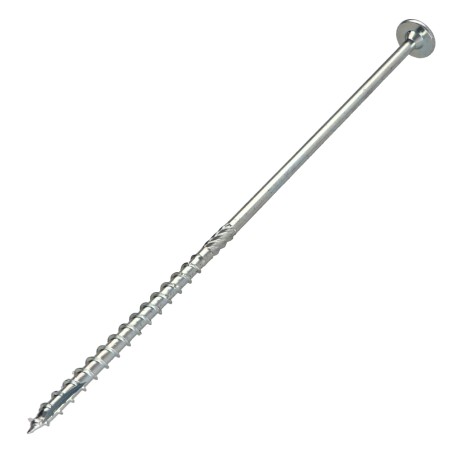

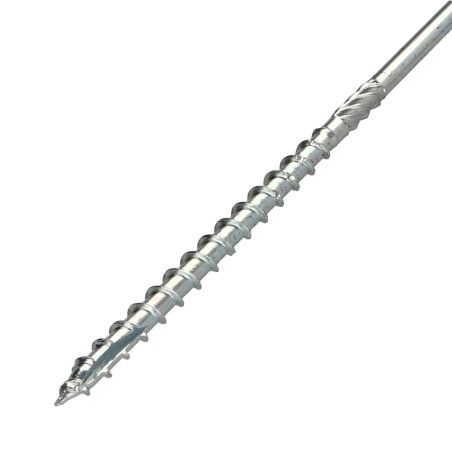

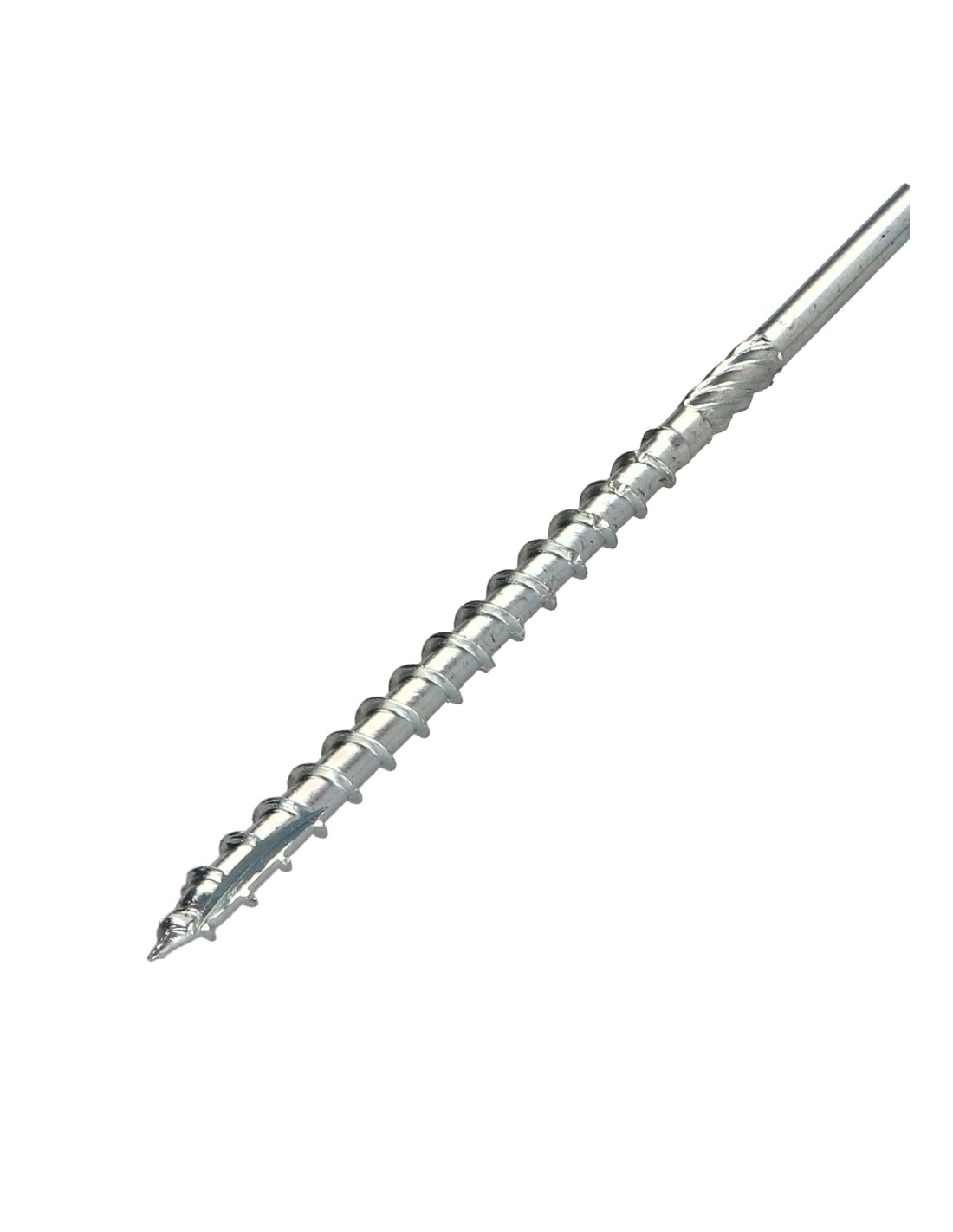

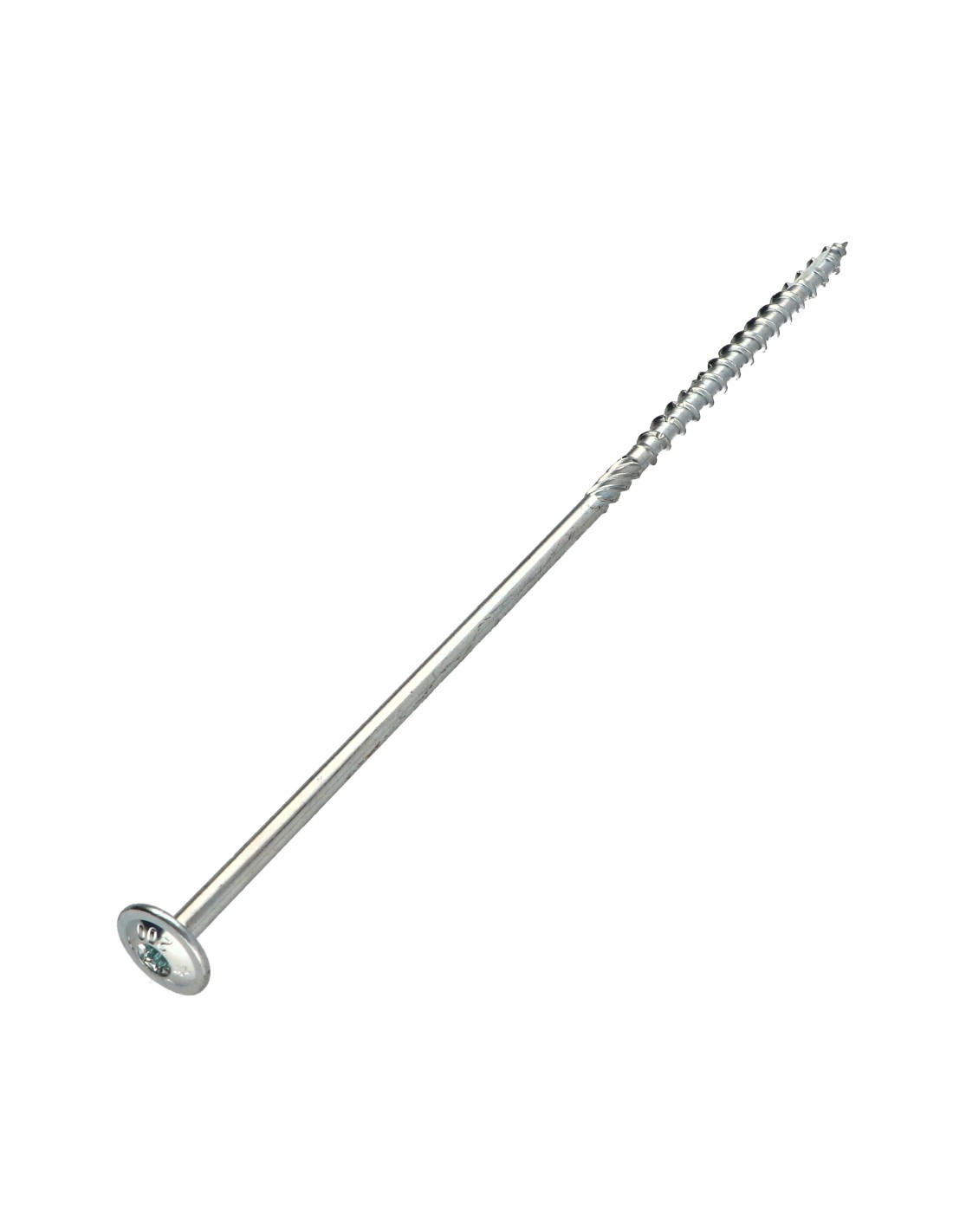

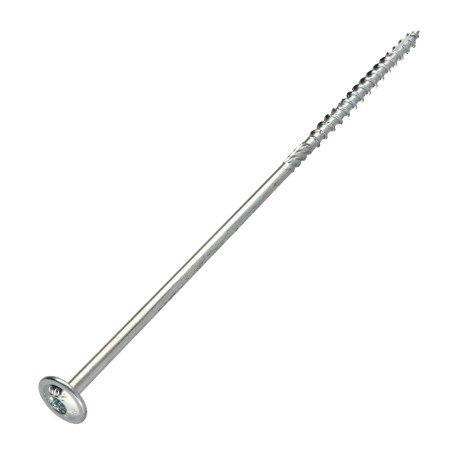

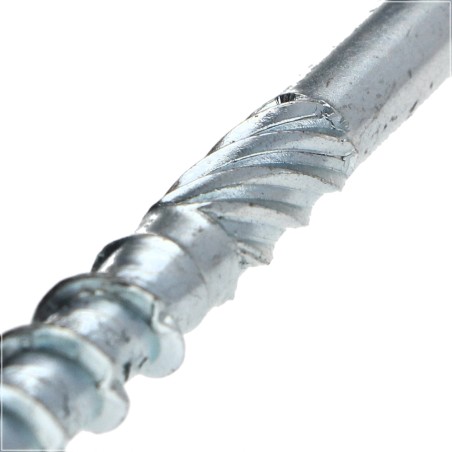

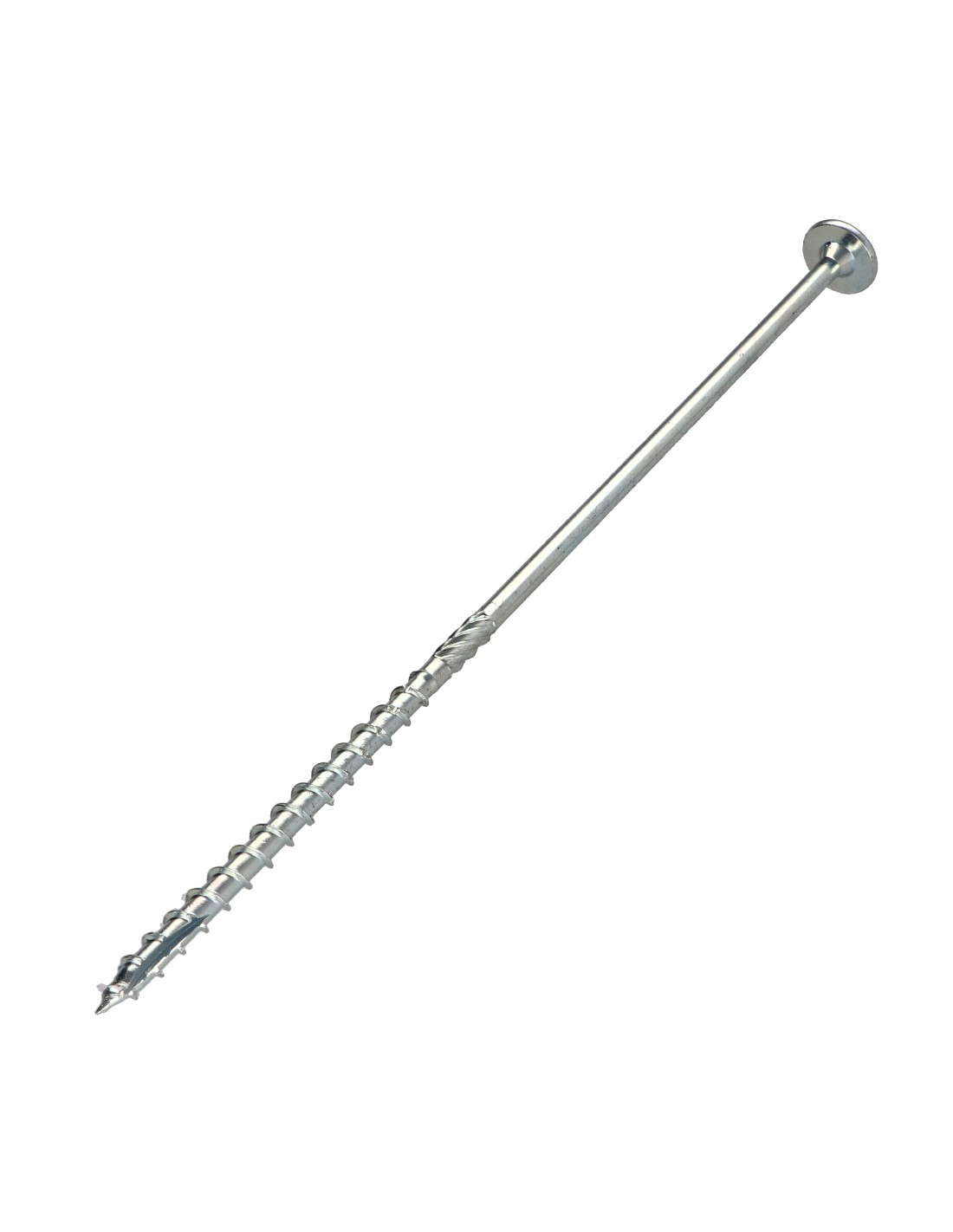

1 x Chipboard Screw Tekor Disc Head Screw T40 cut Type 17 Drilling Point 8X280 Partial Thread Zinc Plated

2011828002_1
In stock 121 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included €3.85 €8.40 €33.55 €83.90
Chipboard Screw Tekor Disc Head Screw T40 cut Type 17 Drilling Point 8X280 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

Dimensions shown in millimeters (mm)

Diameter
8
Length
280

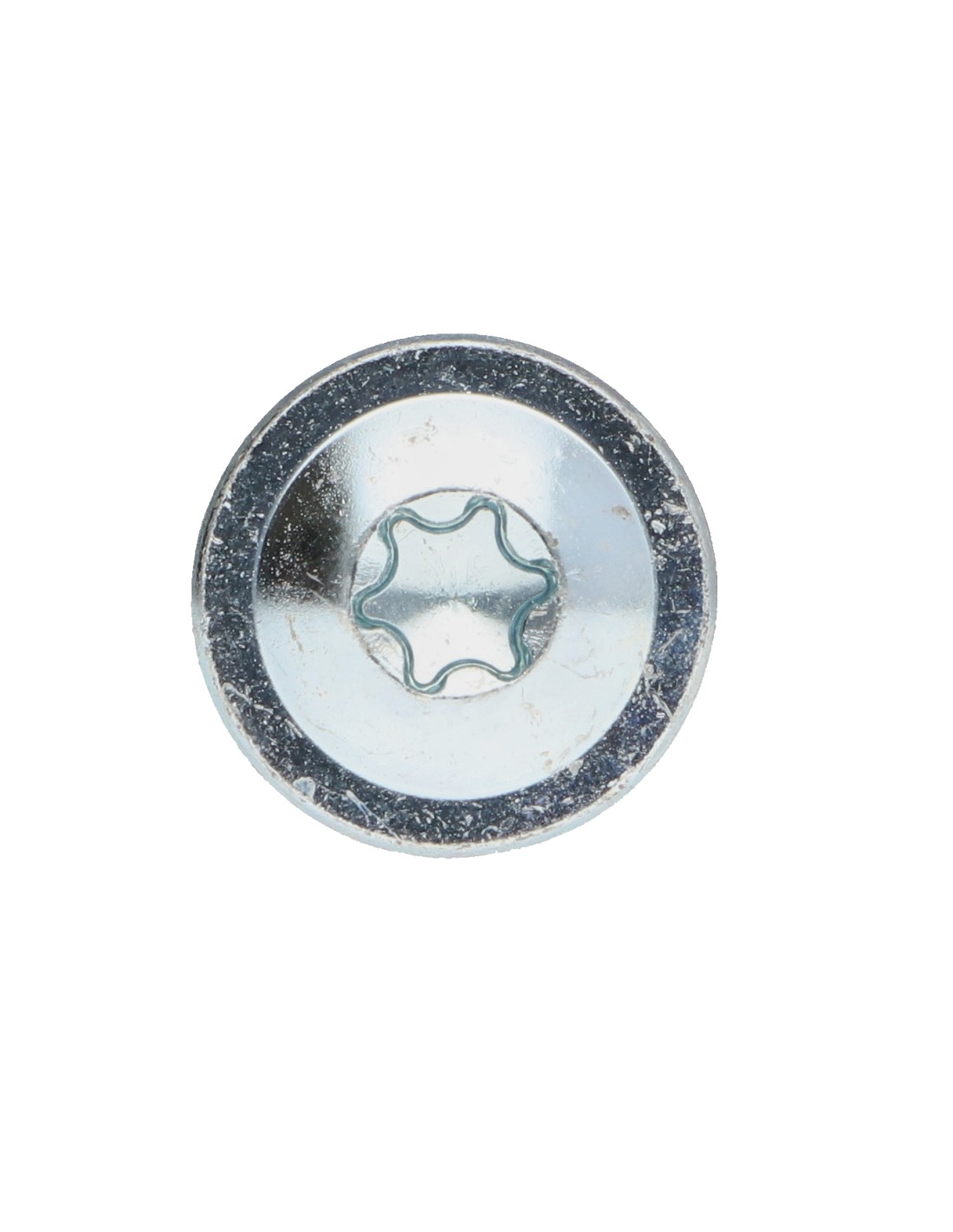

Drive Type
Torx
Size Drive Type
T40
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Brand
Chipboard Screw Tekor
Product Family
Wood Screws
Tip
Drilling Point Type 17
Unit weight
4 GR
121 Items
3663072244269

Application

  • Wood-on-wood assembly of thick sections (lightweight framing, structure, reinforcements, uprights, crossbeams)
  • Fixing of hardware/plates
  • fixing solar panels to rafters
Chipboard Screw Tekor Disc Head Screw T40 cut Type 17 Drilling Point 8X280 Partial Thread Zinc Plated
Diameter = 8, Length = 280, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T40, Brand = Chipboard Screw Tekor


dimensional guide (mm)
diametre 6 8 10
diametre tete 13.5 A 14.5 22 A 23.5 25 A 26.5
diametre moletage 4.8 a 5.3 6.8 a 7.2 8 a 8.5
Pitch 4.5 5.5 6.6
Torx T30 T40 T40
ACIER ZING 8 MICRON - 120 HBS SANS ROUILLE BLANCHE

Other Reference : 292796 3663072244269
Johan G. (vis-express.fr)
2024-10-27

These screws will be used to assemble the frame of my flat roof by aiming the uprights of my acrots in the beams. TEKOR wood and chipboard screws TORX T40 disc head Anti-splitting point cut type 17 8X280 Thread on 80 Steel Reference 2011828002_10
