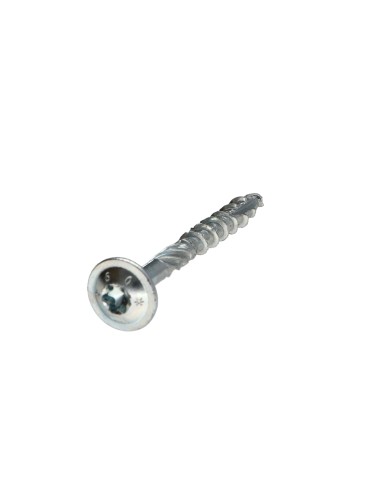

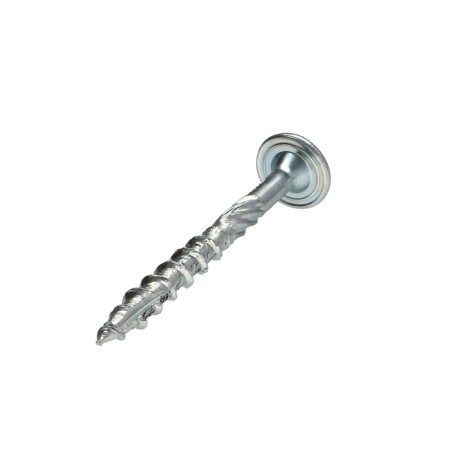

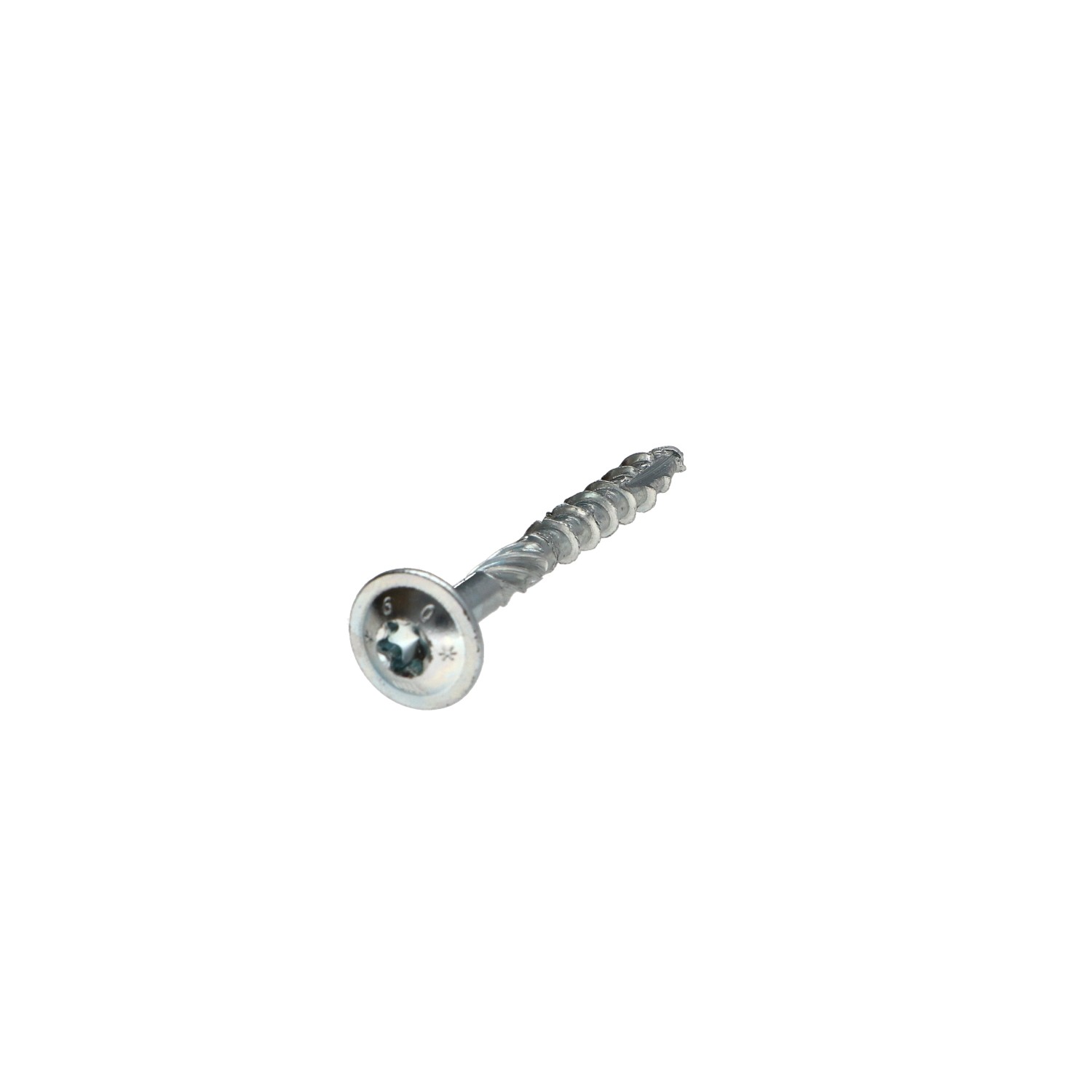

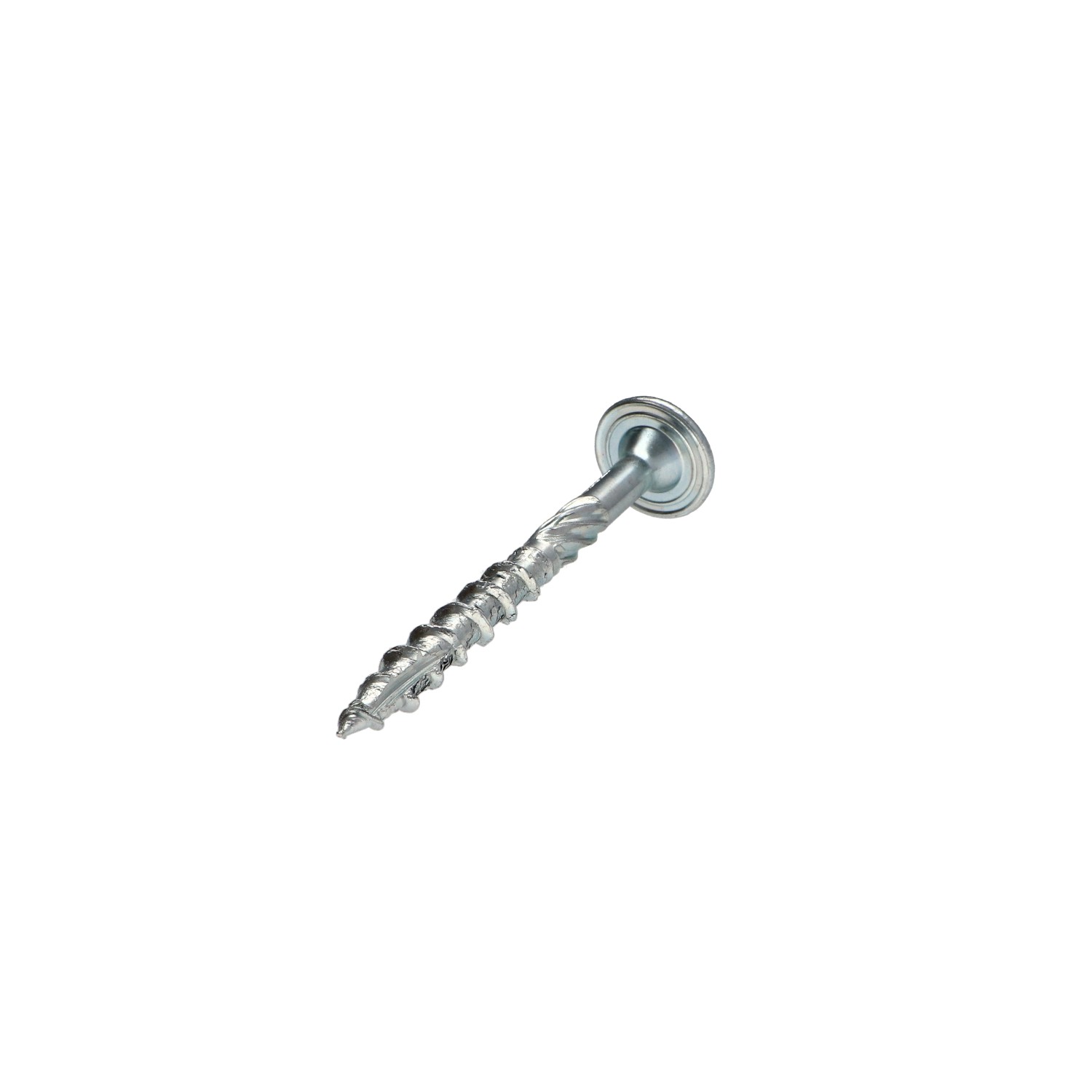

1 x Chipboard Screw Tekor Disc Head Screw T30 cut Type 17 Drilling Point 6X60 Partial Thread Zinc Plated

1 x Chipboard Screw Tekor Disc Head Screw T30...

1 x Chipboard Screw Tekor Disc Head Screw T30 cut Type 17 Drilling Point 6X60 Partial Thread Zinc Plated

Name: 1 x Chipboard Screw Tekor Disc Head Screw T30 cut Type 17 Drilling Point 6X60 Partial Thread Zinc Plated
Brand: Tekor
SKU: 2011606002
Price: 0.43 GBP
Availability: InStock

Reference 2011606002_1

In stock 34690 Pièces

£0.43 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	200	800
Lot price VAT included	£0.43	£1.09	£3.25	£19.61	£74.63

Chipboard Screw Tekor Disc Head Screw T30 cut Type 17 Drilling Point 6X60 Partial Thread Zinc Plated

Packaging

1 unit
10 units
30 units
200 units
800 Units

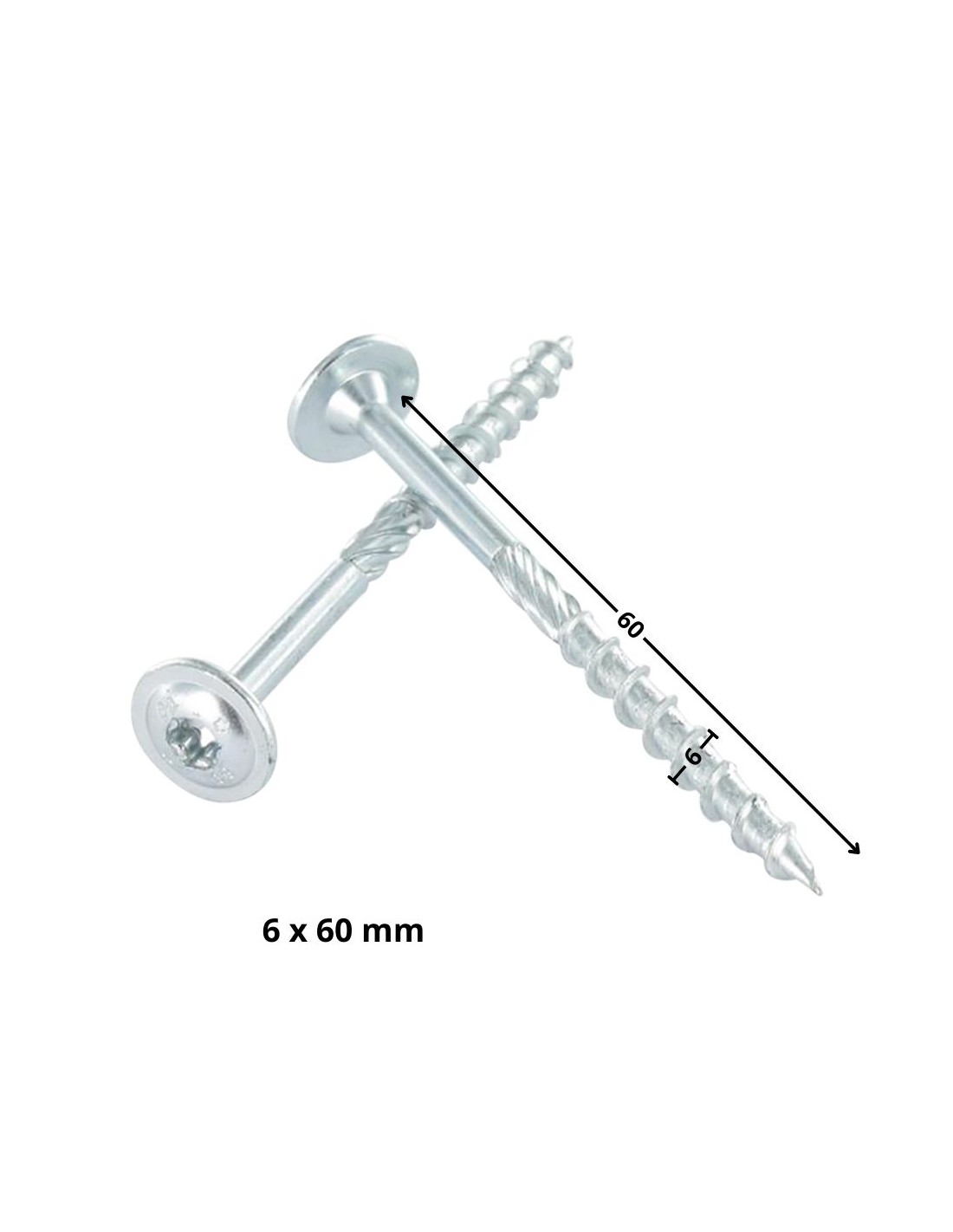

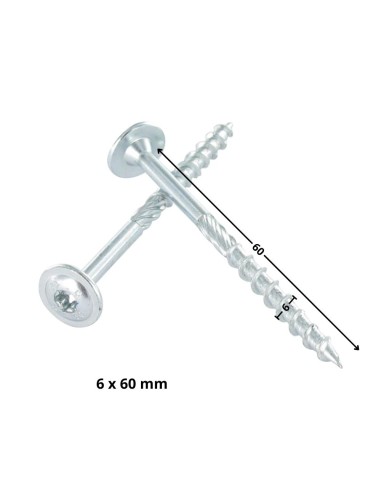

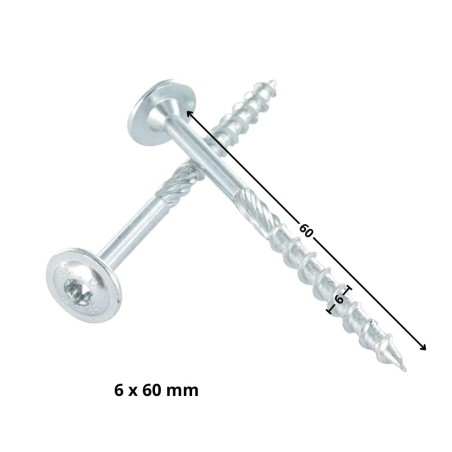

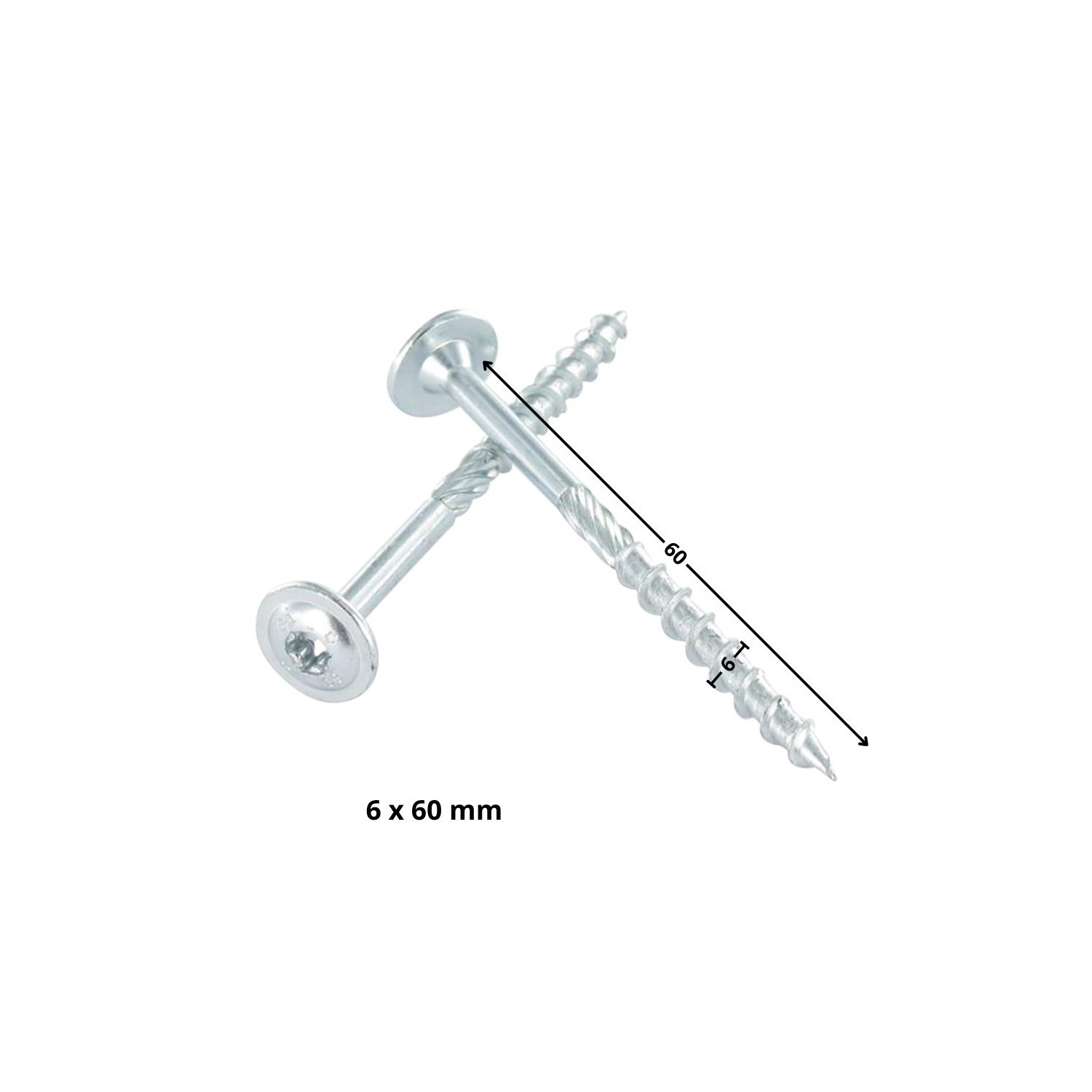

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: 6
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 60

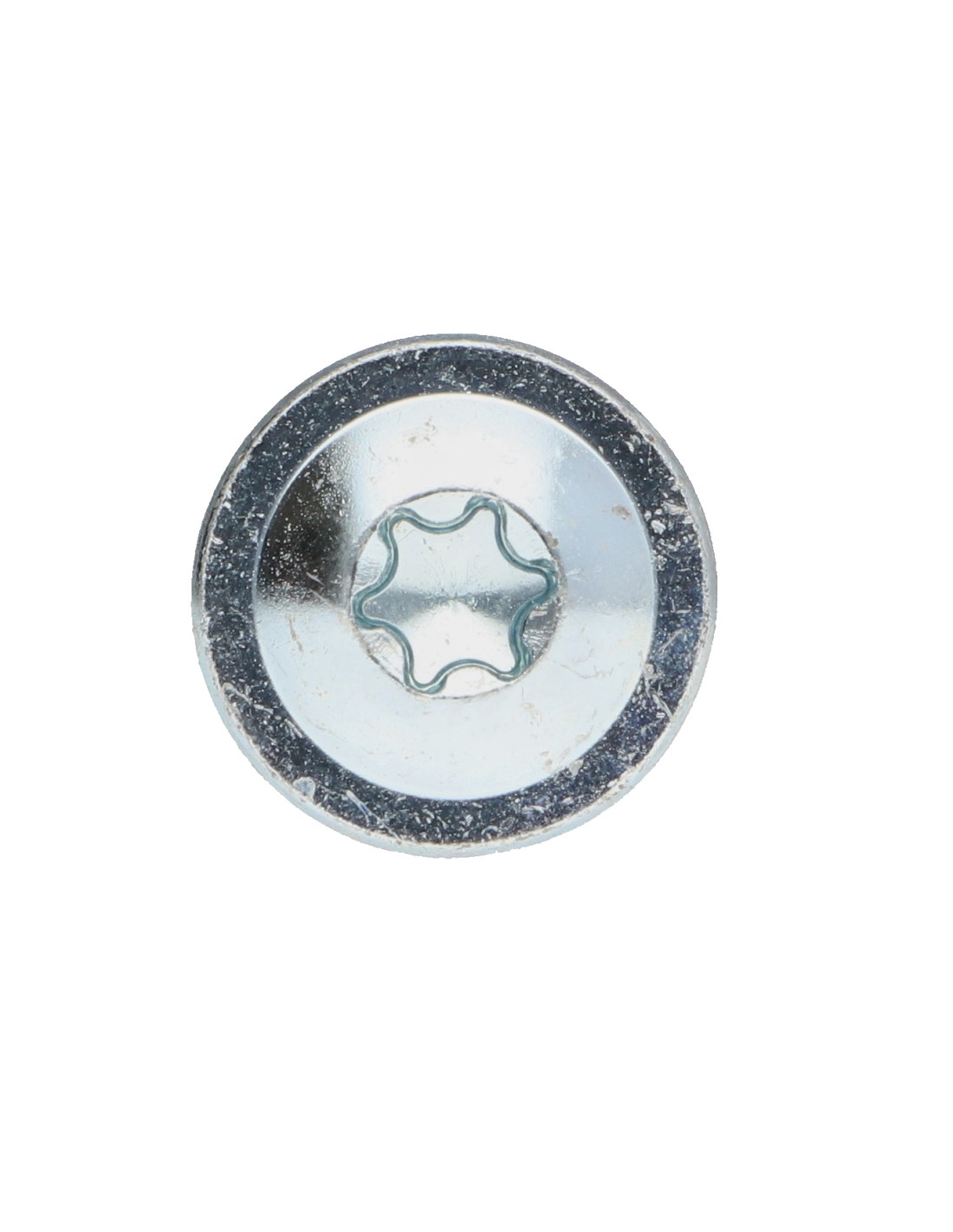

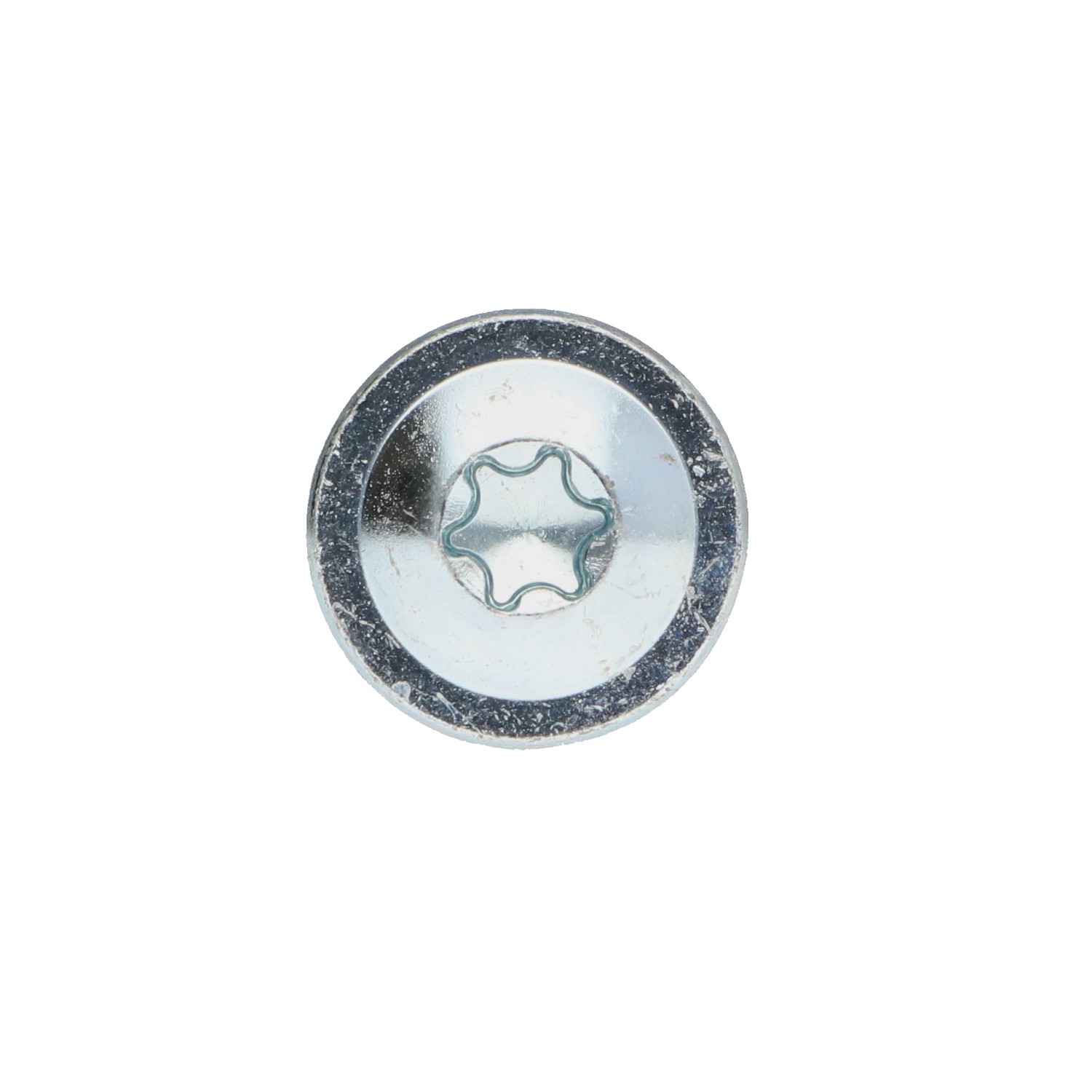

Drive Type: Torx
Size Drive Type: T30
Material: Steel
Coating: ZINGUE White

ZINGUE White

Zinc plating 3 to 5 µm

All our zinc-plated parts meet this specification (unless otherwise stated).

🛡️ Corrosion protection: low
Thin 3 to 5 µm zinc coating, suitable for environments with low exposure.

🧂 Salt spray resistance: 24 to 96 h
Indicative resistance before the appearance of rust, depending on the coating finish.

🏠 Recommended environment
Indoor applications or environments with very low exposure to moisture.

🔩 Threads preserved
The low coating thickness limits dimensional variations and helps maintain thread accuracy.
COLOR: Grey
Brand: Chipboard Screw Tekor
Product Family: Wood Screws

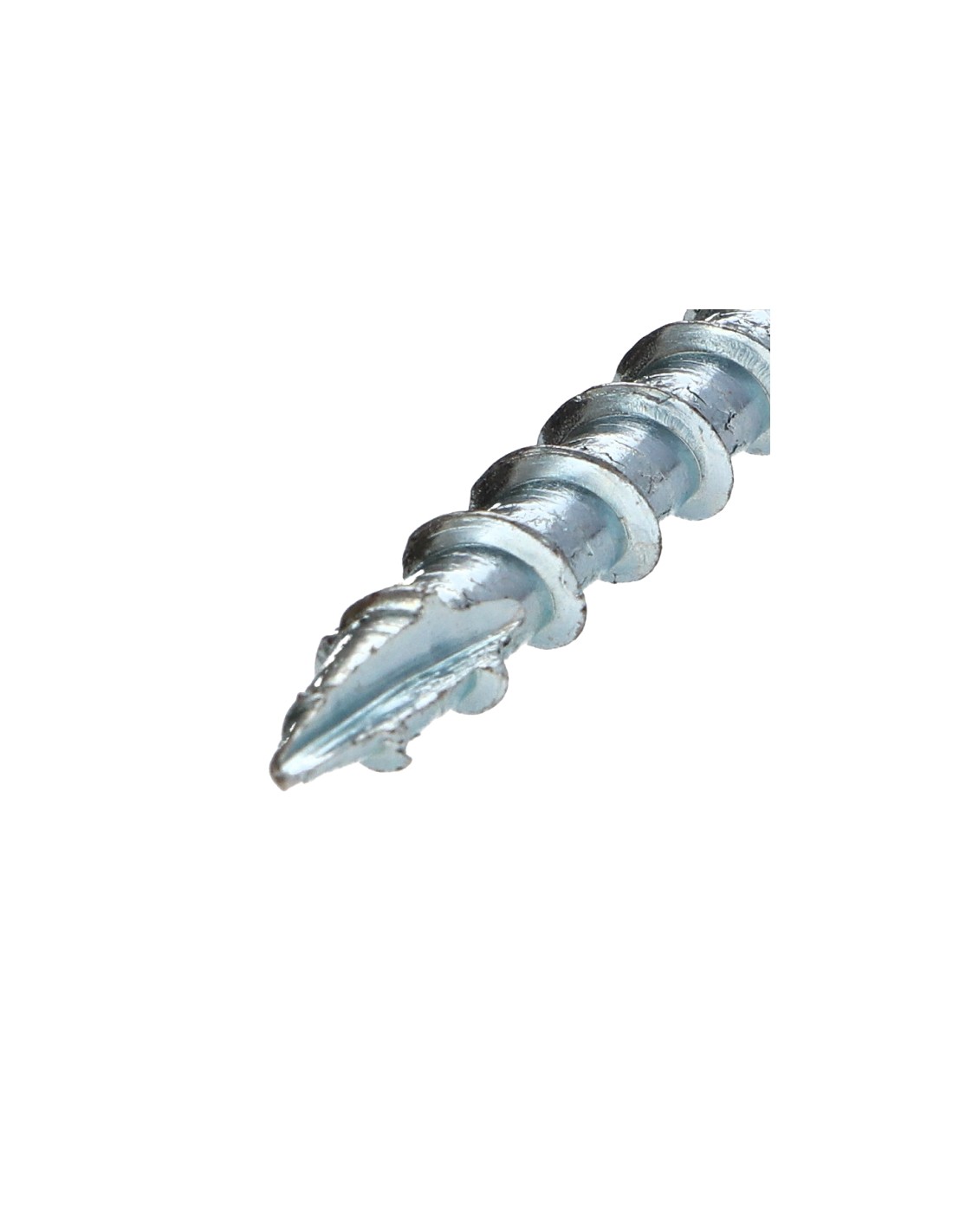

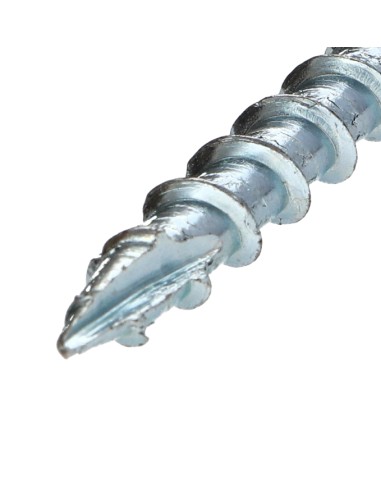

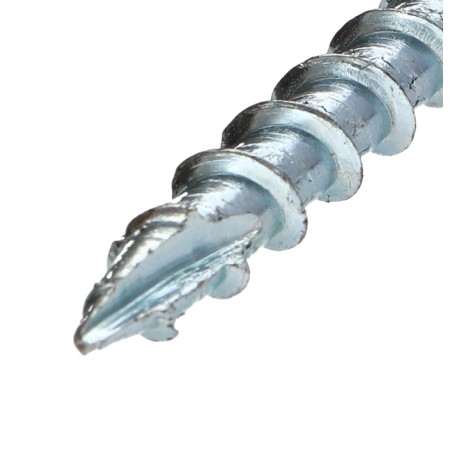

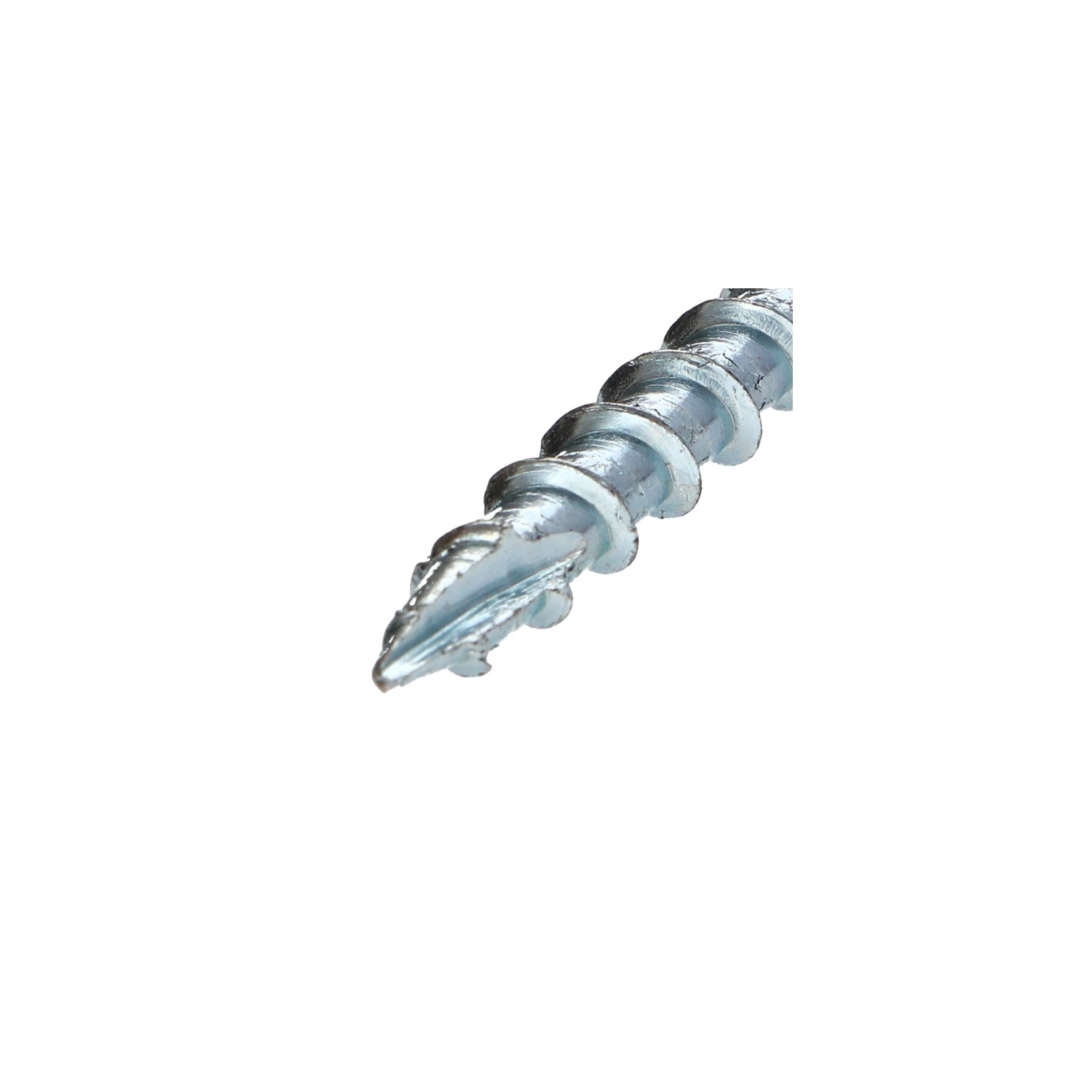

Tip: Drilling Point Type 17
Unit weight: 8.39 GR

In stock 34690 Items

ean13 3663072459212

Application

Wood-on-wood assembly of thick sections (lightweight framing, structure, reinforcements, uprights, crossbeams)
Fixing of hardware/plates
fixing solar panels to rafters

Description

Chipboard Screw Tekor Disc Head Screw T30 cut Type 17 Drilling Point 6X60 Partial Thread Zinc Plated
Diameter = 6, Length = 60, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T30, Brand = Chipboard Screw Tekor

dimensional guide (mm)

diametre	6	8	10

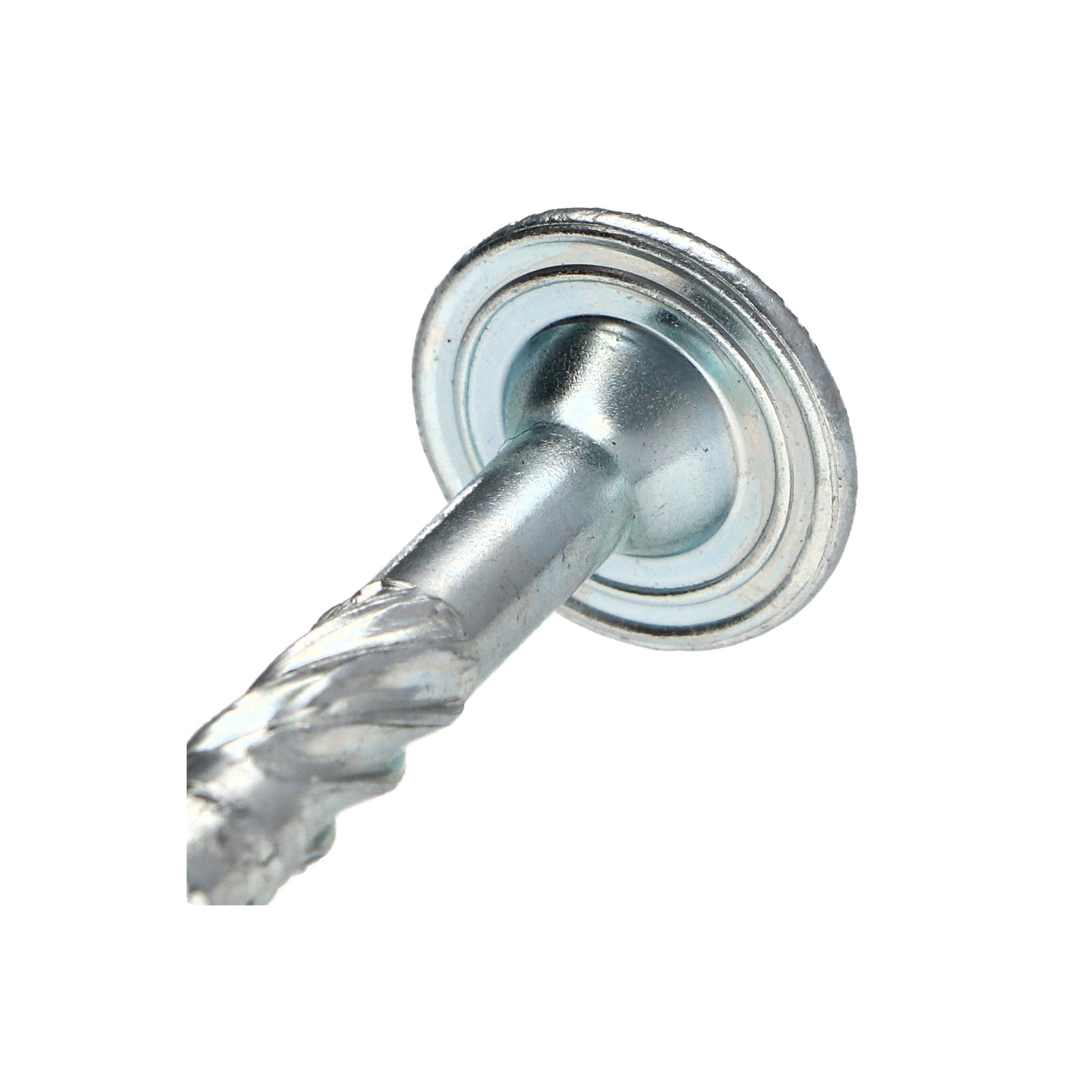

diametre tete	13.5 A 14.5	22 A 23.5	25 A 26.5

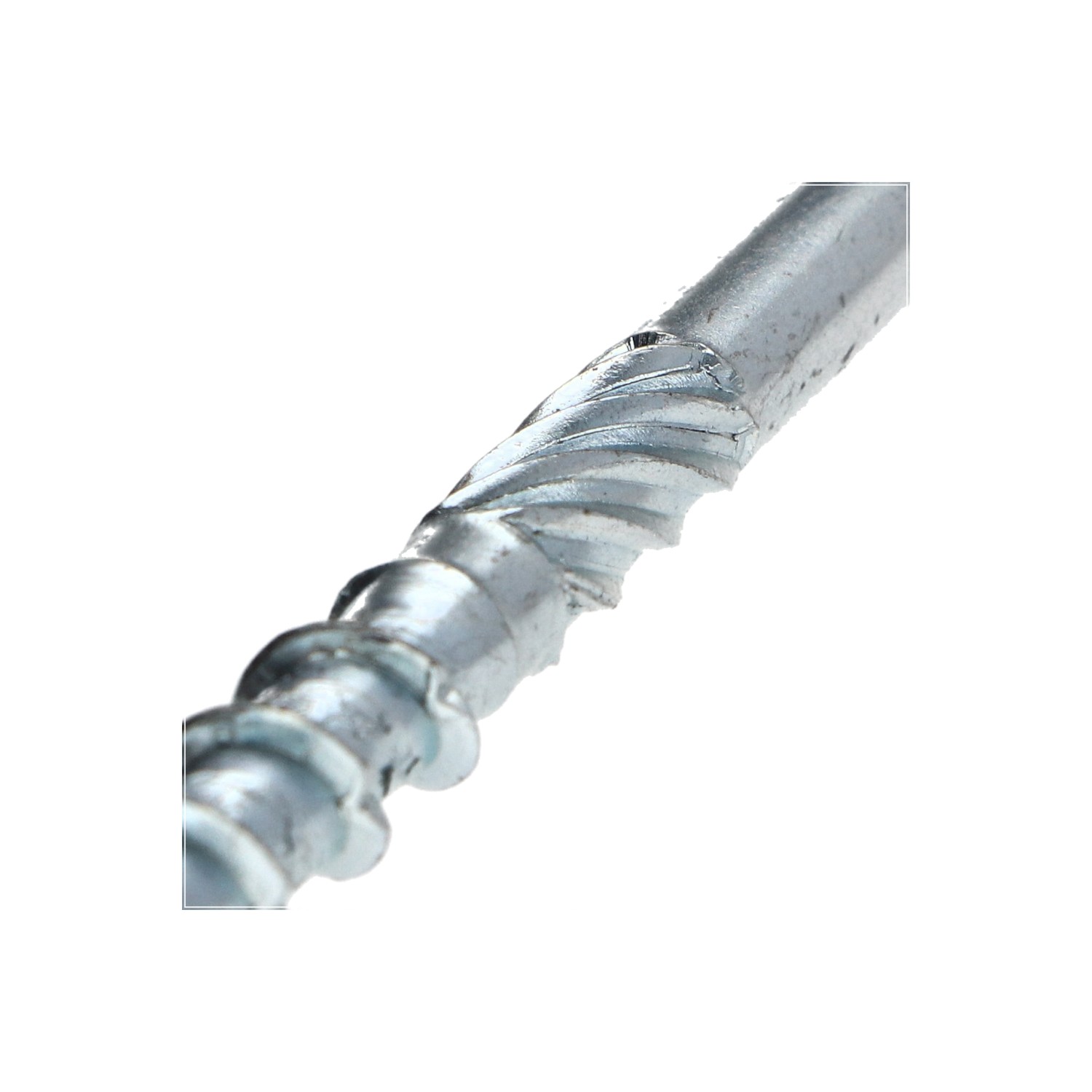

diametre moletage	4.8 a 5.3	6.8 a 7.2	8 a 8.5
Pitch	4.5	5.5	6.6
Torx	T30	T40	T40
ACIER ZING 8 MICRON - 120 HBS SANS ROUILLE BLANCHE

Other Reference : 3617500790675 LC35322 3663072459212

Use Cases

Michel D. (vis-express.fr)
2026-07-26

For fixing charging stations with an 8mm anchor For fixing wallbox or Schneider charging stations with an 8mm anchor

Benjamin B. (vis-express.fr)
2026-05-03

fixation des chevrons à un UPN métallique

Joffray S. (vis-express.fr)
2026-03-29

Logo hook, thin title, in thin support against plywood / forex

David P. (vis-express.fr)
2025-11-02

Timber frame assembly TEKOR T-shaped wood screw with TORX T30 disc, type 17 anti-splitting point, 6x60, 35mm thread, zinc-plated steel

gaec d. (vis-express.fr)
2025-09-28

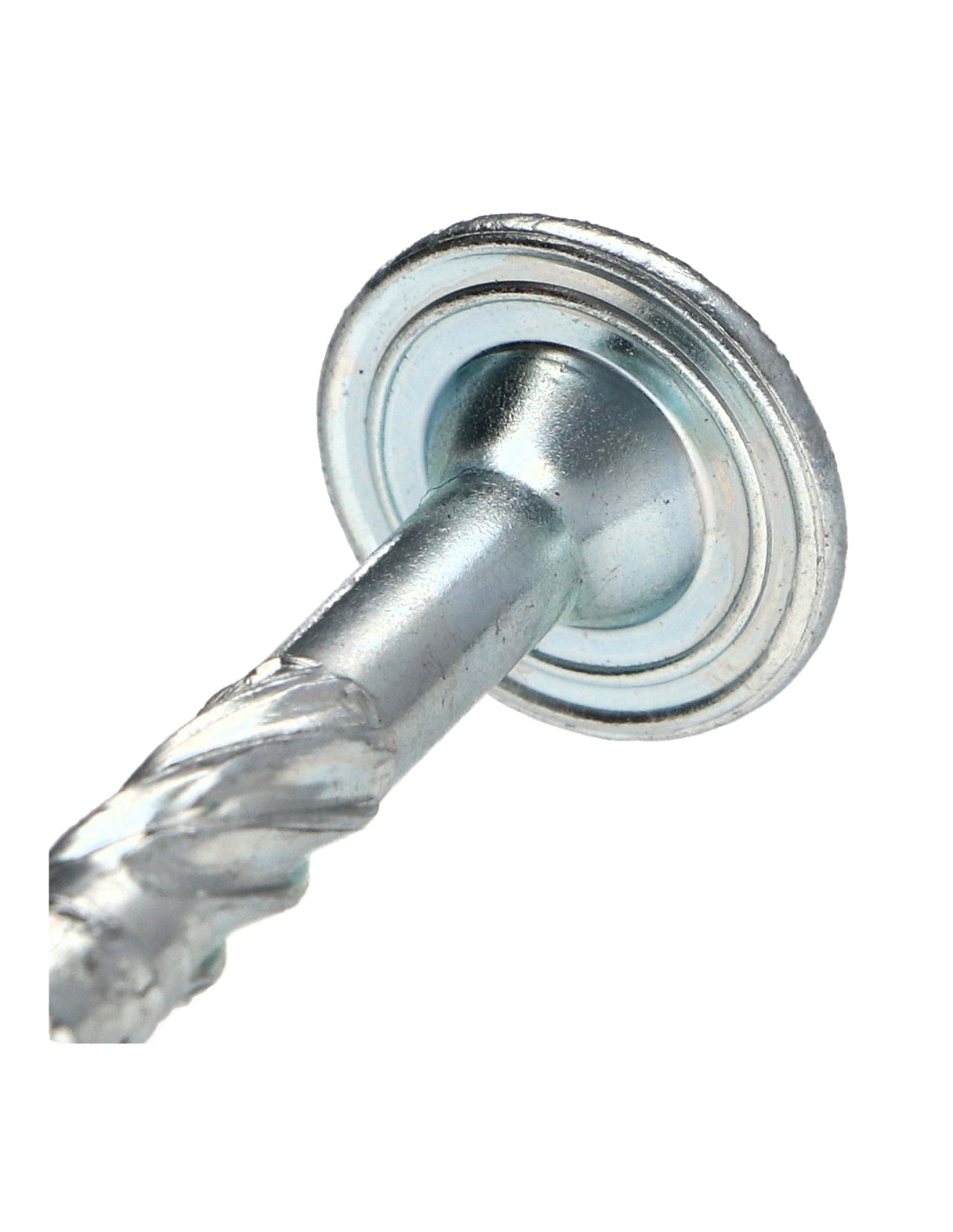

Ideal for clamping 2 pieces of wood Its disc head prevents the head from disappearing into soft wood!

jerome p. (vis-express.fr)
2025-03-16

Fixing solar panel hooks on rafters TEKOR wood and chipboard screws TORX T30 disc head Anti-splitting point cut type 17 6X60 Thread e on 35 Steel

Hubert B. (vis-express.fr)
2025-02-02

Smooth fixing 70x70 douglass on douglass posts 70x70 TEKOR wood and chipboard screws TORX T30 disc head Anti-splitting point cut type 17 6X60 Thread e on 35 Steel

Gabriel C. (vis-express.fr)
2024-08-25

False ceiling fixing OMEGA half collar fixing

Mikael M. (vis-express.fr)
2024-07-14

design of a terrace on the height of Linthal code 5000x3000u

Romain J. (vis-express.fr)
2024-03-10

To make a wooden gate. I use autoclave wood which will be perfect.
