1 x Carriage Bolt Stainless Steel A2 M10X100 Partial Thread
1 x Carriage Bolt Stainless Steel A2 M10X100 Partial Thread
1 x Carriage Bolt Stainless Steel A2 M10X100 Partial Thread
1 x Carriage Bolt Stainless Steel A2 M10X100 Partial Thread
1 x Carriage Bolt Stainless Steel A2 M10X100...
1 x Carriage Bolt Stainless Steel A2 M10X100...
1 x Carriage Bolt Stainless Steel A2 M10X100...
1 x Carriage Bolt Stainless Steel A2 M10X100...

1 x Carriage Bolt Stainless Steel A2 M10X100 Partial Thread

8414111018_1
In stock 7116 Pièces
€1.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50 200
Lot price VAT included €1.85 €3.70 €13.00 €32.50 €130.00
DIN 603 - Carriage Bolt Stainless Steel A2 M10X100 Partial Thread
MARTRCC
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units
  • 200 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M10
Length
100
Thread
Partial Thread
Pitch
Standard pitch 150
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 603
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
10X10X6.6
Diameter in mm
9.968 - 9.752
Unit weight
69.9 GR
7116 Items
3663072162426

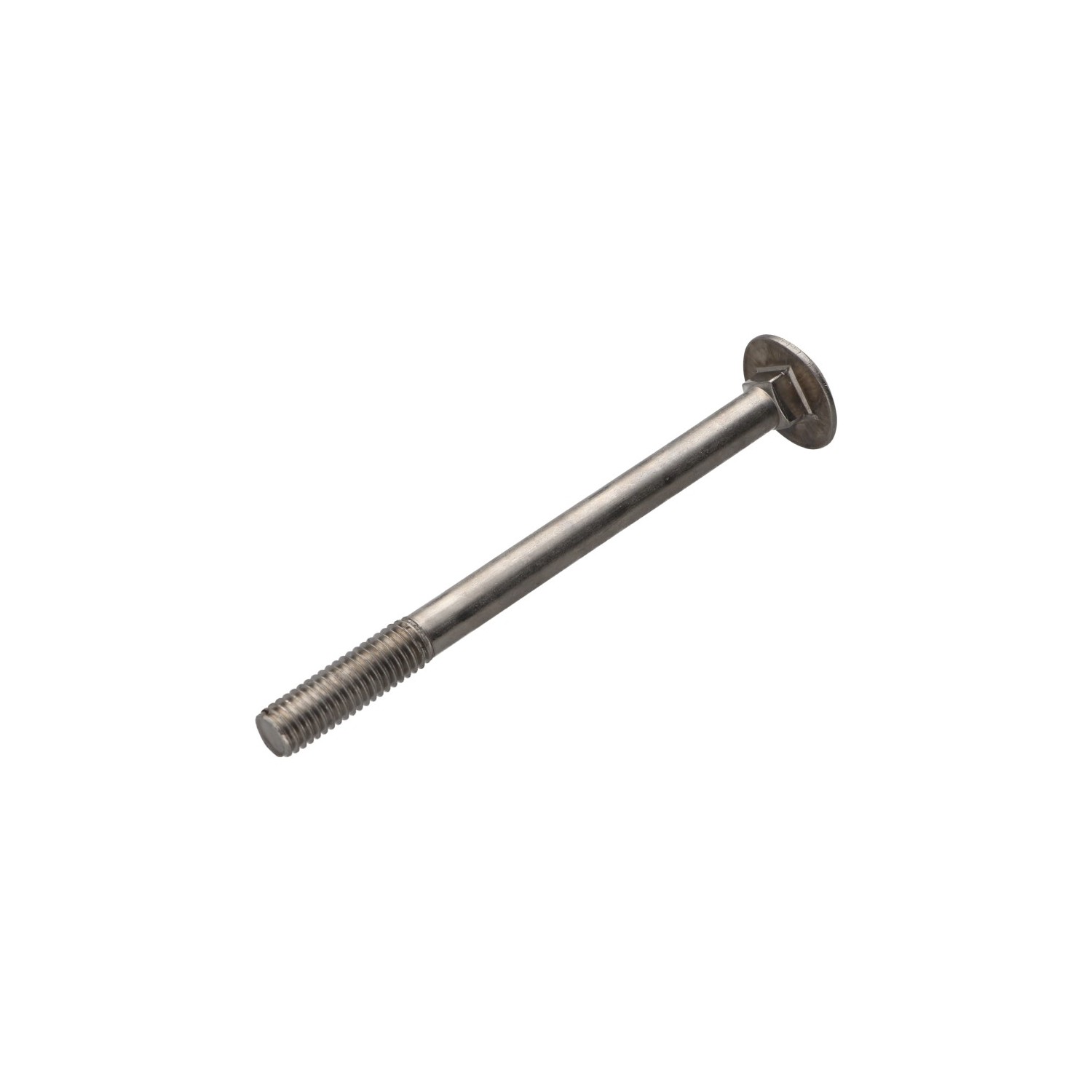

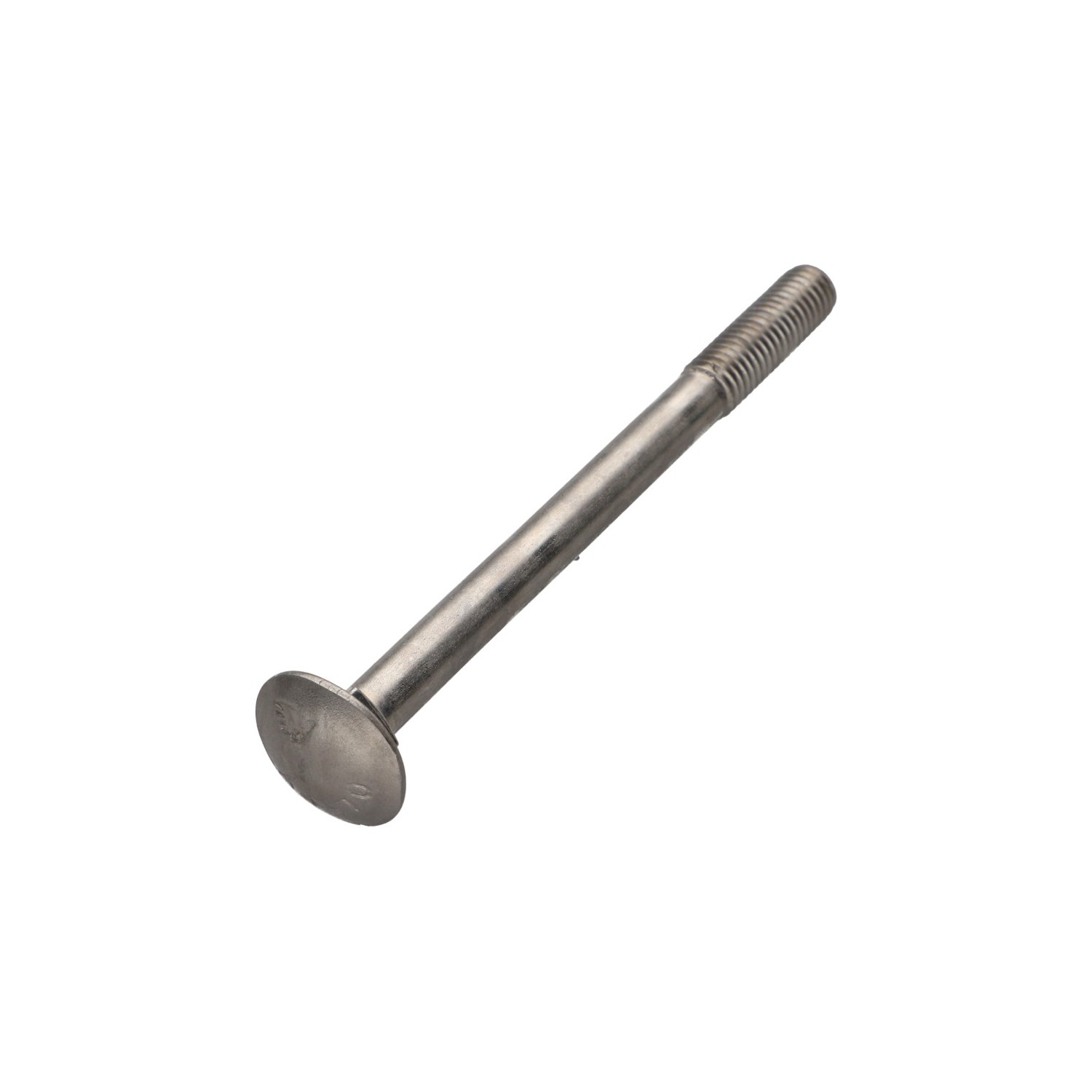

Carriage Bolt Stainless Steel A2 M10X100 Partial Thread
Diameter = M10, Length = 100, Material = Stainless Steel A2, Pitch = Standard pitch 150, Norm = DIN 603

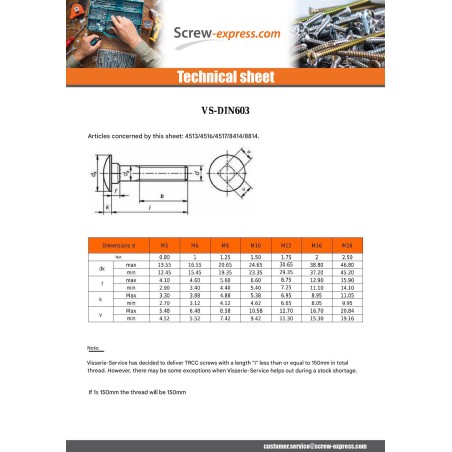

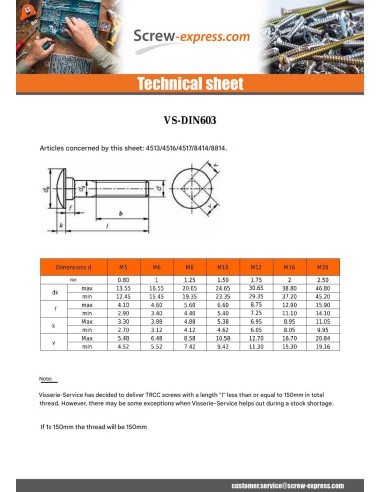

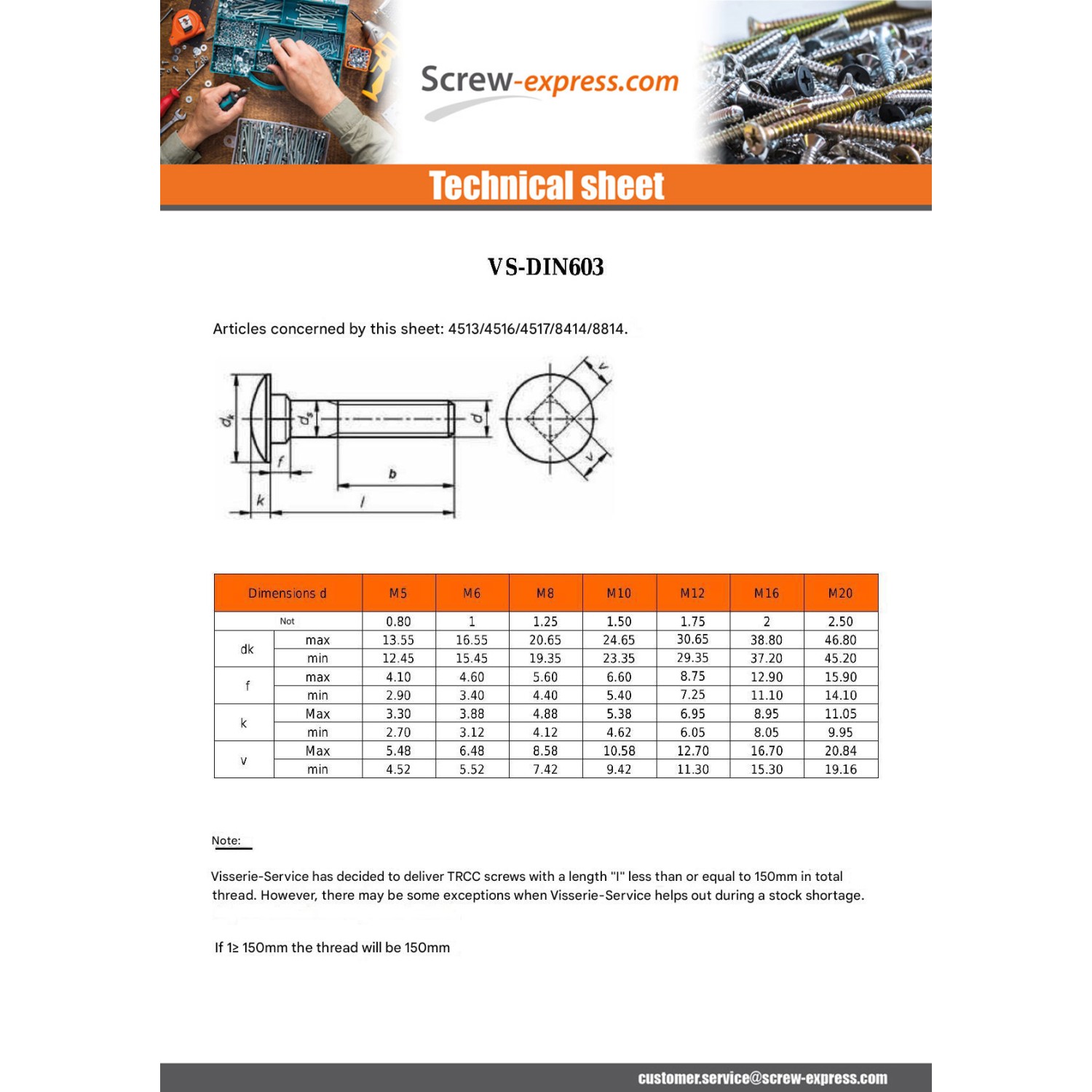

dimensional guide (mm)
Diameter 5 6 8 10 12
Head diameter 13.5 16.5 20.5 24.5 30.5
Head Tickness 3.3 3.9 5 5.4 7

Other Reference : 6221310X100 CMVIM1000125 TRCC.M10X100 VTRCC10*100 5231A2015020 9-603A2M10X1 QV-048 3663072162426
Pierre S. (vis-express.fr)
2026-08-02

It's to build a cabin a cabin for my child, it will be 2m x 2m


Geoffrey L. (vis-express.fr)
2026-05-03

boulonner l'ossature d'une table de picnic boulon japy M10 inox A2


jean-marie J. (vis-express.fr)
2026-03-08

Grow tray assembly TRCC JAPY round head square neck Stainless steel A2 M10X100 Partial thread


bernard L. (vis-express.fr)
2025-05-18

making a picnic table making a picnic table


Thierry H. (vis-express.fr)
2024-08-18

Restoration of my grandparents' bench. Cast iron bench
