3703482512_1
In stock 58057 Pièces
£1.48 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250 1000
Lot price VAT included £1.48 £2.95 £3.51 £13.67 £51.98

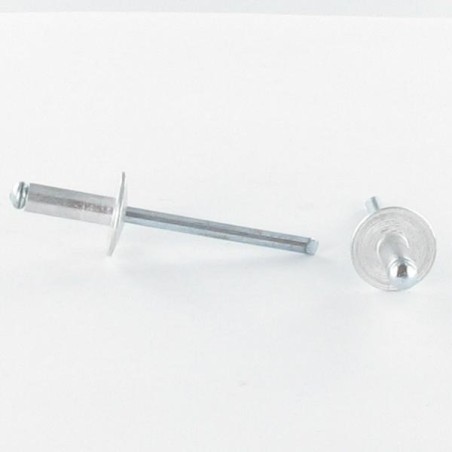

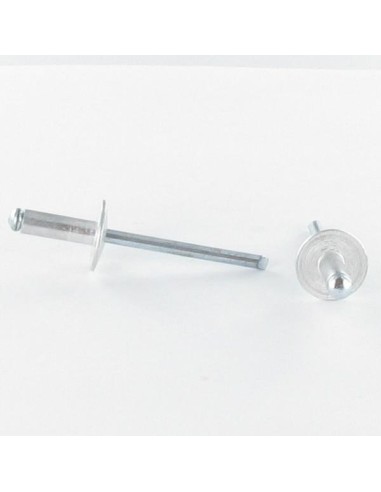

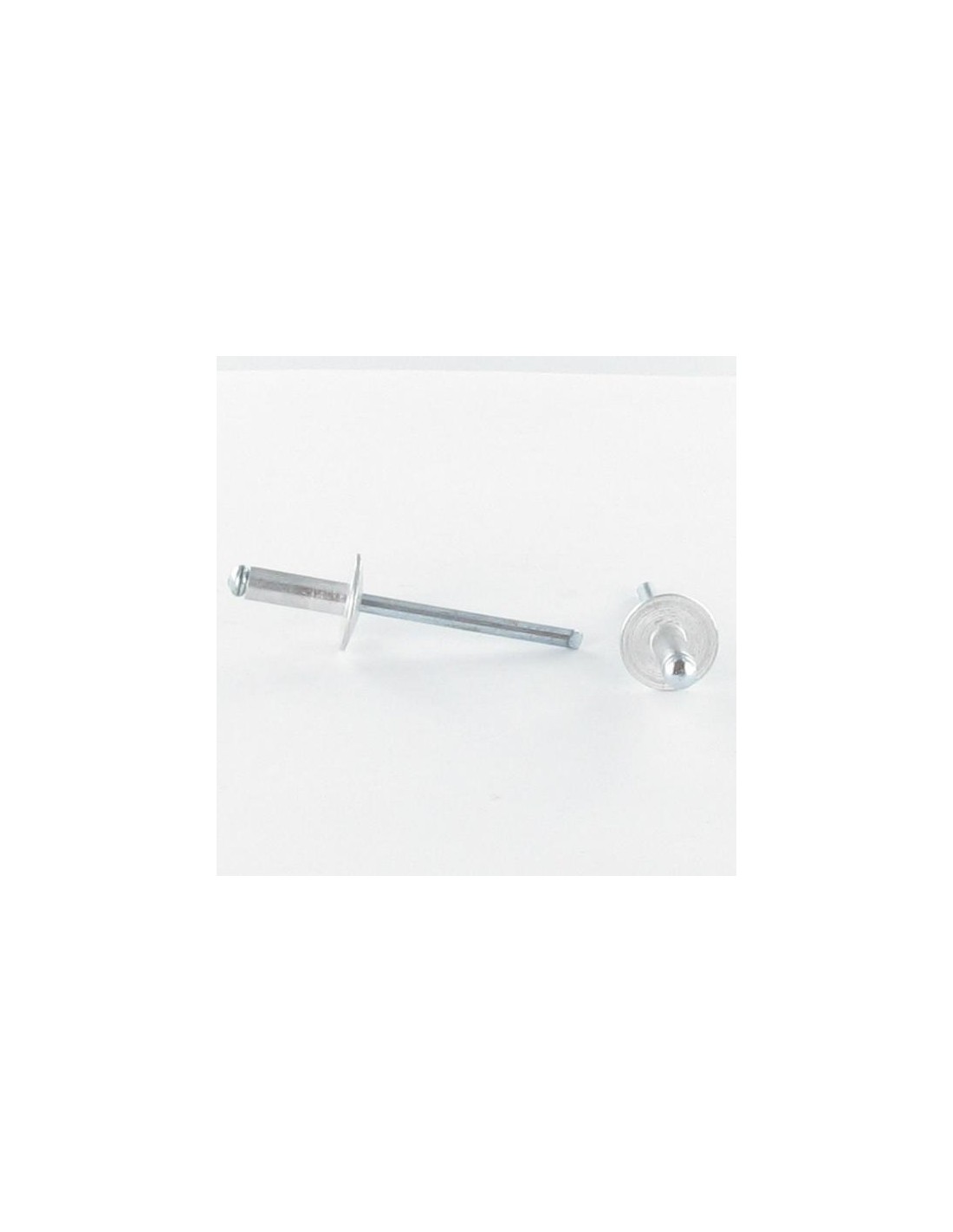

Blind rivets Aluminium Stahlgewinde 4.8X25 Thickness Of Panel 15 to 20 Large Head ALX
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
WEIGHT For THERE unit
4.1 GR
Clamping thickness
15 to 20 MM
Rivet body length
25
58057 Items
3663072064485

Application

  • Thin sheets of aluminum or steel
  • Plastics, PVC, polycarbonate
  • Lightweight or insulating panels
  • Signage and branding
Blind rivets Aluminium Stahlgewinde 4.8X25 Thickness Of Panel 15 to 20 Large Head ALX
Diameter = Class 4.8

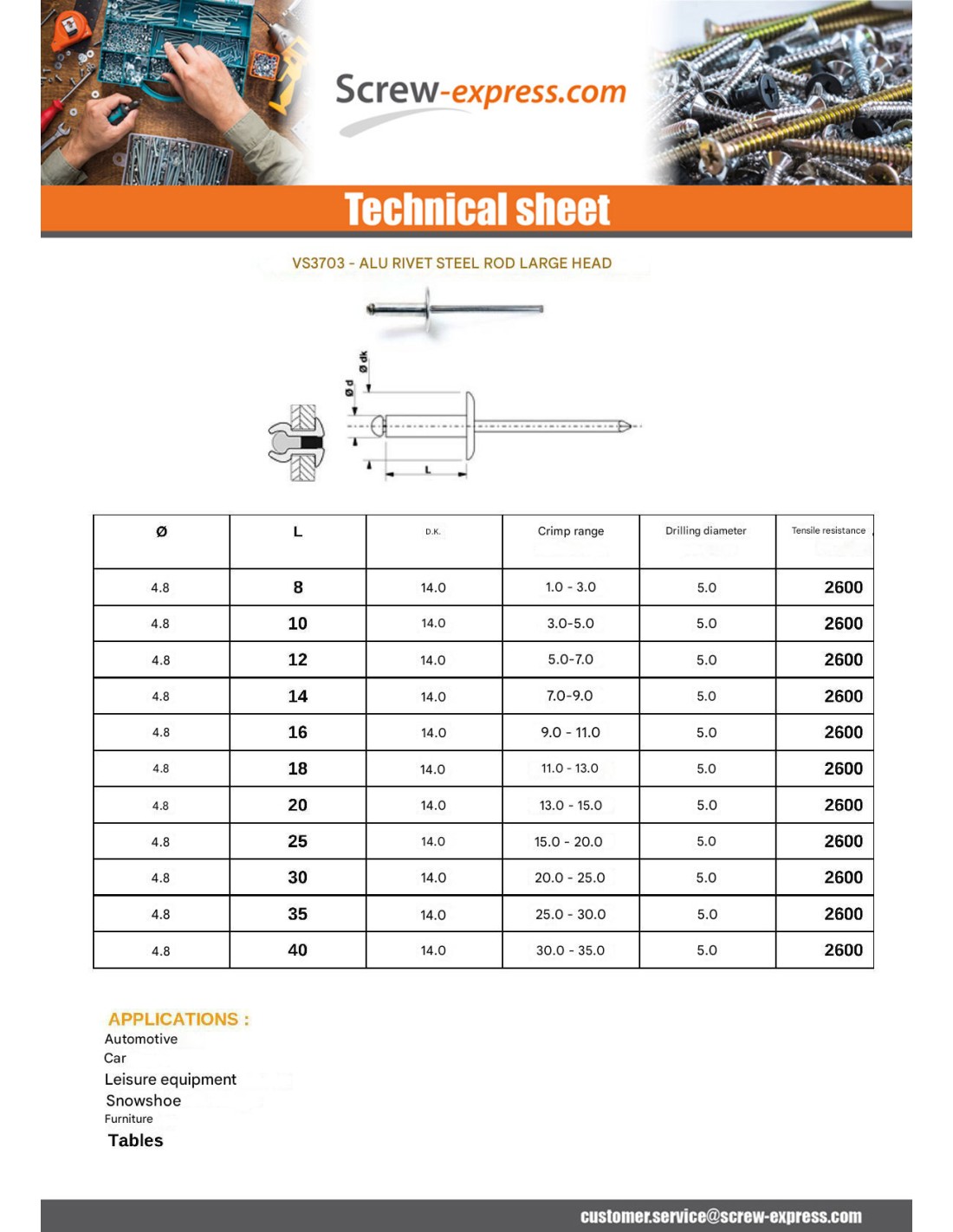

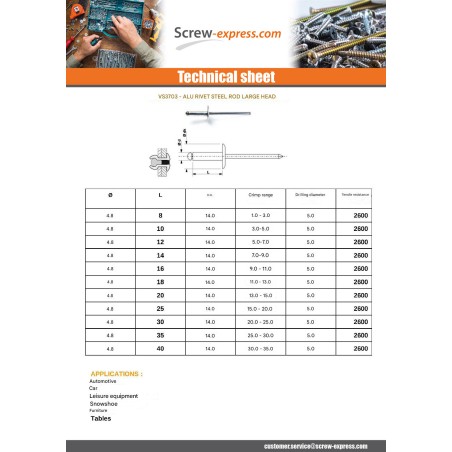

dimensional guide (mm)
Body diameter4.8
Head diameter14
Drilling diameter5
longueur tige27
resistance a la traction2600
Shear strength2100

Other Reference : 103248251 YRIVALACTPL4 9587000000 4825al SO-06591 TR13856595 260068 VRIV4.8X25TL 401610009900 VIS0080 BVRVL48X25AF 075547 RIVET4.8X25 39758 39758 71IRIVET003 212092 RIVET4.8X24 POP4-25 19R05L25 RIV_TL_4.8_2 RIVET4.8X24 1311041LV 2936 228000000005 F0506007 3663072064485
Mathieu L. (vis-express.fr)
2024-09-29

These rivets are used in the repair of polyethylene pallet boxes. They fix patches while waiting to weld them.
