3703484012_1
In stock 2373 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included €3.85 €7.70 €9.30 €56.30

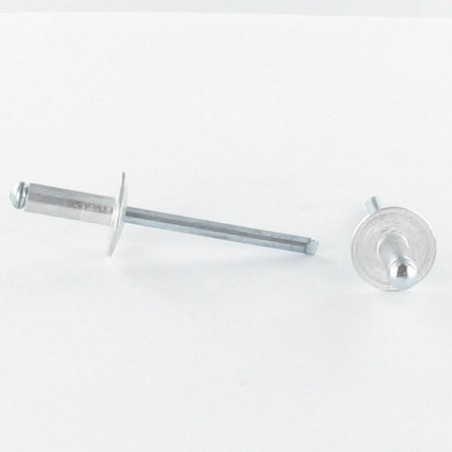

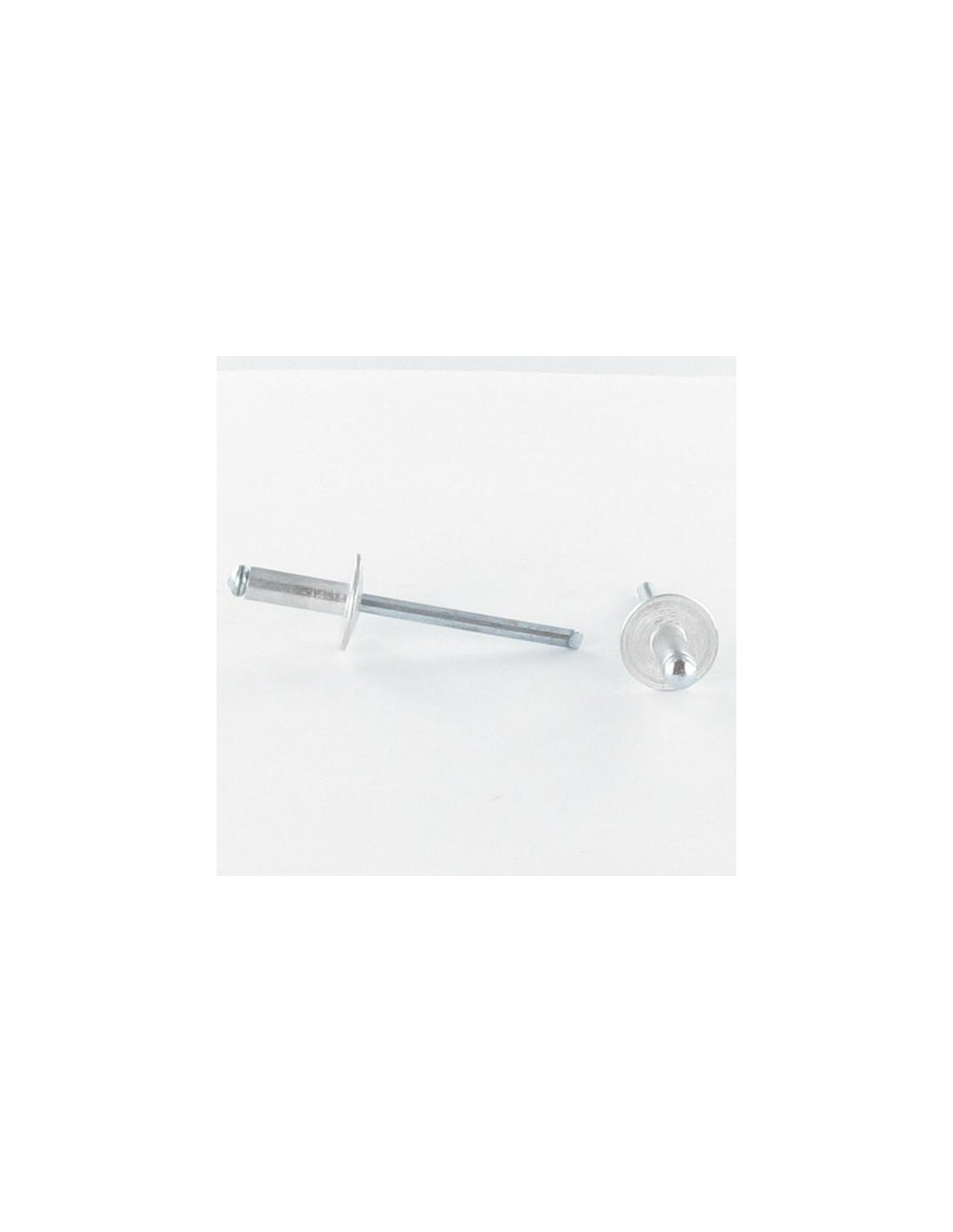

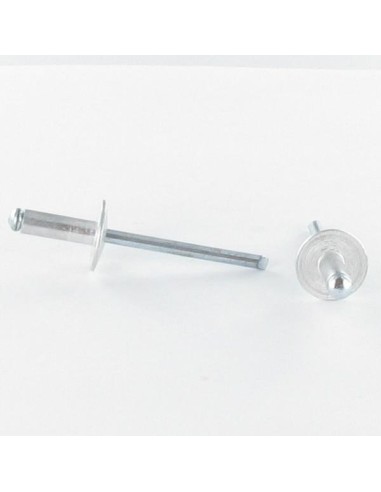

Blind rivets Aluminium Stahlgewinde 4.8X40 Thickness Of Panel 30 to 35 Large Head ALX
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
WEIGHT For THERE unit
5.4 GR
Clamping thickness
30 to 35 MM
Rivet body length
40
2373 Items
3663072064522

Application

  • Thin sheets of aluminum or steel
  • Plastics, PVC, polycarbonate
  • Lightweight or insulating panels
  • Signage and branding
Blind rivets Aluminium Stahlgewinde 4.8X40 Thickness Of Panel 30 to 35 Large Head ALX
Diameter = Class 4.8

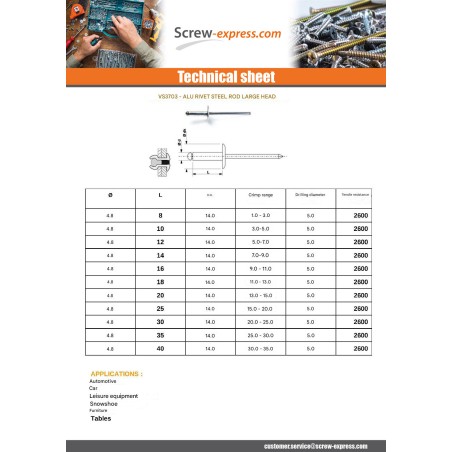

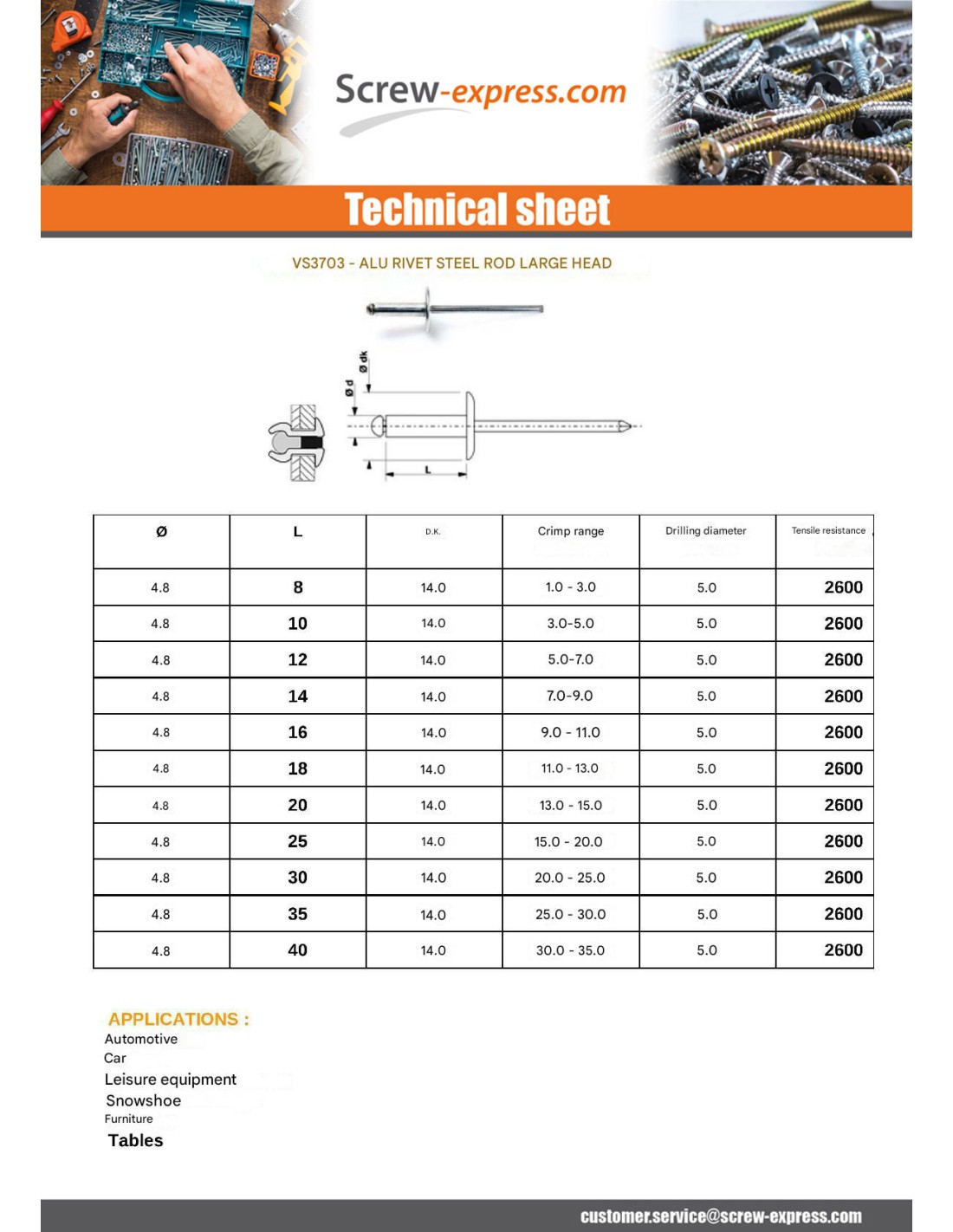

dimensional guide (mm)
Body diameter4.8
Head diameter14
Drilling diameter5
longueur tige27
resistance a la traction2600
Shear strength2100

Other Reference : 103248401 500 177729R RIV.4,8X40 VIS0466 RIVET4.8X40 MOIS 3663072064522
