1 x Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 2.4X6...
1 x Blind rivets Aluminium Stahlgewinde 2.4X6...
1 x Blind rivets Aluminium Stahlgewinde 2.4X6...

1 x Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Flat Head ALX

3702240612_1
In stock 9607 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000 4000
Lot price VAT included €1.70 €3.40 €4.05 €18.60 €65.20

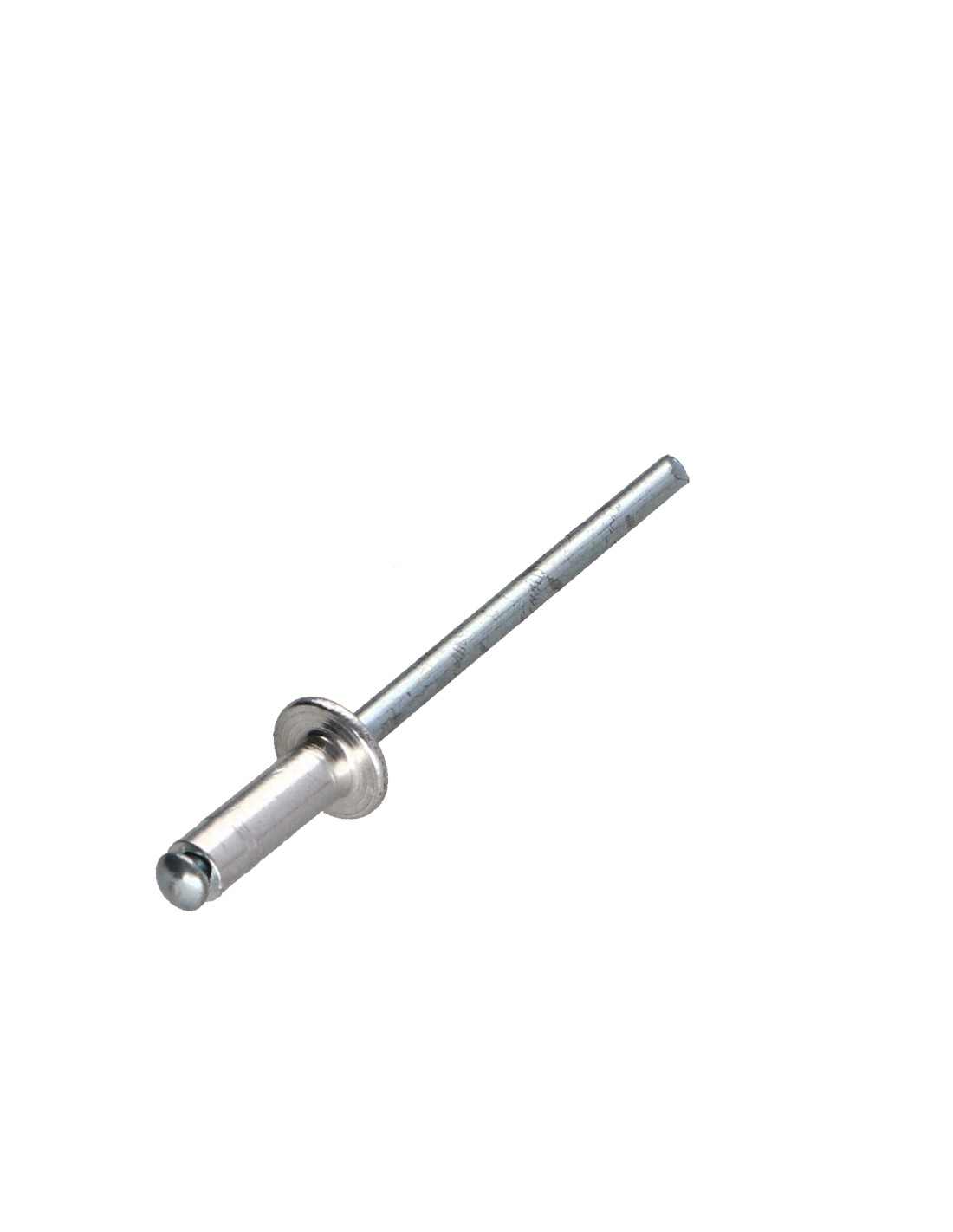

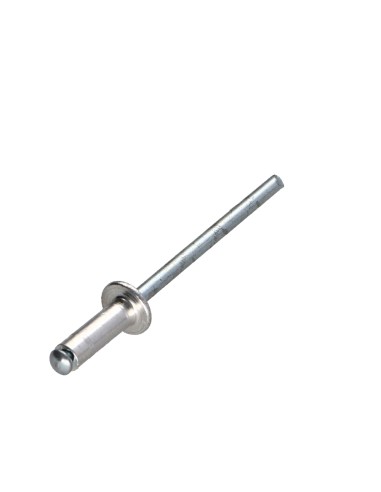

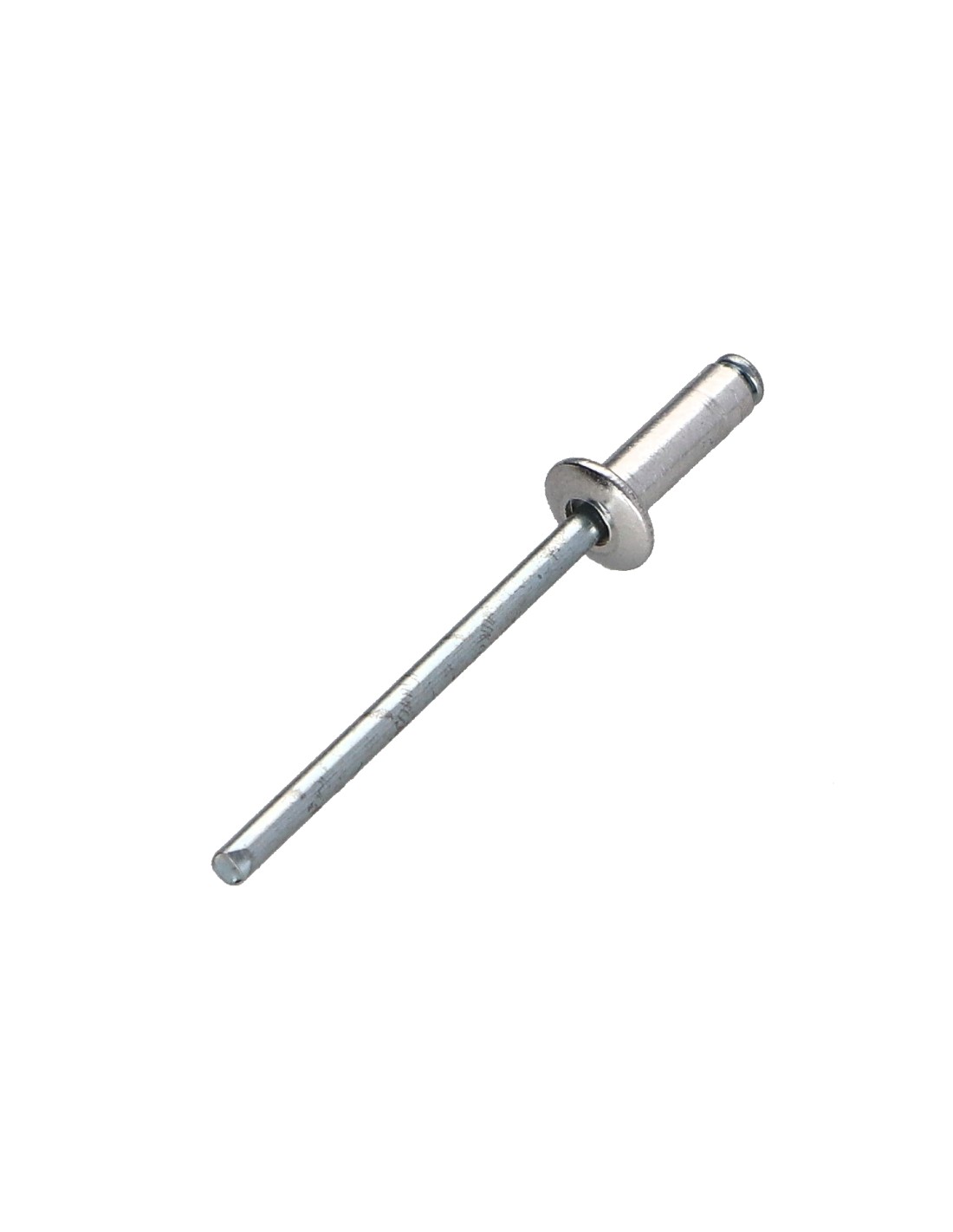

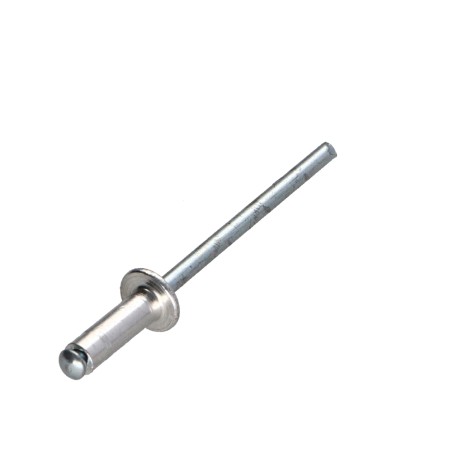

Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units
  • 4000 units

Dimensions shown in millimeters (mm)

Diameter
2.4
Sub product family
Flat Head
WEIGHT For THERE unit
0.62 GR
Clamping thickness
2 to 4 MM
Rivet body length
6
9607 Items
3663072195066

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Flat Head ALX
Diameter = 2.4

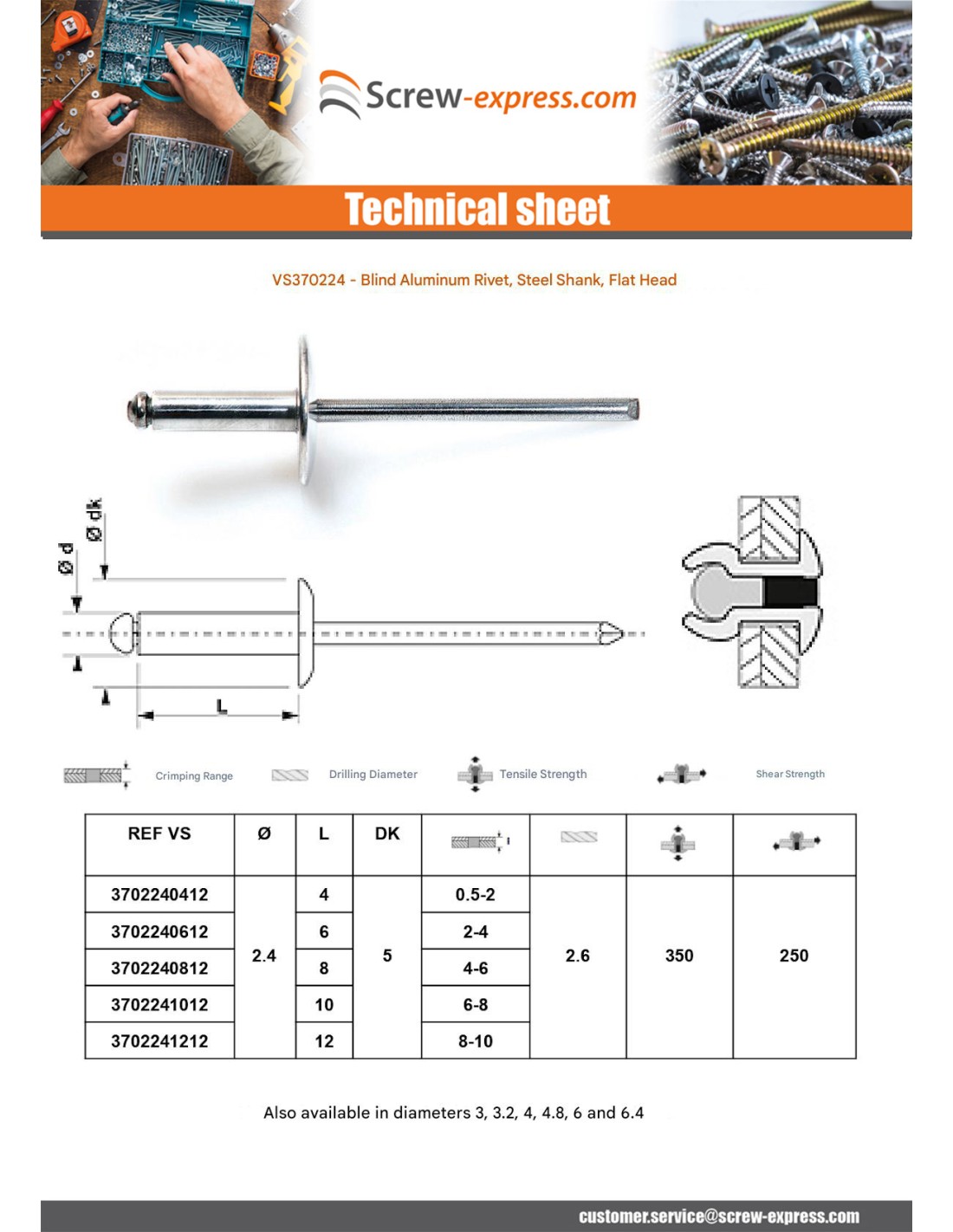

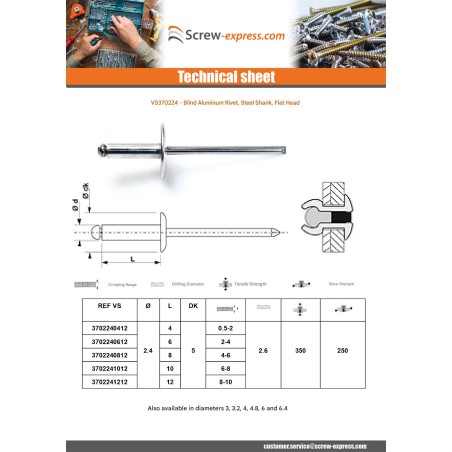

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103124061 RIV2.4X6 RIV2.4X6 IR99/1 V001193 V001193 RVATB2.4X5 3663072195066
antonio l. (vis-express.fr)
2024-04-07

fixing clips to paneling on placo rail
