1 x Blind rivets Aluminium Stahlgewinde 4X20 Thickness Of Panel 14 to 16 Flat Head ALX

3702402012_1
In stock 13078 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.70 €3.40 €4.05 €14.25 €57.00

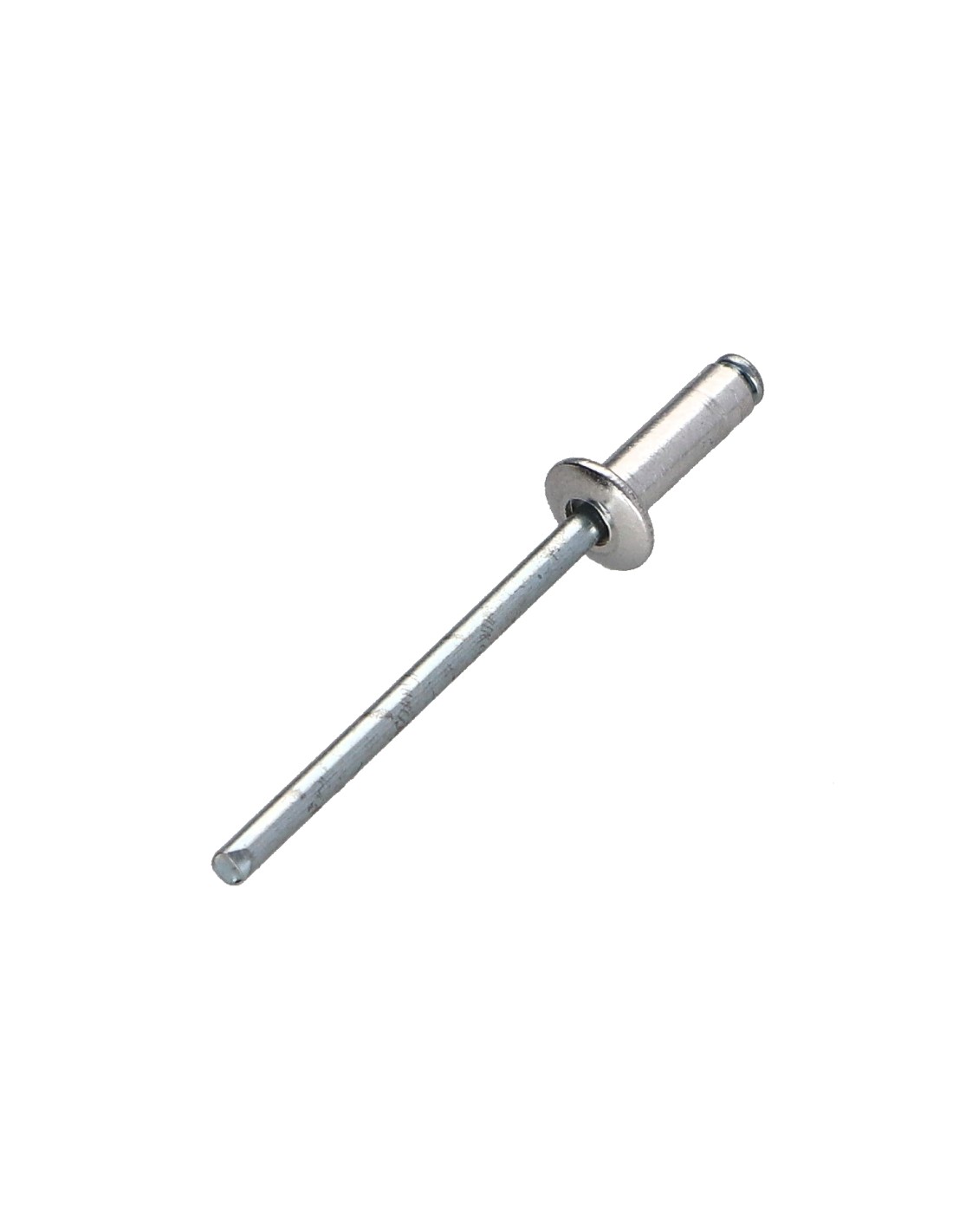

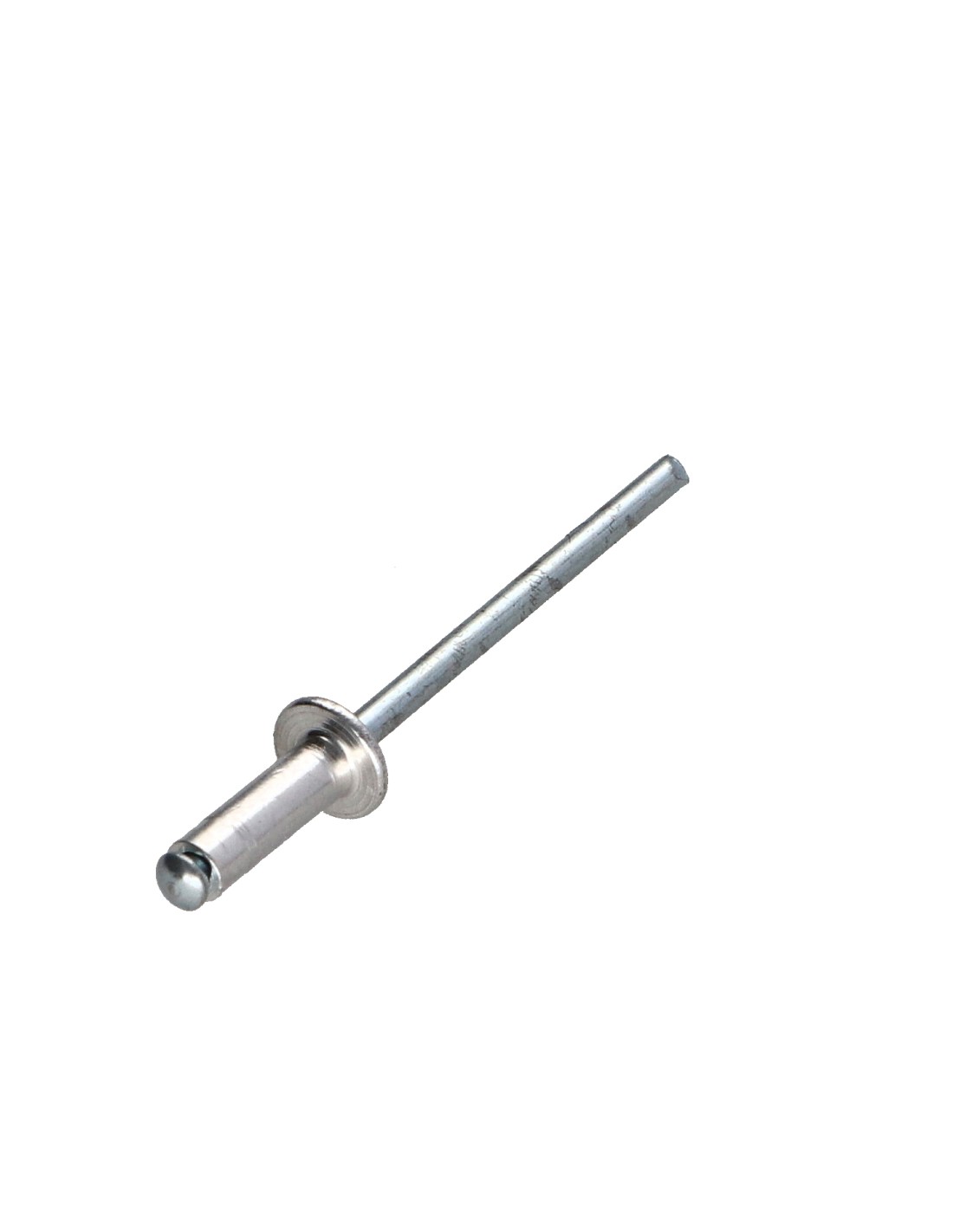

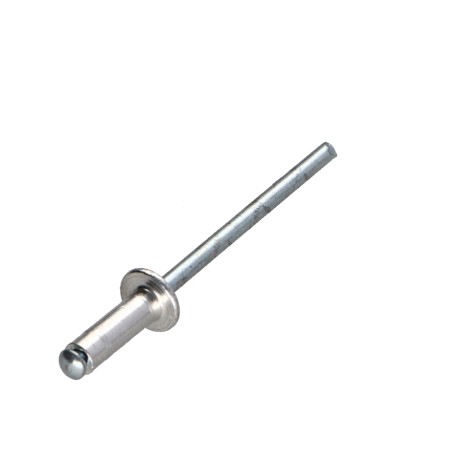

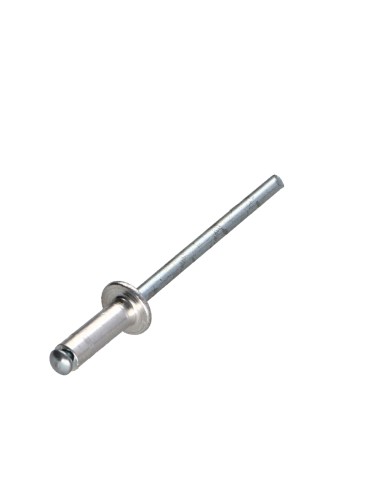

Blind rivets Aluminium Stahlgewinde 4X20 Thickness Of Panel 14 to 16 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
4
Sub product family
Flat Head
WEIGHT For THERE unit
2.31 GR
Clamping thickness
14 to 16 MM
Rivet body length
20
13078 Items
3663072219878

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X20 Thickness Of Panel 14 to 16 Flat Head ALX
Diameter = 4

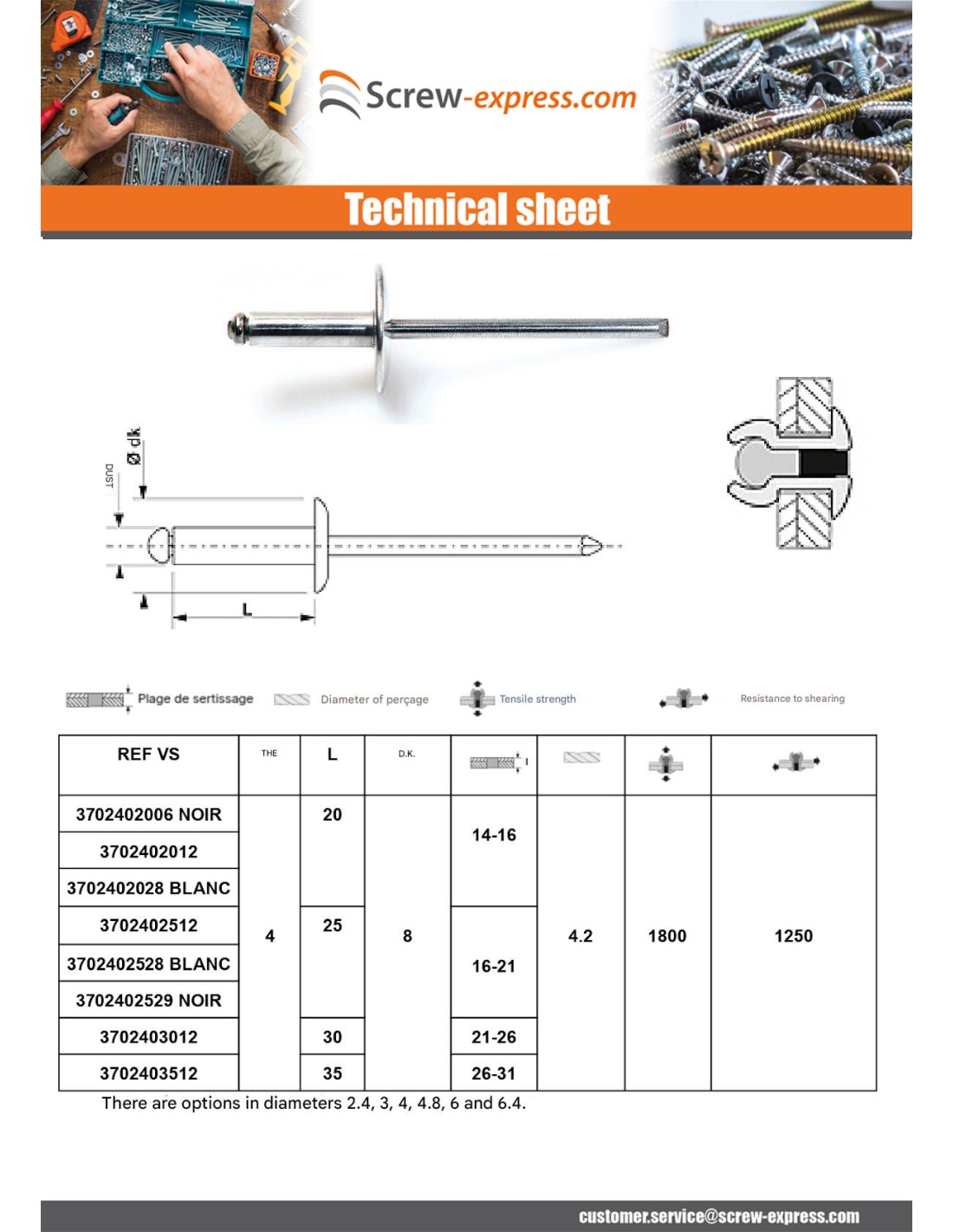

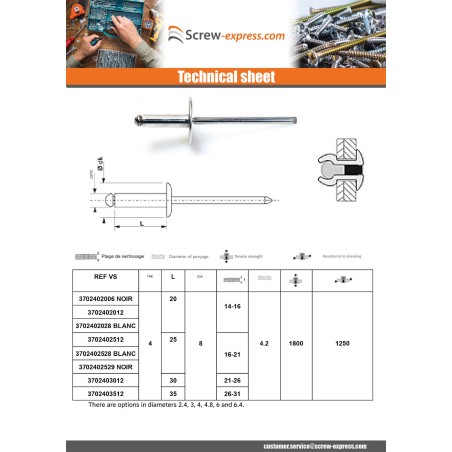

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103140201 070C000144 04194820 RPOPM4X20TPA VI2041 VU041 QURI081703 RIVET4X20 RIVET4X20 RIVET4X20 EG-Rivet-4-2 VI2041 VI2041 VI2041 0935108600 200638 VIS0007 RIV/4.2 212078 78725268 1311032LV AN 5000070 M00441 F0506005 R421 3663072219878
Christophe A. (vis-express.fr)
2026-04-12

The rivets will be used to fix the B14 running boards aluminum running boards
