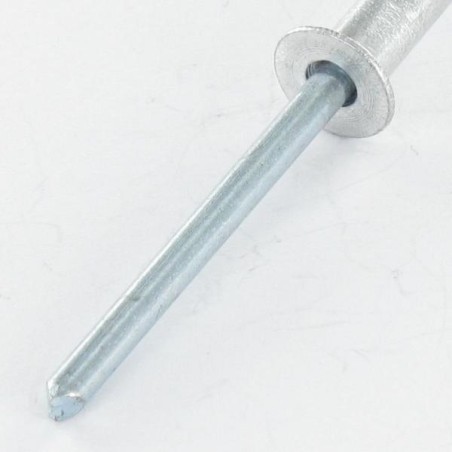

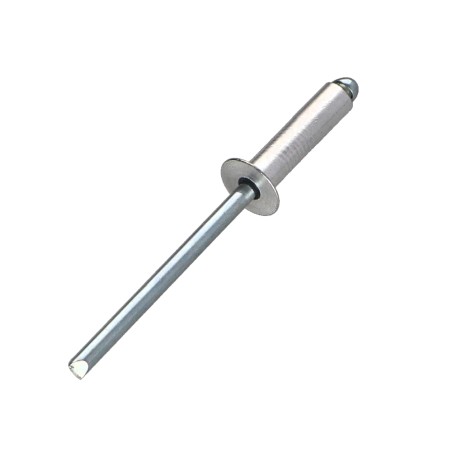

1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Countersunk Head ALX

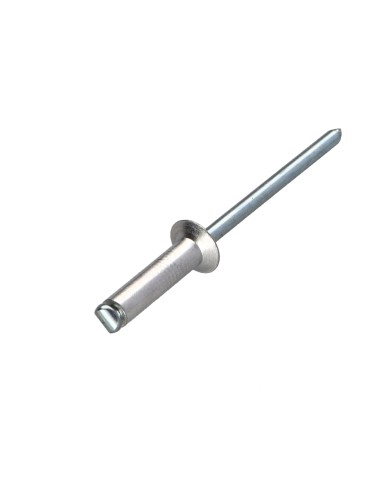

1 x Blind rivets Aluminium Stahlgewinde 4.8X16...
1 x Blind rivets Aluminium Stahlgewinde 4.8X16...
1 x Blind rivets Aluminium Stahlgewinde 4.8X16...
1 x Blind rivets Aluminium Stahlgewinde 4.8X16...
1 x Blind rivets Aluminium Stahlgewinde 4.8X16...
1 x Blind rivets Aluminium Stahlgewinde 4.8X16...
1 x Blind rivets Aluminium Stahlgewinde 4.8X16...

1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Countersunk Head ALX

3701481612_1
In stock 5789 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €25.50

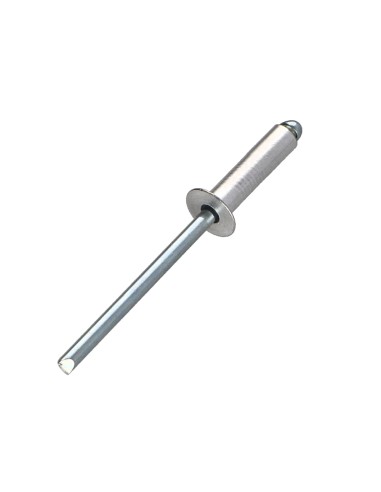

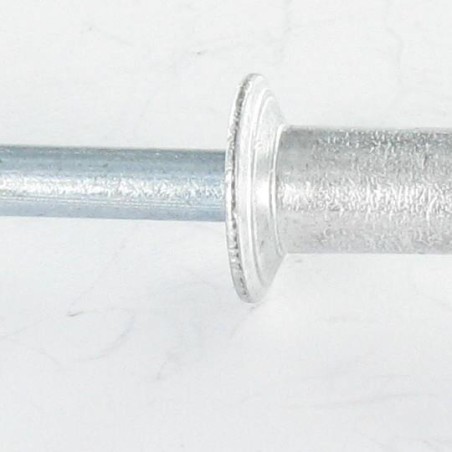

Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Countersunk Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Sub product family
Countersunk Head
WEIGHT For THERE unit
3 GR
Clamping thickness
9 to 11 MM
Rivet body length
16
5789 Items
3663072063679

Application

  • bodywork
  • metal cladding
  • aluminium joinery
  • equipment requiring a smooth surface
Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Countersunk Head ALX
Diameter = Class 4.8, Sub Product Family = Countersunk Head

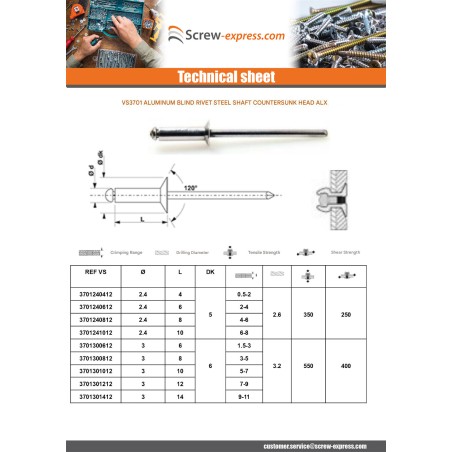

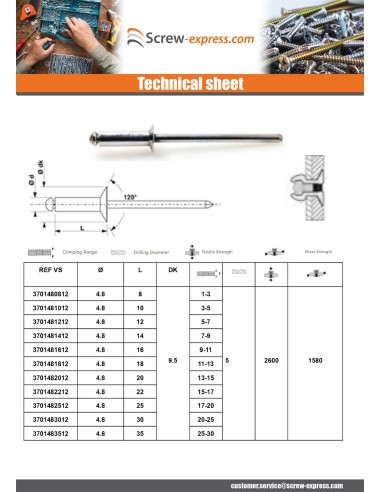

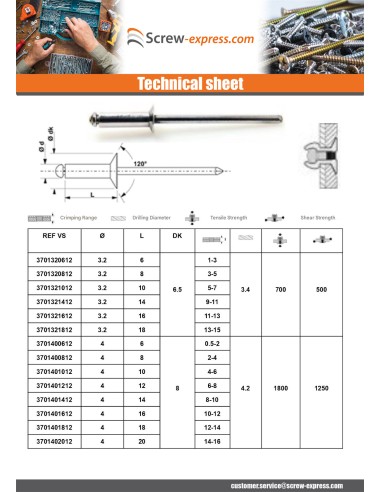

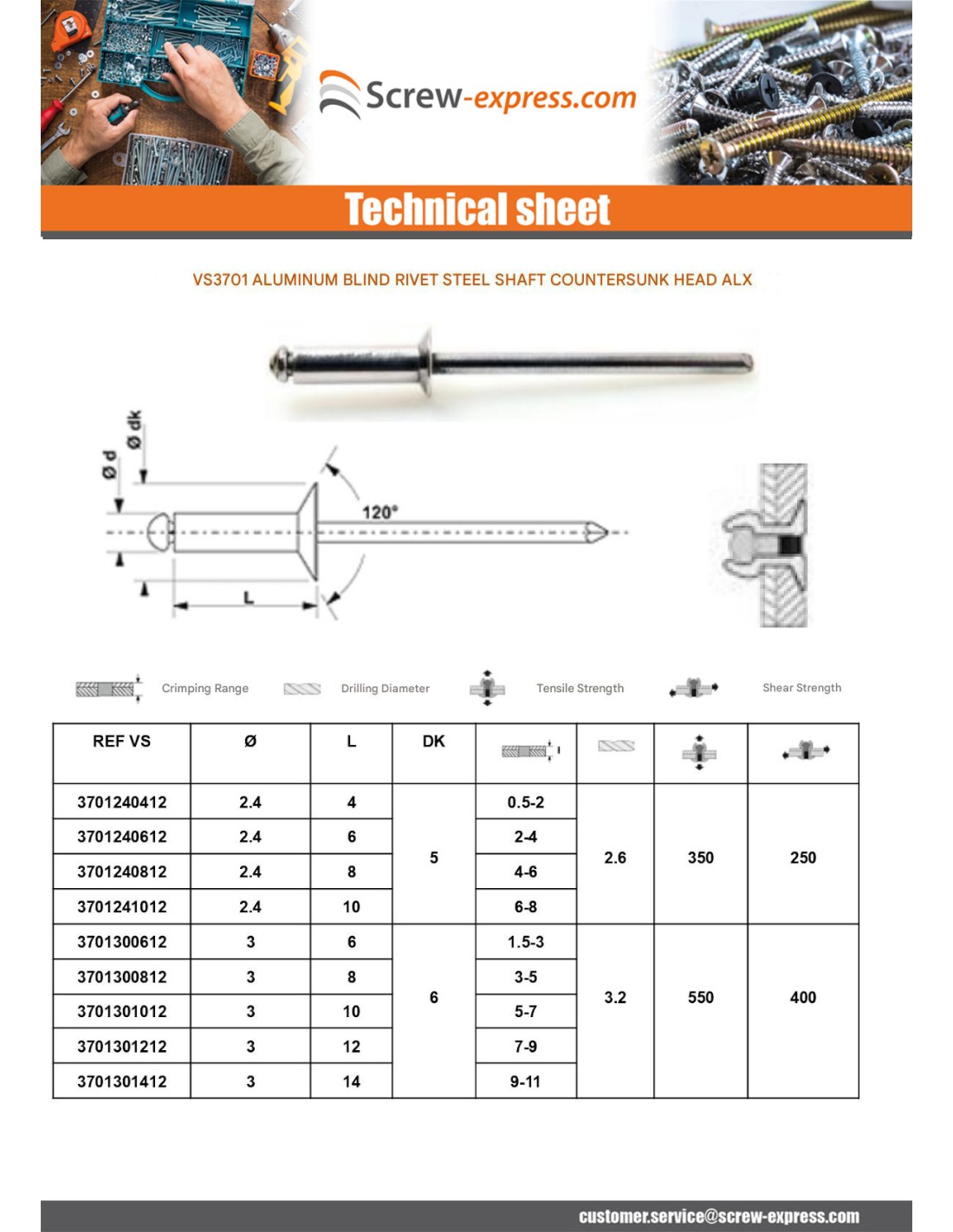

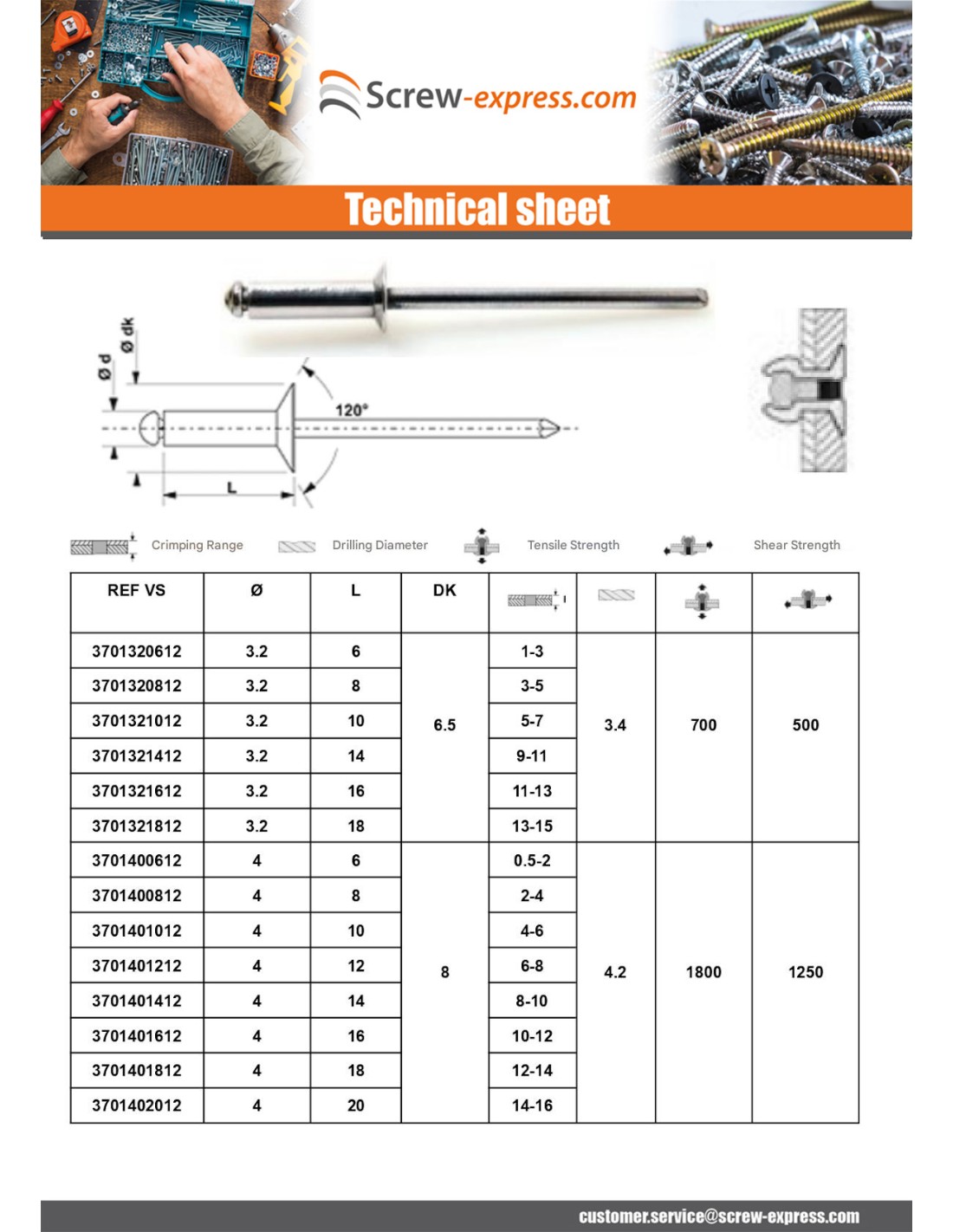

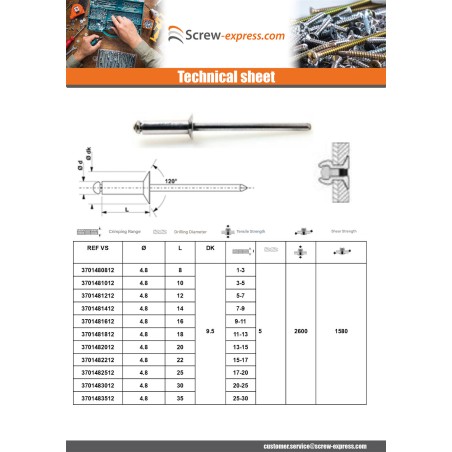

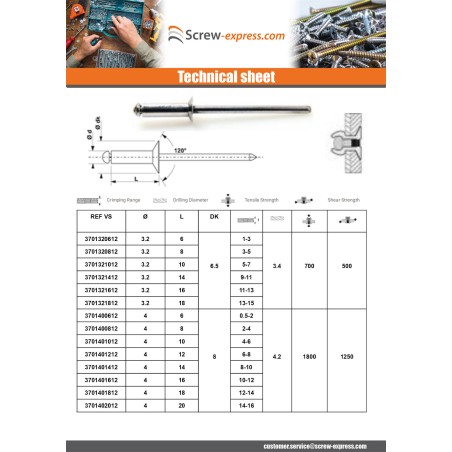

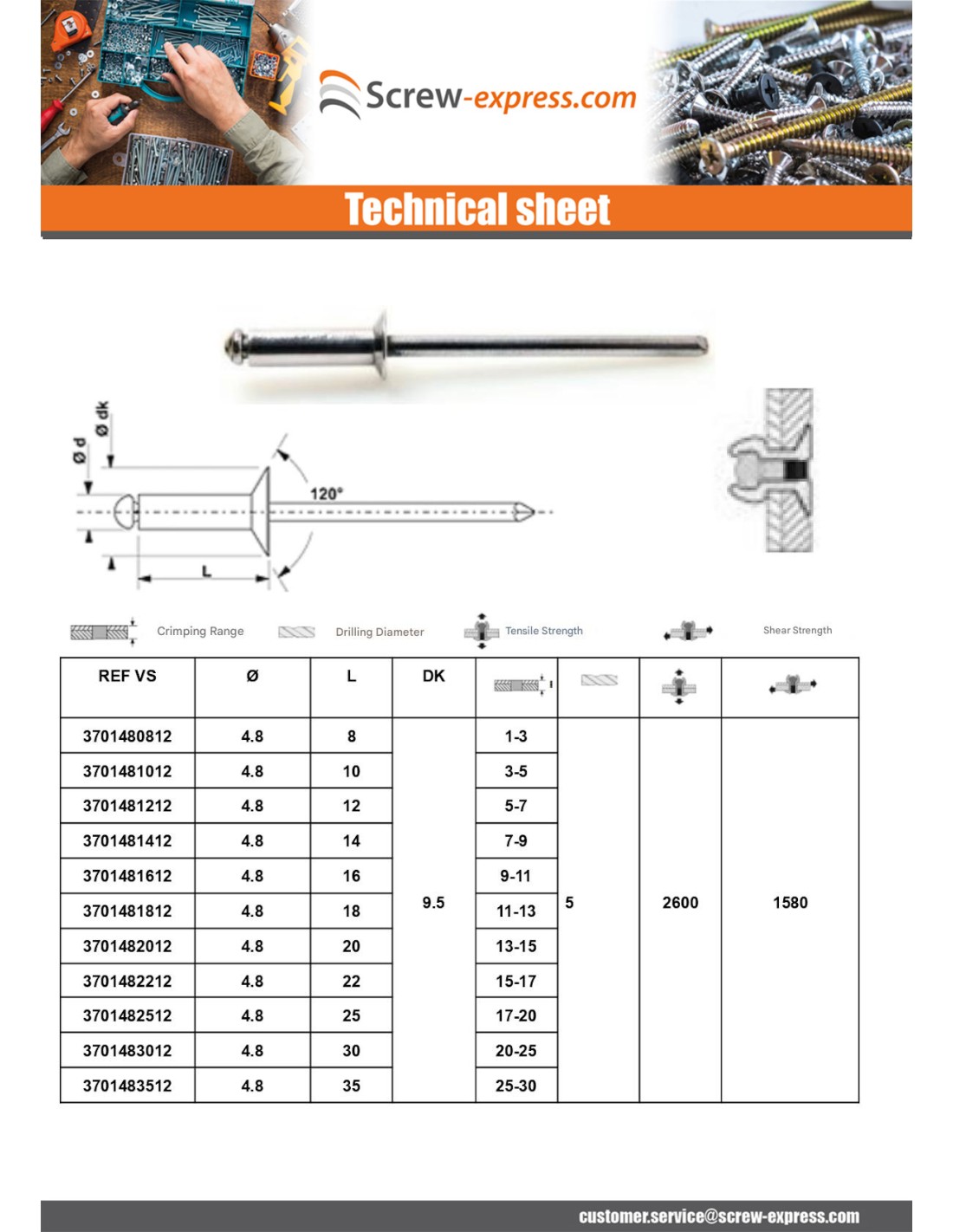

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8
Head diameter 5 6 6.5 8 9.5
Drilling diameter 2.6 3.2 3.4 4.2 5
resistance a la traction 500 800 1000 1600 2600
Shear strength 400 650 850 1300 2100
The length indicates the length of the body (useful length)
tete fraisee a 120 degres

Other Reference : 103448161 10089 RA/AL/AC/F/4 VI1089 VP030022 9334812 2951 QRI20030 210111 3663072063679
Louis B. (vis-express.fr)
2024-06-16

Assembly of parts on aluminum ladders for tanker trucks. Neptune Rear Ladder D035900-00
