1 x Blind rivets Aluminium Stahlgewinde 4X12 Thickness Of Panel 6 to 8 Countersunk Head ALX

3701401212_1
Available in 126 business days
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €19.00

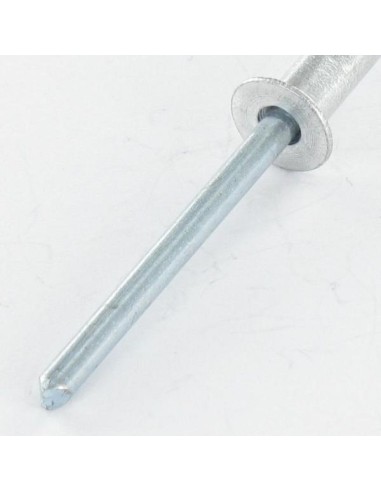

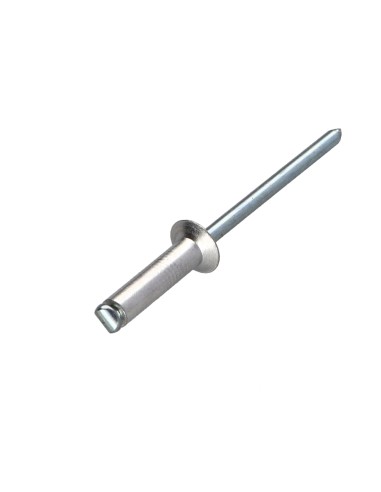

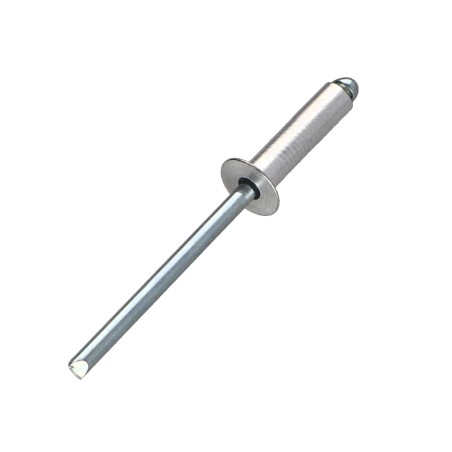

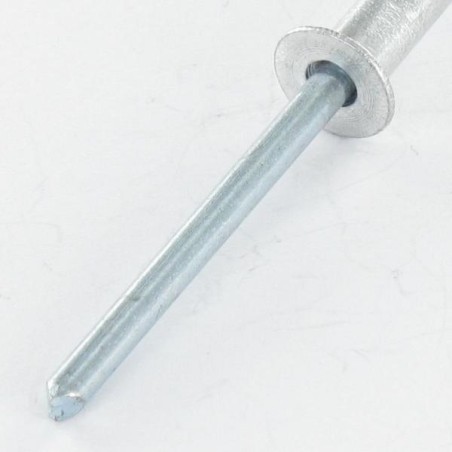

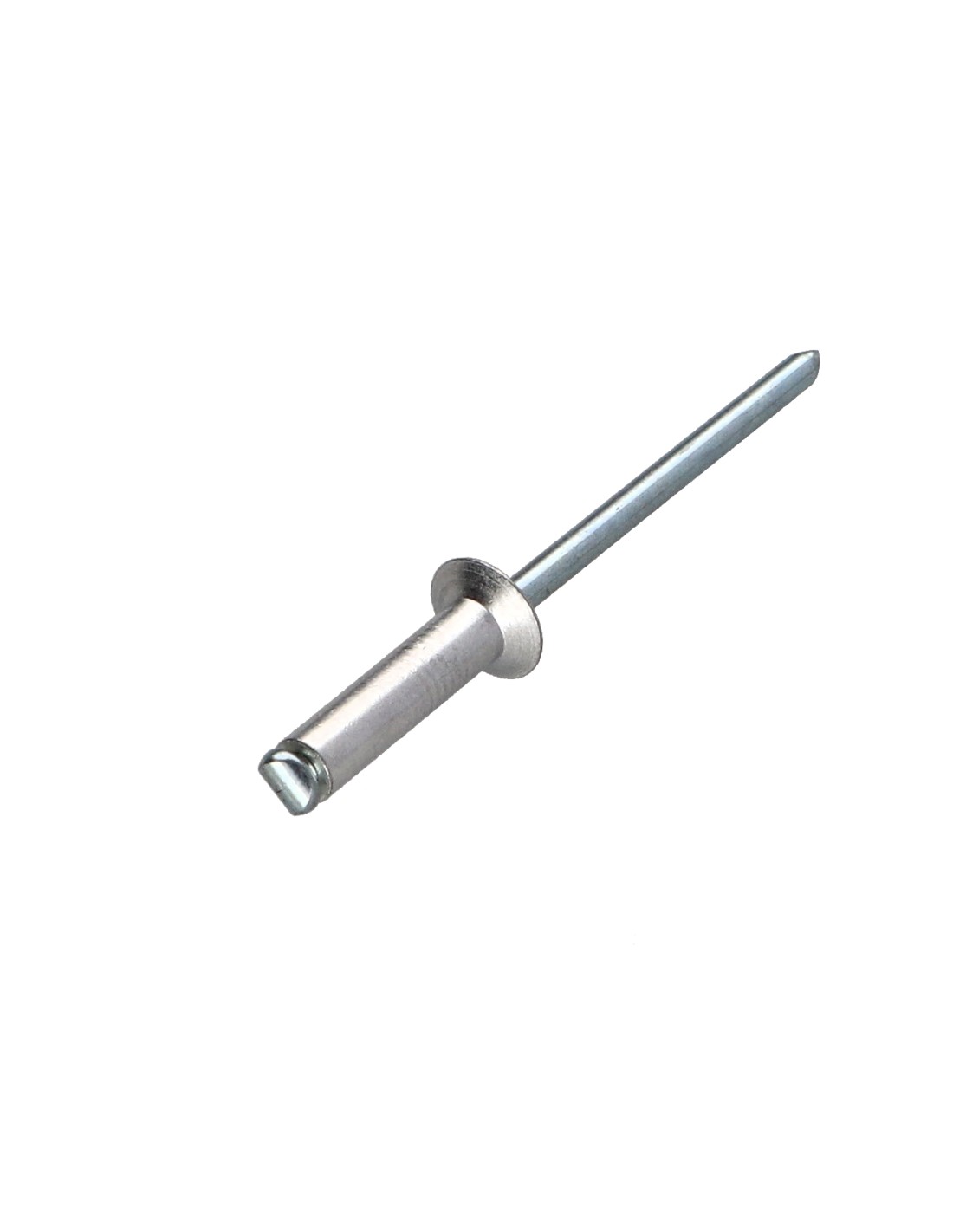

Blind rivets Aluminium Stahlgewinde 4X12 Thickness Of Panel 6 to 8 Countersunk Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4
Sub product family
Countersunk Head
WEIGHT For THERE unit
1.85 GR
Clamping thickness
6 to 8 MM
Rivet body length
12
3663072063631

Application

  • bodywork
  • metal cladding
  • aluminium joinery
  • equipment requiring a smooth surface
Blind rivets Aluminium Stahlgewinde 4X12 Thickness Of Panel 6 to 8 Countersunk Head ALX
Diameter = 4, Sub Product Family = Countersunk Head

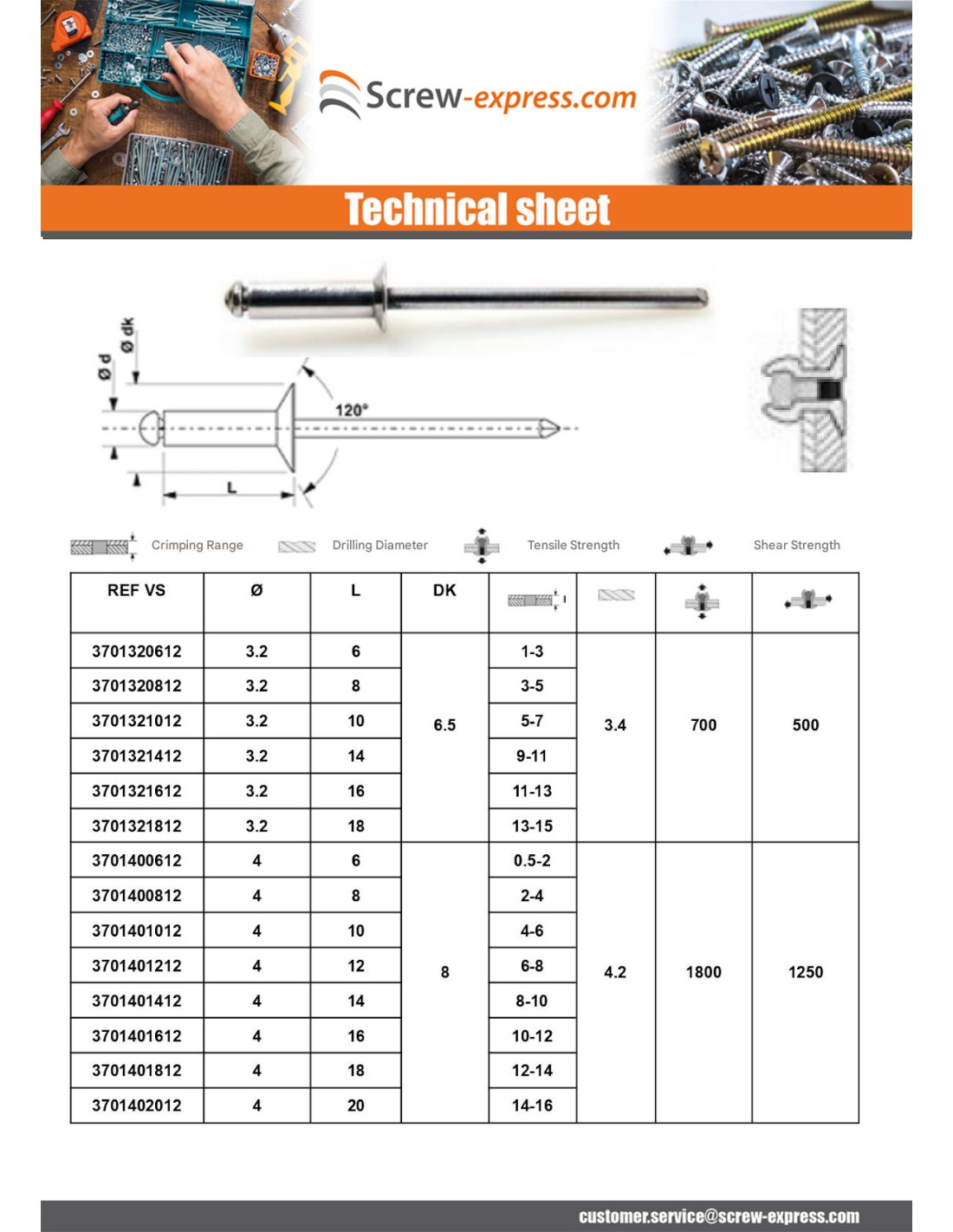

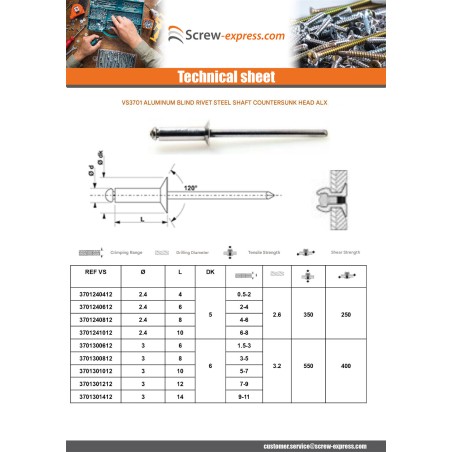

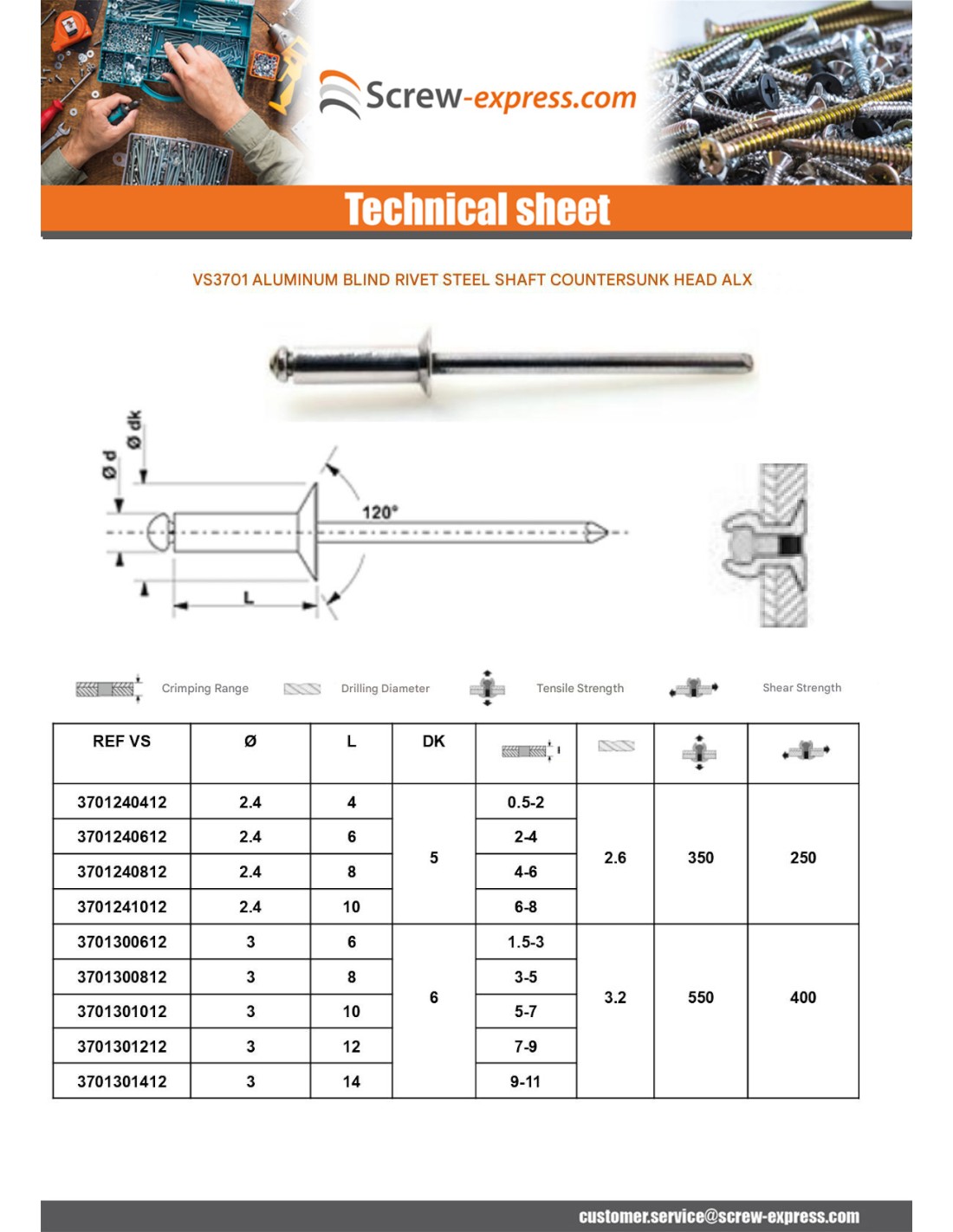

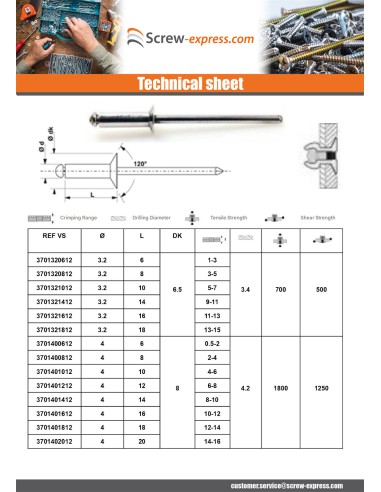

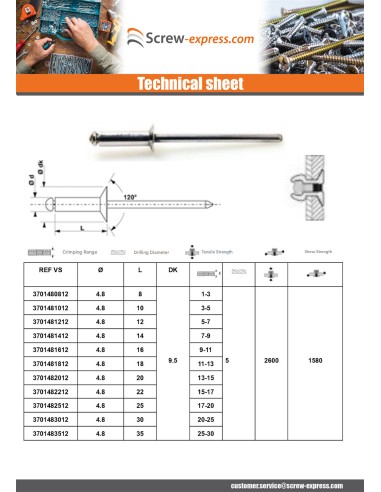

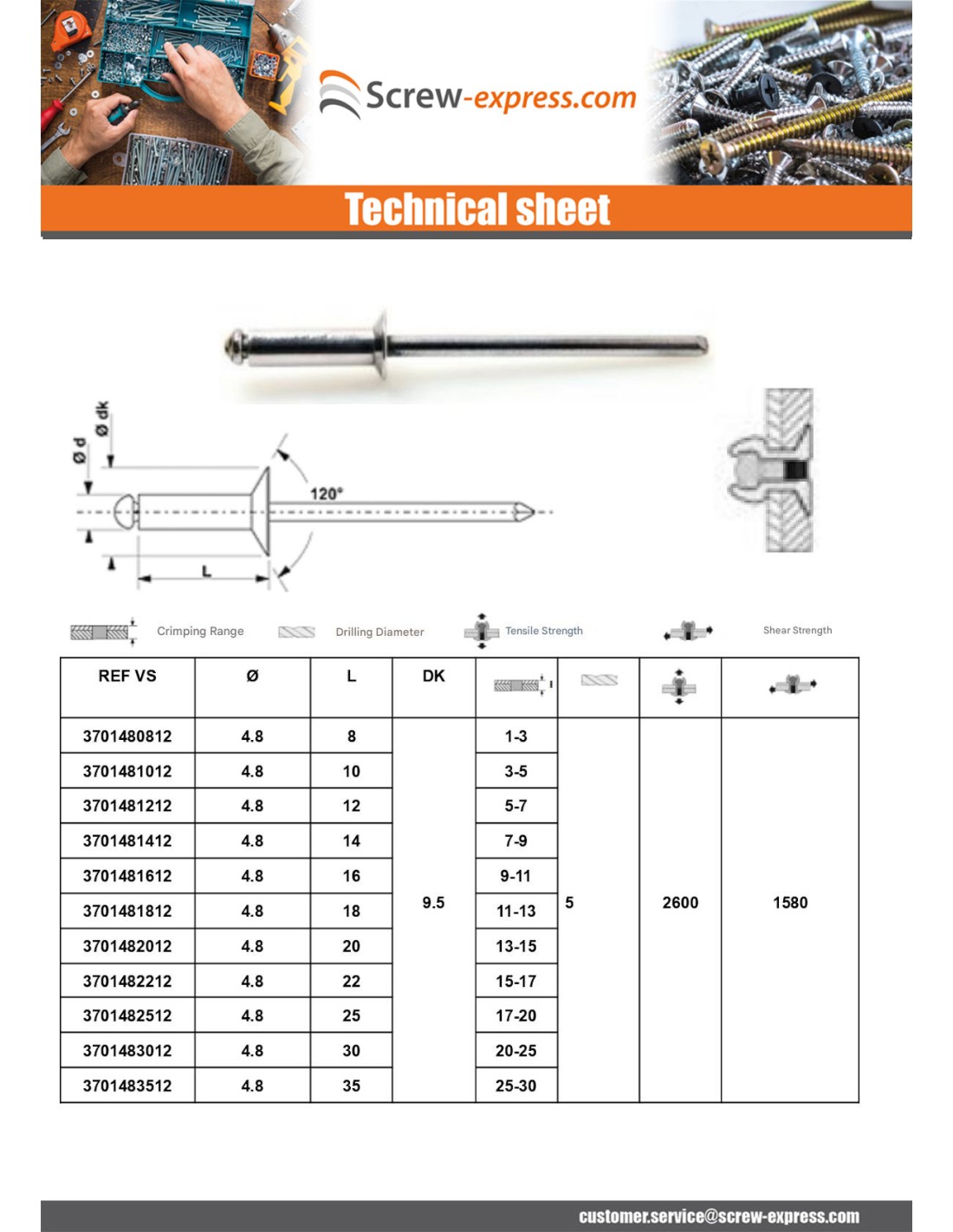

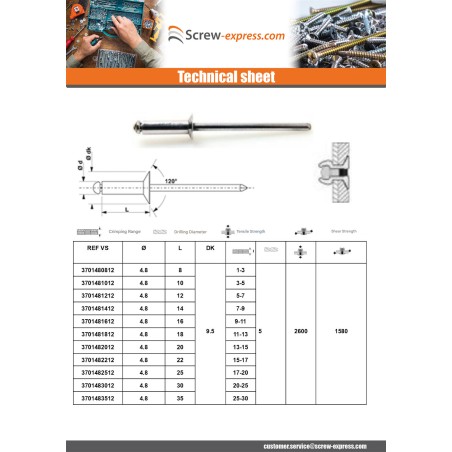

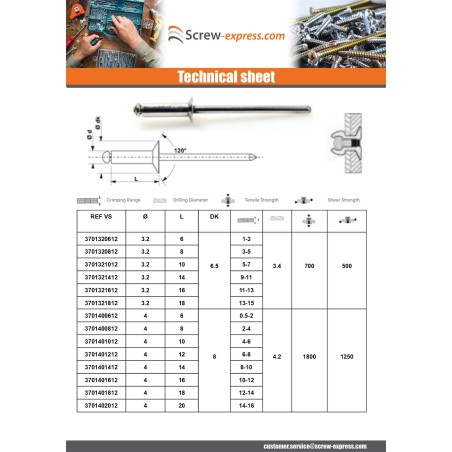

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8
Head diameter 5 6 6.5 8 9.5
Drilling diameter 2.6 3.2 3.4 4.2 5
resistance a la traction 500 800 1000 1600 2600
Shear strength 400 650 850 1300 2100
The length indicates the length of the body (useful length)

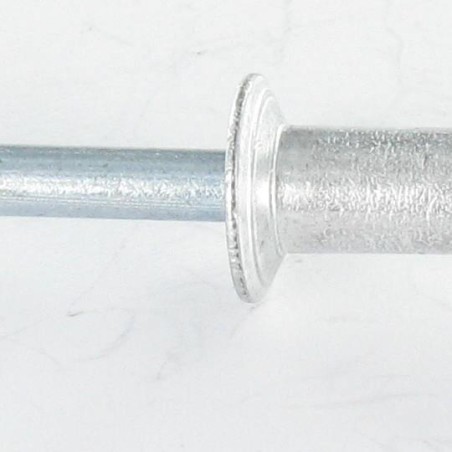

tete fraisee a 120 degres

Other Reference : 103440121 59554 0412116 RIVETALU4X12 30520379 AN VIS056 VRAF4-12AZ QR6200 1366890 0848/0412 1366890 78722530 2009227 0776 080521 080521 3663072063631
cedric b. (vis-express.fr)
2024-02-25

assembly of aluminum profile and aluminum angle connection
