3702941030_1
Available within 25 business days
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €3.85 €7.70 €9.25 €26.10

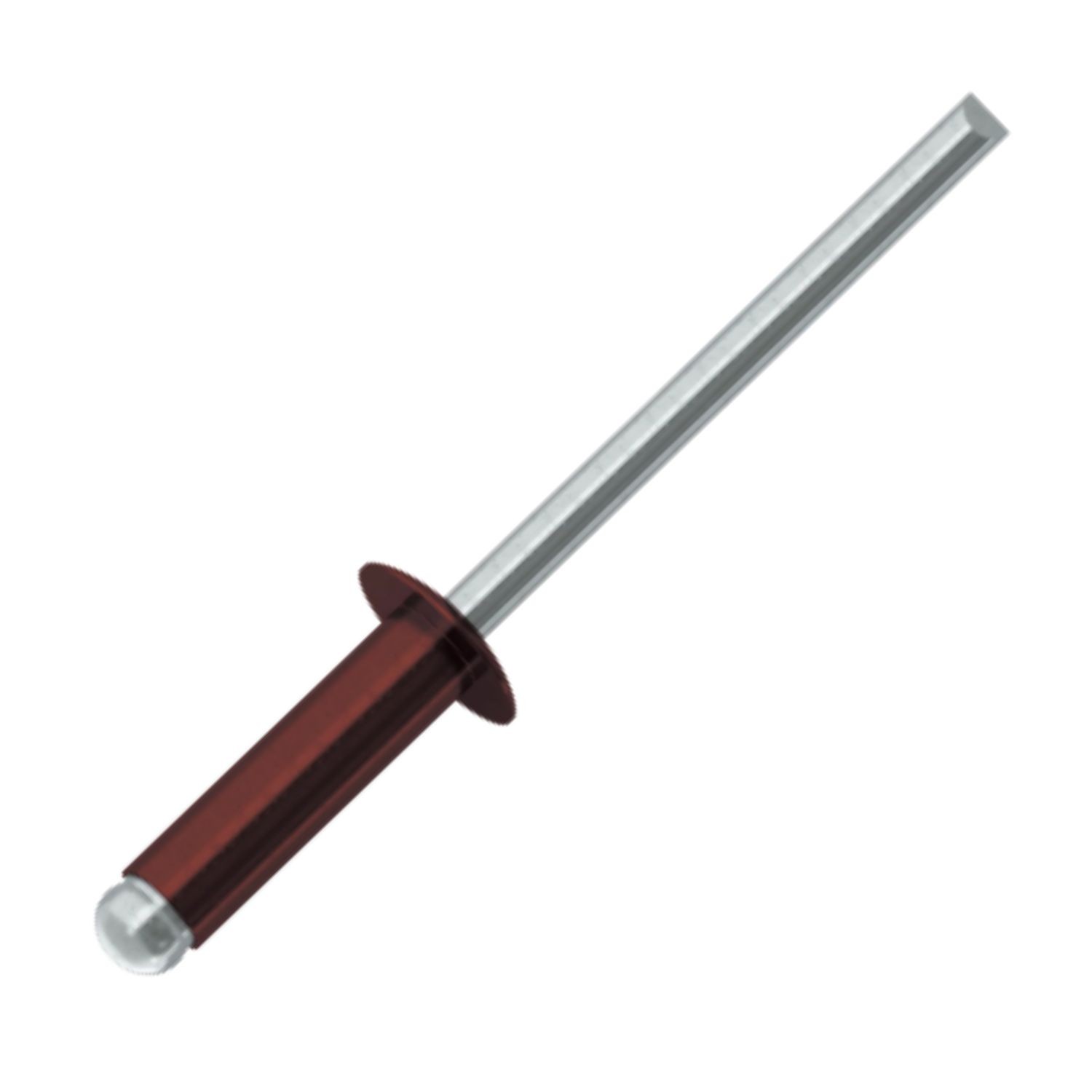

Blind rivets Aluminium Stahlgewinde 3.2X10 Thickness Of Panel 5 to 7 Standard round head Ral3009/Oxide Red
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
3.2
Material
BODY Aluminium / rod Steel
COLOR
Ral3009/Oxide Red
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Clamping thickness
5 a 7 mm
Rivet body length
10
Unit weight
1.5 GR
Head shape
Round Head standard
3663072084896

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 3.2X10 Thickness Of Panel 5 to 7 Standard round head Ral3009/Oxide Red
Diameter = 3.2, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel

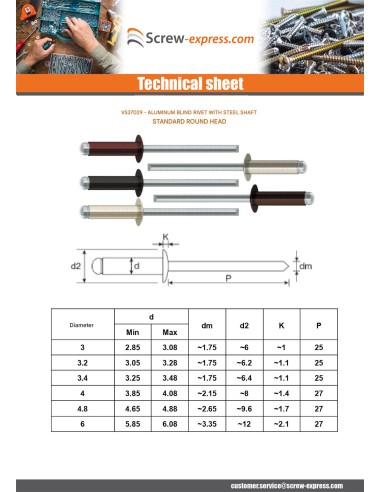

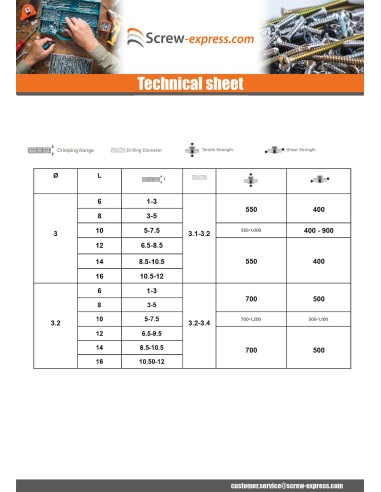

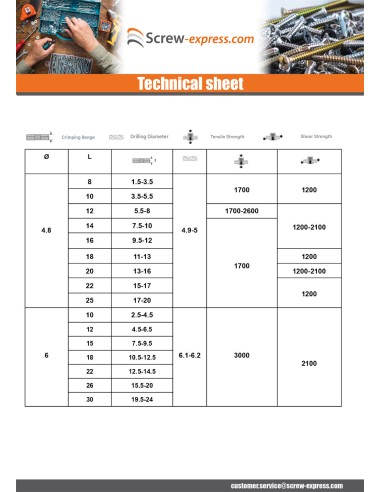

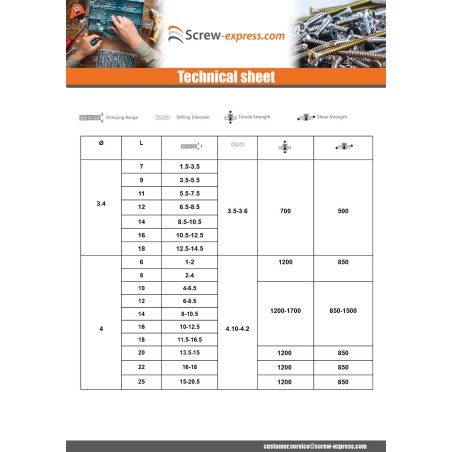

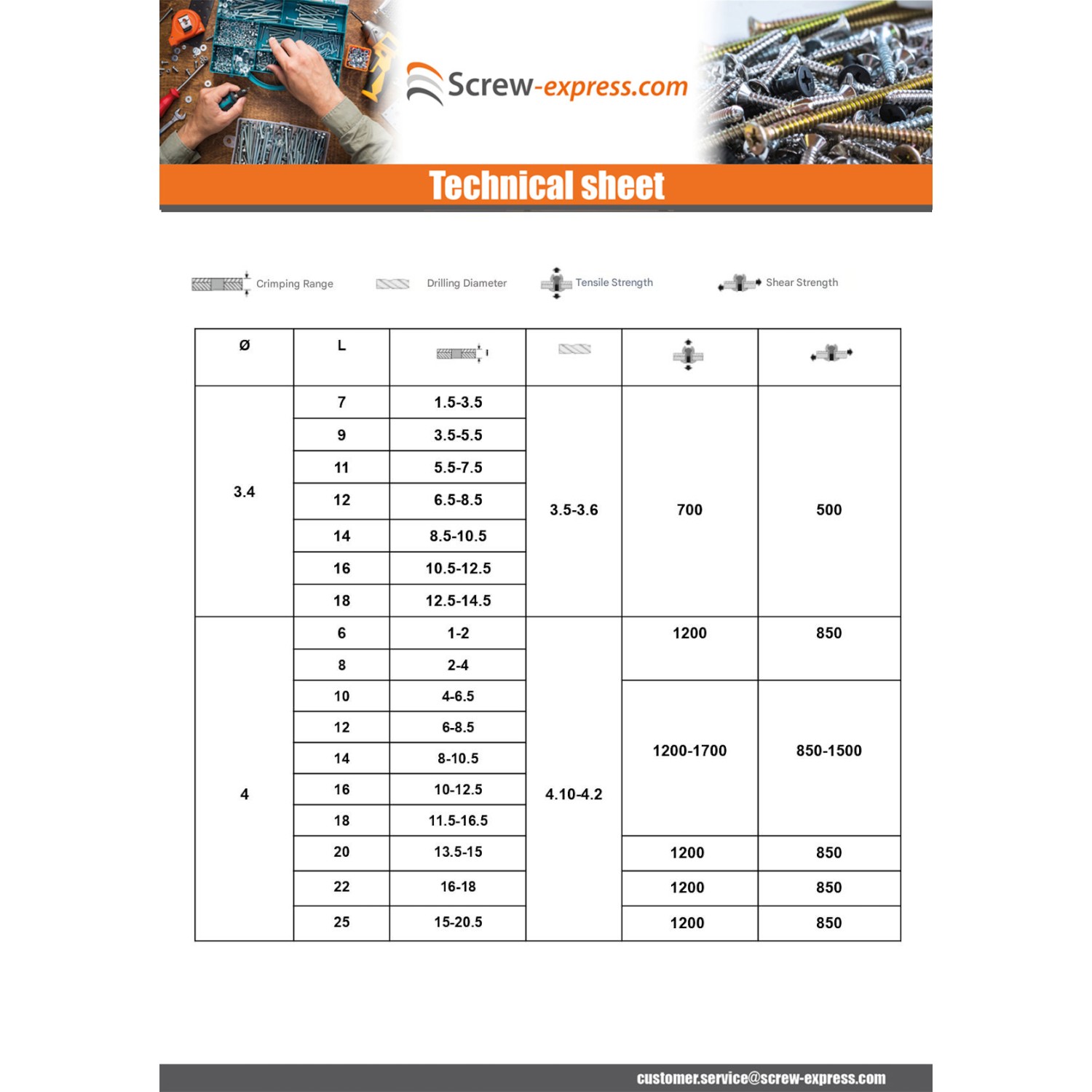

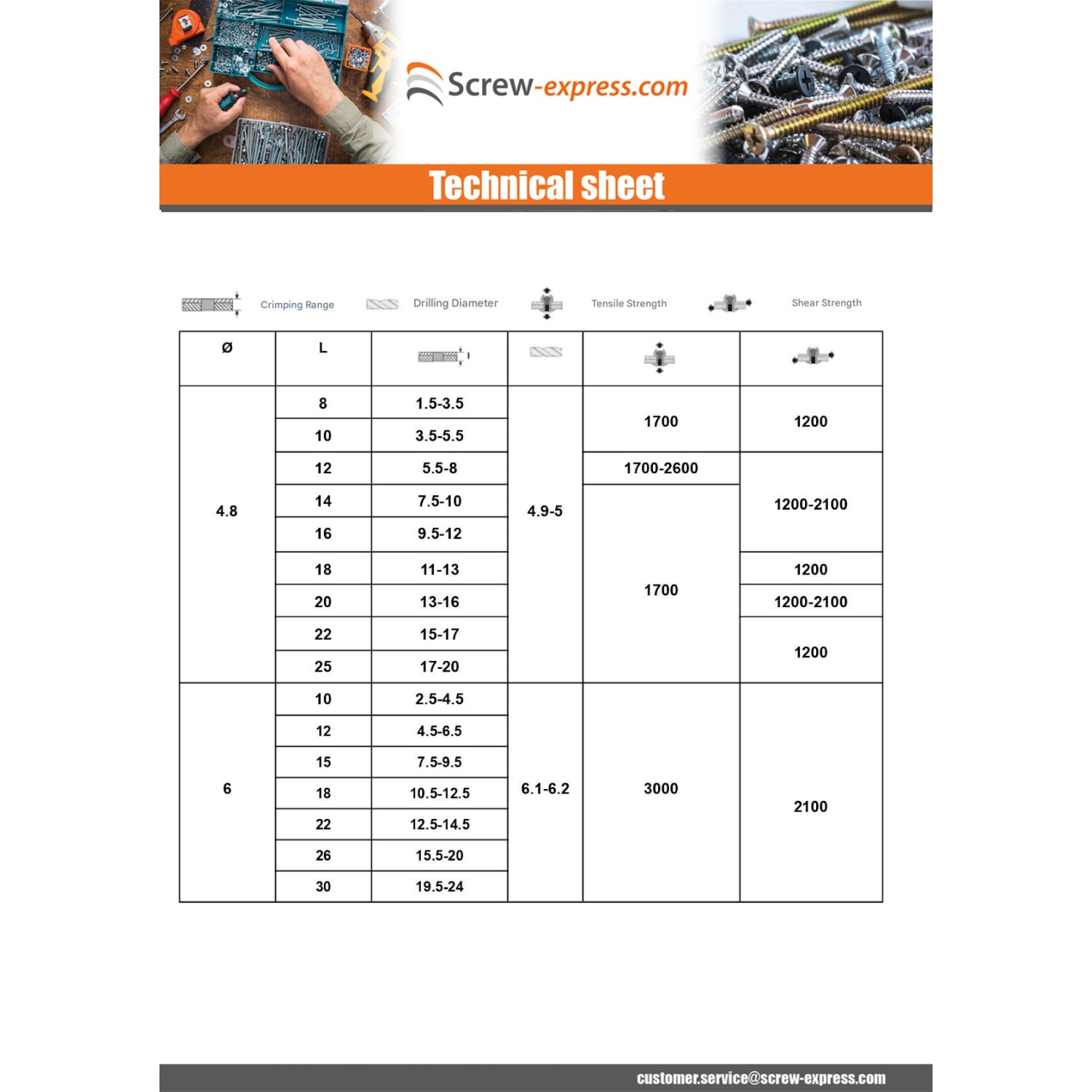

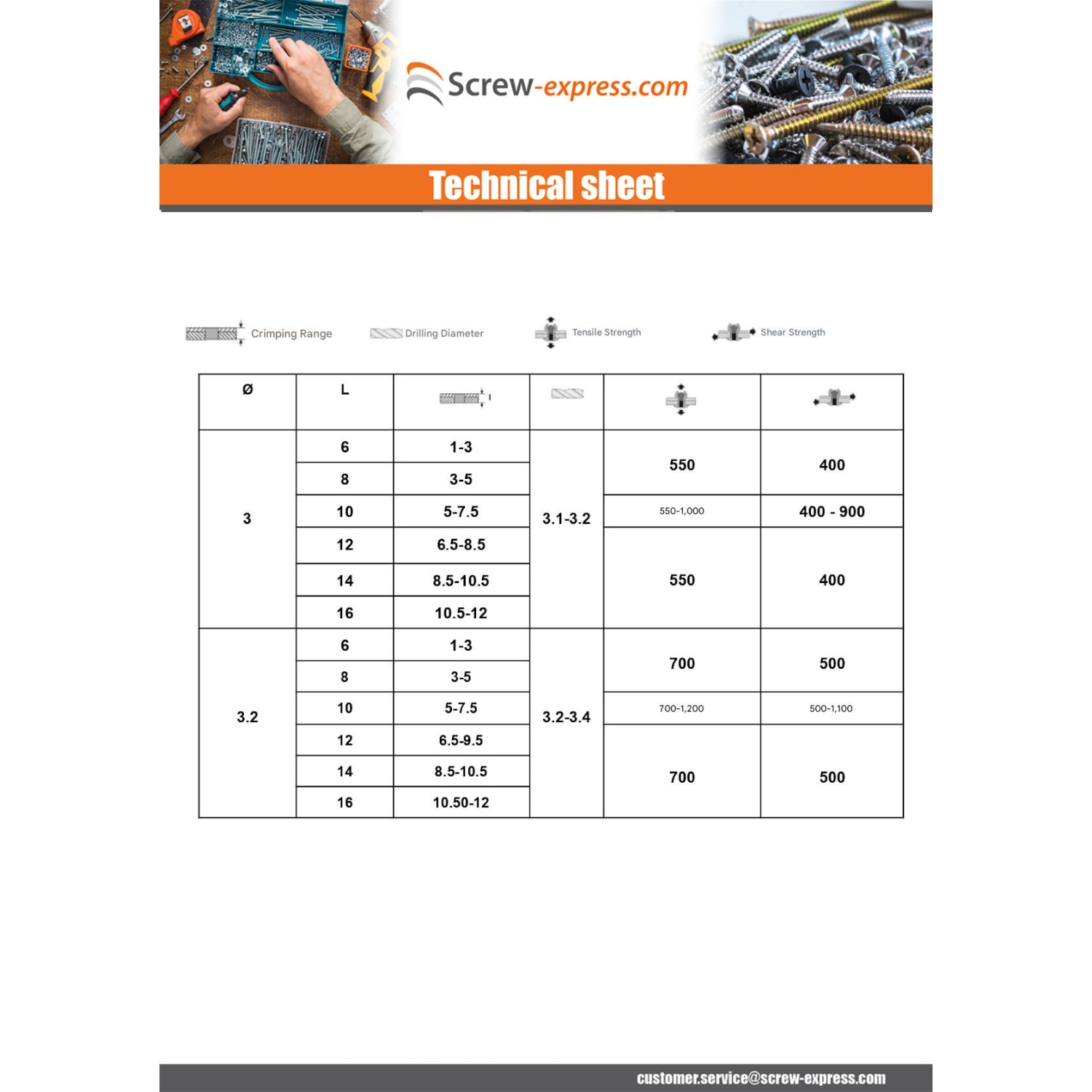

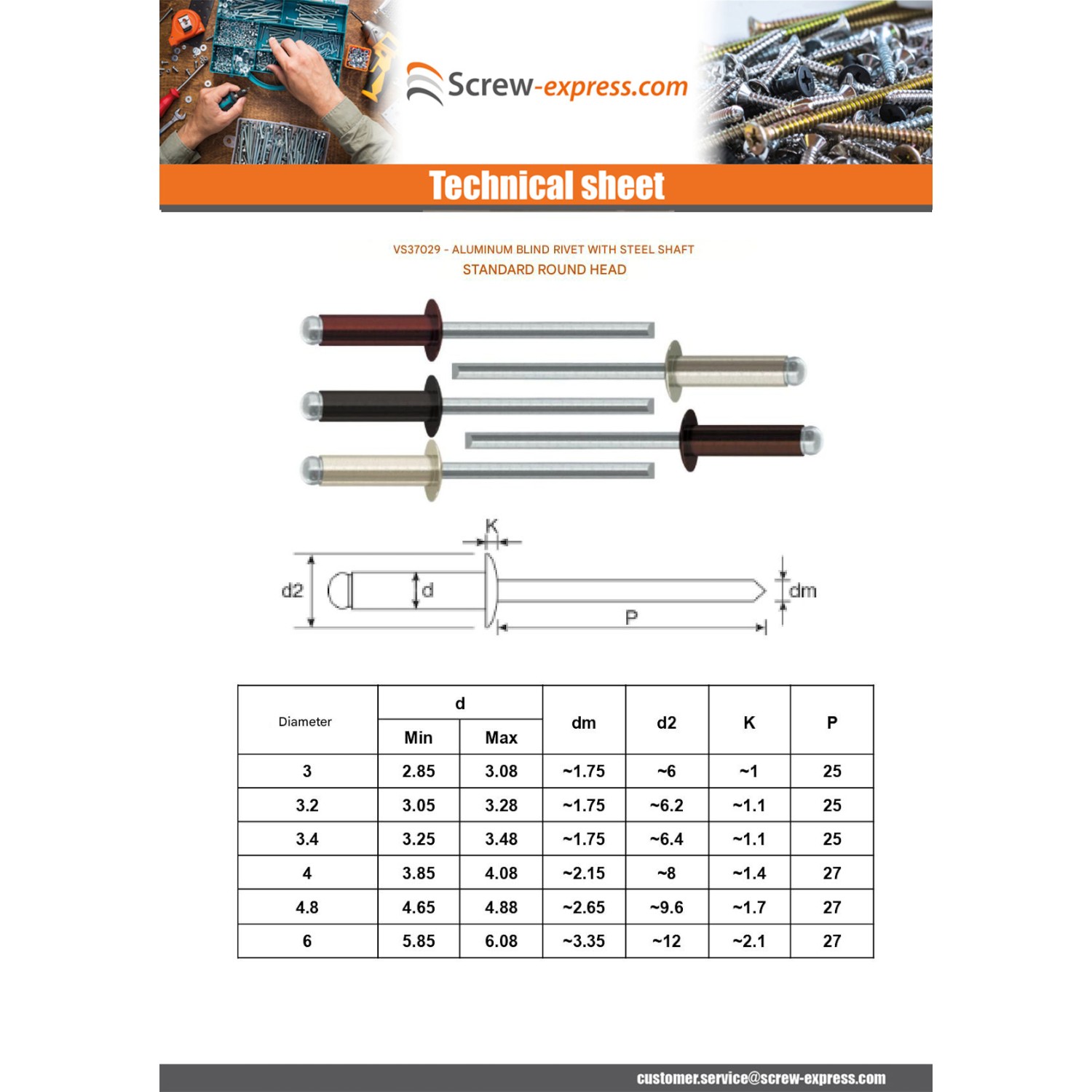

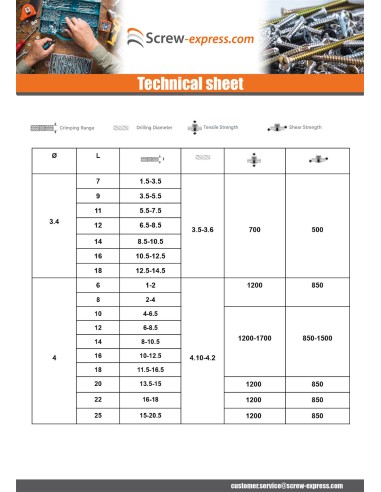

dimensional guide (mm)
Body diameter2.433.244.866.4
Head diameter566.589.511.512
Drilling diameter2.63.23.44.256.26.6
resistance a la traction50080010001600260038004600
Shear strength4006508501300210030003500
longueur tige2525252727272727

Other Reference : 3617502047692 3663072084896
