3702321206_1
In stock 31252 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €14.55

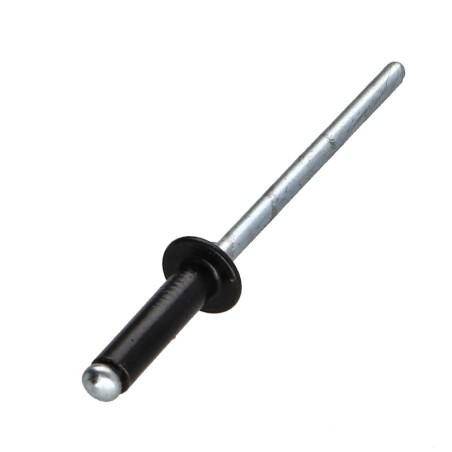

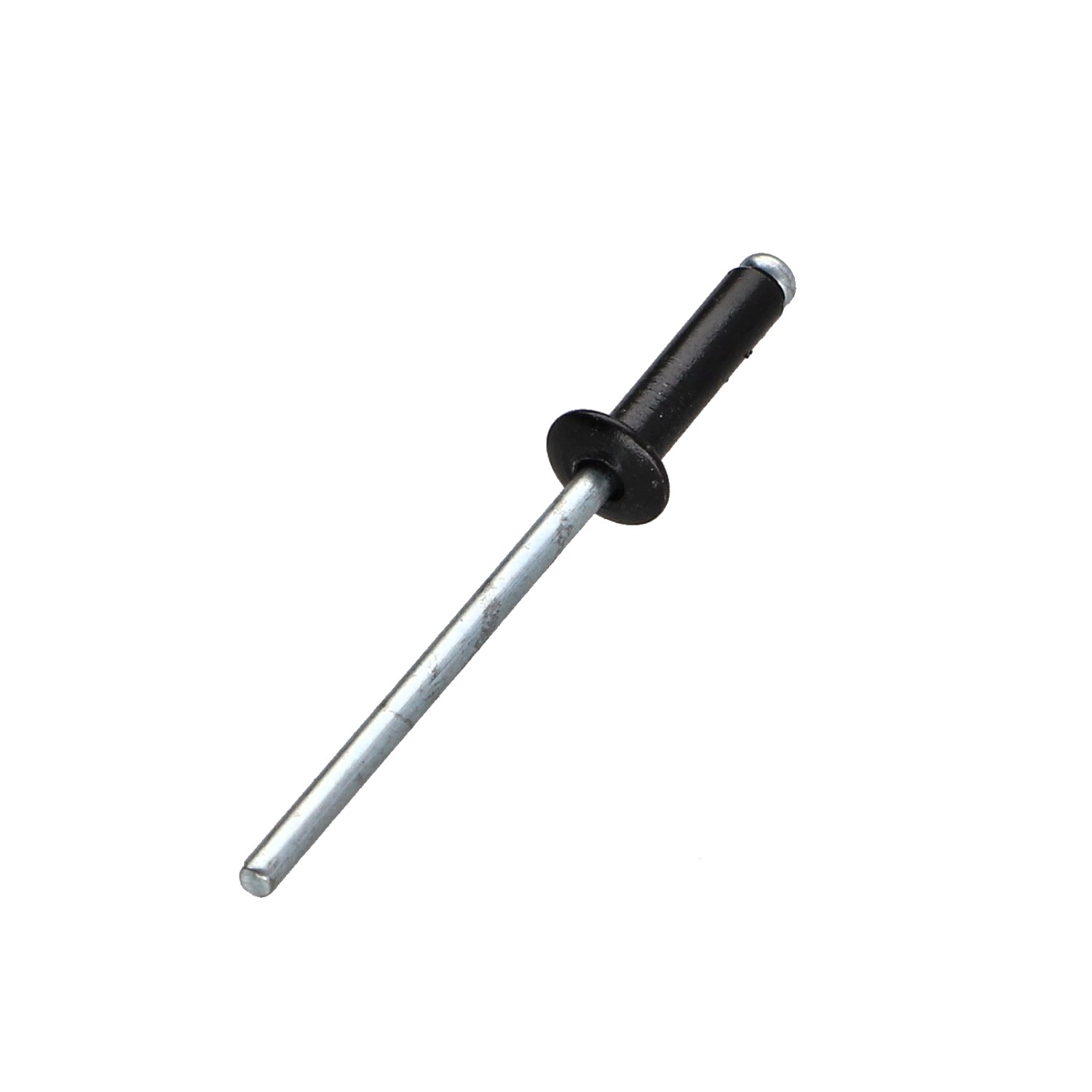

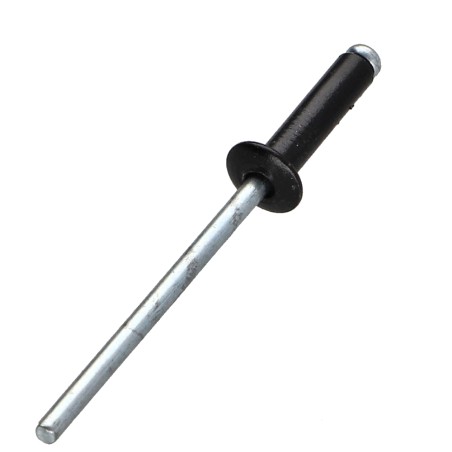

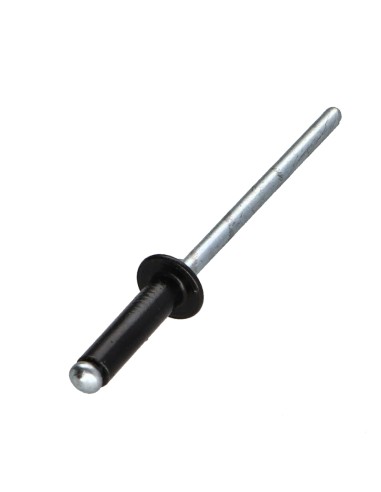

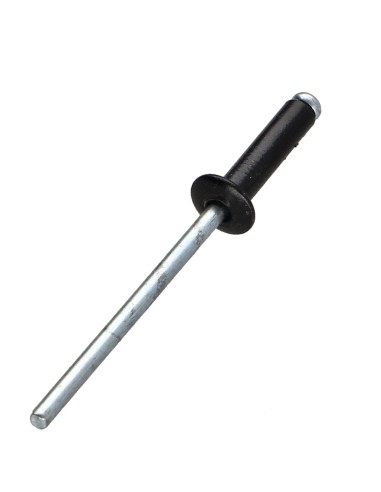

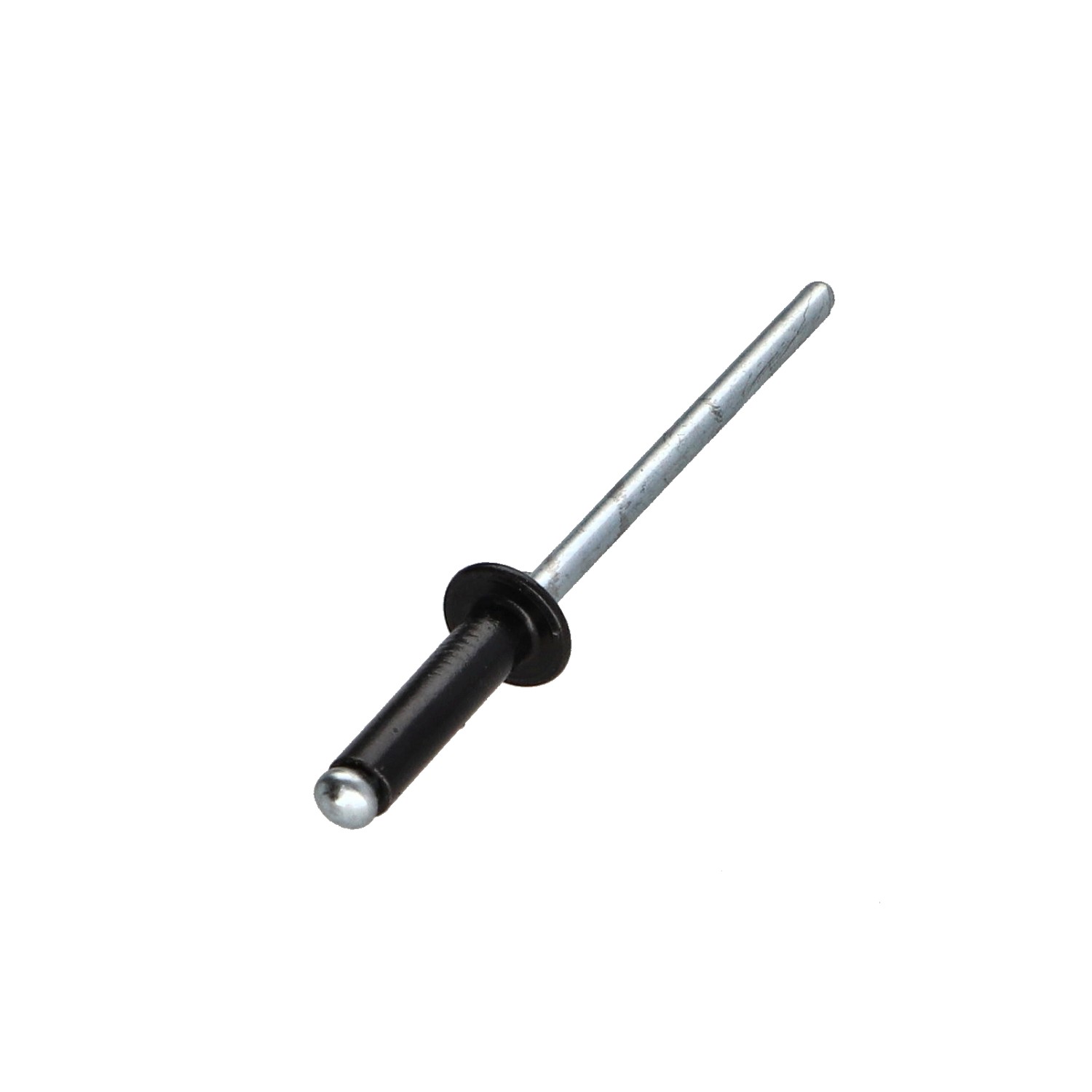

Blind rivets Aluminium Stahlgewinde 3.2X12 Thickness Of Panel 7 to 9 Standard round head Black
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
3.2
Diameter Head
6.5
Material
BODY Aluminium / rod Steel
COLOR
Black
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
500
Clamping thickness
7 a 9 mm
Rivet body length
12
Unit weight
0.75 GR
Head shape
Round Head standard
Hole diameter
3.4
Tensile strength
700
31252 Items
3663072063853

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 3.2X12 Thickness Of Panel 7 to 9 Standard round head Black
Diameter = 3.2, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 6.5

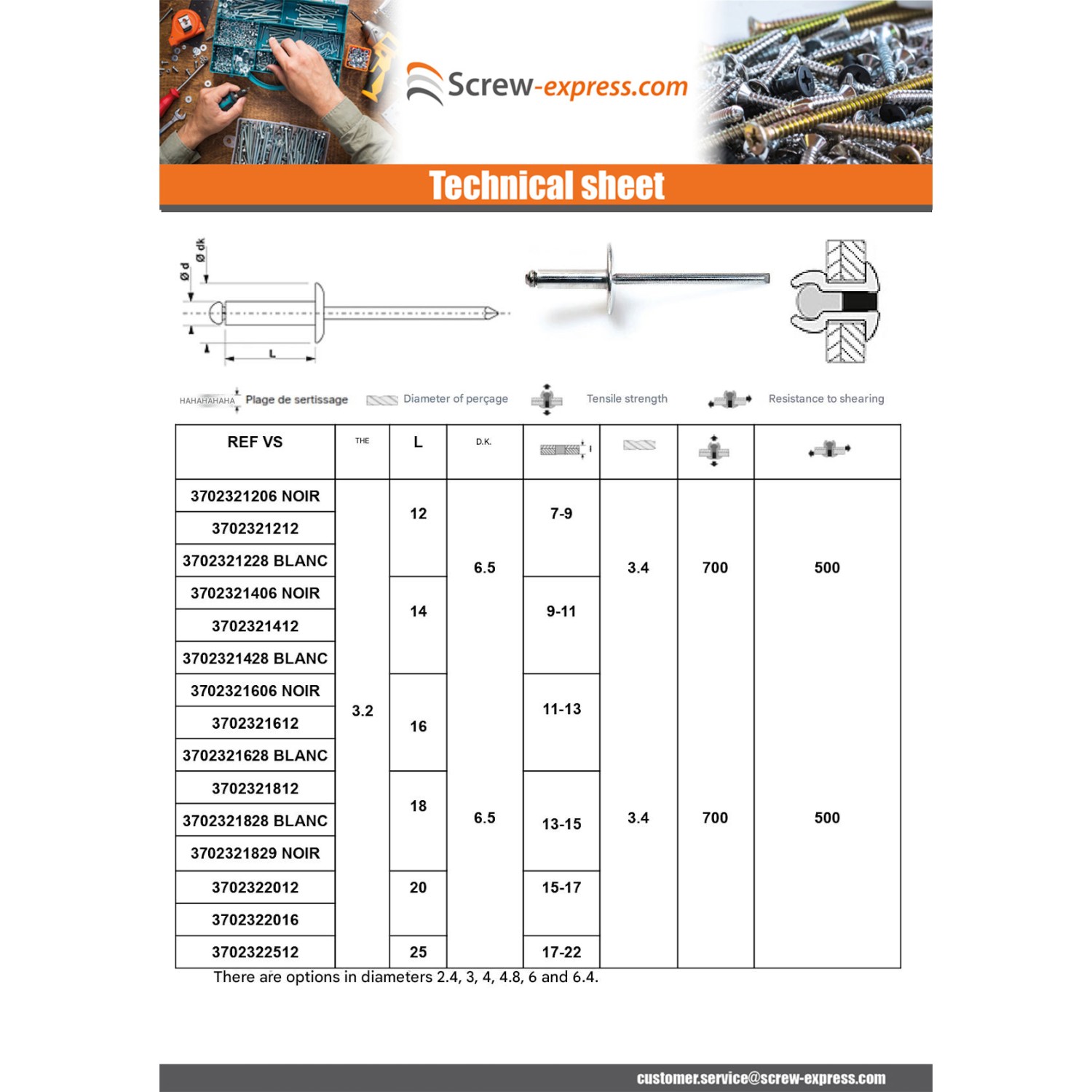

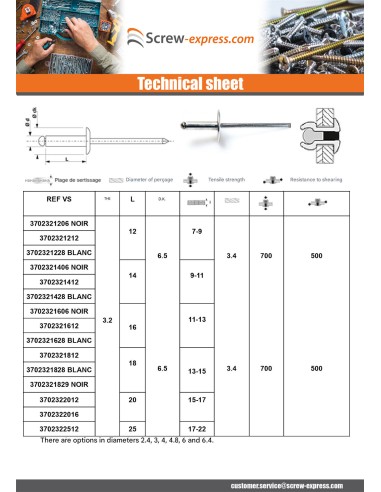

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 3617501895607 RIVETTP3.2X1 3663072063853
