1 x Blind rivets Aluminium Stahlgewinde 4X12 Standard round head CLOU4F Black

3702401206_1
In stock 23694 Pièces
£3.34 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included £3.34 £6.68 £29.89 £141.92

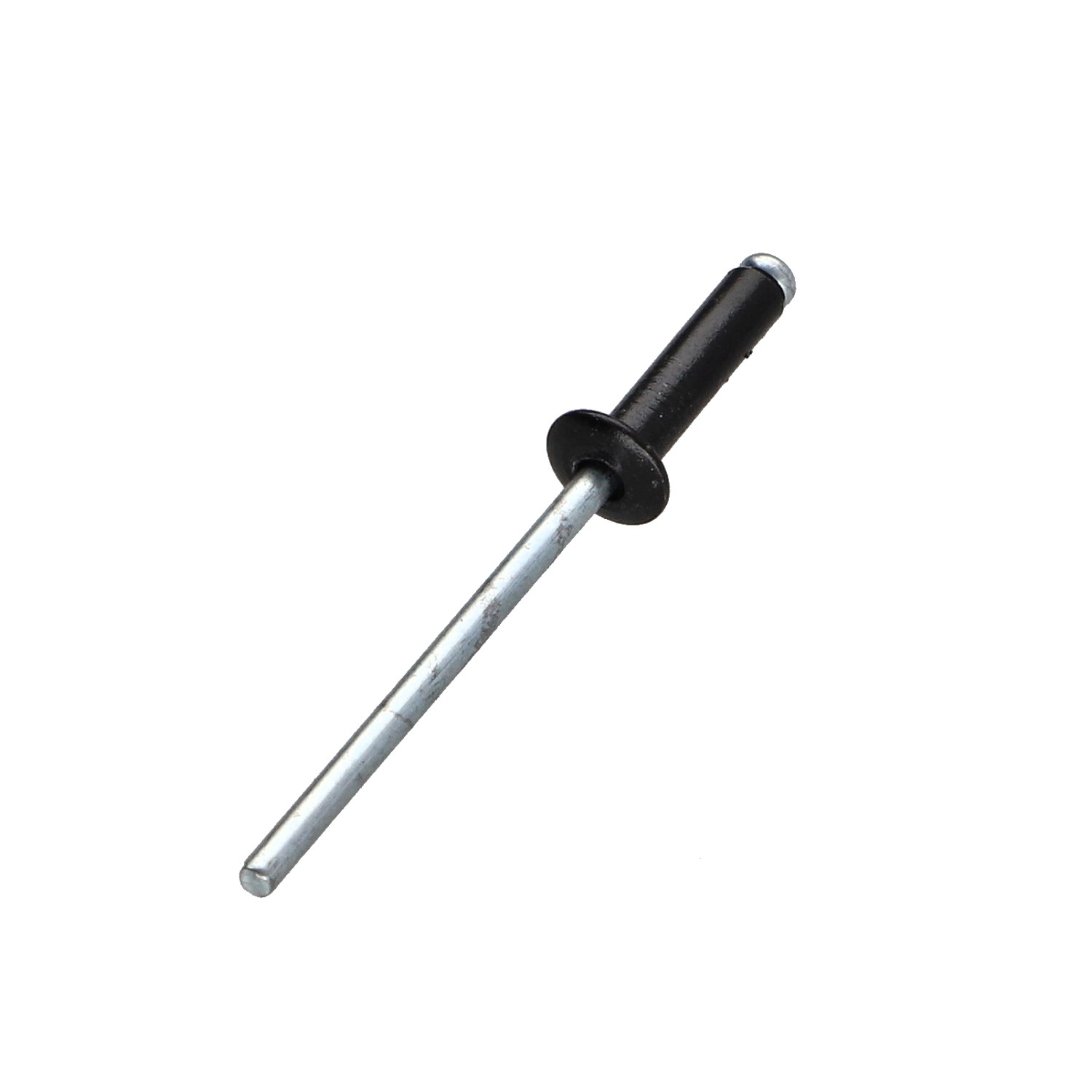

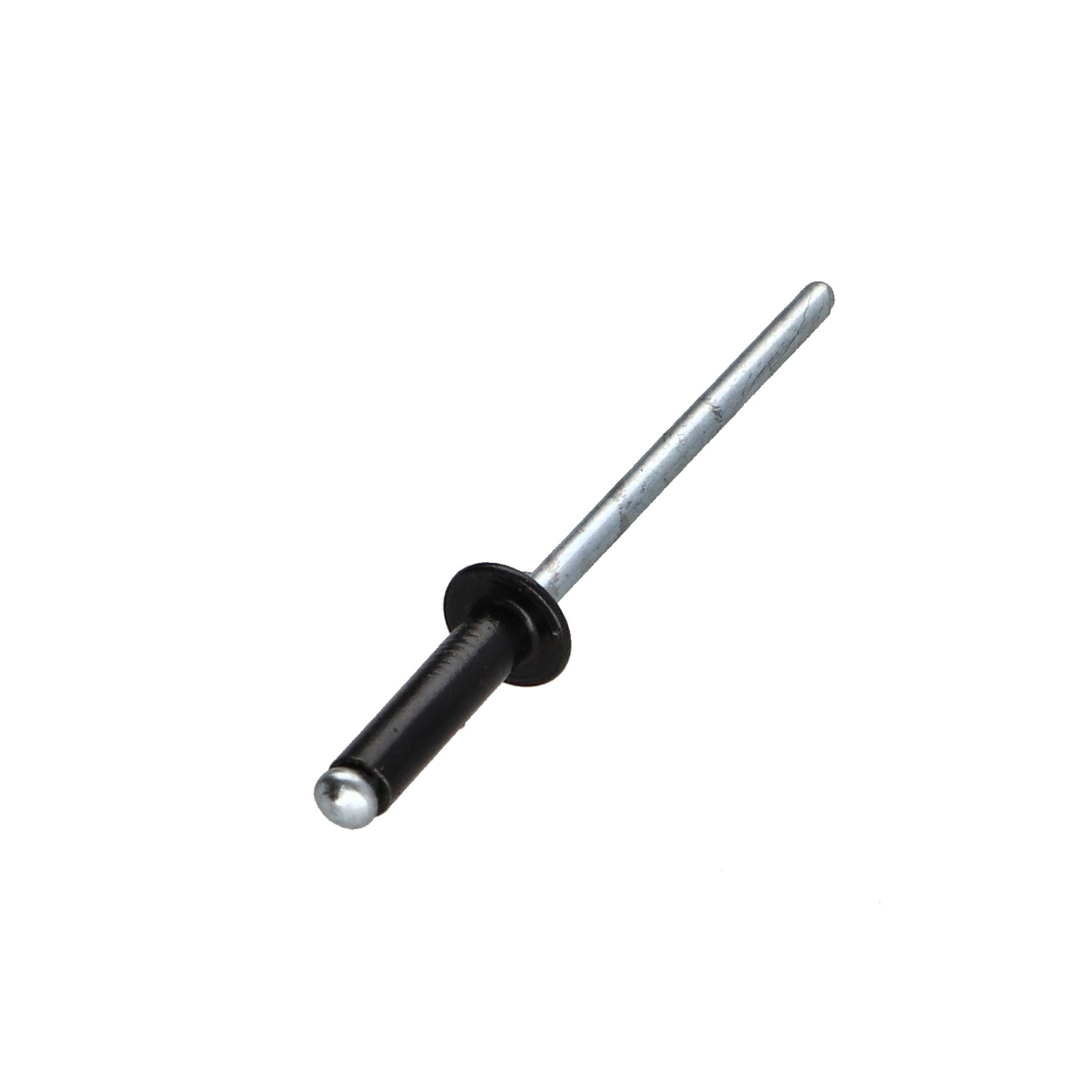

Blind rivets Aluminium Stahlgewinde 4X12 Standard round head CLOU4F Black
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4
Material
BODY Aluminium / rod Steel
COLOR
Black
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Rivet body length
12
Unit weight
1.9 GR
Head shape
Round Head standard
23694 Items
3663072064010

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X12 Standard round head CLOU4F Black
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel


dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 115140121 RIV-ALU-4X12 A00003804 VIS0071 94004012-N 115140121 VP030003 RIVET4*12ALU VP030003 7801 RIVET412 3663072064010
Arnaud M. (vis-express.fr)
2024-11-10

Earth terminal fixing on black display stand x light display


Augustin Z. (vis-express.fr)
2023-12-10

Riveting angle plate on aluminum structure
