Name: 1 x Blind rivets Aluminium Stahlgewinde 4.8X10 Thickness Of Panel 3 to 5 Standard round head ALX
Brand: Vis-Express
SKU: 3702481012
Price: 1.85 EUR
Availability: InStock

Reference 3702481012_1

In stock 181575 Pièces

€1.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	100	500	2000
Lot price VAT included	€1.85	€3.70	€4.50	€18.70	€74.80

Blind rivets Aluminium Stahlgewinde 4.8X10 Thickness Of Panel 3 to 5 Standard round head ALX

Packaging

1 unit
10 units
100 units
500 Units
2000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: 4.8
Diameter Head: 9.5
Material: BODY Aluminium / rod Steel
Sub product family: Rivets BLIND STANDARDS (USE GENERAL)
Shear (N): 1580
Clamping thickness: 3 a 5 mm

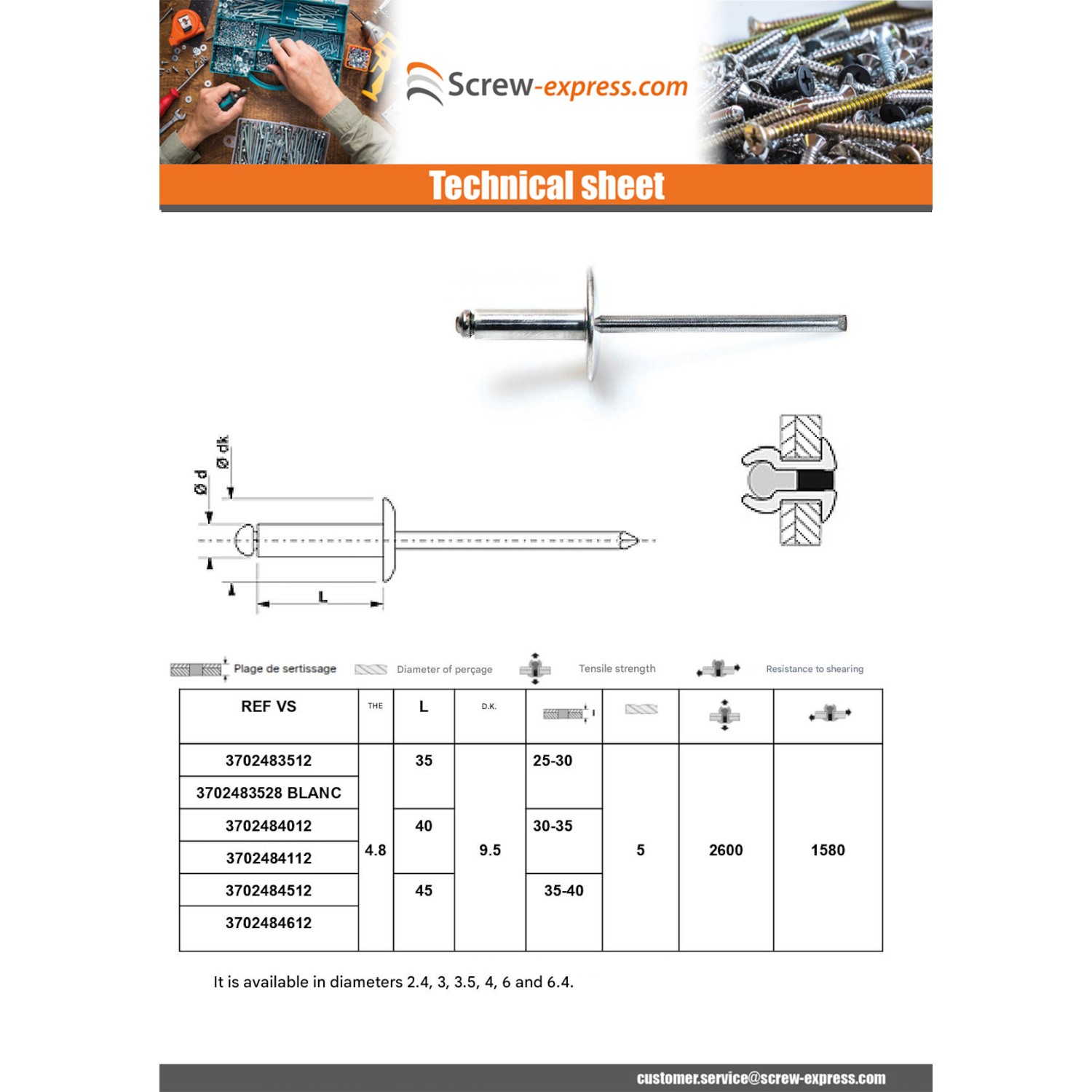

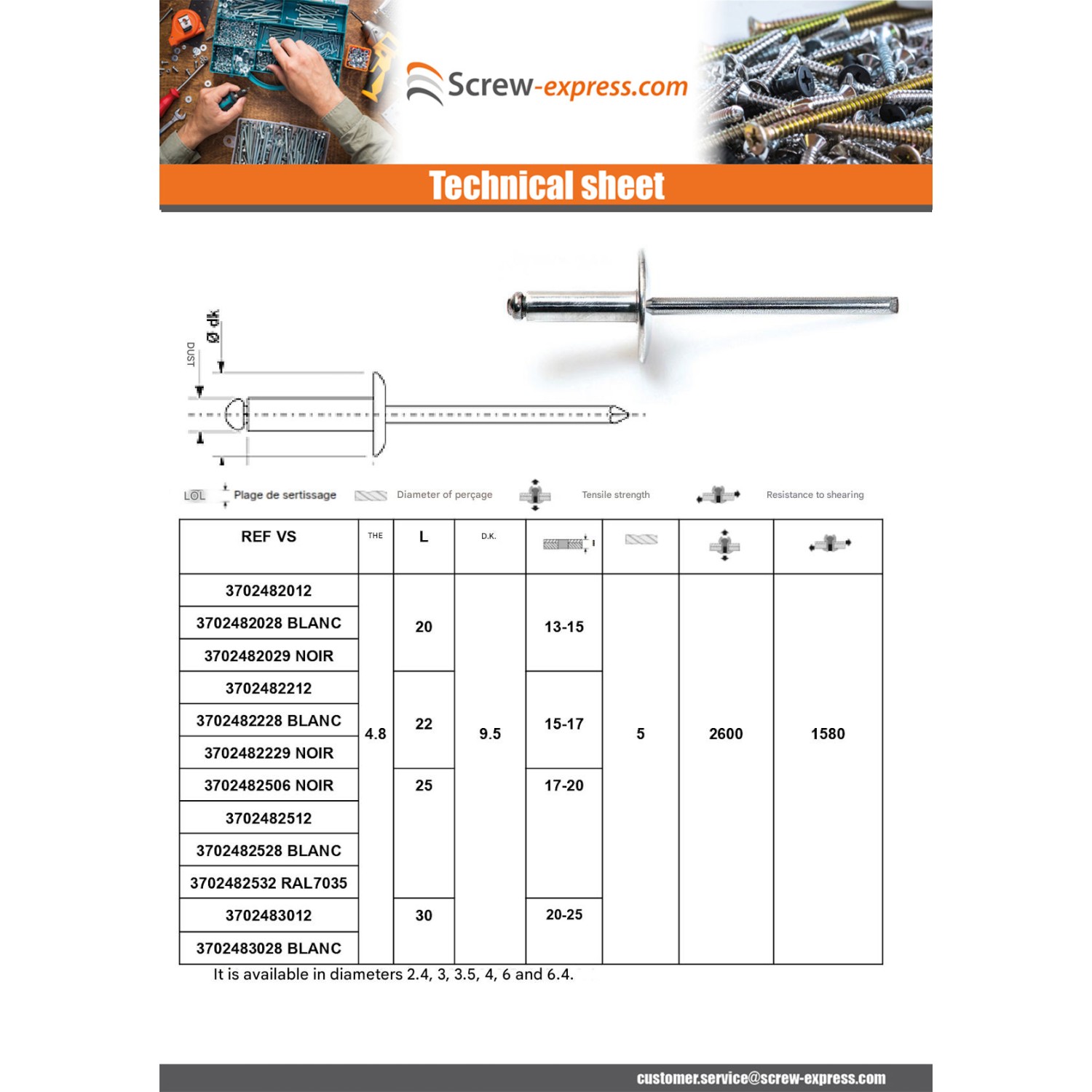

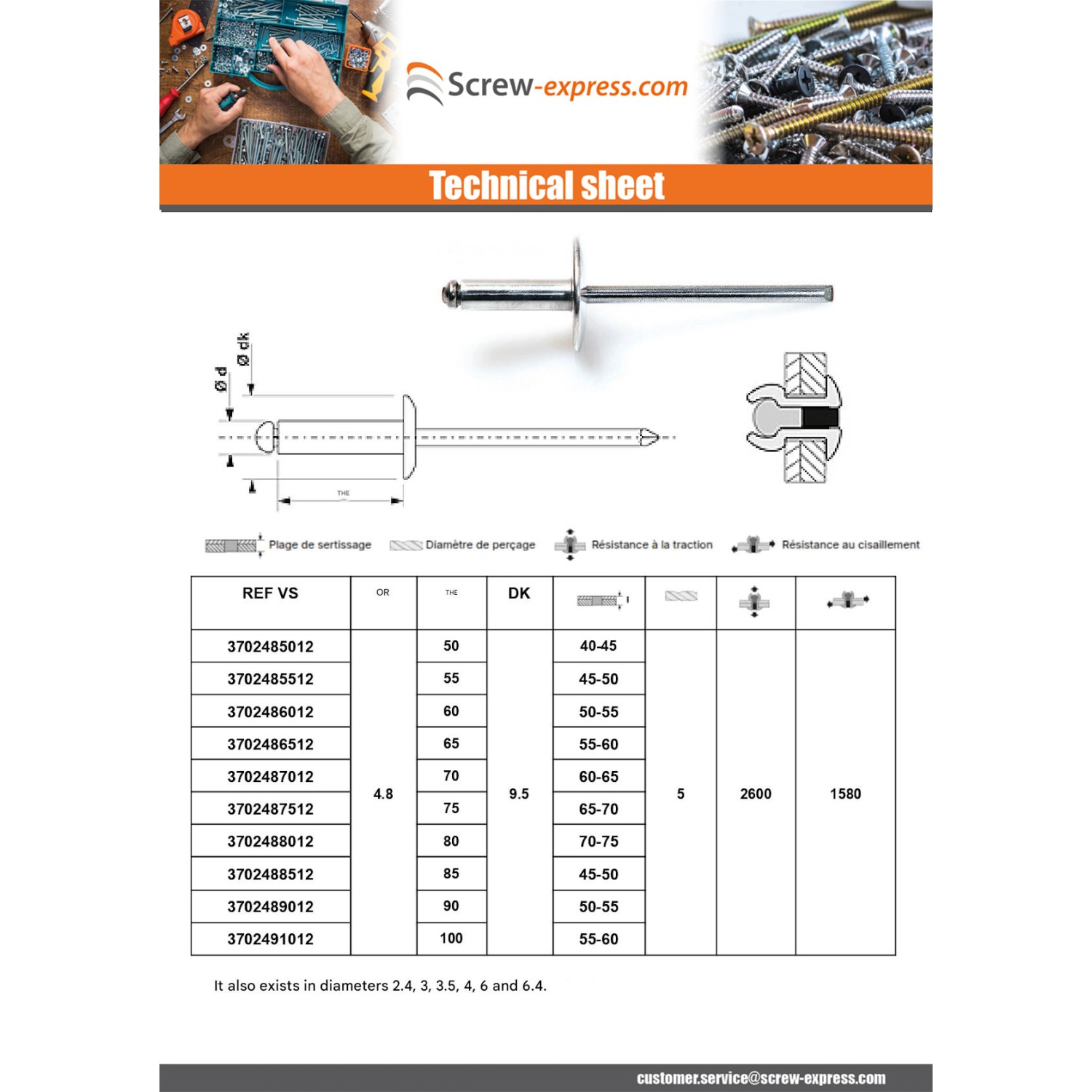

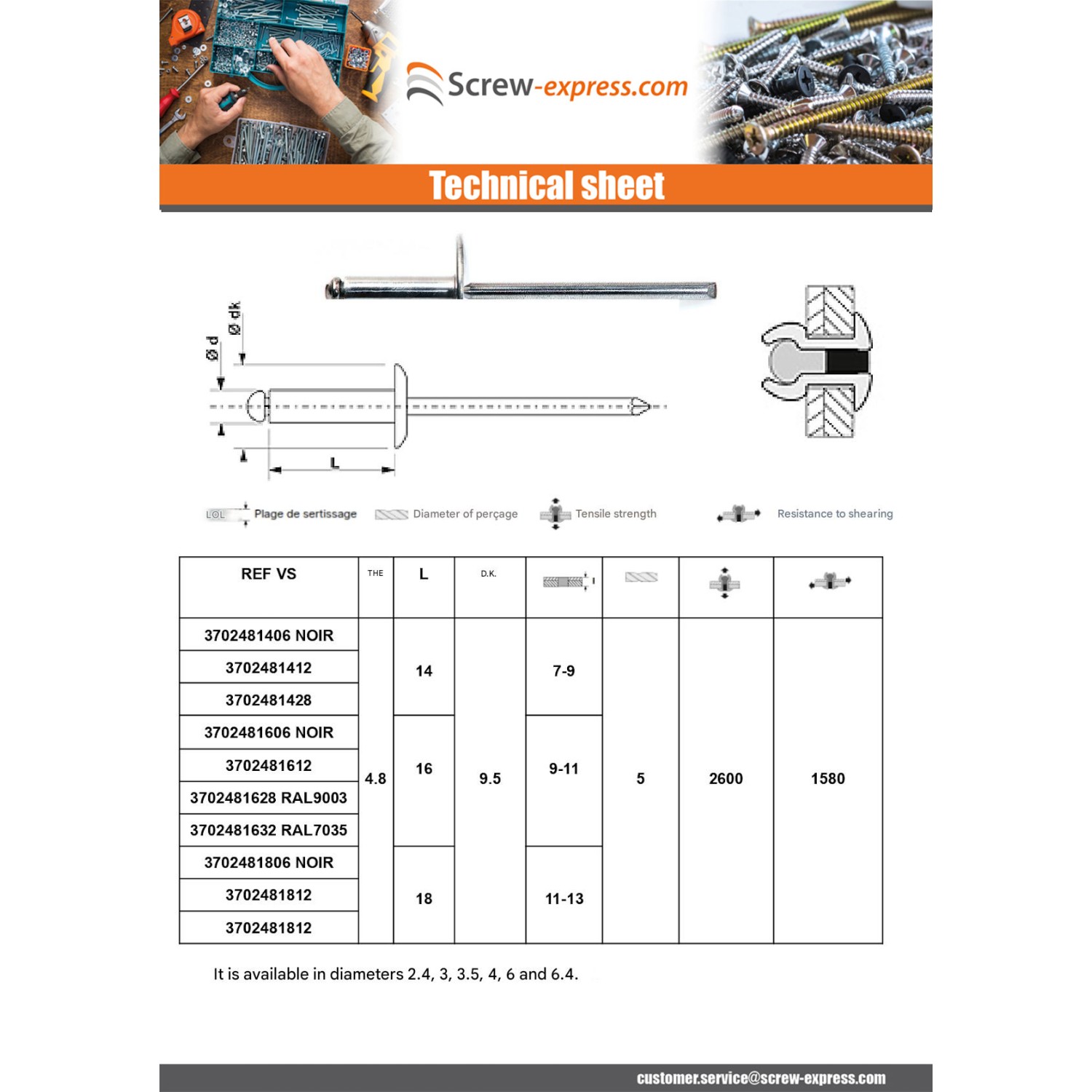

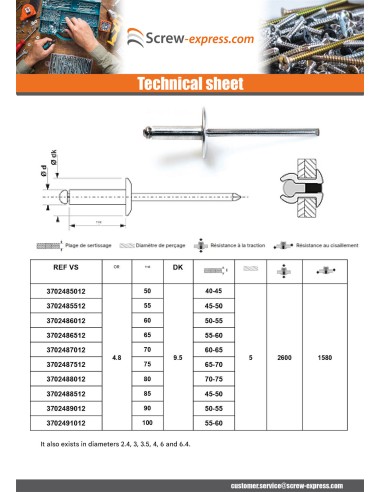

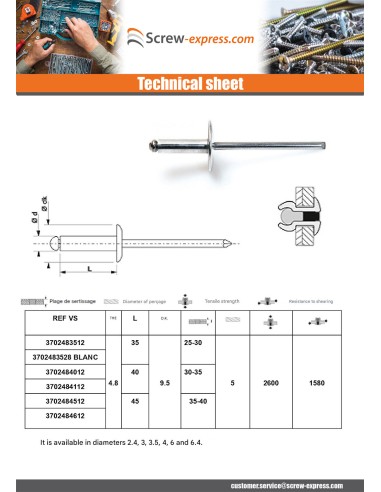

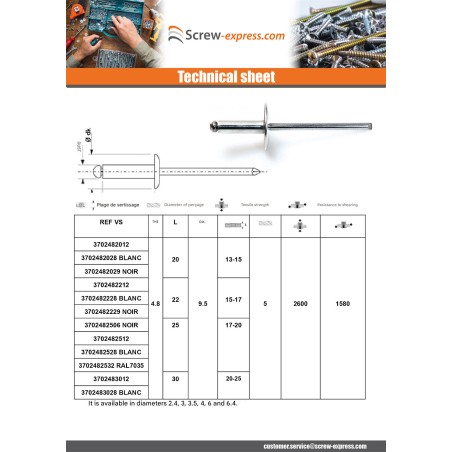

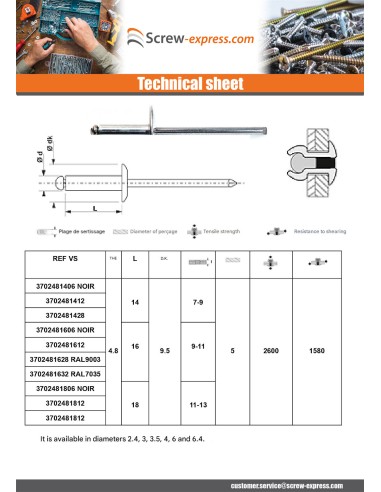

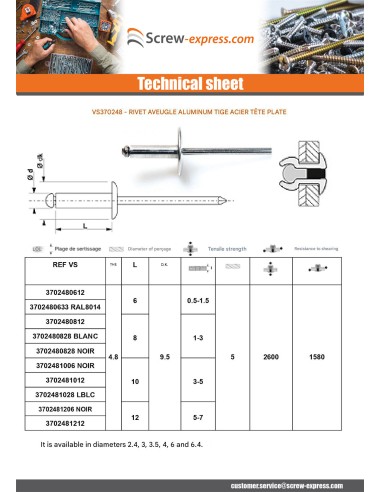

Rivet body length Rivet body length How to measure the length of a rivet? In our rivet designations, the length corresponds to the body length of the rivet (indicated by the arrow in the sketch below).: 10
Unit weight: 2.68 GR
Head shape: Round Head standard
Hole diameter: 5
Tensile strength

Tensile strength

Tensile Strength (Rm)
Tensile strength corresponds to the maximum force a material can withstand before breaking when it is pulled.

It is expressed in MPa (megapascals) and helps determine the strength of a screw or fastening component.

🔩 The higher the value, the more resistant the material is to breaking.: 2600

In stock 181575 Items

ean13 3663072064157

Application

Securing thin sheets (steel, aluminum)
Assembly of panels, plates or profiles
Aluminium joinery work
Installation of ventilation ducts
DIY, light bodywork

Description

Blind rivets Aluminium Stahlgewinde 4.8X10 Thickness Of Panel 3 to 5 Standard round head ALX
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 9.5

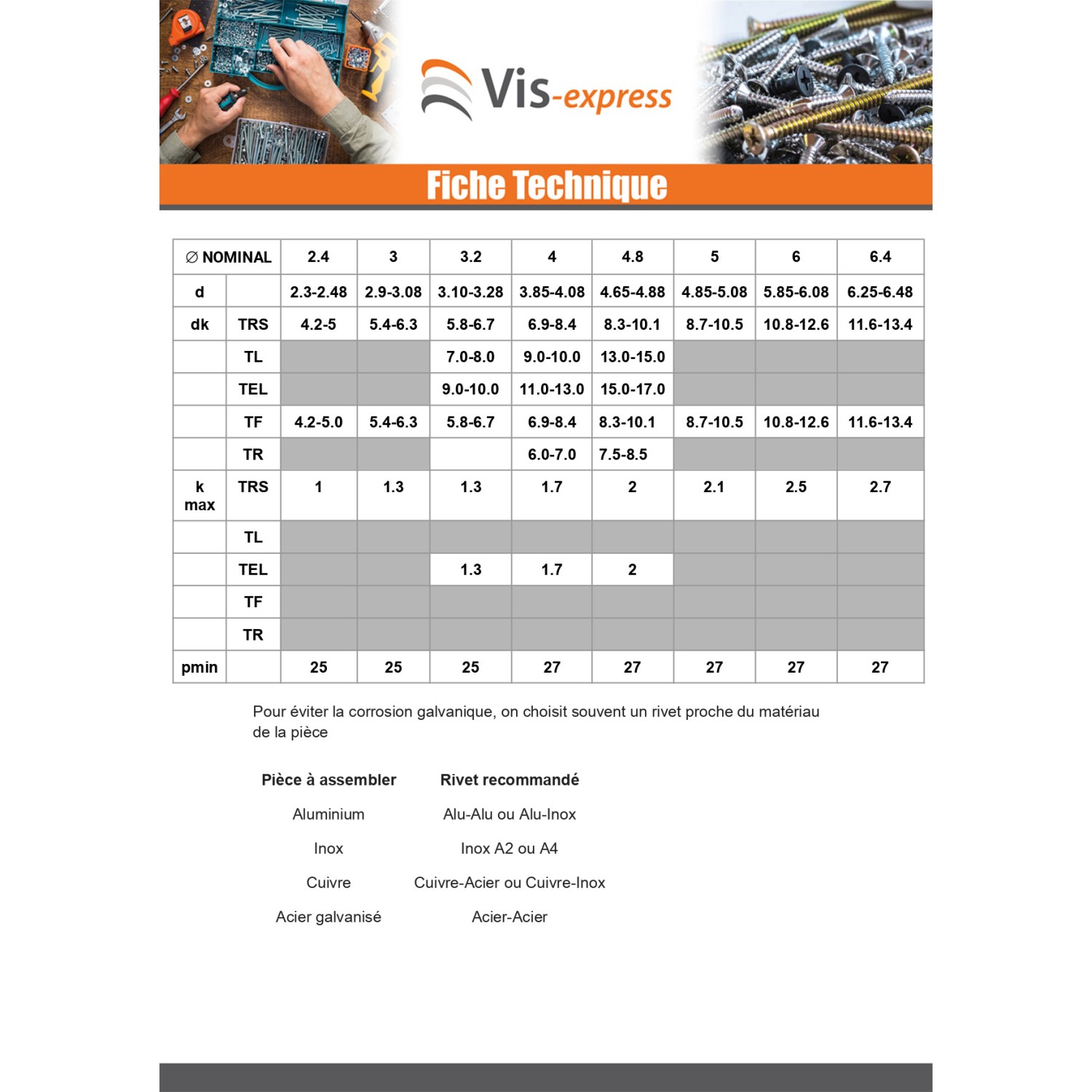

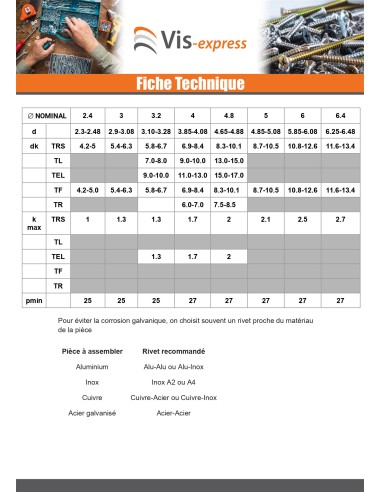

dimensional guide (mm)

Body diameter	2.4	3	3.2	4	4.8	6	6.4
Head diameter	5	6	6.5	8	9.5	11.5	12
Drilling diameter	2.6	3.2	3.4	4.2	5	6.2	6.6
resistance a la traction	500	800	1000	1600	2600	3800	4600
Shear strength	400	650	850	1300	2100	3000	3500
longueur tige	25	25	25	27	27	27	27	27

Other Reference : 103148101 YRIVACIALUTP 2VIRIV007 RIV4.8X10 AN 412117 RIVET4.8X10 2000 0937 48 10 2VIRIV007 MP1209 01895 V001159 /AN WD40002 R4.8X10TP RP4.8X10.5 3031009 VI25000023 DI 705A POP4810 900062 006699 900062 QURI012080 A3014810 64RIV4810.0 135ALAC4.801 41352 QRIV4810PL01 / MOIS 451VI8005 30520370 RIVPOP4.8X10 190889900 MV3001 09RIALU4.8X1 05036 0004157 10669 AERIVET10 FRIV481 0301249900 71IRIVET006 16186-00 112004 RIV4.8X10 10313 5600-4.8-10 43602 600025 RIVET*ALU*TP 406378 03X009 PC2206 9000504 POP4-10 URIV14810 600225105 VI4001A AMVS00001 V001565 78725263 RIV4810 3VR5 003218 33-30710 FP0003 FP0003 20012736 0977AC/48*10 VIS14 DMRIV0031 2932 0900062 / AN S076807700 AN 724200 3663072064157

Use Cases

Abassi A. (vis-express.fr)
2026-02-22

Hinge installation on aluminum square tube Bralo aviary door fixing

Christophe C. (vis-express.fr)
2025-07-06

commercial vehicle conversion Volkswagen Crafter L3H3

fabrice j. (vis-express.fr)
2025-05-25

Trailer side panel lining

Christophe C. (vis-express.fr)
2025-05-11

lashing rail fixing Resma, T100.105, 3m05

Jean-Alain T. (vis-express.fr)
2025-04-13

I use these rivets to fix brackets
