1 x Blind rivets Aluminium Stahlgewinde 5X30...

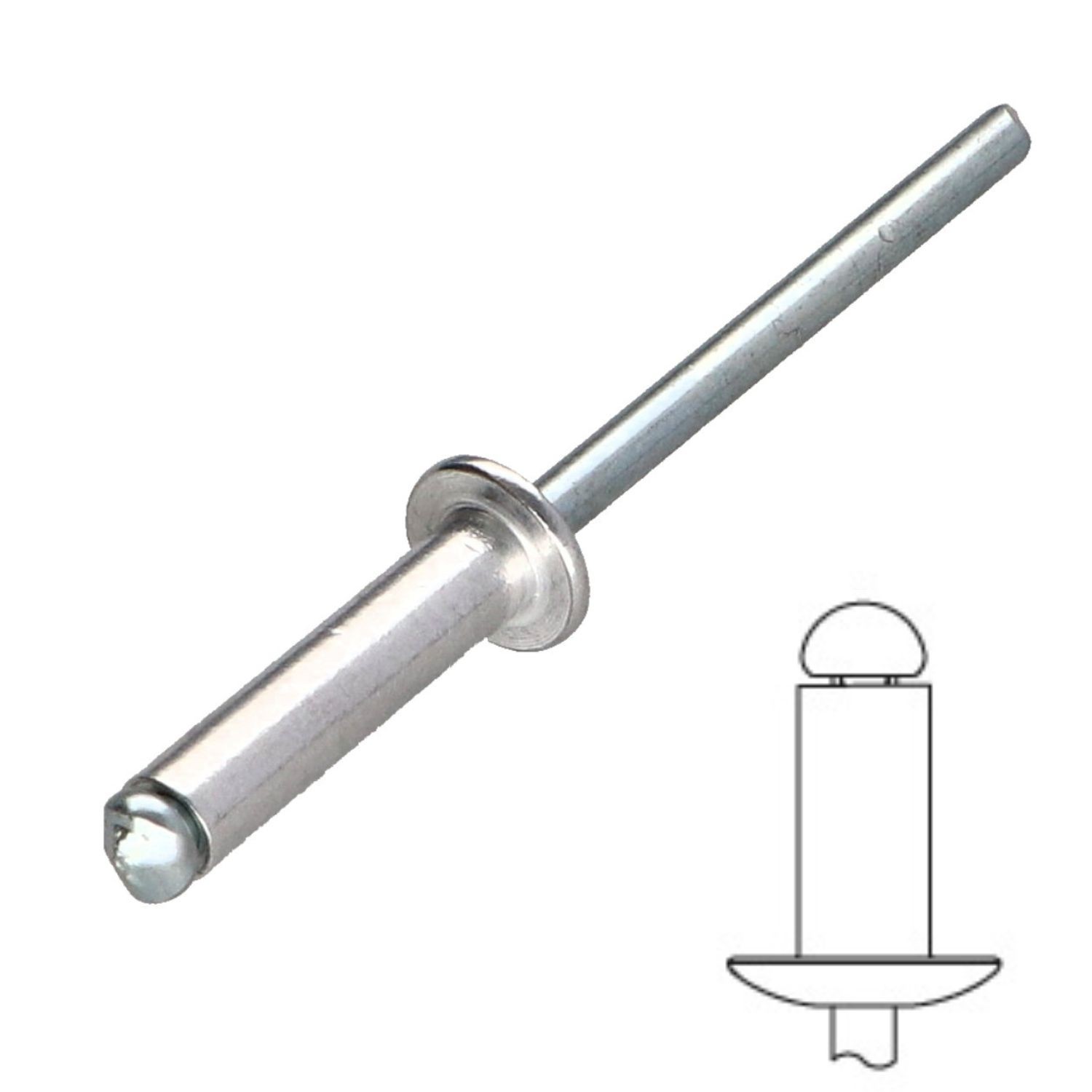

1 x Blind rivets Aluminium Stahlgewinde 5X30 Flat Head

9006301029_1
In stock 1055 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included £3.69 £7.33 £8.85 £22.91
DOC 3702 - Blind rivets Aluminium Stahlgewinde 5X30 Flat Head
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
5
Length
32
Material
Aluminium STEM Steel
Sub product family
Flat Head
WEIGHT For THERE unit
4.1 GR
1055 Items
3663072216051

Application

  • Fixing of:
  • aluminum or steel sheets
  • plastics
  • fine pieces
  • Domains:
  • DIY
  • bodywork
  • aluminium joinery
  • ventilation ducts
Blind rivets Aluminium Stahlgewinde 5X30 Flat Head
Diameter = 5, Material = BODY Aluminium / rod Steel


dimensional guide (mm)
Diameter 2.4 2.4 2.4 3 3 3 3 3 3 3 3 3 3 3 3 3 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 6 6 6.4 6.4 6.4 6.4 6.4 6.4
Length 4 6 8 4 5 6 7 8 10 12 14 13 18 20 25 30 4 6 8 10 12 14 16 18 20 25 5 6 7 8 10 12 14 16 18 20 25 30 35 40 6 8 10 12 14 16 18 20 25 30 6 8 10 12 14 16 18 20 25 30 35 40 45 50 55 60 65 70 80 8 10 12 16 18 20 25 30 35 40 45 50 12 16 18 20 25 30
d Perc 2.5 2.5 2.5 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.9 4.9 4.9 4.9 4.9 4.9 4.9 4.9 4.9 4.9 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.5 6.5 6.5 6.5 6.5 6.5
Crimp thickness

Other Reference : 3617501196629 783500 783500 783500 783500 FA61265 3663072216051
michel Y. (vis-express.fr)
2025-03-02

to repair and rivet the aluminum camping table elements of the brand: Midland to repair and rivet the aluminum camping table elements of the brand: Midland


Fernand T. (vis-express.fr)
2023-12-24

flatbed trailer repair
