1 x Blind rivets Aluminium Stahlgewinde 5X10...

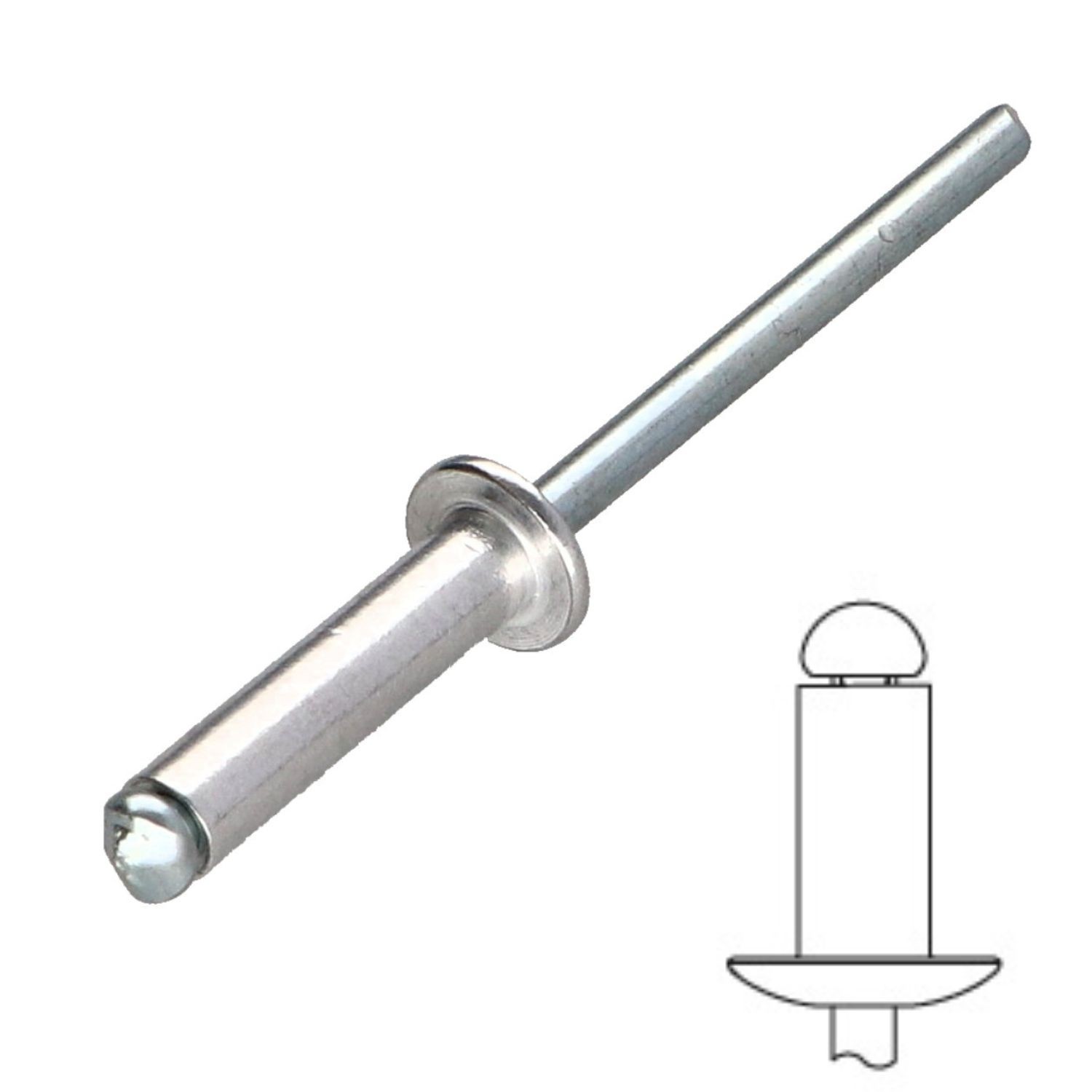

1 x Blind rivets Aluminium Stahlgewinde 5X10 Flat Head

9006300936_1
In stock 4735 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €4.25 €8.45 €13.95 €66.20
DOC 3702 - Blind rivets Aluminium Stahlgewinde 5X10 Flat Head
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
5
Length
10
Material
Aluminium STEM Steel
Sub product family
Flat Head
WEIGHT For THERE unit
2.42 GR
4735 Items
3663072176324

Application

  • Fixing of:
  • aluminum or steel sheets
  • plastics
  • fine pieces
  • Domains:
  • DIY
  • bodywork
  • aluminium joinery
  • ventilation ducts
Blind rivets Aluminium Stahlgewinde 5X10 Flat Head
Diameter = 5, Material = BODY Aluminium / rod Steel


dimensional guide (mm)
Diameter 2.4 2.4 2.4 3 3 3 3 3 3 3 3 3 3 3 3 3 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 6 6 6.4 6.4 6.4 6.4 6.4 6.4
Length 4 6 8 4 5 6 7 8 10 12 14 13 18 20 25 30 4 6 8 10 12 14 16 18 20 25 5 6 7 8 10 12 14 16 18 20 25 30 35 40 6 8 10 12 14 16 18 20 25 30 6 8 10 12 14 16 18 20 25 30 35 40 45 50 55 60 65 70 80 8 10 12 16 18 20 25 30 35 40 45 50 12 16 18 20 25 30
d Perc 2.5 2.5 2.5 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.9 4.9 4.9 4.9 4.9 4.9 4.9 4.9 4.9 4.9 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.5 6.5 6.5 6.5 6.5 6.5
Crimp thickness

Other Reference : 3617501973138 0412118 BL501A VR6300936 020927 020927 020927 020927 VB107 2414103 2414103 ACH3522 RIV510 1407000004 100176 FRIV512 2414103 VB107 807114 RIV5X10 0400104 RVATB5X10 A-00410 3663072176324
Gilles M. (vis-express.fr)
2026-07-26

Trailer repair Side panel reinforcement
