1 x Blind rivets Aluminium Stahlgewinde 3X10...

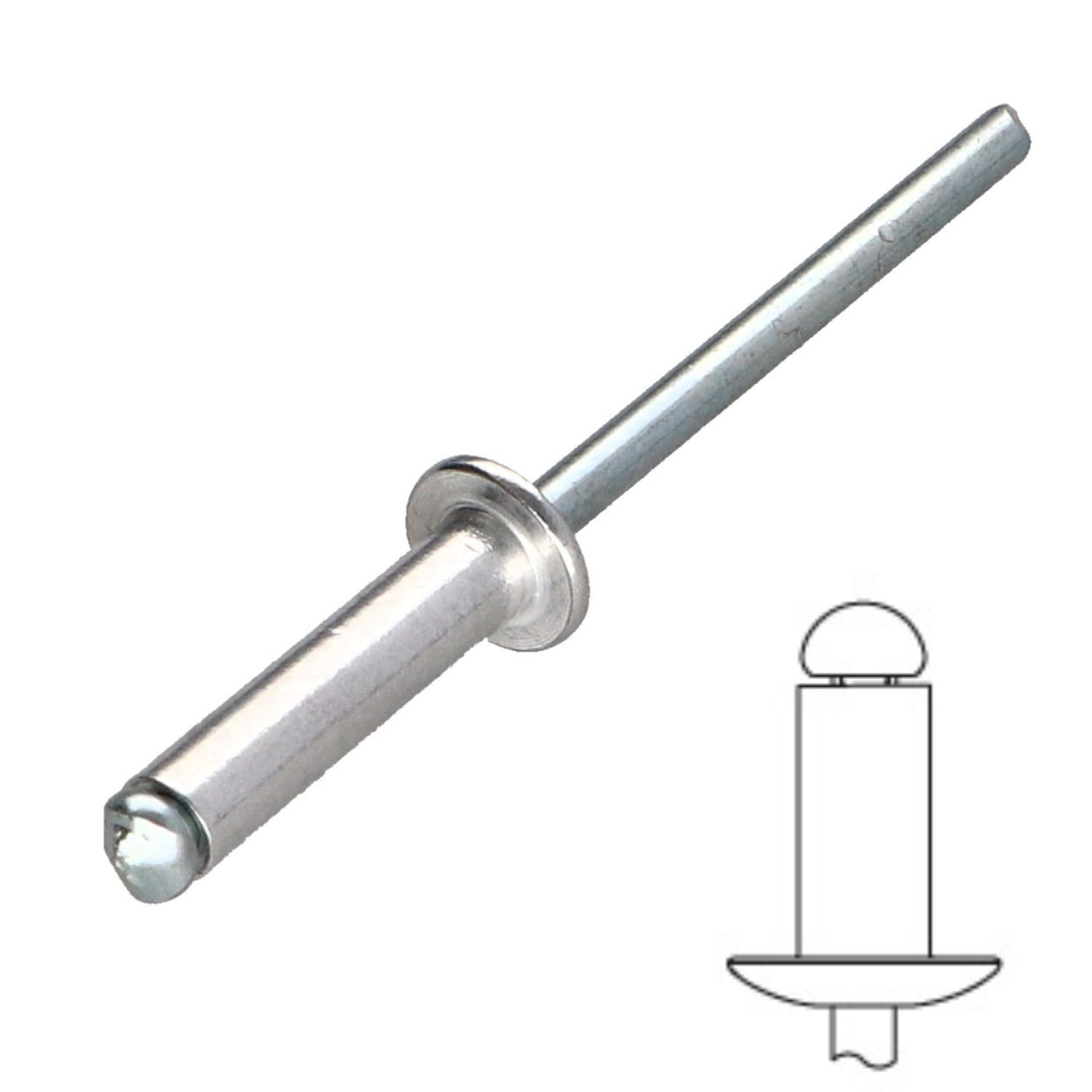

1 x Blind rivets Aluminium Stahlgewinde 3X10 Flat Head

9006300162_1
In stock 3681 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €4.25 €8.45 €10.15 €41.15
DOC 3702 - Blind rivets Aluminium Stahlgewinde 3X10 Flat Head
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
3
Length
10
Material
Aluminium STEM Steel
Sub product family
Flat Head
WEIGHT For THERE unit
1.1 GR
3681 Items
3663072176164

Application

  • Fixing of:
  • aluminum or steel sheets
  • plastics
  • fine pieces
  • Domains:
  • DIY
  • bodywork
  • aluminium joinery
  • ventilation ducts
Blind rivets Aluminium Stahlgewinde 3X10 Flat Head
Diameter = 3, Material = BODY Aluminium / rod Steel


dimensional guide (mm)
Diameter 2.4 2.4 2.4 3 3 3 3 3 3 3 3 3 3 3 3 3 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 6 6 6.4 6.4 6.4 6.4 6.4 6.4
Length 4 6 8 4 5 6 7 8 10 12 14 13 18 20 25 30 4 6 8 10 12 14 16 18 20 25 5 6 7 8 10 12 14 16 18 20 25 30 35 40 6 8 10 12 14 16 18 20 25 30 6 8 10 12 14 16 18 20 25 30 35 40 45 50 55 60 65 70 80 8 10 12 16 18 20 25 30 35 40 45 50 12 16 18 20 25 30
d Perc 2.5 2.5 2.5 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.9 4.9 4.9 4.9 4.9 4.9 4.9 4.9 4.9 4.9 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.1 6.5 6.5 6.5 6.5 6.5 6.5
Crimp thickness

Other Reference : 1433471 VIARIVETPOP3 34427 310534 30228 ACT-10042 VIARIVETPOP3 ACH3518 8000087XAL 602127 8700 RIVPOP3X10TP 8700 AN 101805 ACT-10042 03X006 FID00034 RIV3X10 RIV3X10 M78725180 54106 RVATB3X10 00503031 3663072176164
frédéric f. (vis-express.fr)
2025-09-21

I will fix aluminum sheets fixing manufacturer's plates on old vehicles
