3709481012_1
In stock 2096 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included €3.85 €7.70 €9.30 €56.50

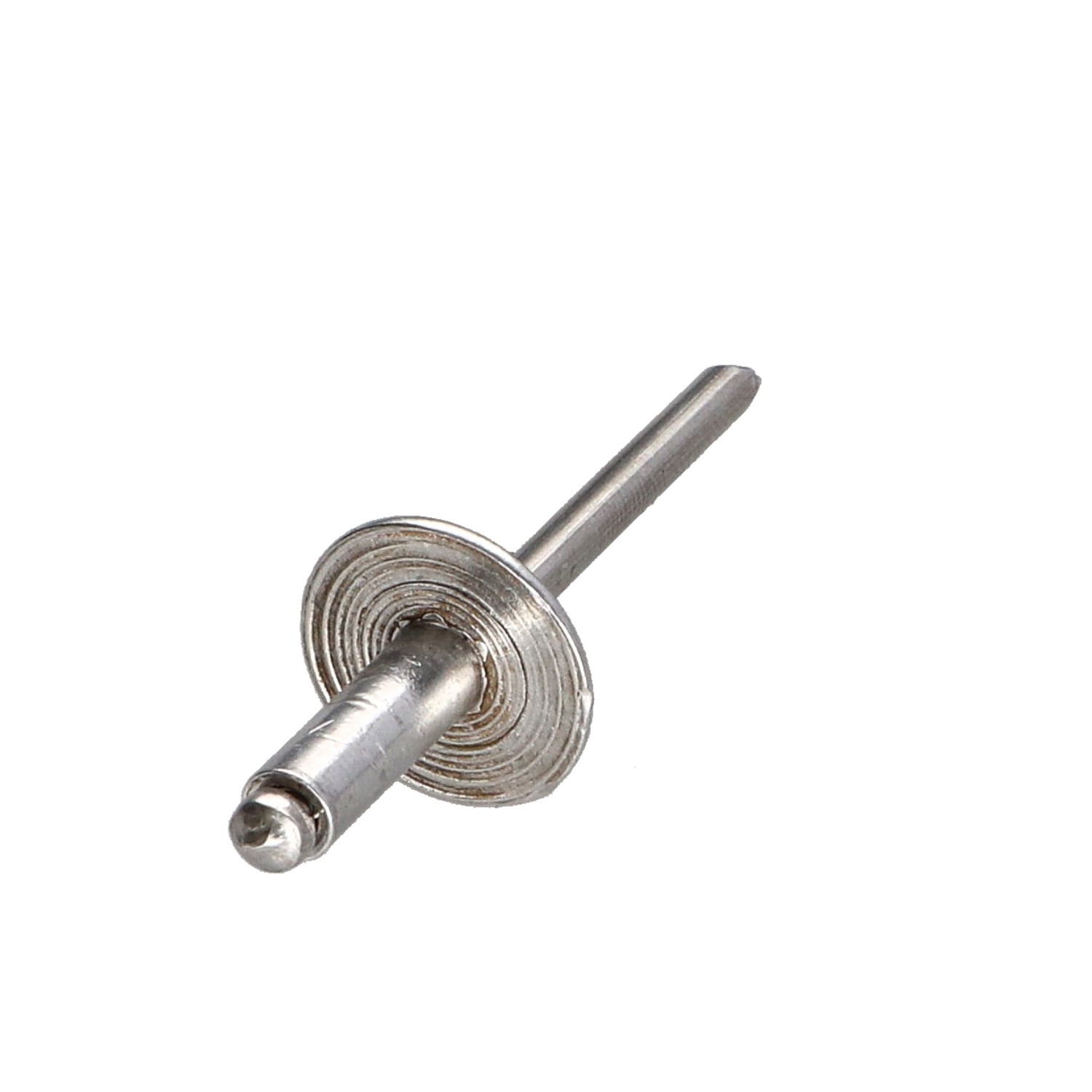

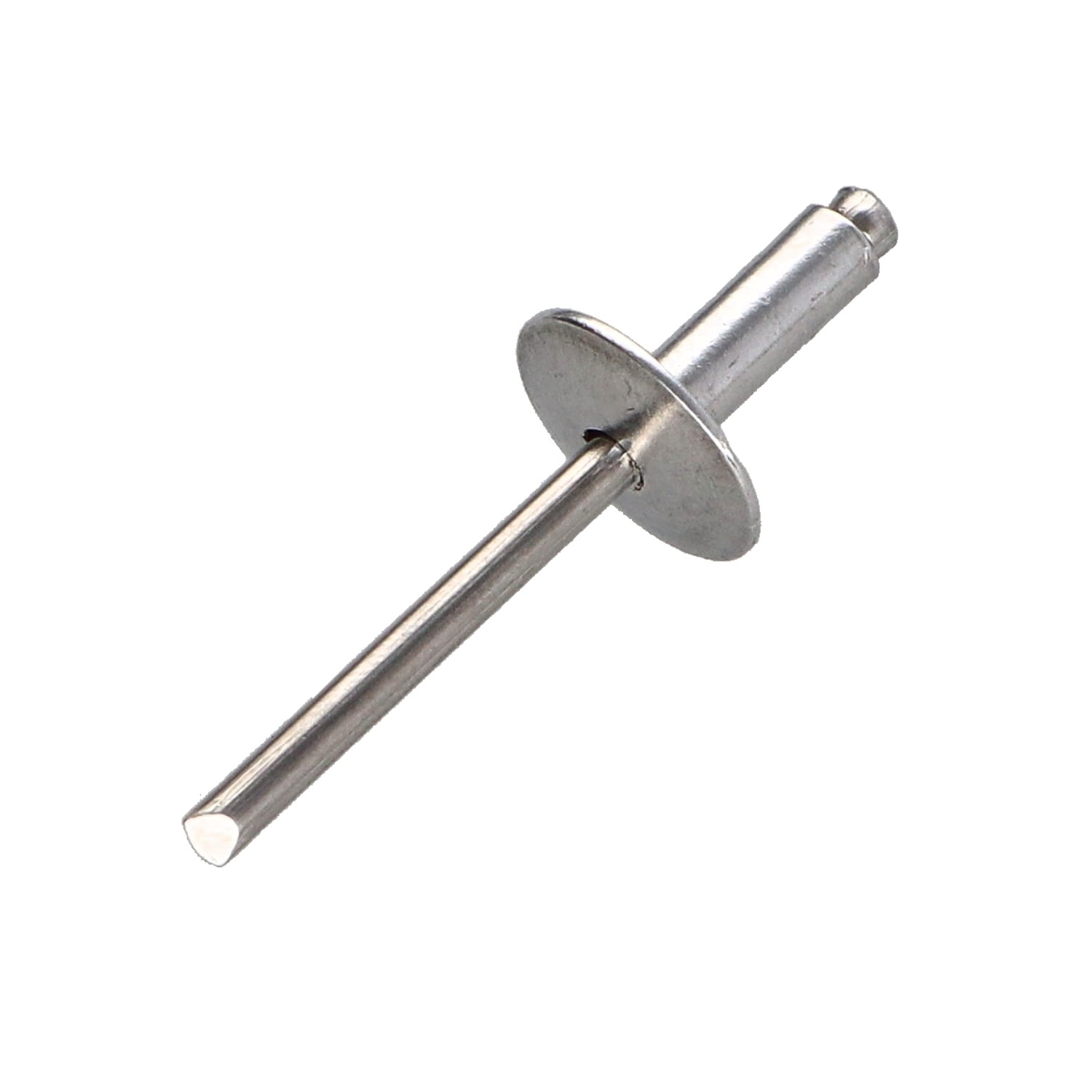

Rivet alu 4.8X10 Thickness Of Panel 3 to 5 Extra Large Head YOUR
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
16
Material
BODY Aluminium / rod Aluminium
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1300
Clamping thickness
3 a 5 mm
Rivet body length
10
Unit weight
2 GR
Head shape
Head EXTRA-LARGE
Hole diameter
5
Tensile strength
2000
2096 Items
3663072064775

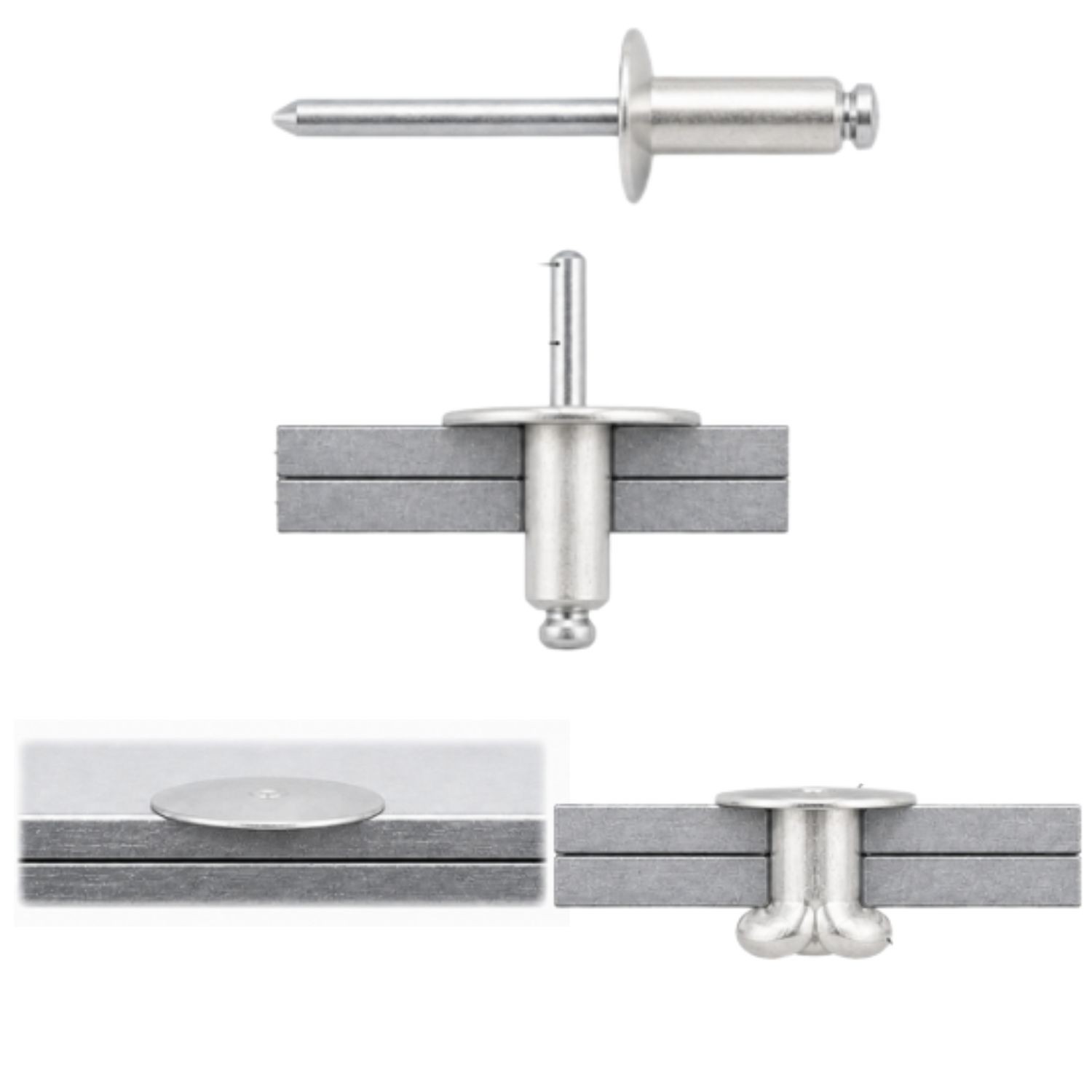

Application

  • signage
  • lightweight cladding
  • ventilation / ducts
  • Assemblies requiring good load distribution
Rivet alu 4.8X10 Thickness Of Panel 3 to 5 Extra Large Head YOUR
Diameter = Class 4.8

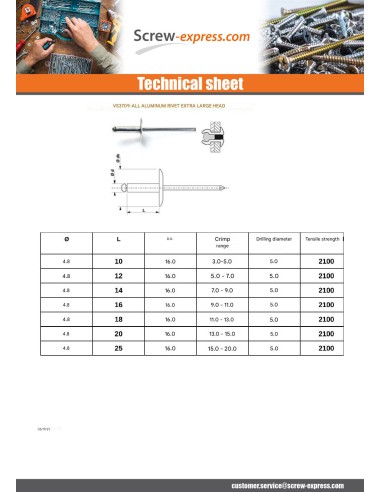

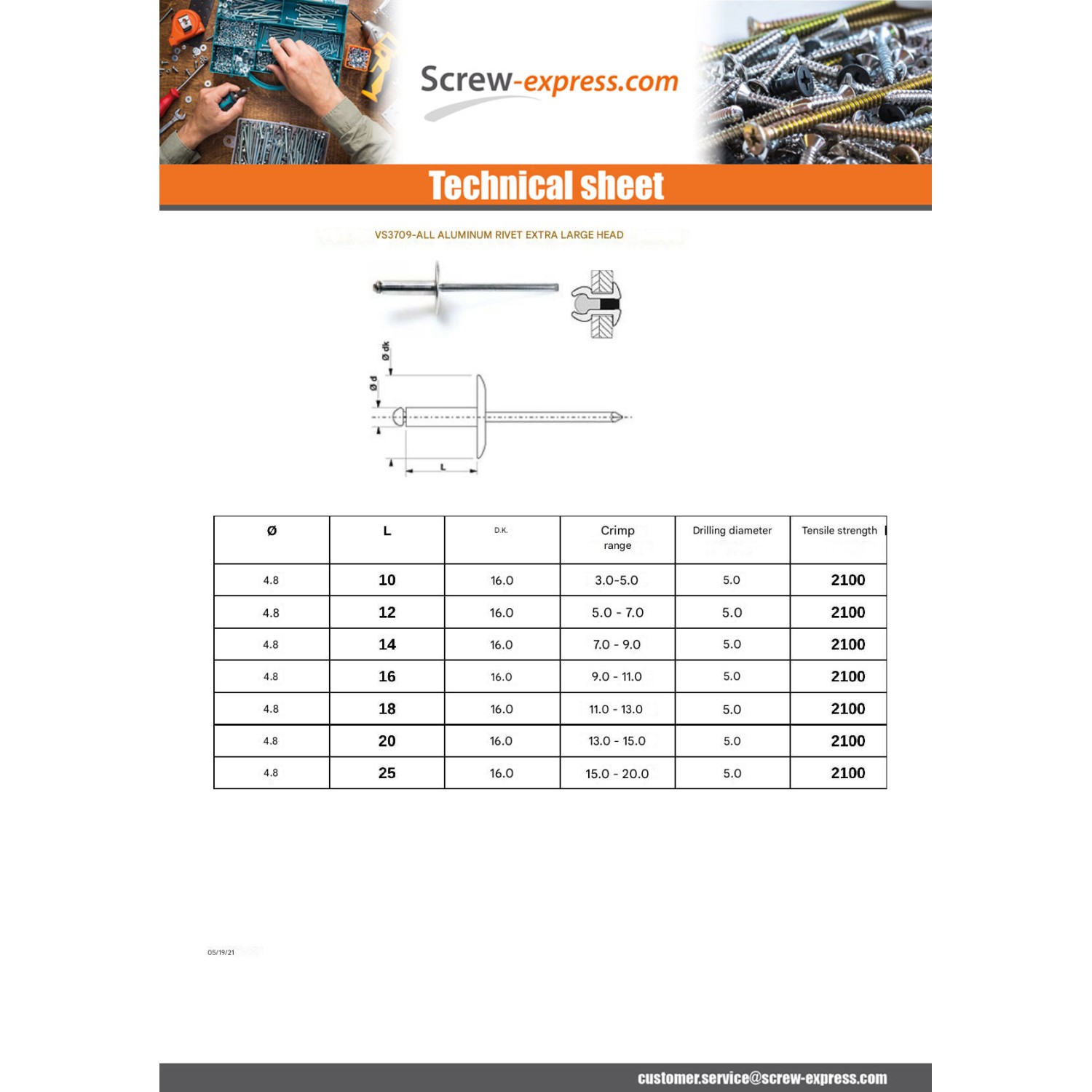

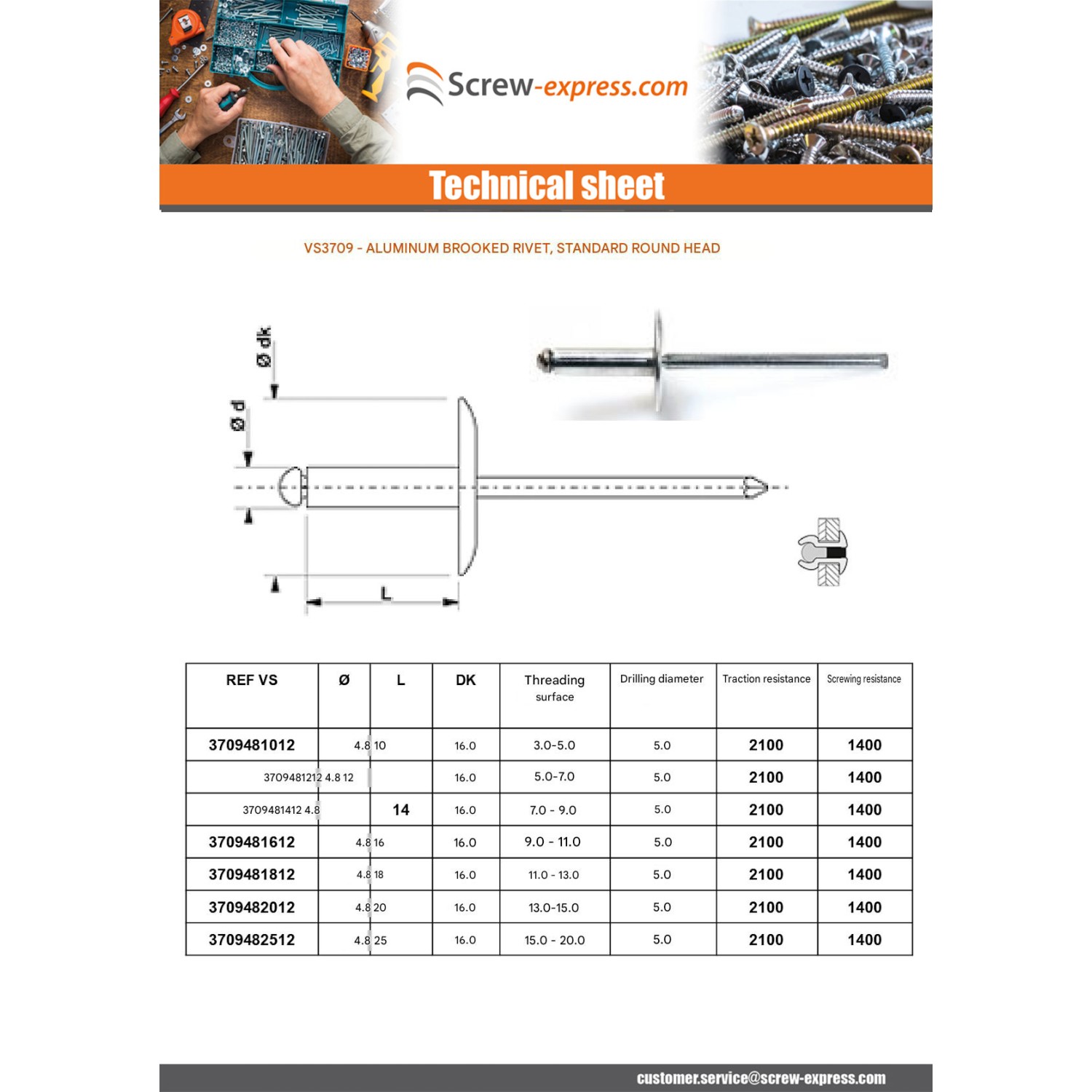

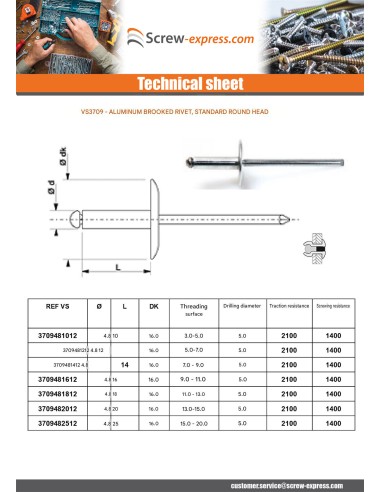

dimensional guide (mm)
Body diameter 4.8
Head diameter 16
Drilling diameter 5
longueur tige 27
resistance a la traction 2100
Shear strength 1400
La longueur du corps est indique dans la designation

Other Reference : 102348101 MP1949 3663072064775
