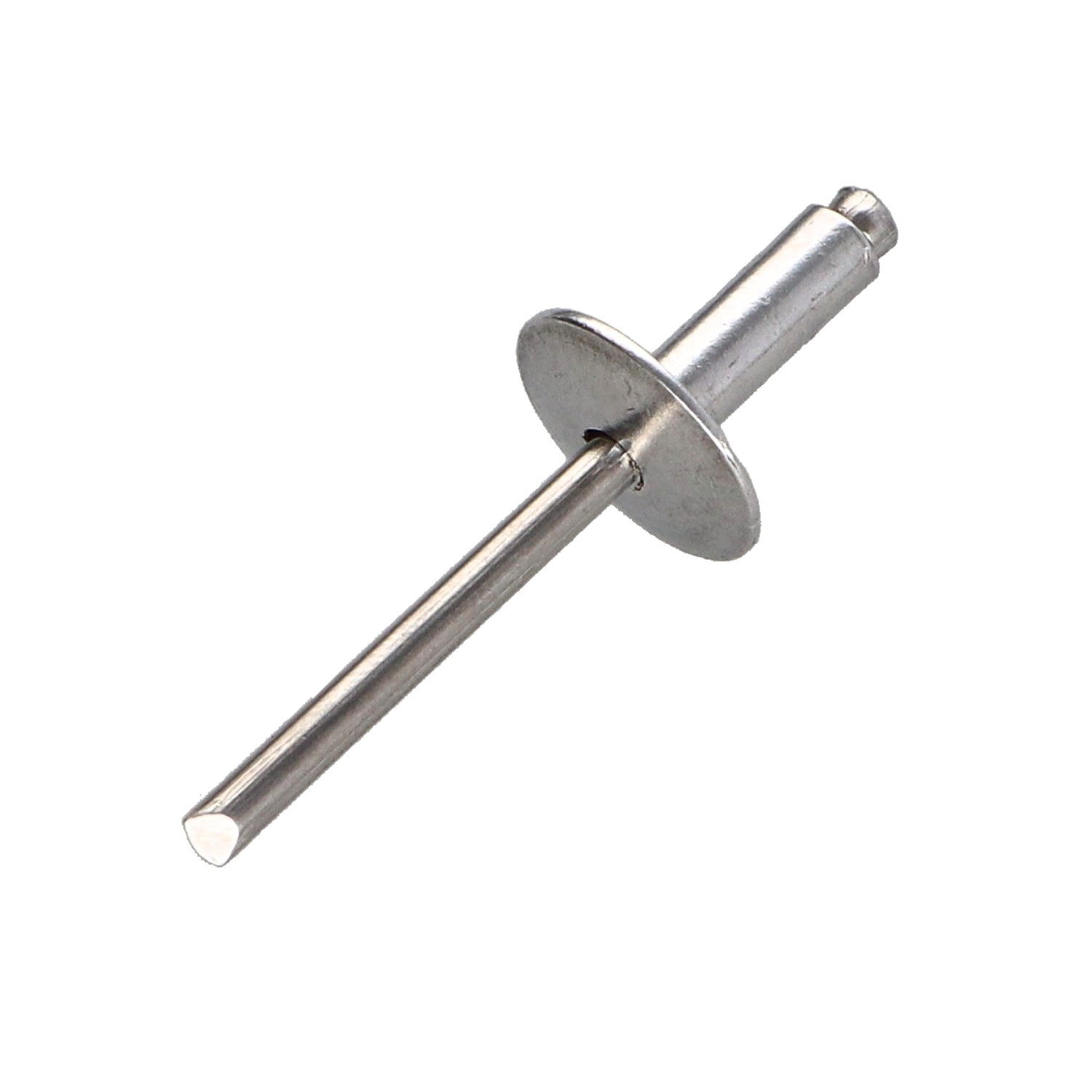

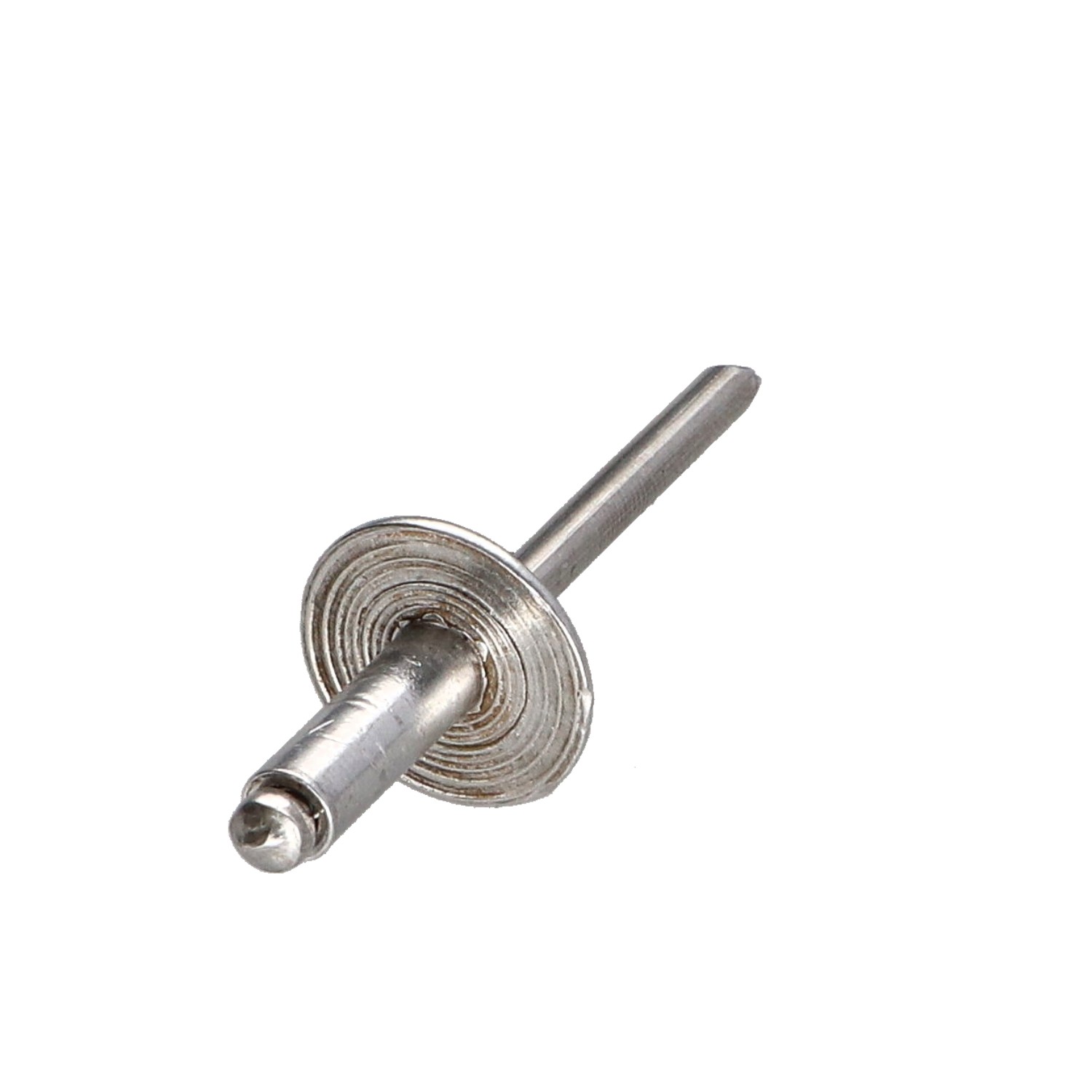

1 x Rivet alu 4.8X12 Thickness Of Panel 5 to 7 Extra Large Head YOUR

1 x Rivet alu 4.8X12 Thickness Of Panel 5 to 7...

1 x Rivet alu 4.8X12 Thickness Of Panel 5 to 7 Extra Large Head YOUR

Name: 1 x Rivet alu 4.8X12 Thickness Of Panel 5 to 7 Extra Large Head YOUR
Brand: Screw Express
SKU: 3709481212
Price: 4.25 EUR
Availability: InStock

Reference 3709481212_1

In stock 4011 Pièces

€4.25 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	250
Lot price VAT included	€4.25	€8.45	€10.20	€66.20

Rivet alu 4.8X12 Thickness Of Panel 5 to 7 Extra Large Head YOUR

Packaging

1 unit
10 units
30 units
250 Units

Dimensions shown in millimeters (mm)

Product Details

Diameter: 4.8
Diameter Head: 16
Material: BODY Aluminium / rod Aluminium
Sub product family: Rivets BLIND STANDARDS (USE GENERAL)
Shear (N): 1300
Clamping thickness: 5 a 7 mm
Rivet body length Rivet body length How to measure the length of a rivet? In our rivet designations, the length corresponds to the body length of the rivet (indicated by the arrow in the sketch below).: 12
Unit weight: 2.1 GR
Head shape: Head EXTRA-LARGE
Hole diameter: 5
Tensile strength

Tensile strength

Tensile Strength (Rm)
Tensile strength corresponds to the maximum force a material can withstand before breaking when it is pulled.

It is expressed in MPa (megapascals) and helps determine the strength of a screw or fastening component.

🔩 The higher the value, the more resistant the material is to breaking.: 2000

In stock 4011 Items

ean13 3663072302778

Application

signage
lightweight cladding
ventilation / ducts
Assemblies requiring good load distribution

Description

Rivet alu 4.8X12 Thickness Of Panel 5 to 7 Extra Large Head YOUR
Diameter = Class 4.8

dimensional guide (mm)

Body diameter	4.8
Head diameter	16
Drilling diameter	5
longueur tige	27
resistance a la traction	2100
Shear strength	1400
La longueur du corps est indique dans la designation

Other Reference : 102348121 1500 3663072302778

Use Cases

Francois V. (vis-express.fr)
2026-05-17

Pour la réparation d'un bouclier Av de voiture.<br /> Plus création d'un stock de fournitures. Bouclier Avant de RENAULT Twingo.<br /> Tout en plastique, cassé aux fixations.

Yvan Y. (vis-express.fr)
2024-06-23

Stiffen an aluminum pergola with aluminum supports in the corners. To hold the uprights (11x11cm) of a 4m x 3m SWEEK aluminum pergola on the horizontal uprights (14cm) in order to stiffen the entire pergola.
