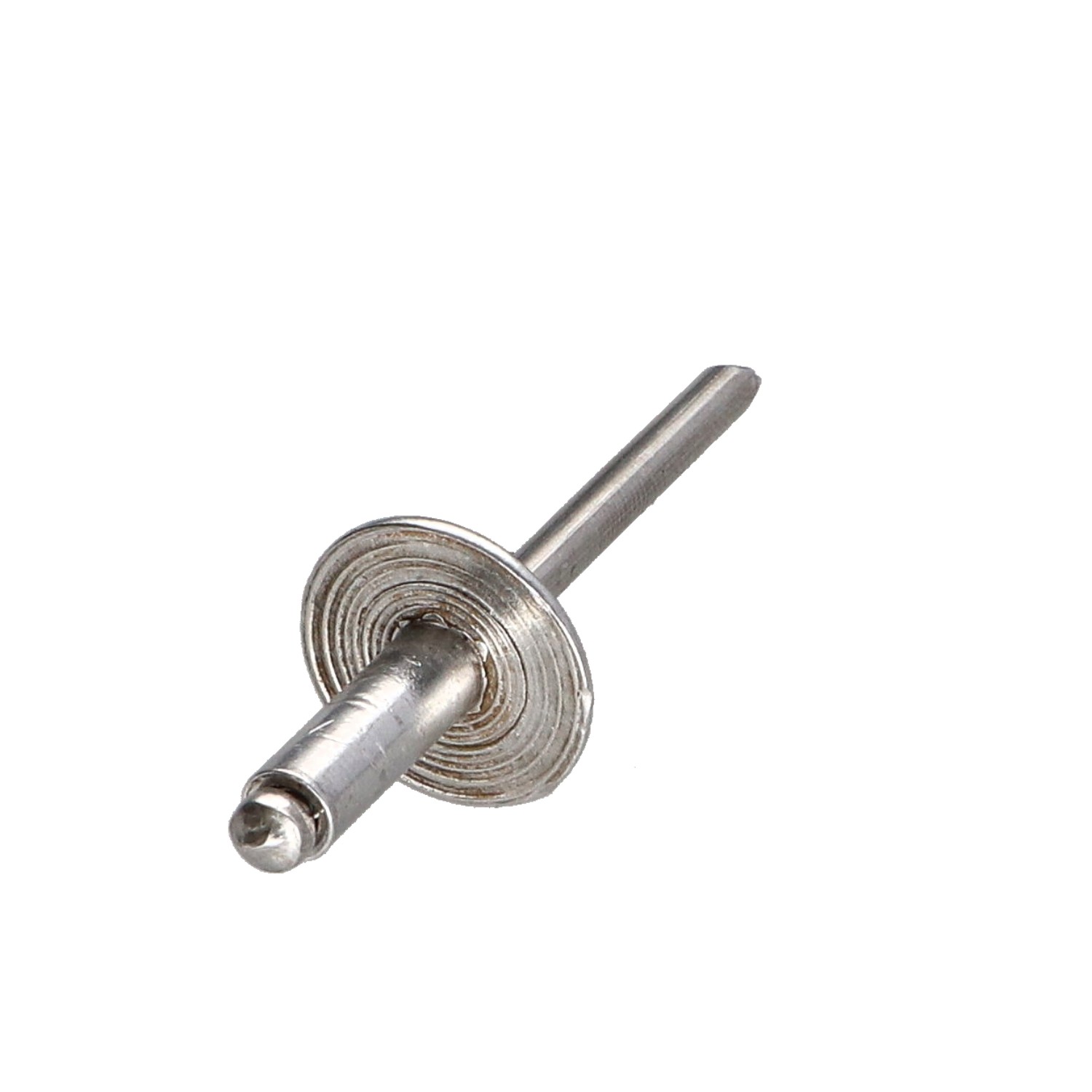

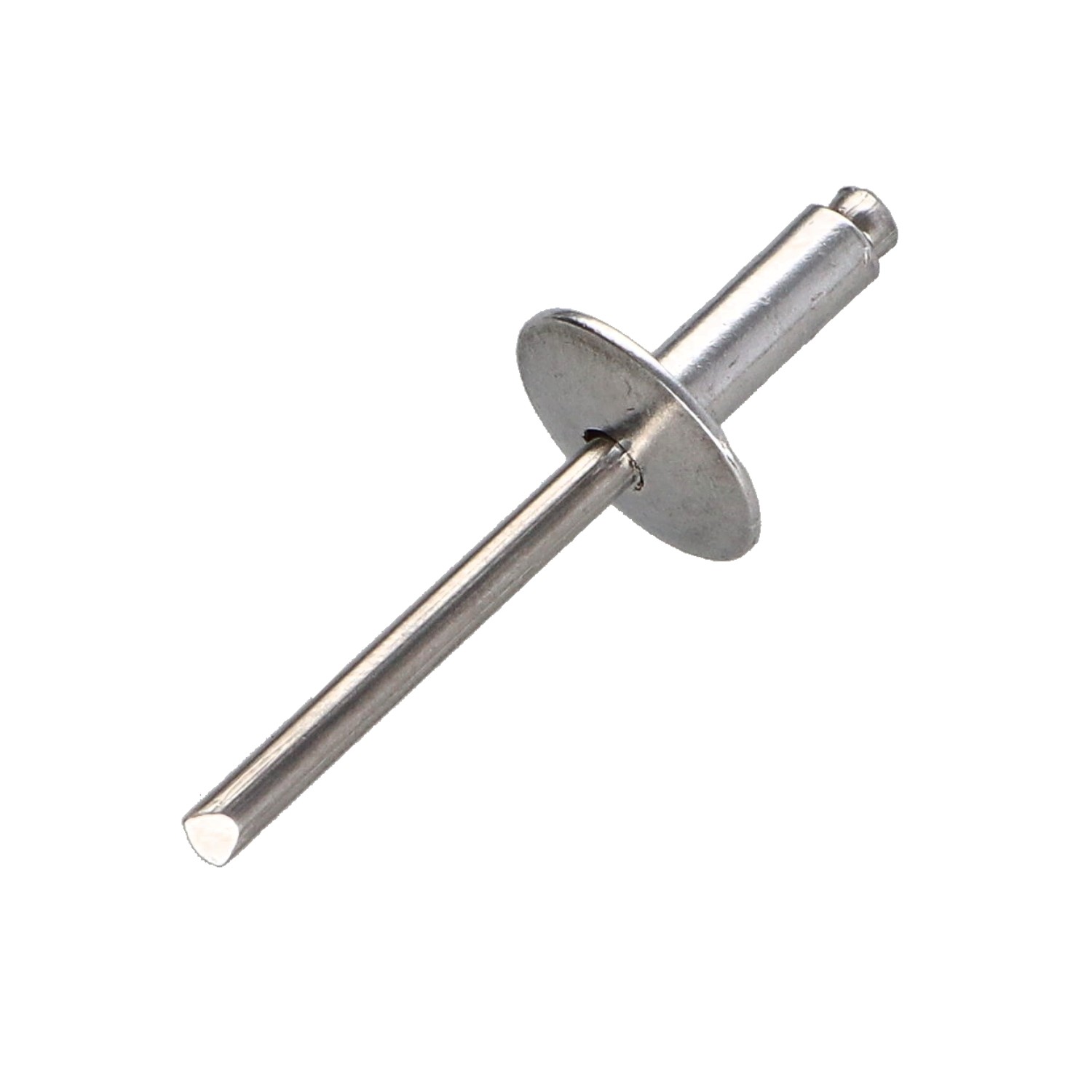

1 x Rivet alu 4.8X25 Thickness Of Panel 15 to 20 Extra Large Head YOUR

1 x Rivet alu 4.8X25 Thickness Of Panel 15 to...

1 x Rivet alu 4.8X25 Thickness Of Panel 15 to 20 Extra Large Head YOUR

Name: 1 x Rivet alu 4.8X25 Thickness Of Panel 15 to 20 Extra Large Head YOUR
Brand: Screw Express
SKU: 3709482512
Price: 3.85 EUR
Availability: InStock

Reference 3709482512_1

In stock 1664 Pièces

€3.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	250
Lot price VAT included	€3.85	€7.70	€9.30	€53.55

Rivet alu 4.8X25 Thickness Of Panel 15 to 20 Extra Large Head YOUR

Packaging

1 unit
10 units
30 units
250 Units

Dimensions shown in millimeters (mm)

Product Details

Diameter: 4.8
Diameter Head: 16
Material: BODY Aluminium / rod Aluminium
Sub product family: Rivets BLIND STANDARDS (USE GENERAL)
Shear (N): 1300
Clamping thickness: 15 a 20 mm

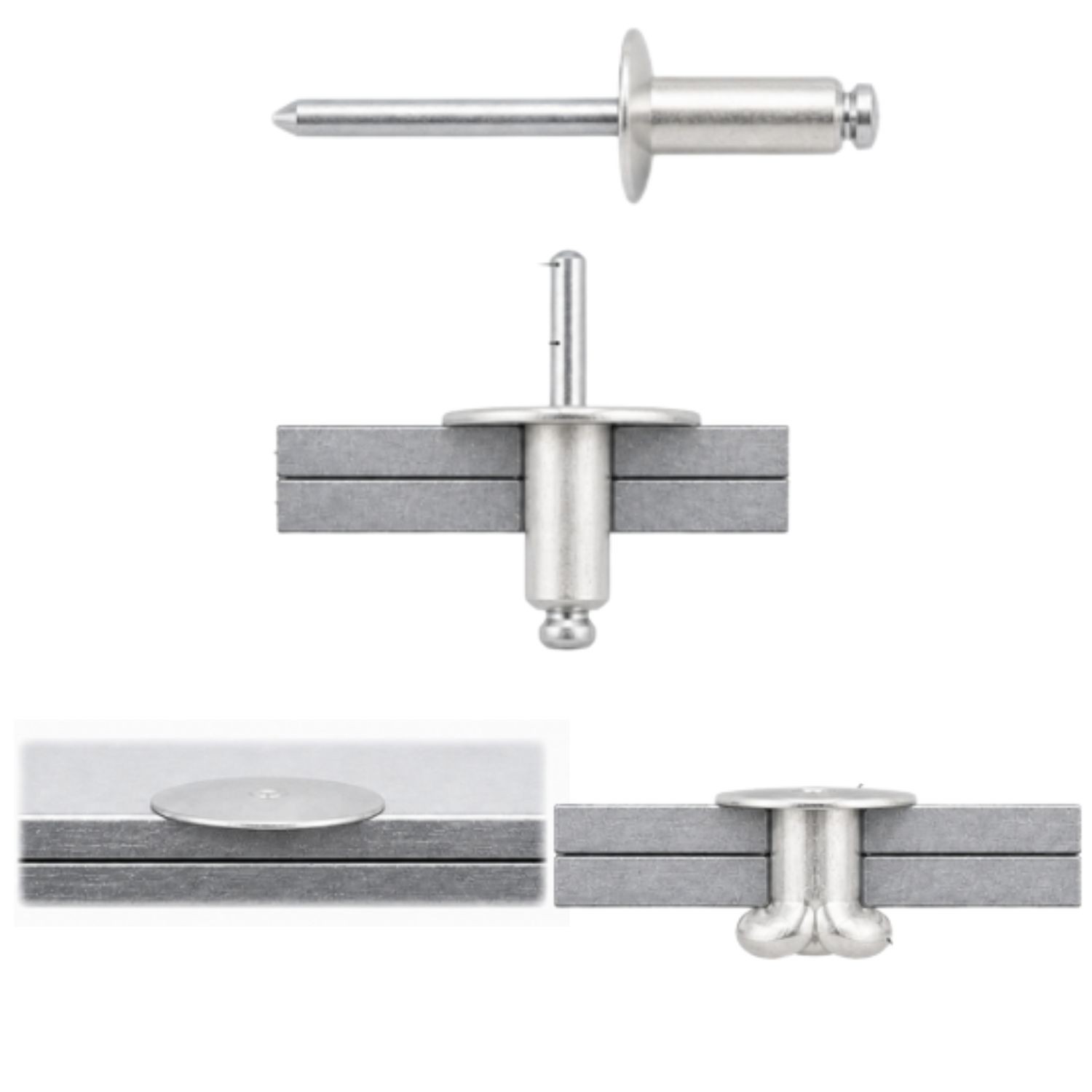

Rivet body length Rivet body length How to measure the length of a rivet? In our rivet designations, the length corresponds to the body length of the rivet (indicated by the arrow in the sketch below).: 25
Unit weight: 2.72 GR
Head shape: Head EXTRA-LARGE
Hole diameter: 5
Tensile strength

Tensile strength

Tensile Strength (Rm)
Tensile strength corresponds to the maximum force a material can withstand before breaking when it is pulled.

It is expressed in MPa (megapascals) and helps determine the strength of a screw or fastening component.

🔩 The higher the value, the more resistant the material is to breaking.: 2000

In stock 1664 Items

ean13 3663072064782

Application

signage
lightweight cladding
ventilation / ducts
Assemblies requiring good load distribution

Description

Rivet alu 4.8X25 Thickness Of Panel 15 to 20 Extra Large Head YOUR
Diameter = Class 4.8

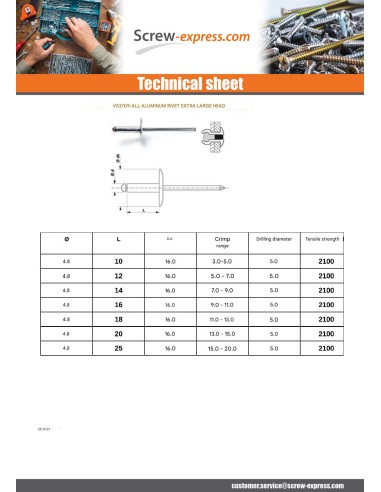

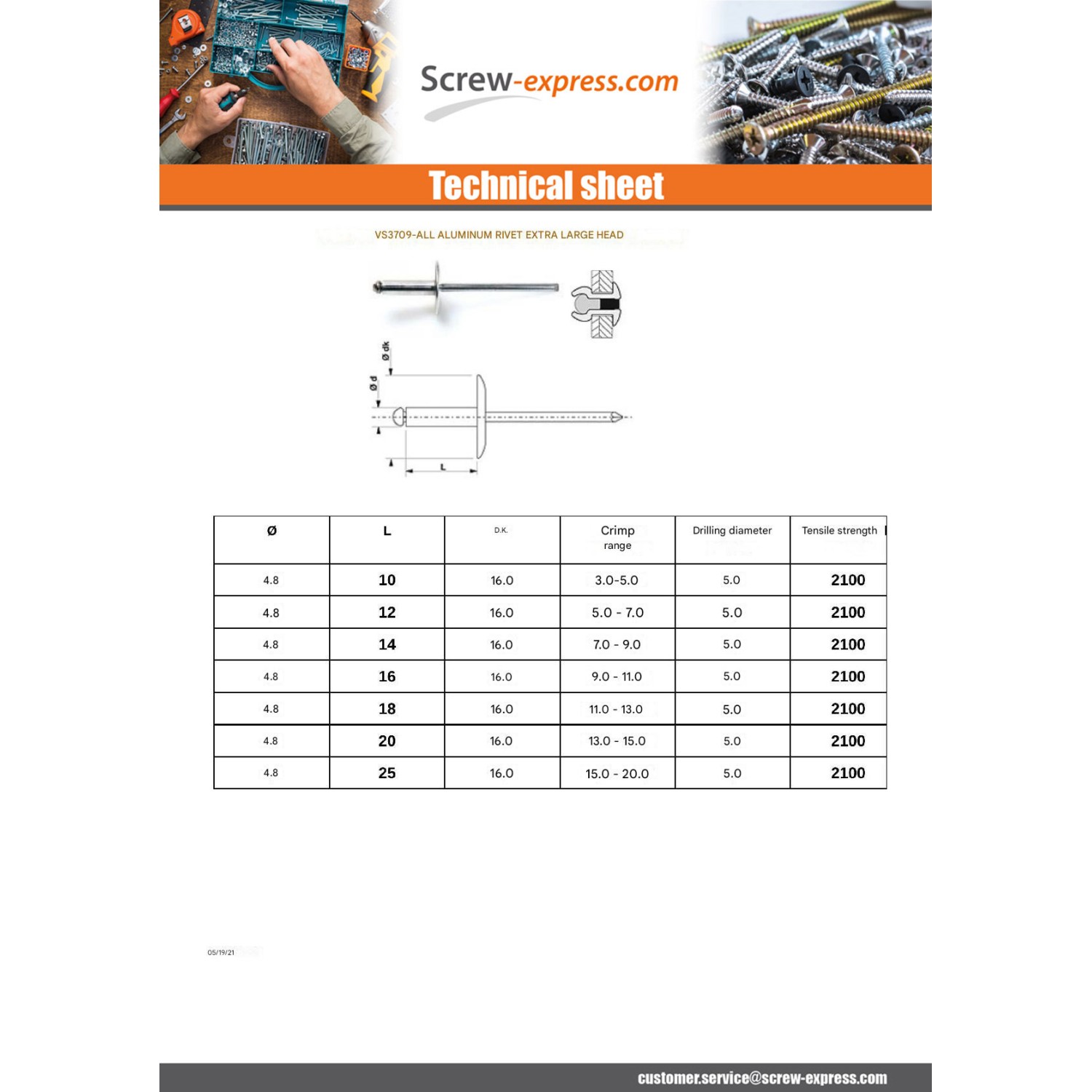

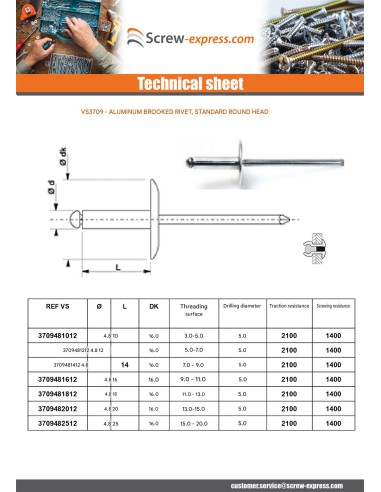

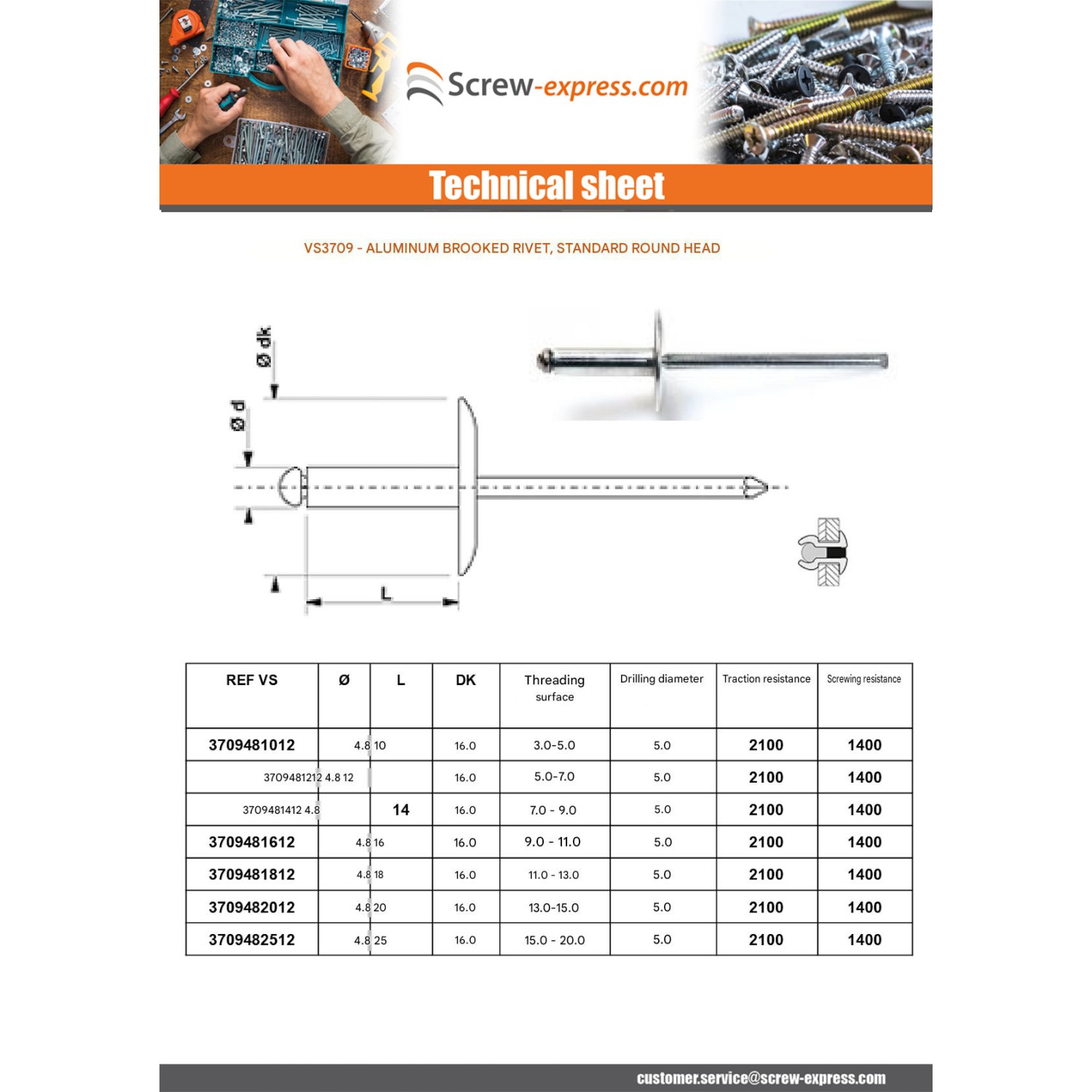

dimensional guide (mm)

Body diameter	4.8
Head diameter	16
Drilling diameter	5
longueur tige	27
resistance a la traction	2100
Shear strength	1400
La longueur du corps est indique dans la designation
