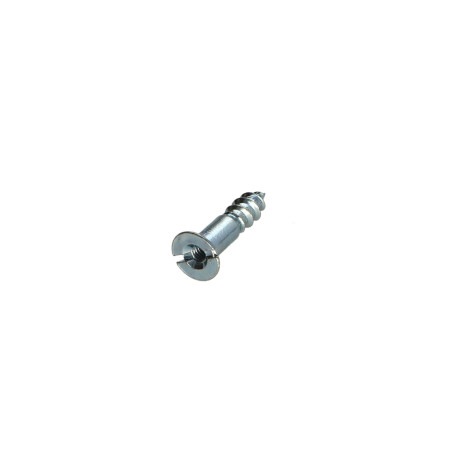

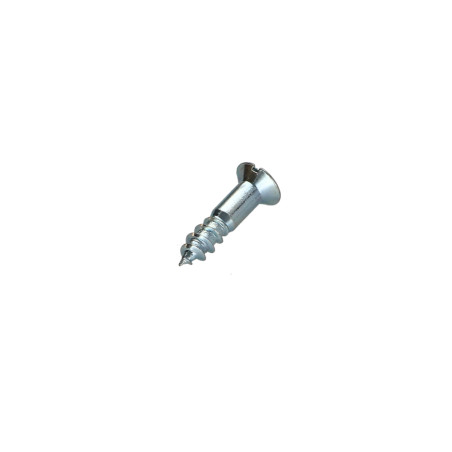

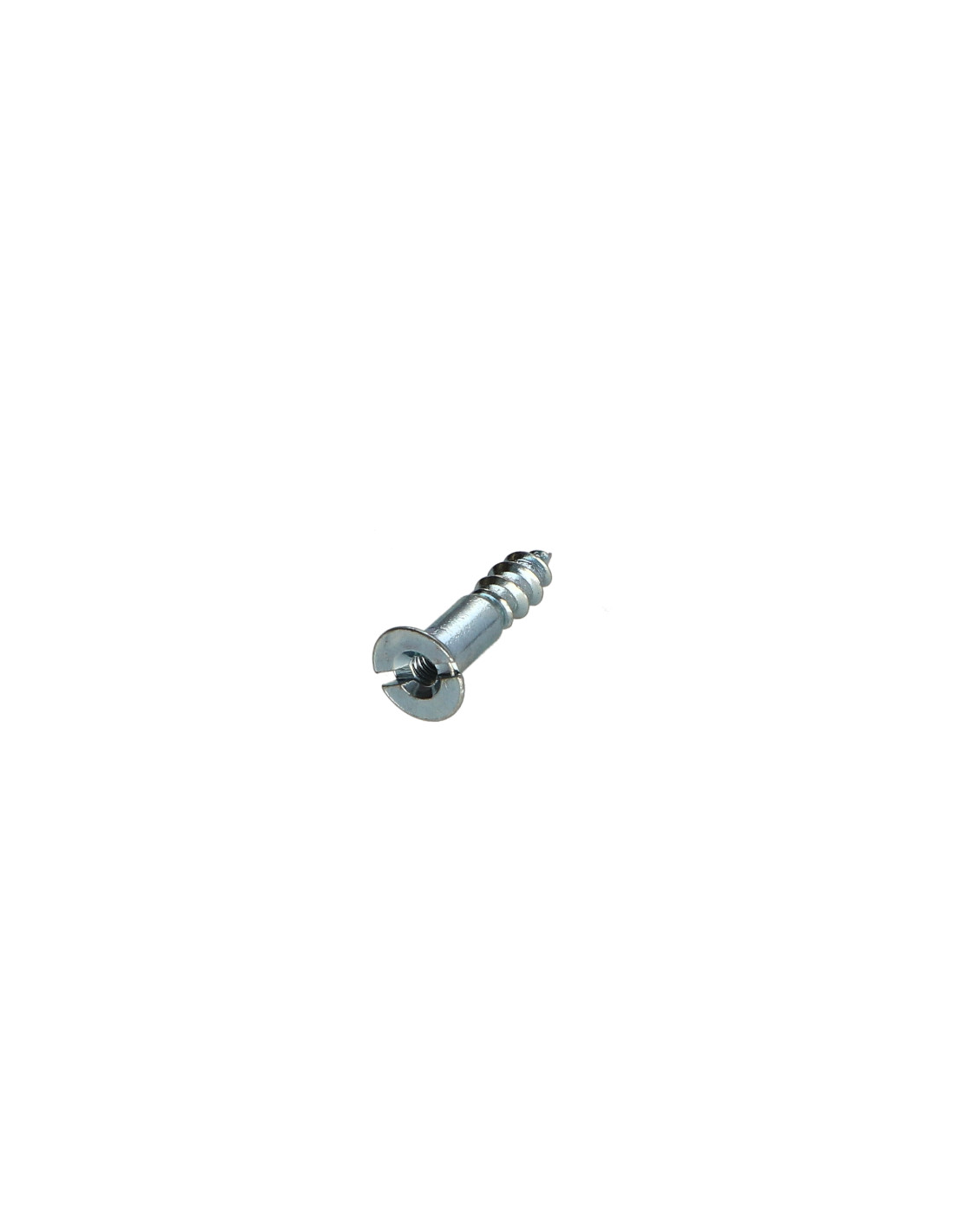

1 x Wood Screw Zinc Plated 5X20 Hole And Drill M3.5 Pitch 60

1 x Wood Screw Zinc Plated 5X20 Hole And Drill M3.5 Pitch 60

1 x Wood Screw Zinc Plated 5X20 Hole And Drill M3.5 Pitch 60

1 x Wood Screw Zinc Plated 5X20 Hole And Drill M3.5 Pitch 60

On sale!
-40%

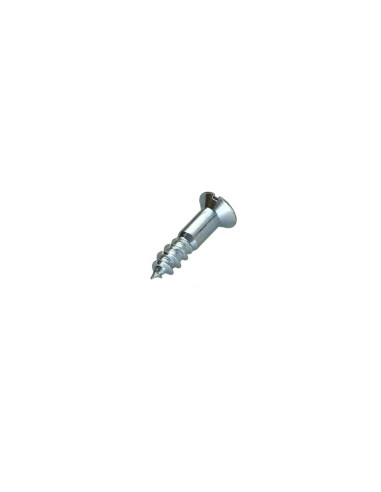

1 x Wood Screw Zinc Plated 5X20 Hole And Drill...

1 x Wood Screw Zinc Plated 5X20 Hole And Drill...

1 x Wood Screw Zinc Plated 5X20 Hole And Drill...

1 x Wood Screw Zinc Plated 5X20 Hole And Drill...

1 x Wood Screw Zinc Plated 5X20 Hole And Drill M3.5 Pitch 60

Reference 1124502102_1

In stock 43986 Pièces

£2.21 Incl VAT £3.69 -40%

Decreasing prices by quantity

Number of pieces	1	10	30	100
Lot price VAT included	£2.21	£4.40	£5.31	£5.29

DIN 97 Hole And Drill - Wood Screw Zinc Plated 5X20 Hole And Drill M3.5 Pitch 60

Packaging

1 unit
10 units
30 units
100 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: 5
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.

How do you measure the length of a threaded rod?
The length is measured from one end to the other.: 20
Thread: Wood
Size Drive Type: 1.2 MM
Diameter Head: 9,2 mm
Material: Steel
Coating: White zinc plated
COLOR: Grey
Norm: DIN 97 Hole And Drill
Product Family: Wood Screws
Tip: Pointed
Head thickness: 2,50 mm
Unit weight: 3.09 GR
Material to be drilled: Wood
Pre-drilling softwood: 3.0 MM
Pre-drilling hardwood: 3.5 MM
Clamping type: Screwdriver Slotted
Pre-drilling: Recommended
Hole And Drill: M3.5 Step 60

In stock 43986 Items

ean13 3663072000223

Wood Screw Zinc Plated 5X20 Hole And Drill M3.5 Pitch 60
Diameter = 5, Length = 20, Coating = White zinc plated, Material = Steel, Norm = DIN 97 Hole And Drill, Product Family = Wood Screws, Size Drive Type = 1.2 MM, Diameter Head = 9.2 MM

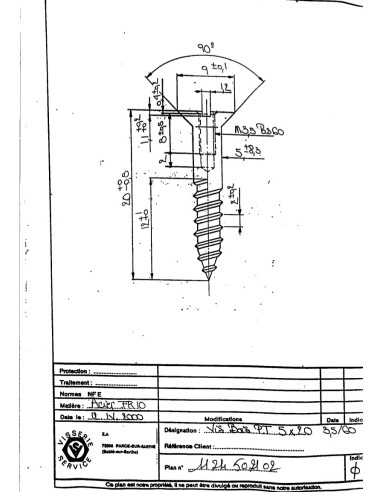

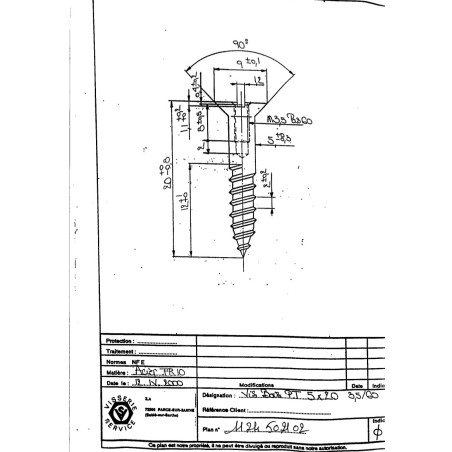

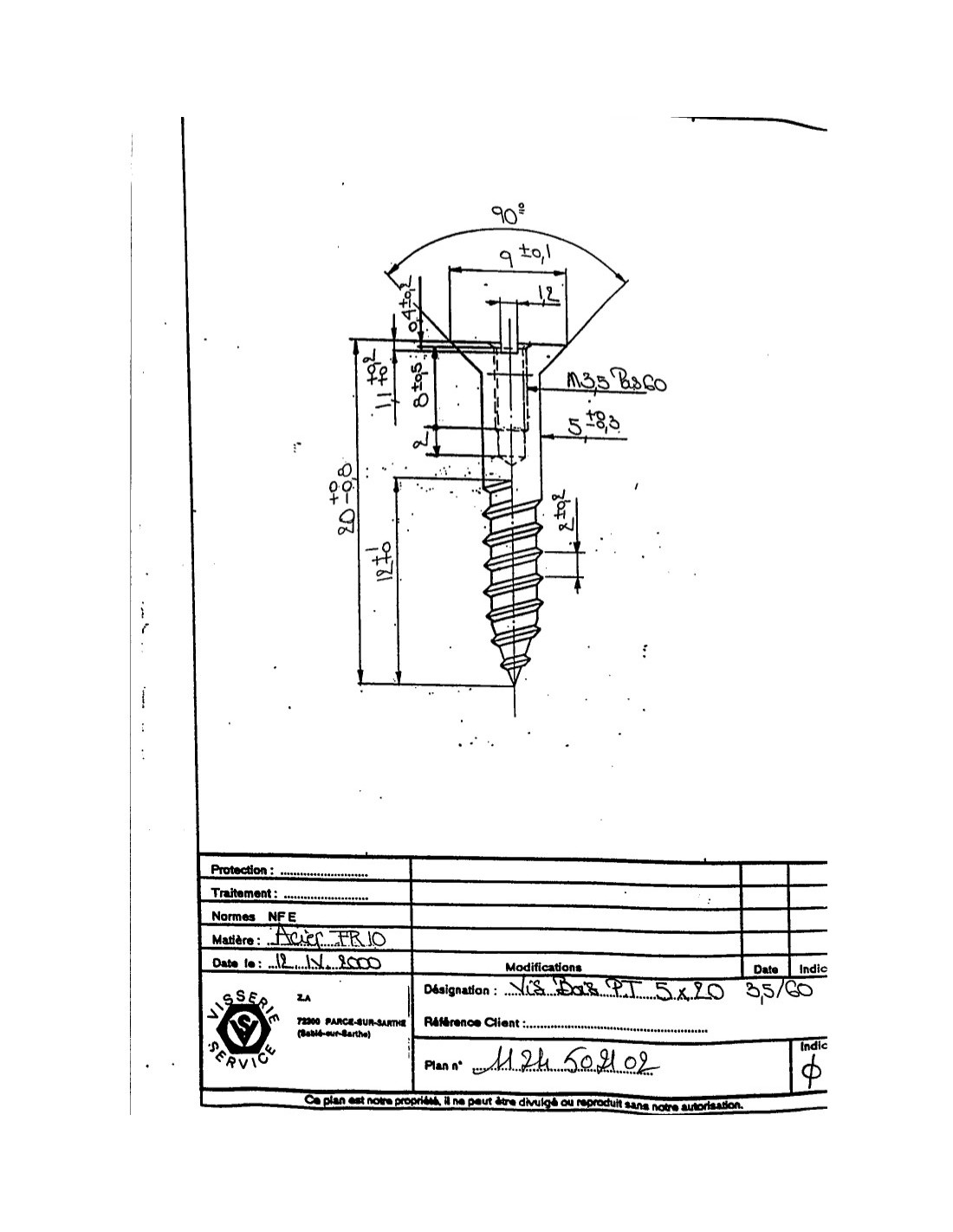

dimensional guide (mm)

Diameter	3.5	4	4.5	5	6	8
Pitch	1.5	1.75	2	2	2.5	3.5
Head diameter	7	8.2	8.7	9	11	14.8
Head Tickness	2.3	2.7	2.7	2.7	3.3	4
Slot width	1	1.2	1.2	1.2	1.6	2
Blind hole diameter/pitch	2/0.4	3/0.6	3/0.6	3/0.6	3/0.6

Other Reference : 3617501244719 52407Q P870479900 3663072000223
