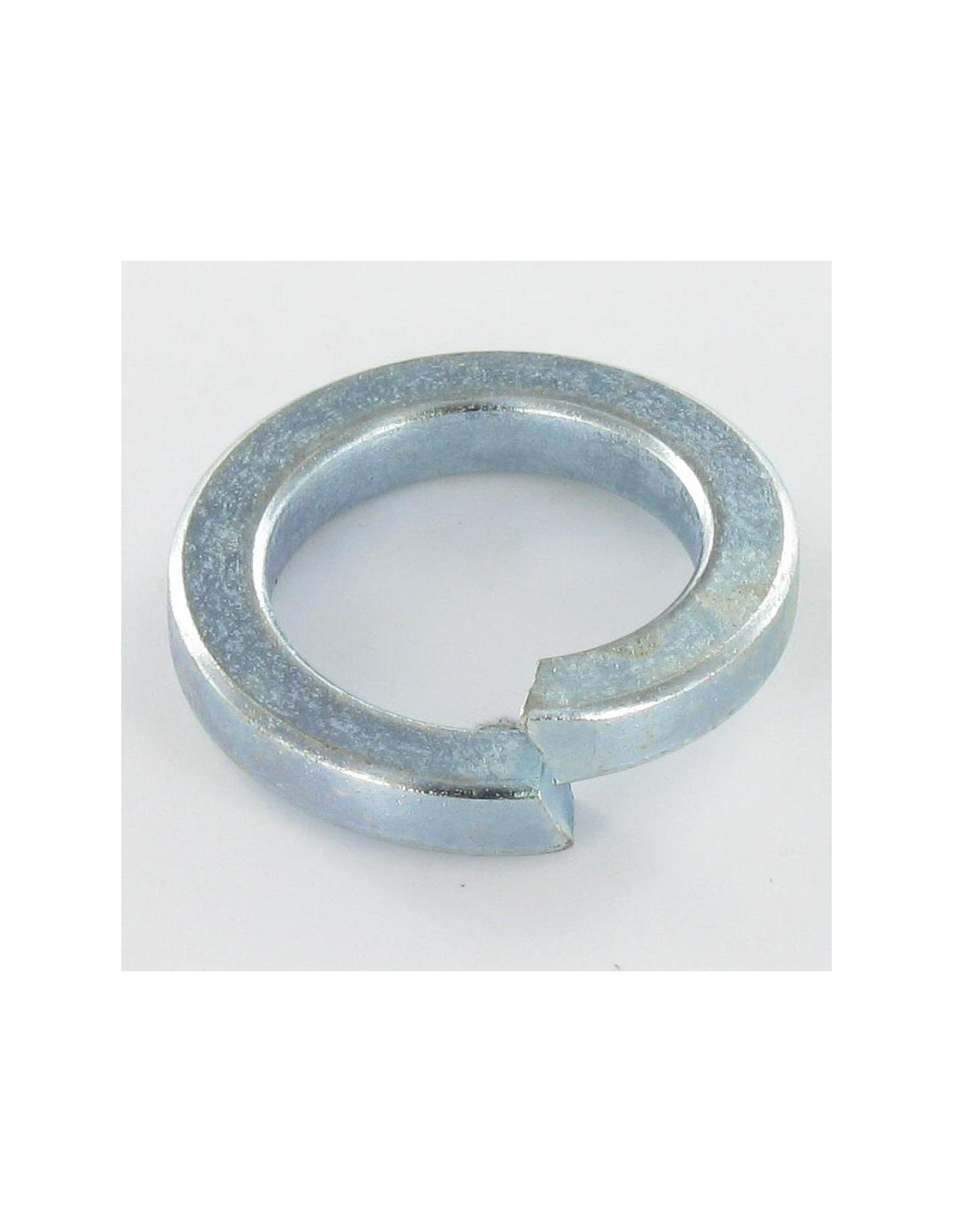

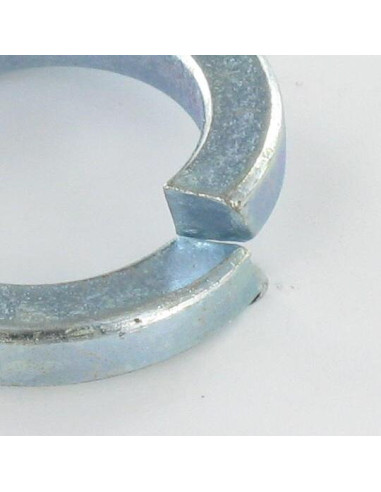

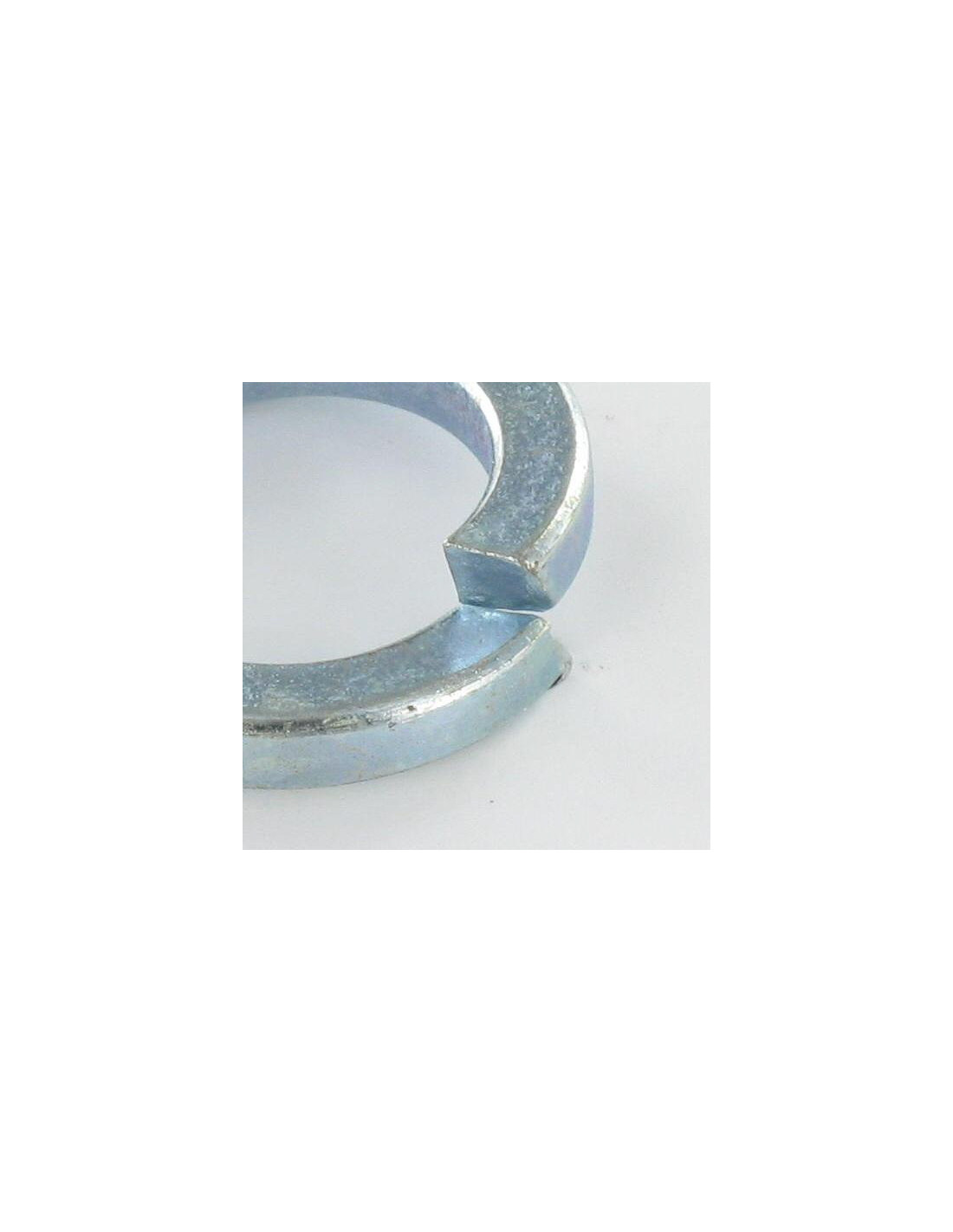

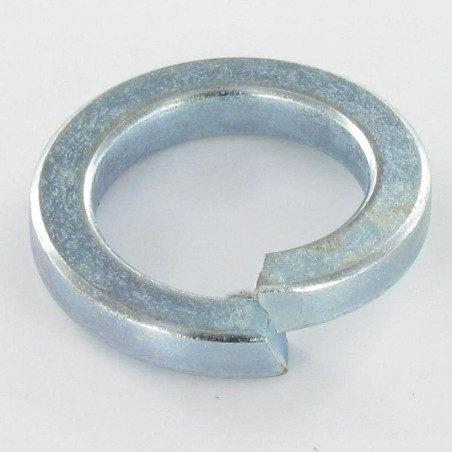

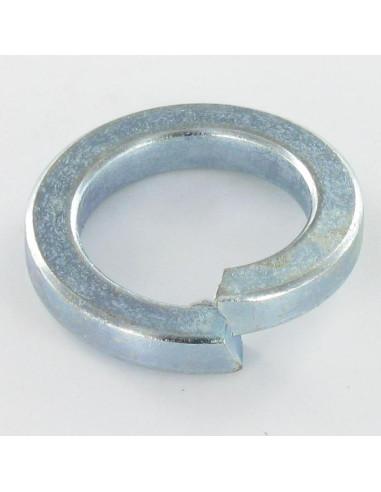

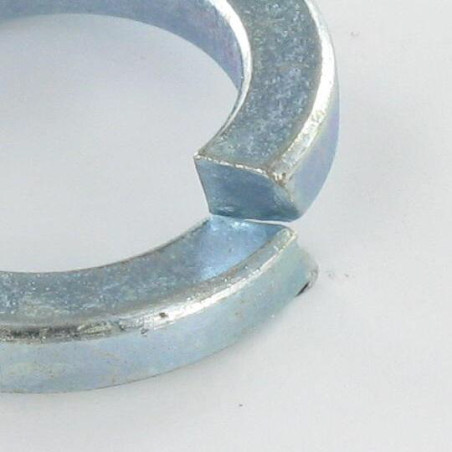

1 x Washer Split Lock Linch Pin Screw M10 Zinc Plated
1 x Washer Split Lock Linch Pin Screw M10 Zinc Plated
1 x Washer Split Lock Linch Pin Screw M10 Zinc...
1 x Washer Split Lock Linch Pin Screw M10 Zinc...

1 x Washer Split Lock Linch Pin Screw M10 Zinc Plated

3544001002_1
In stock 19160 Pièces
€0.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000 4000
Lot price VAT included €0.50 €1.00 €2.85 €27.10 €108.40
NFE 25515 - Washer Split Lock Linch Pin Screw M10 Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units
  • 4000 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M10
Material
Steel
Coating
ZINC PLATED White
COLOR
Grey
Norm
NFE 25515
WEIGHT For THERE unit
2.65 GR
19160 Items
3663072203662
Washer Split Lock Linch Pin Screw M10 Zinc Plated
Diameter = M10, Thickness = MM, Coating = Zinc Plated, Material = Steel, Norm = NFE 25515


dimensional guide (mm)
Diameter M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80
Interior diameter 3.5 4.5 5.5 6.5 7.5 8.5 10.5 13 15 17 19 21 23 25 28 31 34 37 40 43 46 49 54 58 62 66 70 74 78 82
Exterior diameter 5.2 7.3 8.3 10.4 11.4 13.4 16.5 20 23 25 29 31 33 37 40 45 48 53 56 61 64 69 74 80 84 90 94 100 104 110
Tickness 1 1 1.5 2 2 2.5 3 3.5 4 4 5 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14

Other Reference : 3617501911567 608907 25515AZ10 ZQROW10AZ 9009001 SSTDRD00015 O0000574 RON10G 3663072203662
