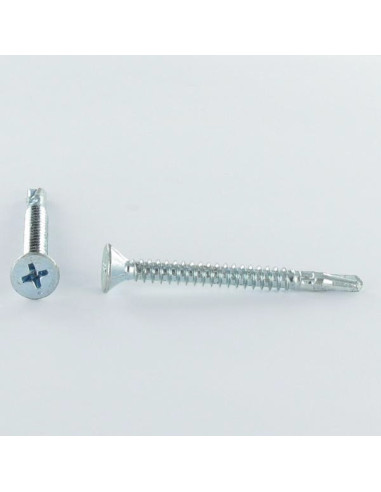

1 x Self Drilling Countersunk Head Phillips 4.2X32 to WING Zinc Plated

Name: 1 x Self Drilling Countersunk Head Phillips 4.2X32 to WING Zinc Plated
Brand: Screw Express
SKU: 3128423202
Price: 4.25 EUR
Availability: InStock

Reference 3128423202_1

In stock 48740 Pièces

€4.25 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	100	1000
Lot price VAT included	€4.25	€8.45	€10.15	€24.40

DIN 7504 - Self Drilling Countersunk Head Phillips 4.2X32 to WING Zinc Plated
"Pierces steel

Packaging

1 unit
10 units
100 units
1000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: 4.2
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 32
Drive Type: PHILLIPS
Material: Steel
Coating: ZINC White

ZINC White

Zinc plating 3 to 5 µm

All our zinc-plated parts meet this specification (unless otherwise stated).

🛡️ Corrosion protection: low
Thin 3 to 5 µm zinc coating, suitable for environments with low exposure.

🧂 Salt spray resistance: 24 to 96 h
Indicative resistance before the appearance of rust, depending on the coating finish.

🏠 Recommended environment
Indoor applications or environments with very low exposure to moisture.

🔩 Threads preserved
The low coating thickness limits dimensional variations and helps maintain thread accuracy.
COLOR: Grey
Norm: DIN 7504
Sub product family: Countersunk Head
WEIGHT For THERE unit: 2.26 GR
Mounting pressure (N): 250
Rotation speed (rpm): 1800-2500
Minimum breaking torque (N.m): 4.5
Maximum thickness to be fixed: 23

In stock 48740 Items

ean13 3663072039773

Description

Self Drilling Countersunk Head Phillips 4.2X32 to WING Zinc Plated
Diameter = 4.2, Length = 32, Coating = Zinc Plated, Material = Steel, Drive Type = PHILLIPS, Norm = DIN 7504, Size Drive Type = Spanner 7

dimensional guide (mm)
