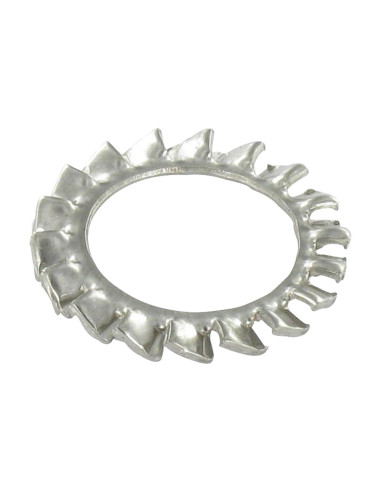

1 x Serrated Lock Washer Stainless Steel A4...

1 x Serrated Lock Washer Stainless Steel A4 Type External Teeth Az M2.5X5.5X0.4

8749002518_1
In stock 1000 Pièces
£866.87 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included £866.87 £866.87 £866.87 £866.87

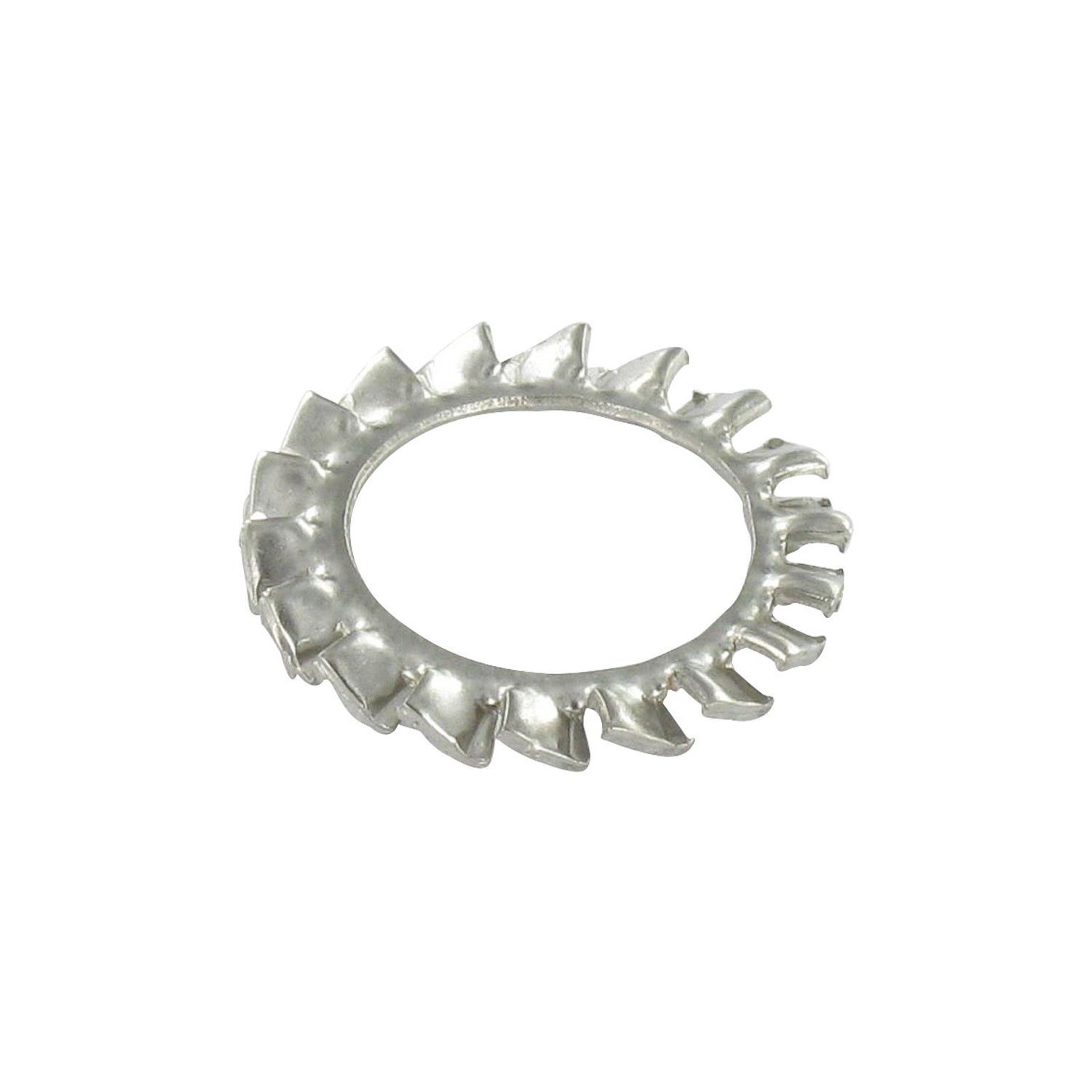

Serrated Lock Washer Stainless Steel A4 Type External Teeth Az M2.5X5.5X0.4
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter Internal
M2.5
Diameter External
5.5 MM
Thickness
0.4 MM
Material
Stainless Steel A4
COLOR
Grey
Norm
VS-DIN6798A
Unit weight
0.05 GR
1000 Items
3663072411951
Serrated Lock Washer Stainless Steel A4 Type External Teeth Az M2.5X5.5X0.4
Thickness = 0.4 MM, Material = Stainless Steel A4, Norm = VS-DIN6798A


dimensional guide (mm)
Diameter 2 2.5 3 4 5 6 8 10 12 14 16 18 20 24
Interior diameter 2.2 2.7 3.2 4.3 5.3 6.4 8.4 10.5 12.5 14.5 16.5 19 21 25
Exterior diameter 5.6 6.9 7.5 8.2 9.5 10.8 15 18 20.5 24 26 30 33 38
S1 0.3 0.4 0.4 0.5 0.6 0.7 0.8 0.9 1 1 1.2 1.4 1.4 1.5

Other Reference : 645132,5 100225 3663072411951
