3135301006_1
In stock 6652 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included £3.69 £7.33 £13.36 £111.16

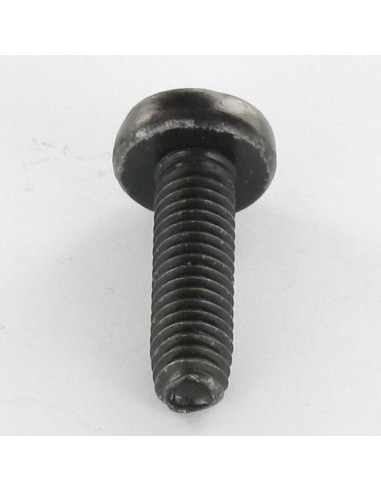

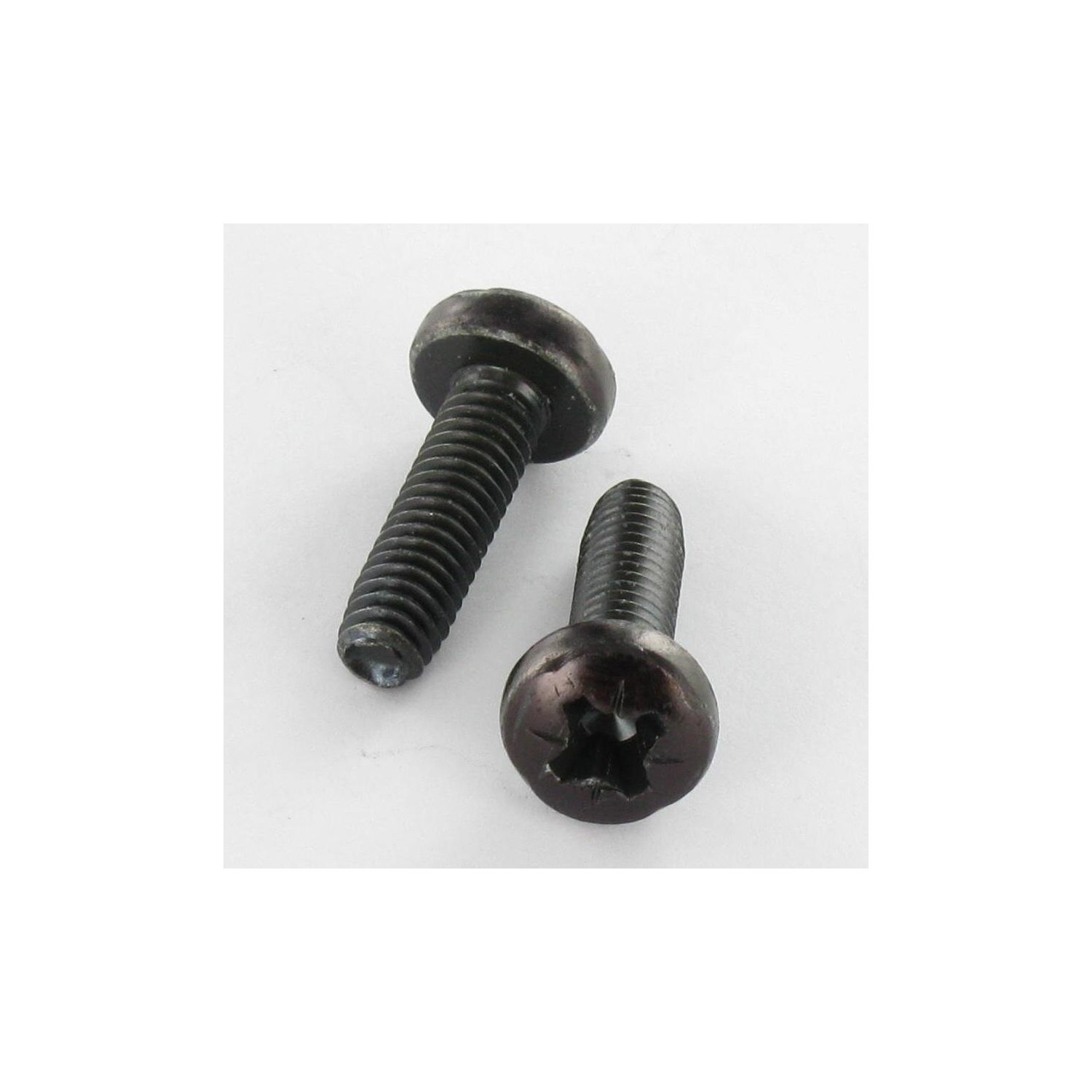

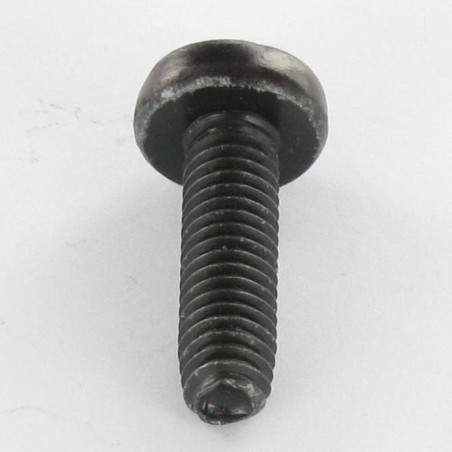

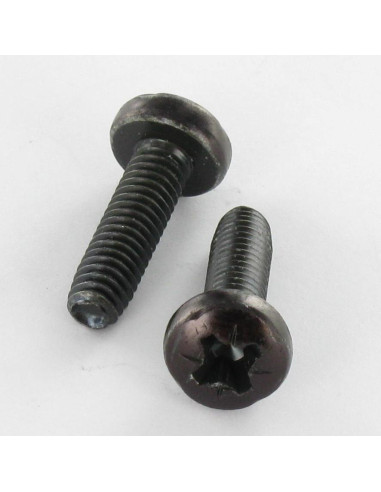

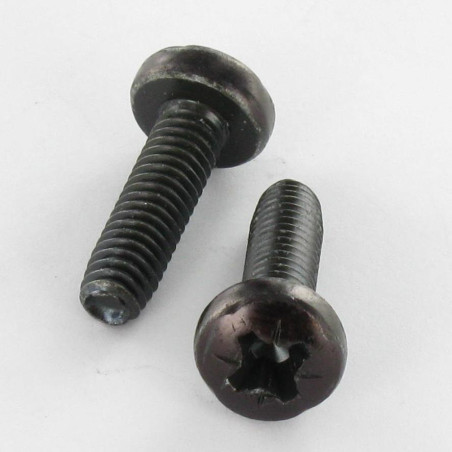

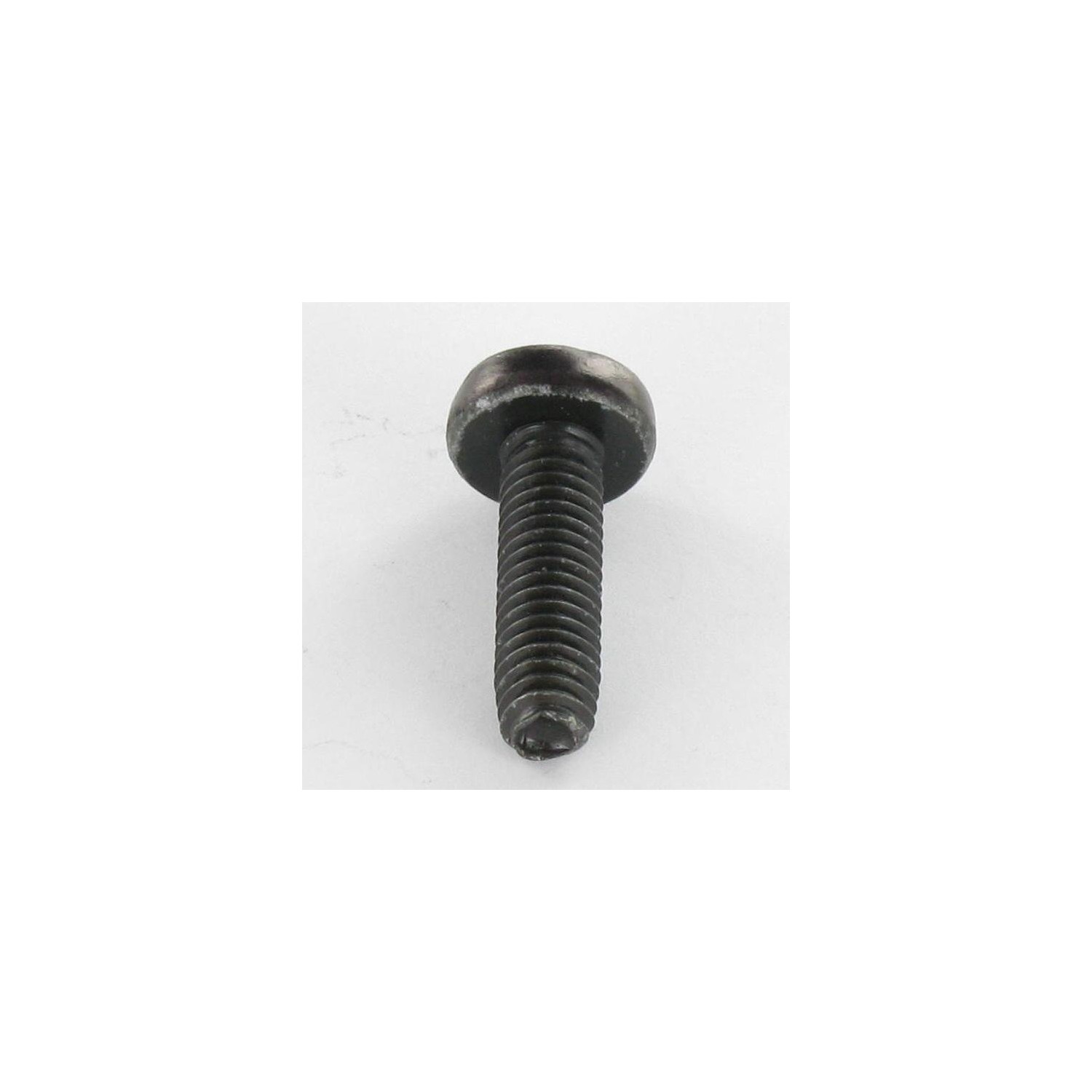

DIN7500C Pozi - Self Tapping Screw wide domed head M3X10 Pozi PZ1 Black Zinc Plated micro screw
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M3
Length
10
Thread
Metric thread-forming thread
Drive Type
Pozi
Pitch
50
Diameter Head
5,70 - 6,00
Material
Steel
Coating
Black Zinc Plated
COLOR
Black
Norm
DIN7500C Pozi
Sub product family
Micro screw
Tip
Thread-forming
Head thickness
2,28 - 2,52
Unit weight
0.47 GR
Material to be drilled
Steel Or Aluminium
Head shape
Cylindrical Head Pan Head
Pre-drilling
YES
6652 Items
3663072040915
Self Tapping Screw wide domed head M3X10 Pozi PZ1 Black Zinc Plated micro screw
Diameter = M3, Length = 10, Coating = Black Zinc Plated, Sub Product Family = MICROVIS, Material = Steel, Drive Type = Pozi, Norm = DIN7500C Pozi, Size Drive Type = Pozi PZ1


dimensional guide (mm)
Diameter 3 4 5 6
Head diameter 6 8 10 12
Head Tickness 2.4 3.1 3.8 4.6
Pozi 1 2 2 3

Other Reference : 3617501860629 QC0730 25419630 25419630 3663072040915
