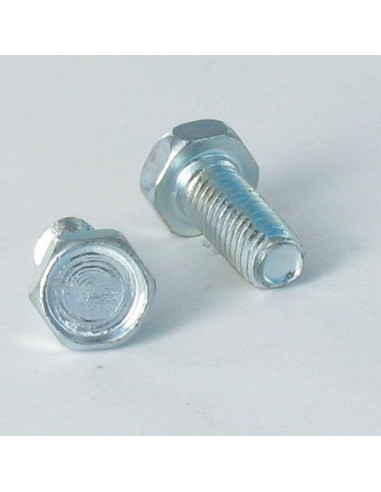

1 x Self Tapping Screw Hexagonal Head M5X8 Zinc...

1 x Self Tapping Screw Hexagonal Head M5X8 Zinc Plated

3161500802_1
In stock 4398 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included £3.69 £7.33 £8.81 £39.48
DIN 7500D+ Without EMBASE,VS3130 - Self Tapping Screw Hexagonal Head M5X8 Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M5
Length
8
Thread
Metric thread-forming thread
Pitch
80
Material
Steel
Coating
White zinc plated
COLOR
Grey
Norm
DIN7500D Without Flange
Head thickness
4,35 - 4,65
Unit weight
2.44 GR
Material to be drilled
Steel Or Aluminium
Head shape
Hex Head
Spanner
8
Pre-drilling
YES
4398 Items
3663072188181
Self Tapping Screw Hexagonal Head M5X8 Zinc Plated
Diameter = M5, Length = 8, Coating = White zinc plated, Material = Steel, Norm = DIN 7500D+ Without EMBASE,VS3130, Size Drive Type = 1.26-1.51 (WIDTH SLOT) / 1.20 (DEPTH SLOT)


dimensional guide (mm)
Diameter M4 M5 M6 M8 M10
Pitch 0.70 0.80 1 1.25 1.5
clef de:7 8 10 13 17

Other Reference : 3617501868380 750000005008 A000601 3663072188181
