1 x Self Tapping Screw Hexagonal Head Flange Smooth M6X25 Zinc Plated

3130602502_1
In stock 3979 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included £3.69 £7.33 £14.84 £70.42

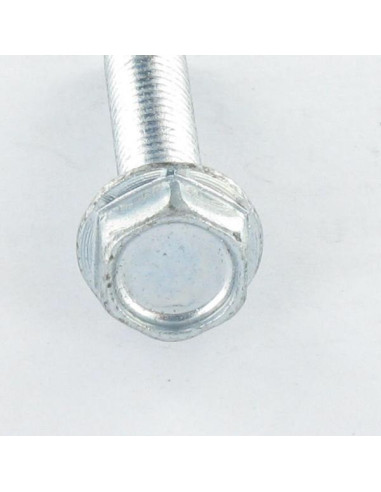

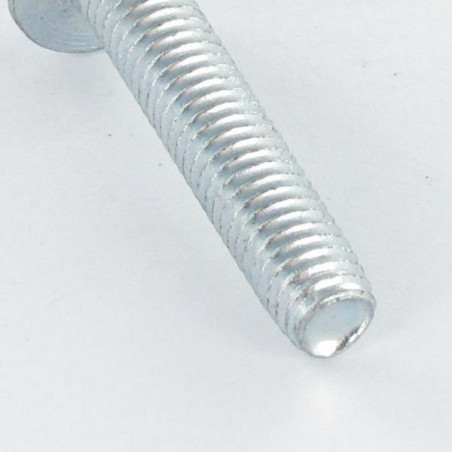

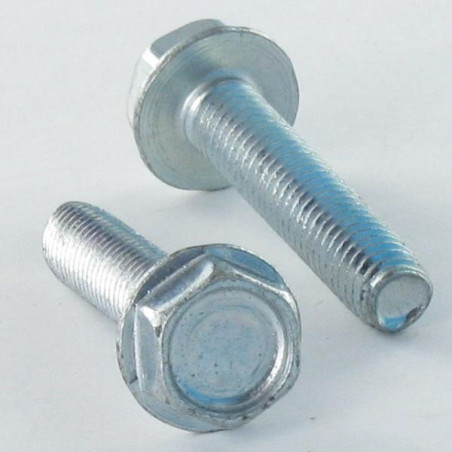

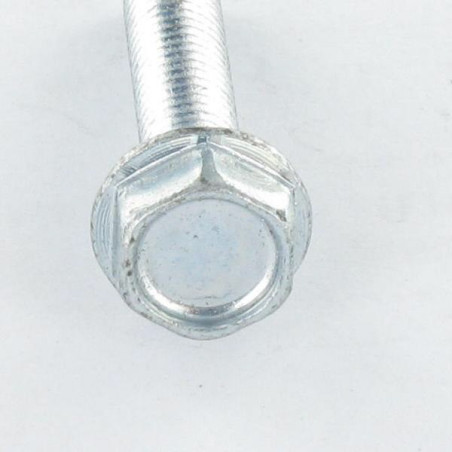

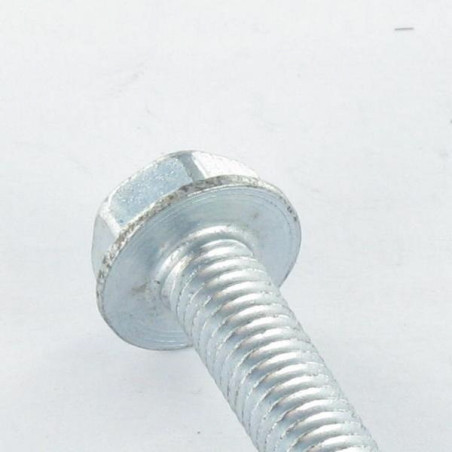

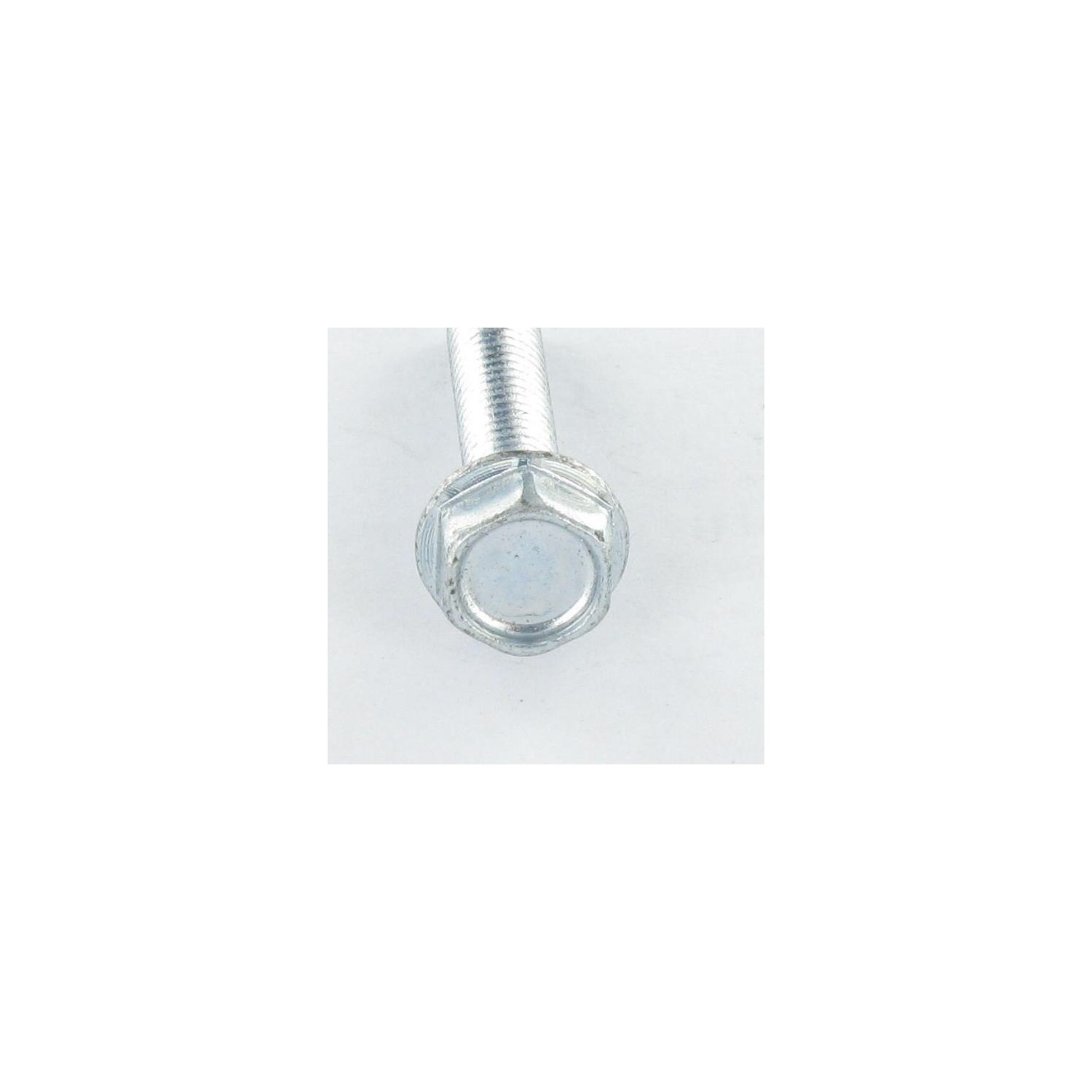

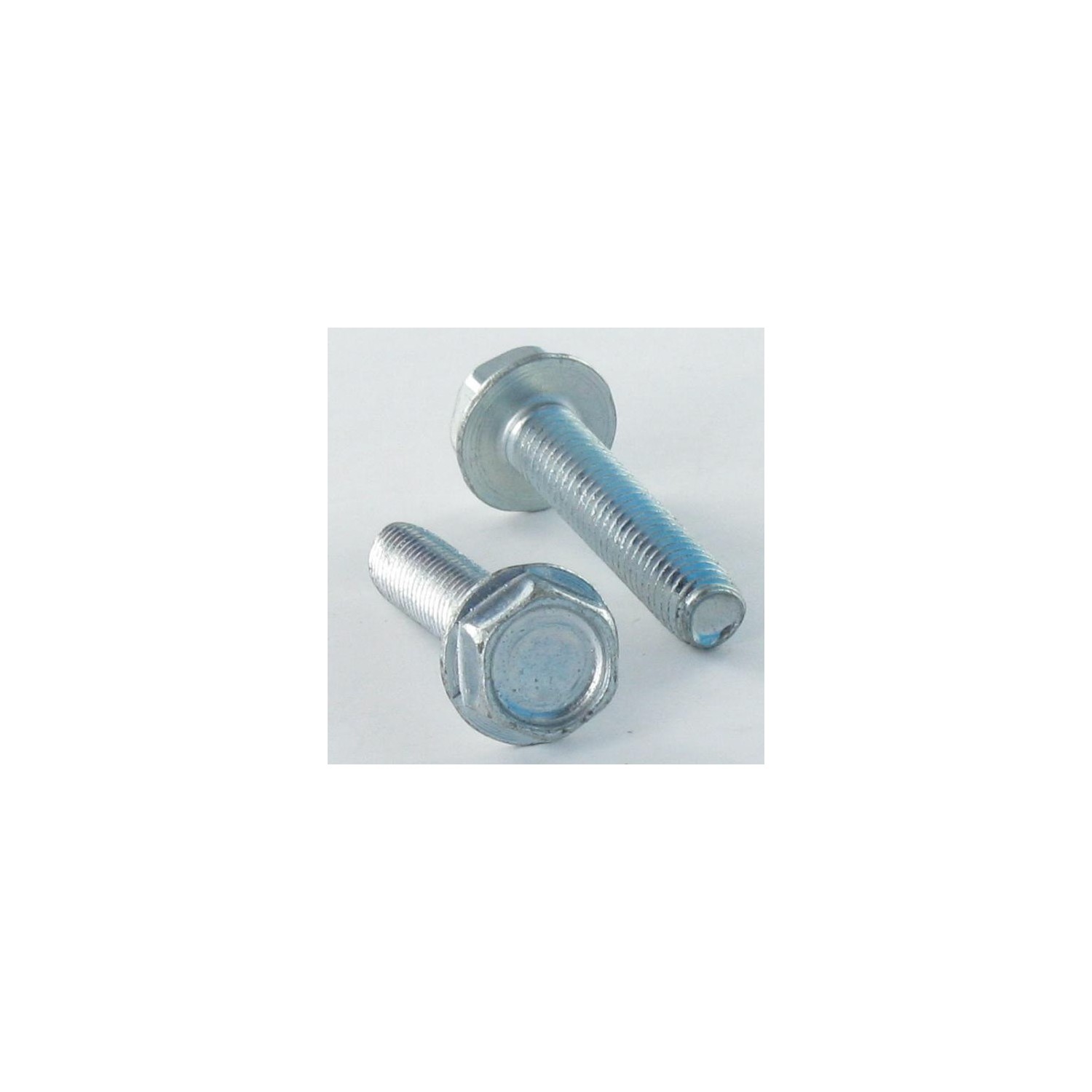

DIN7500D Flanche Without Serration - Self Tapping Screw Hexagonal Head Flange Smooth M6X25 Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M6
Length
25
Thread
Metric thread-forming thread
Pitch
100
Material
Steel
Coating
White zinc plated
COLOR
Grey
Norm
DIN7500D Flanche Without Serration
Sub product family
Hexagonal Head Flange
Head thickness
5,35 - 5,65
Base diameter
13,0 mm
Unit weight
7.5 GR
Material to be drilled
Steel Or Aluminium
Head shape
Hexagonal Head Flange
Spanner
10

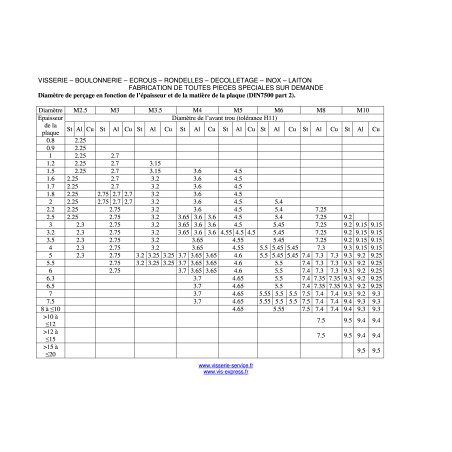

Pre-drilling
YES
3979 Items
3663072040205
Self Tapping Screw Hexagonal Head Flange Smooth M6X25 Zinc Plated
Diameter = M6, Length = 25, Coating = White zinc plated, Sub Product Family = Hexagonal Head Flange, Material = Steel, Norm = DIN7500D Flanche Without Serration, Size Drive Type = 1.66-1.91 (WIDTH SLOT) / 1.40 (DEPTH SLOT)

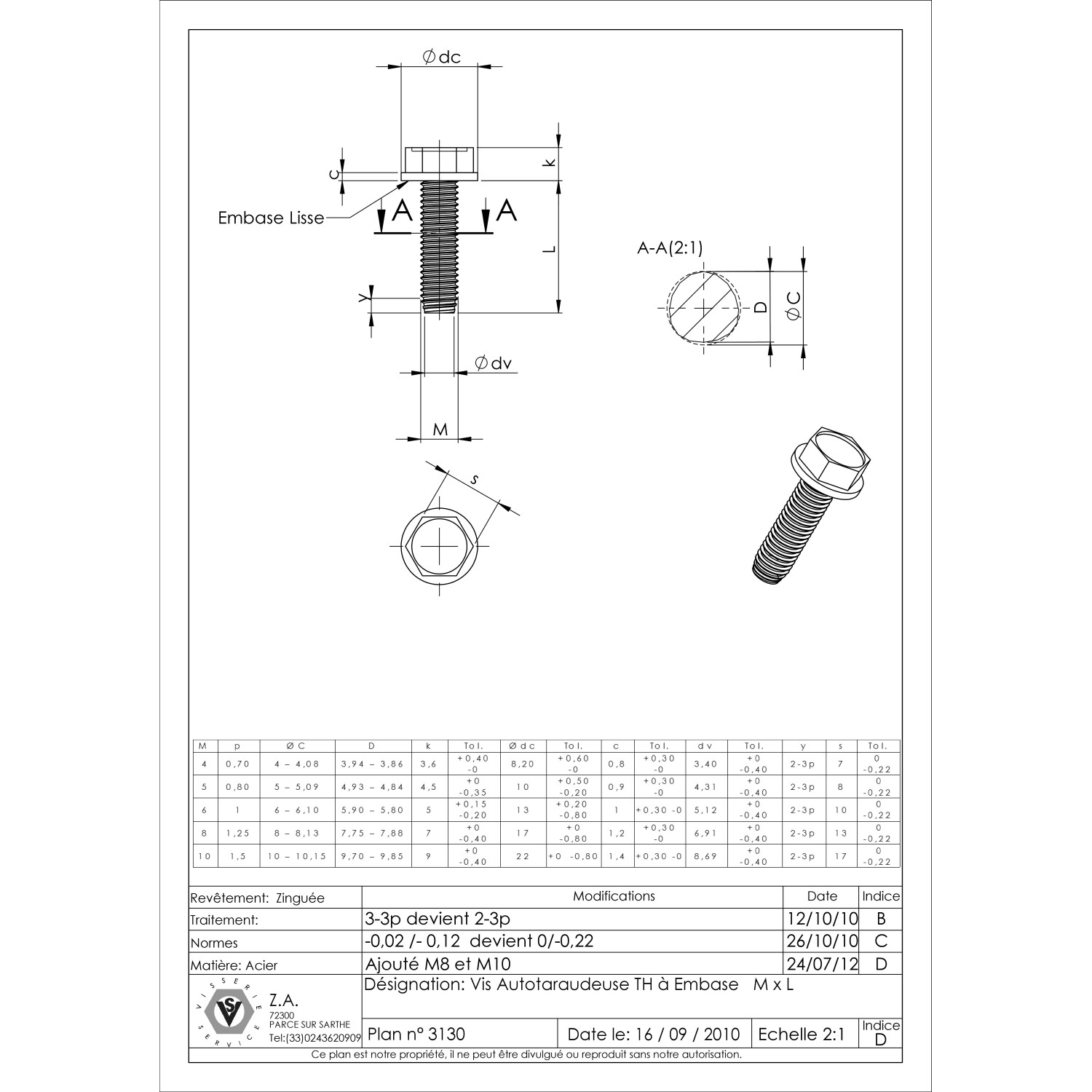

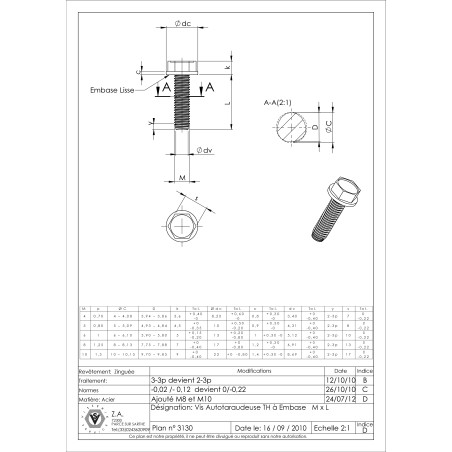

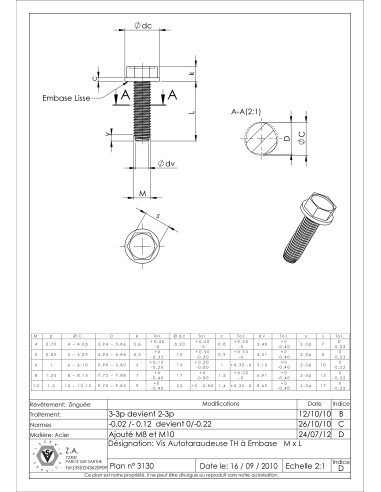

dimensional guide (mm)
Diameter M4 M5 M6 M8 M10
Pitch 0.70 0.80 1 1.25 1.5
epaisseur tete et embase 8.2 10 13 17 22
epaisseur embase 0.8 0.9 1 1.2 1.4
clef de:7 8 10 13 17

Other Reference : 3617501886285 VIS6X25HF 3663072040205
thibaut M. (vis-express.fr)
2025-10-12

I fix grain conveyor scrapers
