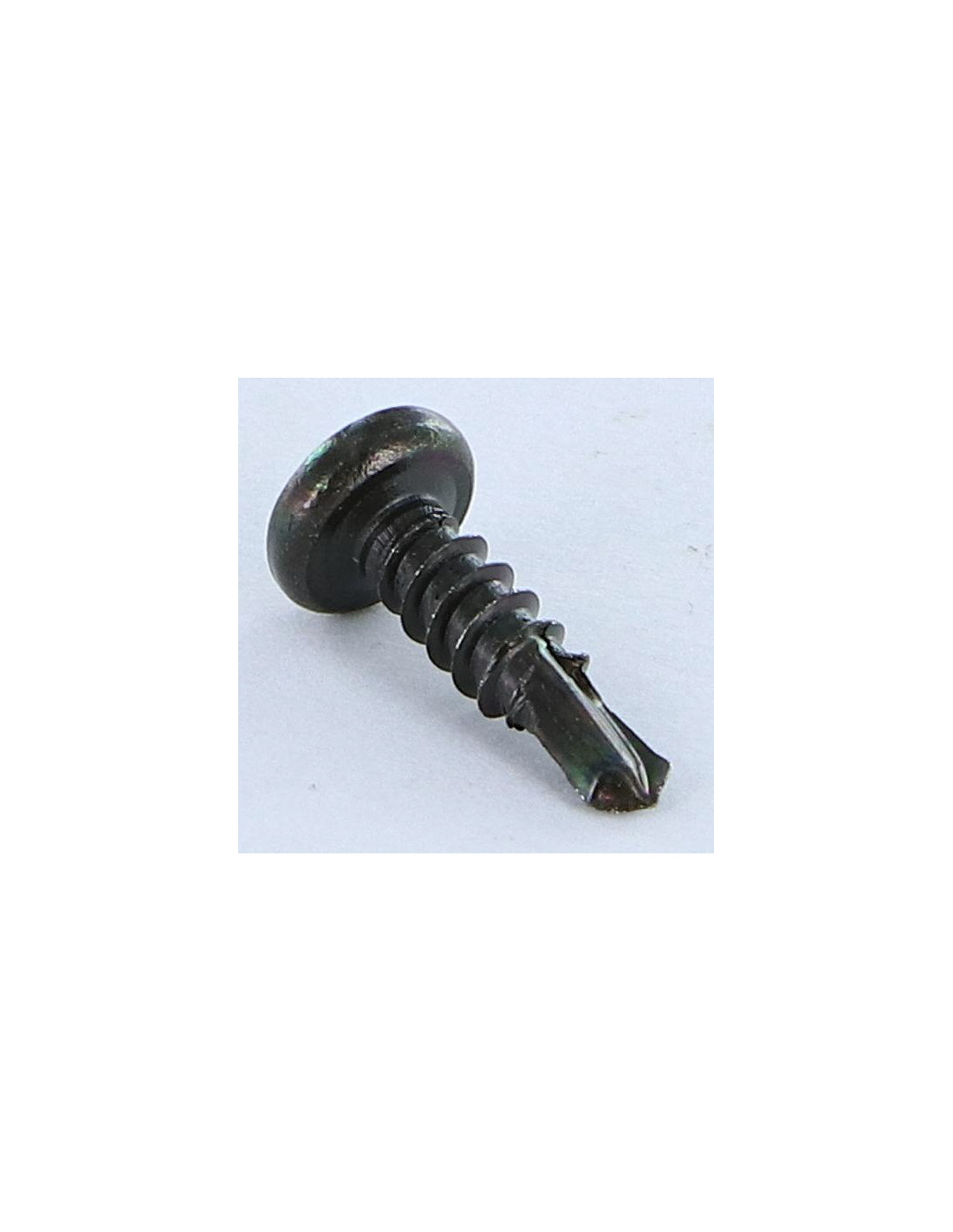

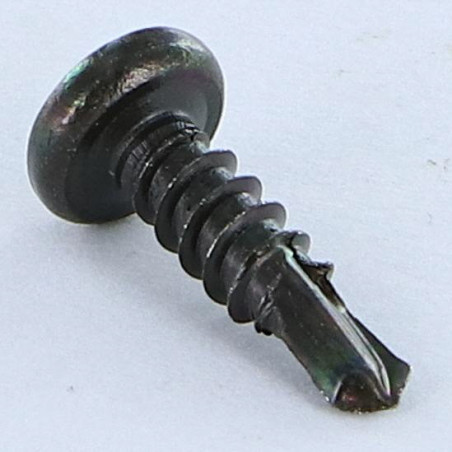

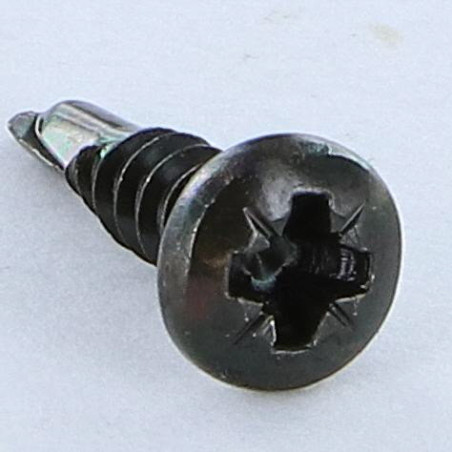

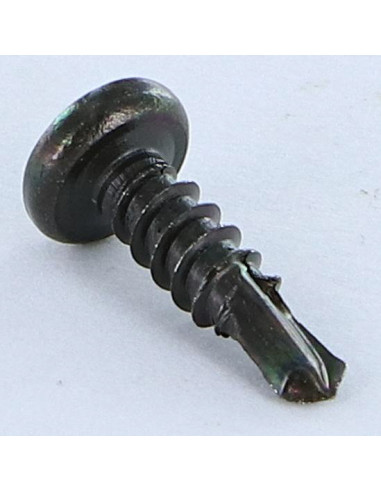

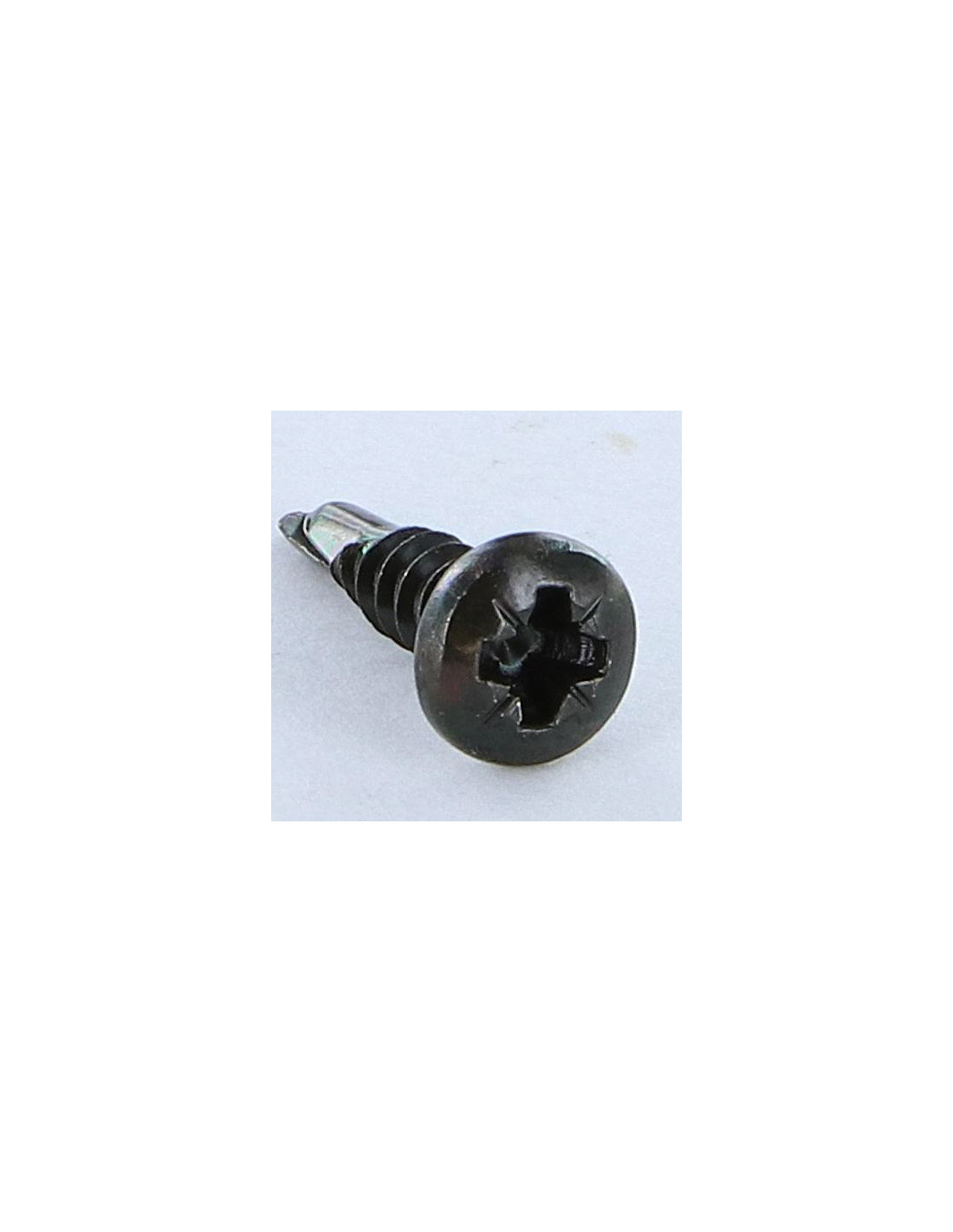

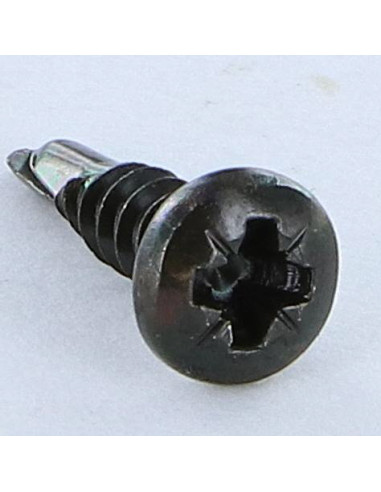

1 x Self Drilling Stainless Steel A2 Black Cylindrical Button Head Pozi 3.5X13
1 x Self Drilling Stainless Steel A2 Black Cylindrical Button Head Pozi 3.5X13
1 x Self Drilling Stainless Steel A2 Black...
1 x Self Drilling Stainless Steel A2 Black...

1 x Self Drilling Stainless Steel A2 Black Cylindrical Button Head Pozi 3.5X13

8326601294_1
In stock 38979 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included €1.60 €3.85 €5.30 €12.55
DIN 7504 N,VS3124 - Self Drilling Stainless Steel A2 Black Cylindrical Button Head Pozi 3.5X13Only pierces aluminum.
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 units

Dimensions shown in millimeters (mm)

Diameter
3.5
Length
13
Size Drive Type
KEY Of 5.5
Material
Stainless Steel Stainless Steel A2
Coating
Stainless Steel A2 Black
COLOR
Black
Norm
DIN 7504 N,VS3124
Sub product family
Cylindrical Head Pan Head
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
2.8
Maximum thickness to be fixed
6.2
Unit weight
1 GR
Material to be drilled
Aluminium
38979 Items
3663072153608
Self Drilling Stainless Steel A2 Black Cylindrical Button Head Pozi 3.5X13 Other Reference : 3617501083417 CN0618 3663072153608
Patrick G. (vis-express.fr)
2024-05-12

Installation of clips on metal tube


Damien P. (vis-express.fr)
2024-04-07

Used on vehicles. Fixing screw for bodywork element.
