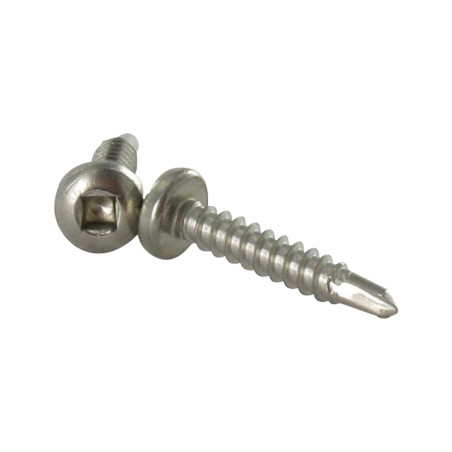

1 x Self Drilling Pan Head Square 4.2X19 Square 2 Stainless Steel A2
1 x Self Drilling Pan Head Square 4.2X19 Square 2 Stainless Steel A2
1 x Self Drilling Pan Head Square 4.2X19 Square 2 Stainless Steel A2
1 x Self Drilling Pan Head Square 4.2X19 Square 2 Stainless Steel A2

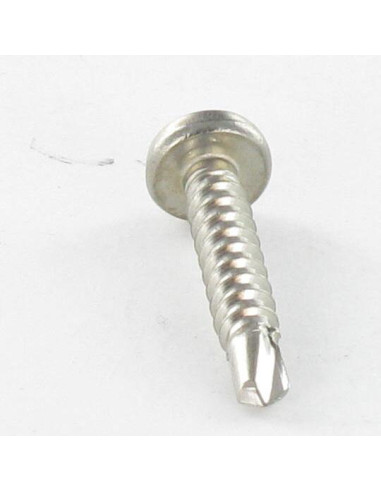

1 x Self Drilling Pan Head Square 4.2X19 Square...
1 x Self Drilling Pan Head Square 4.2X19 Square...
1 x Self Drilling Pan Head Square 4.2X19 Square...
1 x Self Drilling Pan Head Square 4.2X19 Square...

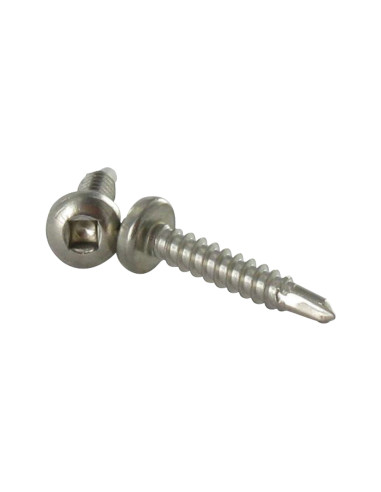

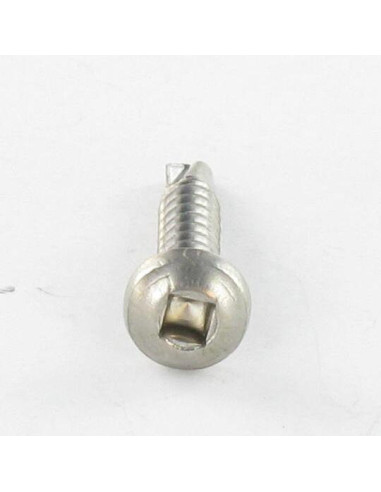

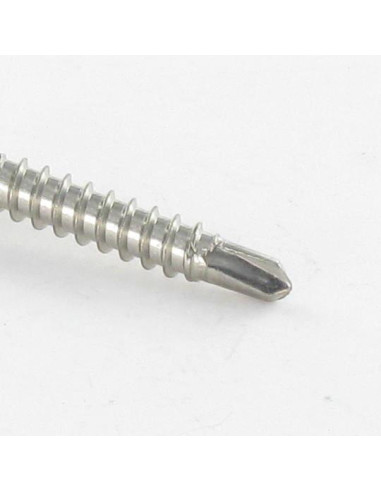

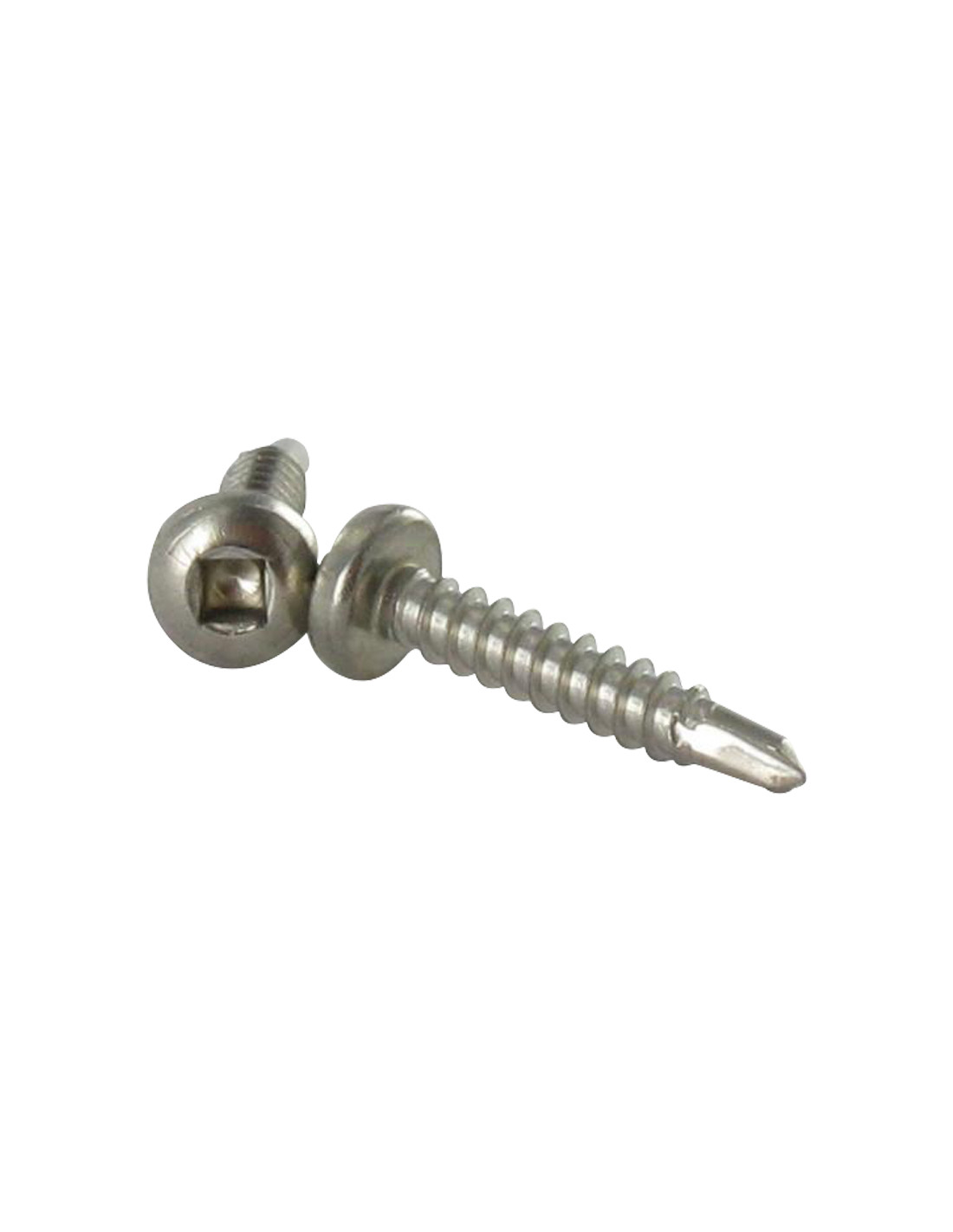

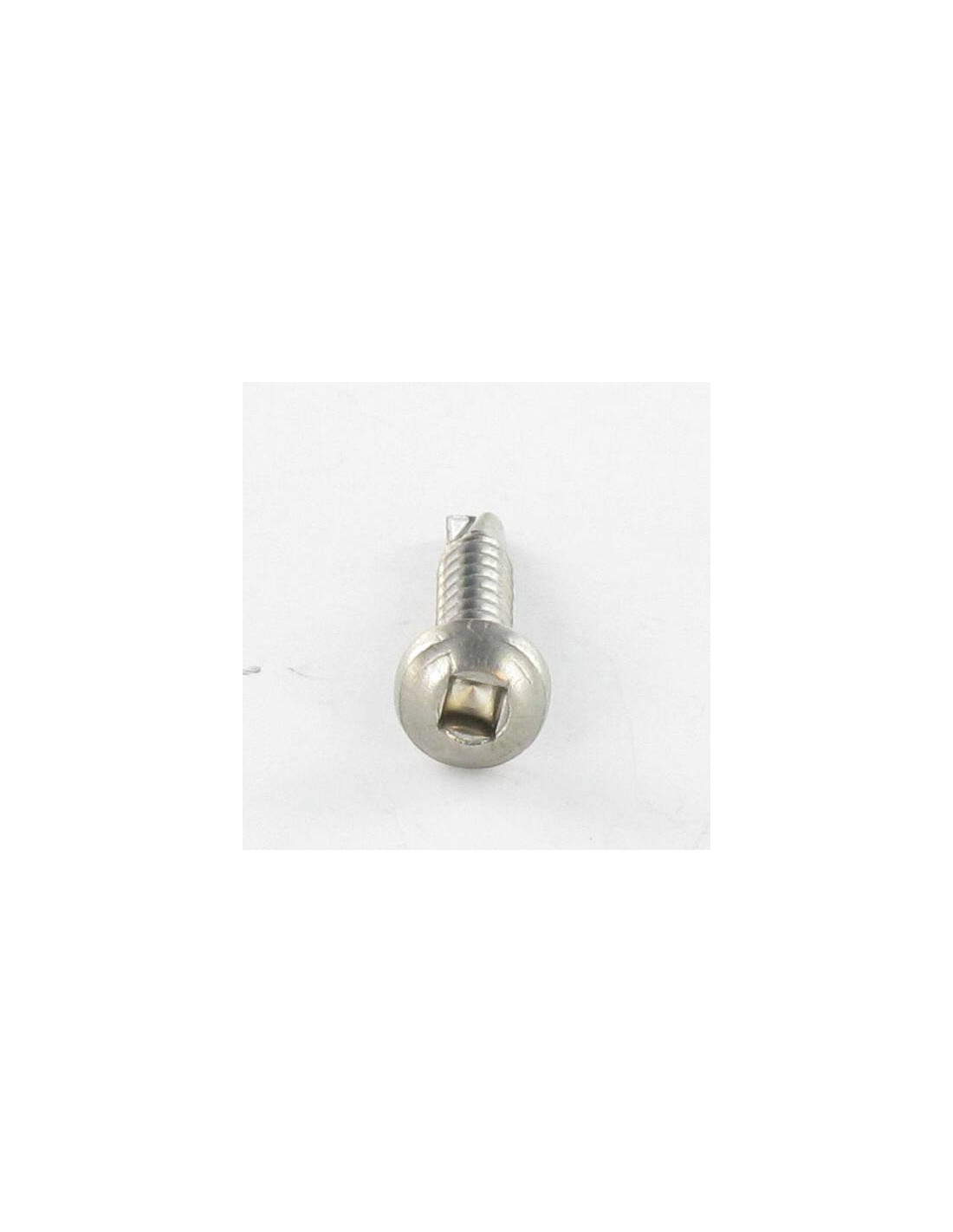

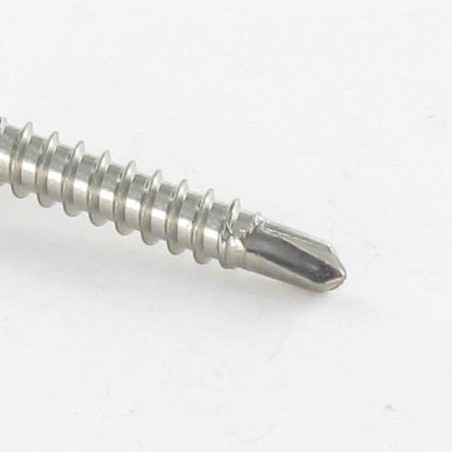

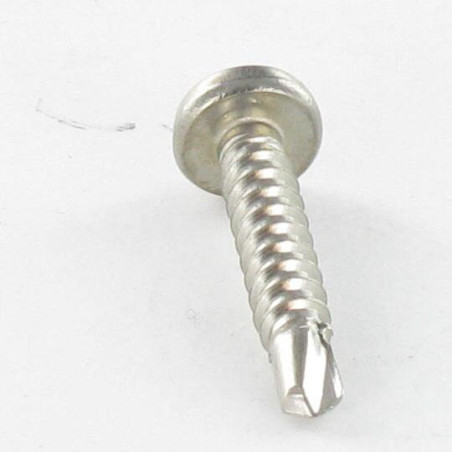

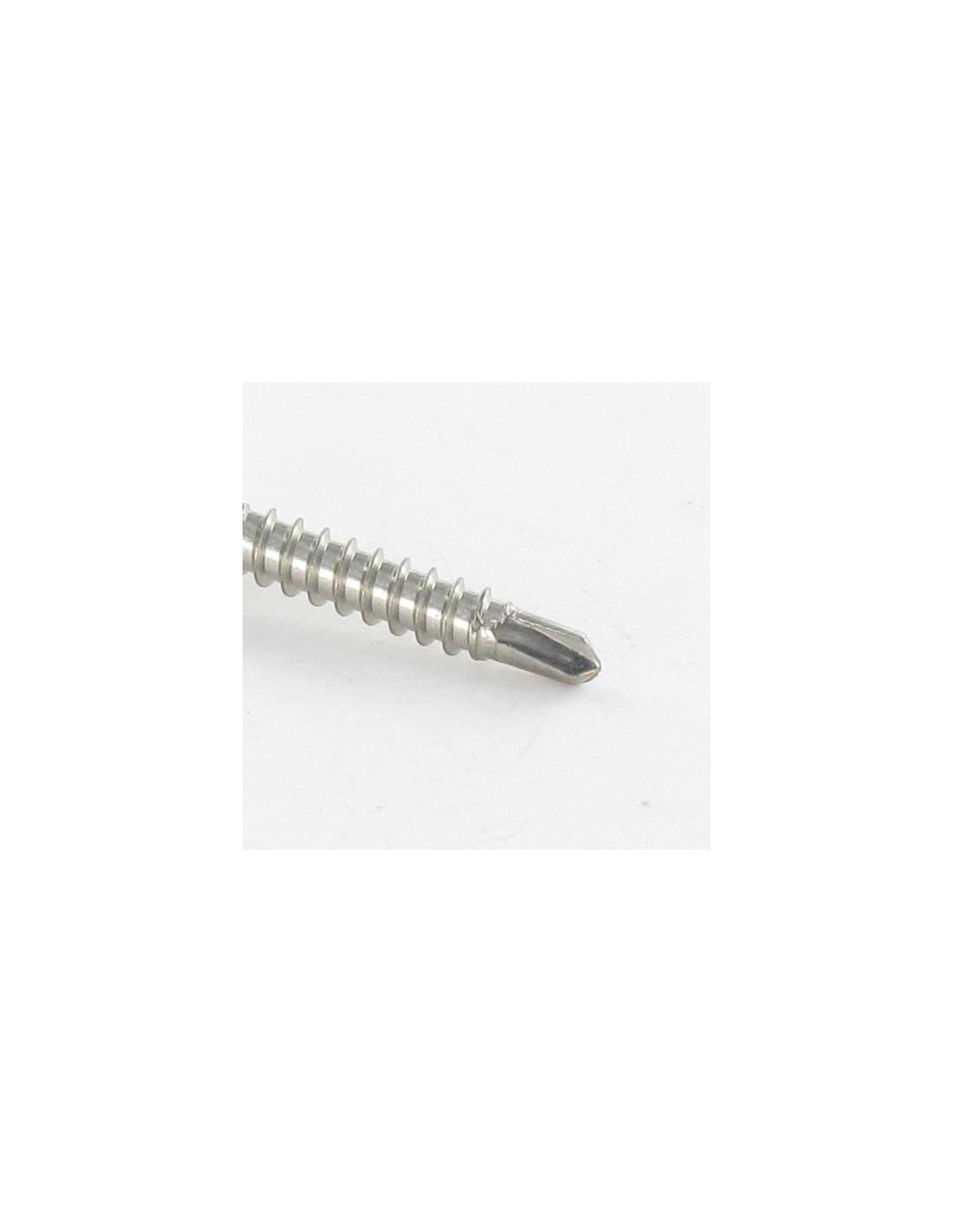

1 x Self Drilling Pan Head Square 4.2X19 Square 2 Stainless Steel A2

8328801918_1
In stock 34284 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.50 €7.05 €8.40 €9.20
DIN 7504 N + CARRE,VS3124 - Self Drilling Pan Head Square 4.2X19 Square 2 Stainless Steel A2Only pierces aluminum.
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
4.2
Length
19
Drive Type
Square
Size Drive Type
Square 2
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 7504 N + SQUARE,VS3124
Sub product family
Cylindrical Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
4.5
Maximum thickness to be fixed
10.3
Unit weight
2.3 GR
Material to be drilled
Aluminium
34284 Items
3663072154117
Self Drilling Pan Head Square 4.2X19 Square 2 Stainless Steel A2 Other Reference : 3617501068902 2305310 /AN GEN3901 003345 003345 B0127 AN 3663072154117
