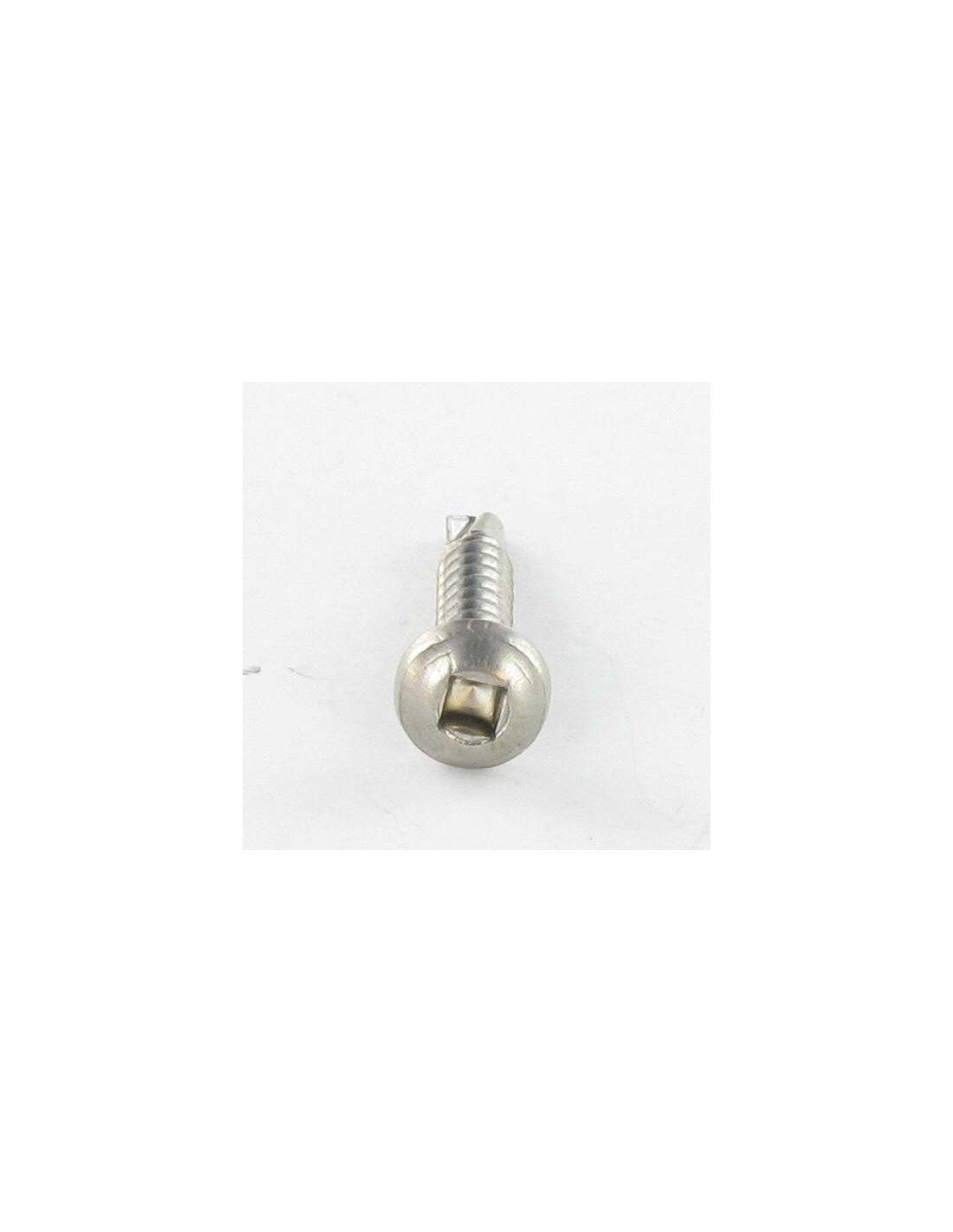

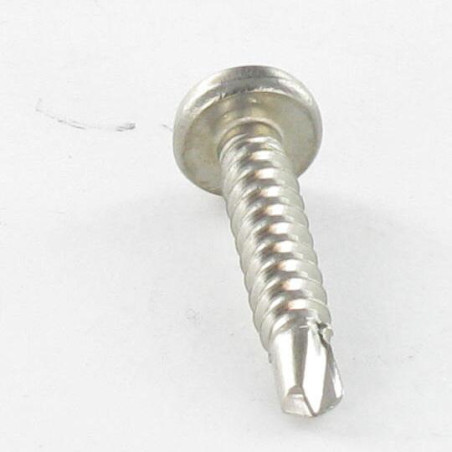

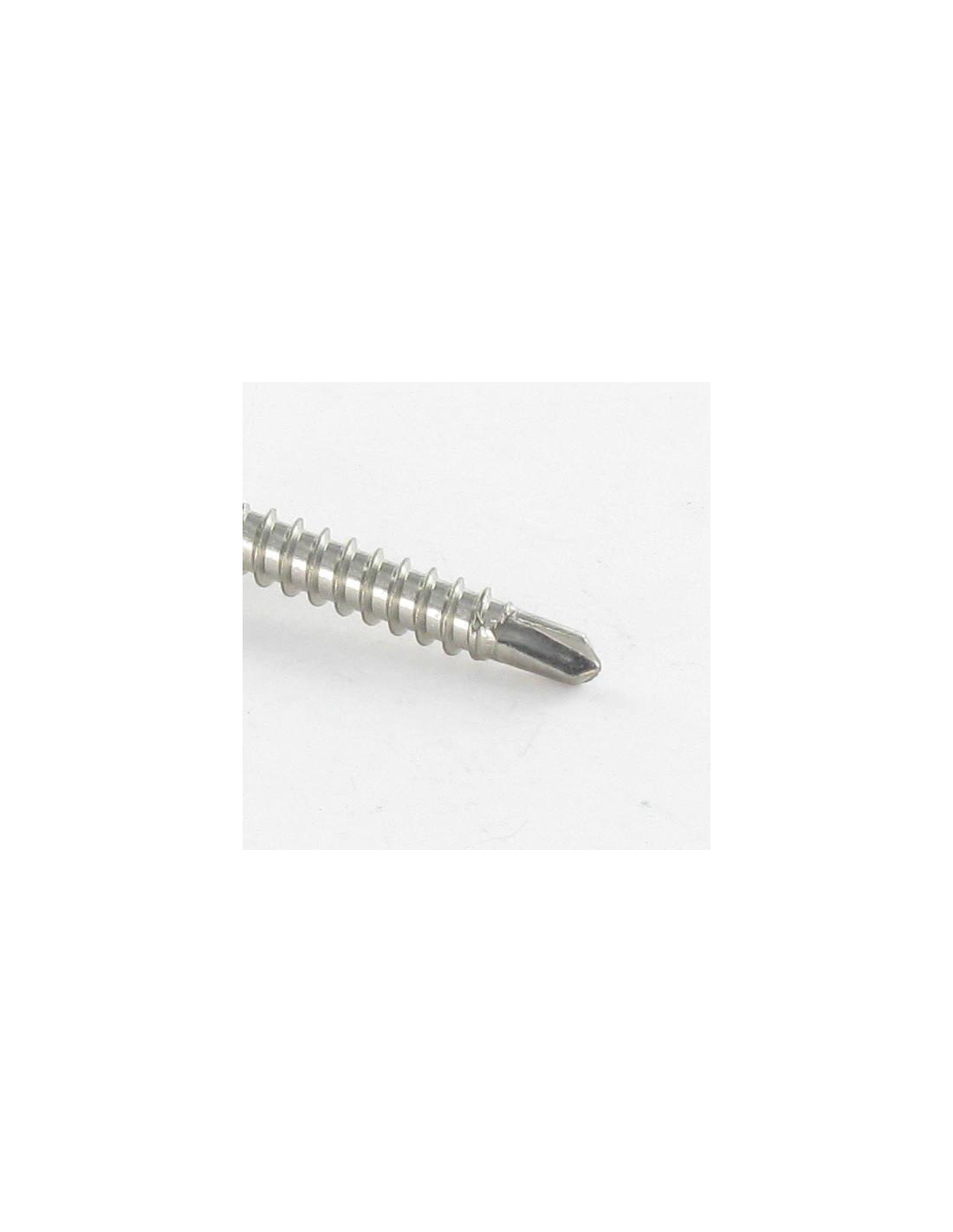

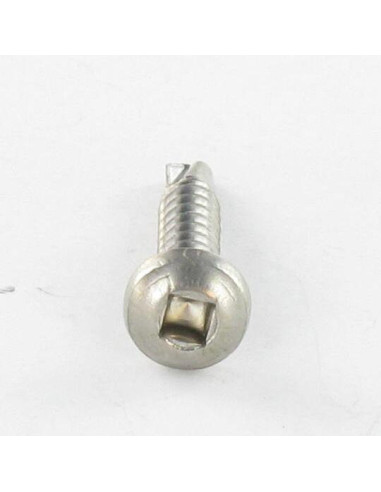

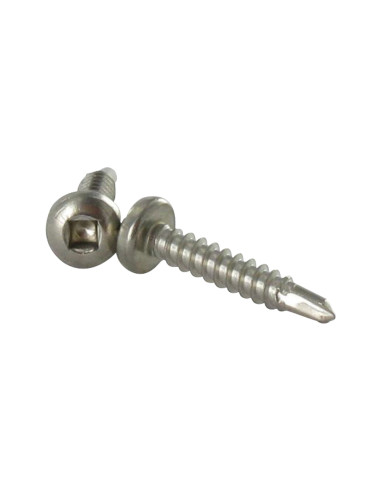

1 x Self Drilling Pan Head Square 3.5X9.5 Square 1 Stainless Steel A2
1 x Self Drilling Pan Head Square 3.5X9.5 Square 1 Stainless Steel A2
1 x Self Drilling Pan Head Square 3.5X9.5 Square 1 Stainless Steel A2
1 x Self Drilling Pan Head Square 3.5X9.5 Square 1 Stainless Steel A2
1 x Self Drilling Pan Head Square 3.5X9.5 Square 1 Stainless Steel A2
1 x Self Drilling Pan Head Square 3.5X9.5...
1 x Self Drilling Pan Head Square 3.5X9.5...
1 x Self Drilling Pan Head Square 3.5X9.5...
1 x Self Drilling Pan Head Square 3.5X9.5...
1 x Self Drilling Pan Head Square 3.5X9.5...

1 x Self Drilling Pan Head Square 3.5X9.5 Square 1 Stainless Steel A2

8328600918_1
In stock 8740 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.50 €7.05 €8.40 €9.20

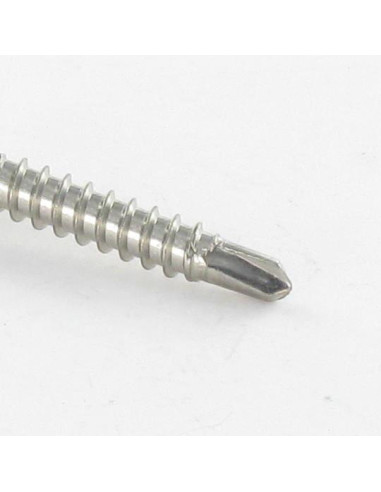

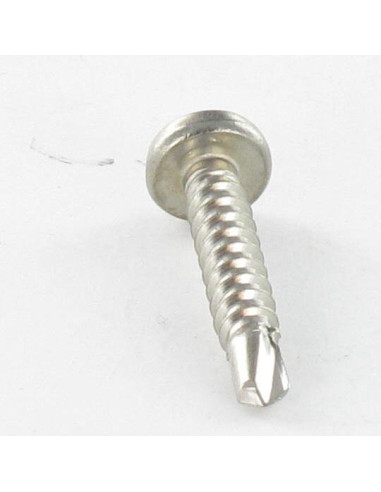

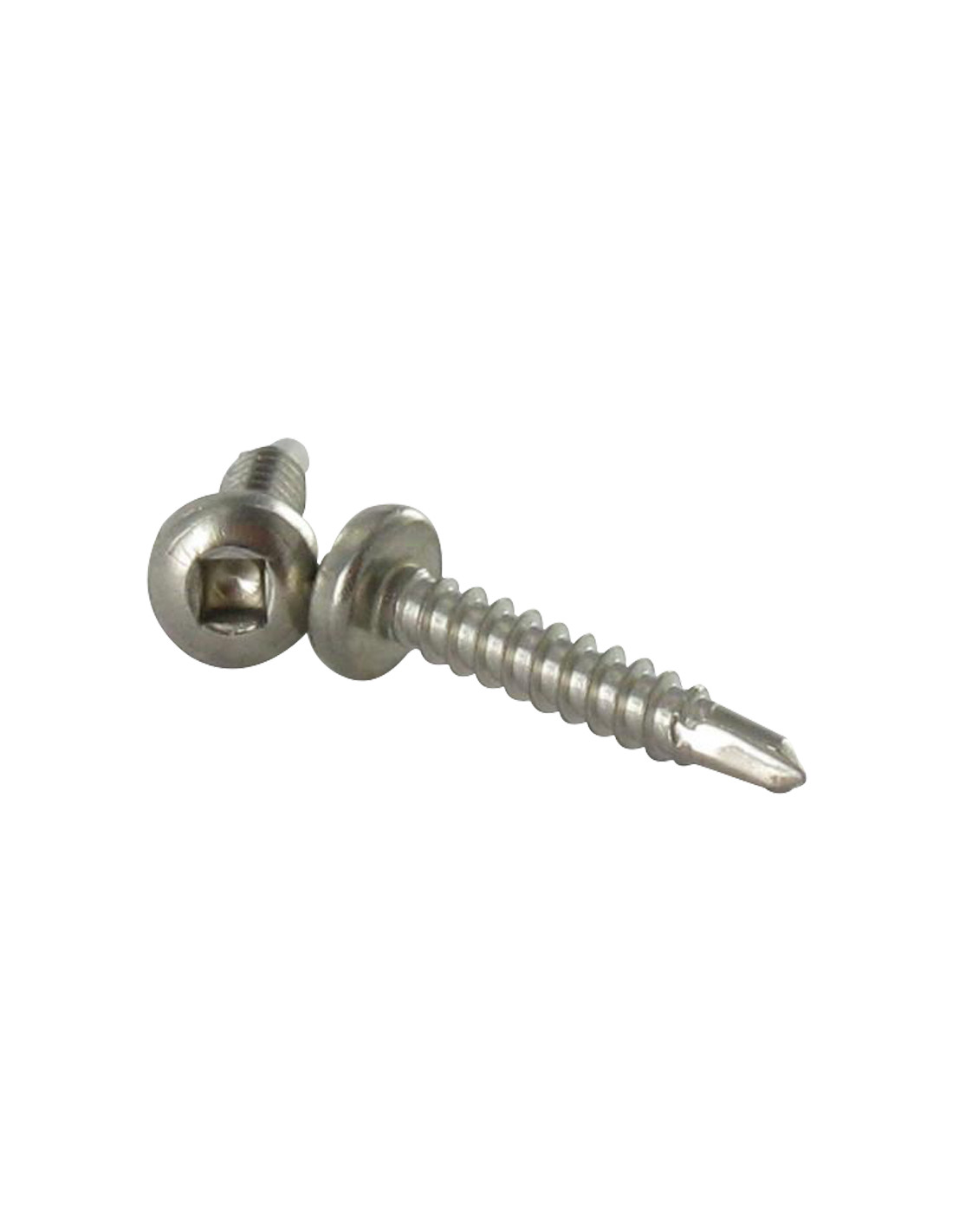

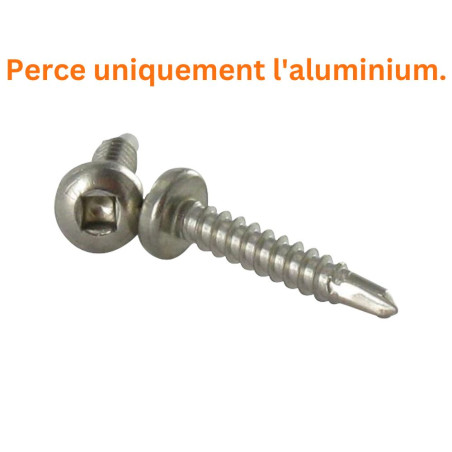

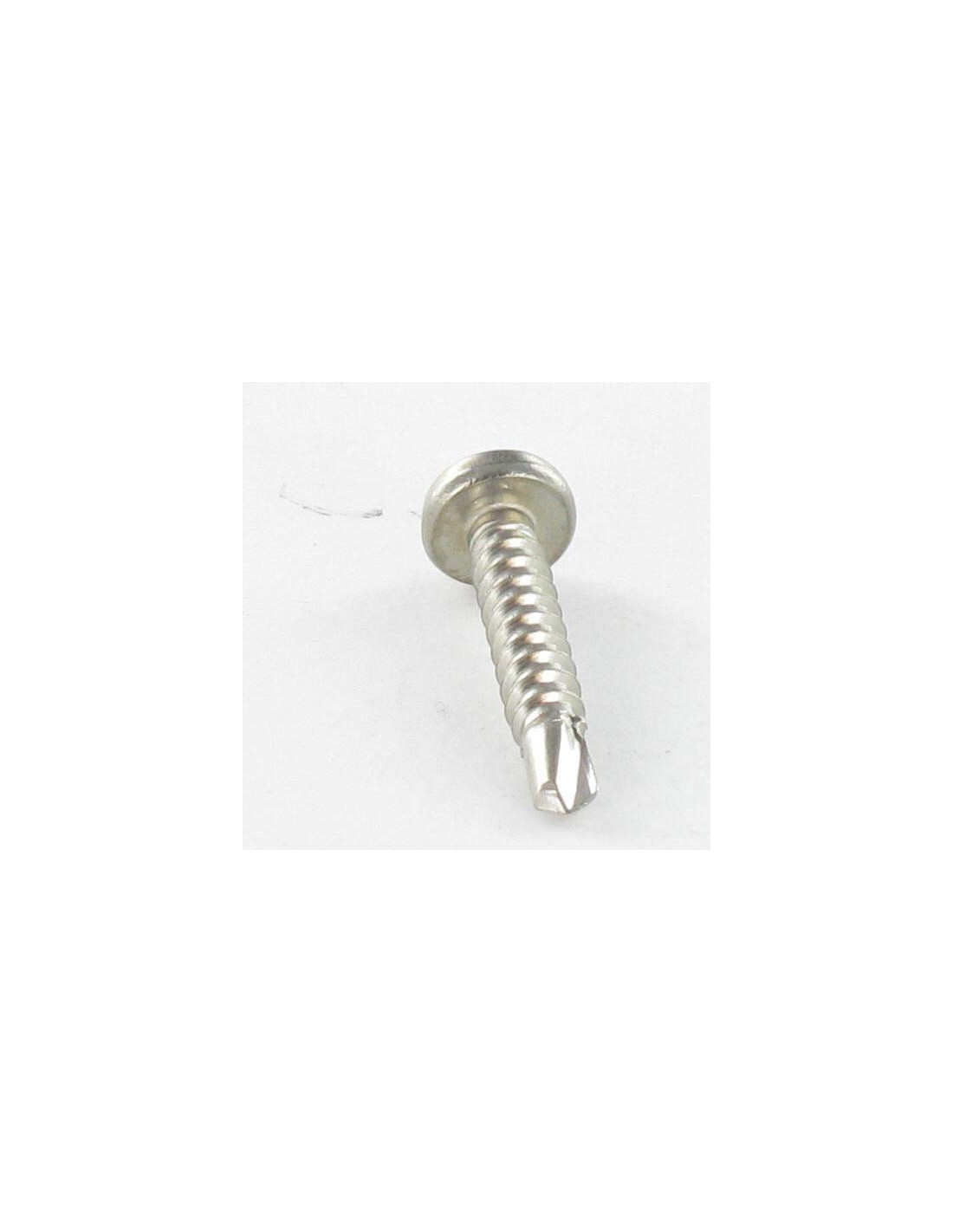

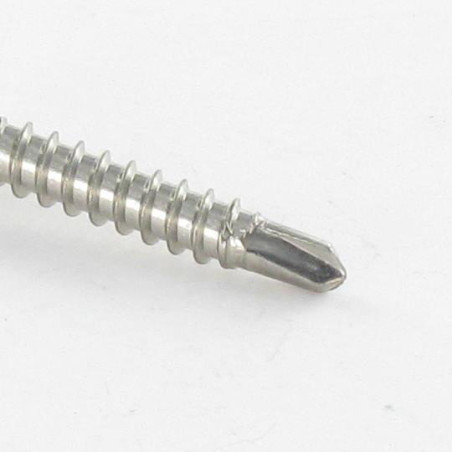

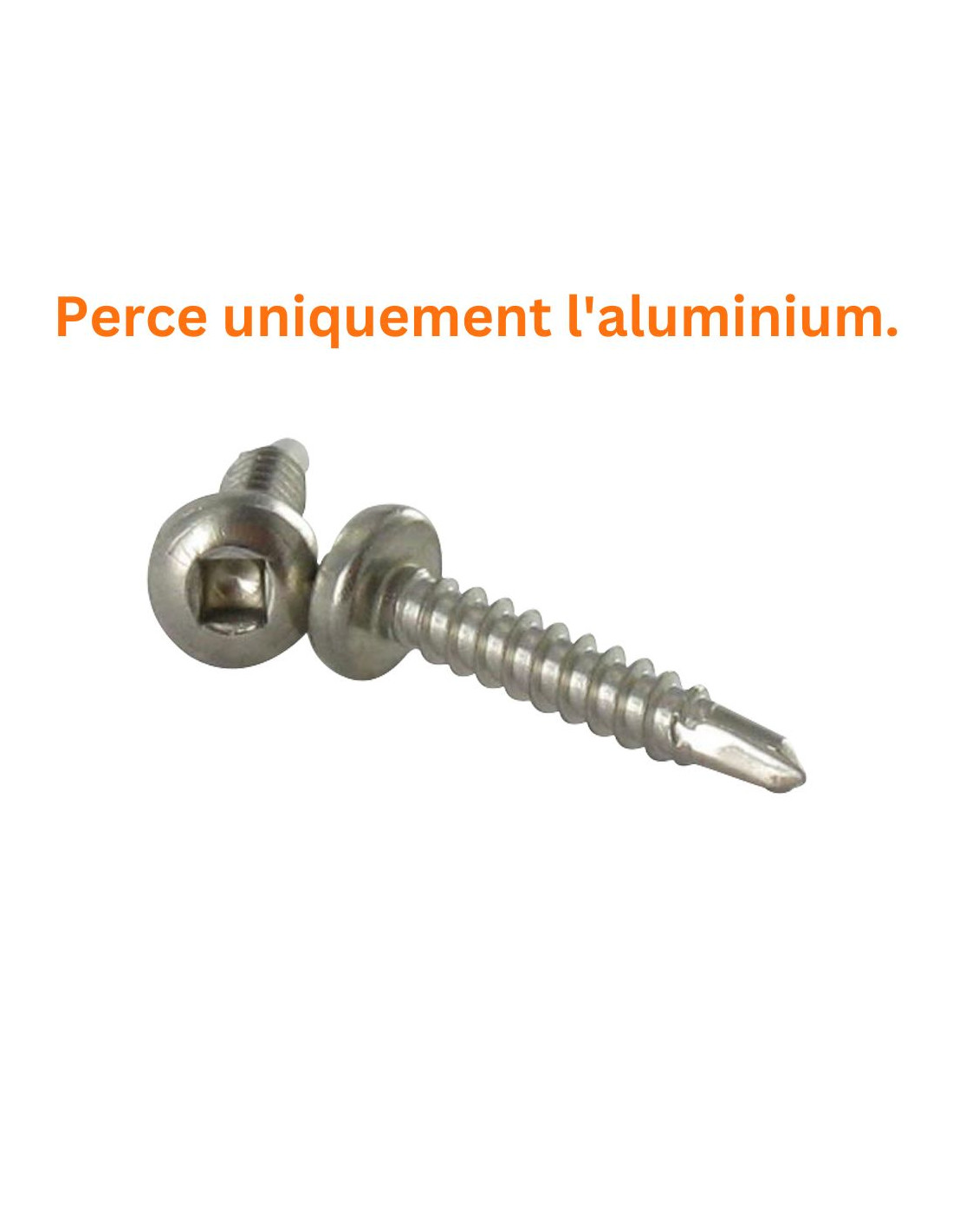

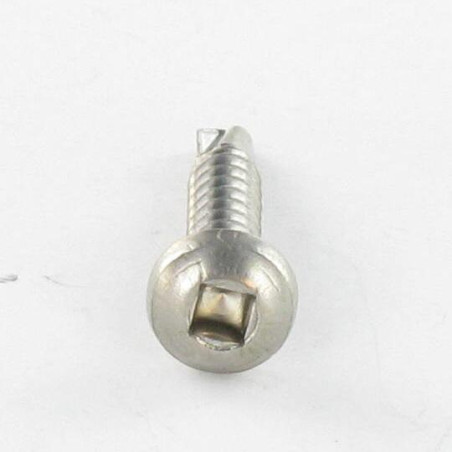

DIN 7504 N + CARRE,VS3124 - Self Drilling Pan Head Square 3.5X9.5 Square 1 Stainless Steel A2Only pierces aluminum.
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
3.5
Length
9.5
Drive Type
Square
Size Drive Type
Square 1
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 7504 N + SQUARE,VS3124
Sub product family
Cylindrical Head
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
2.8
Maximum thickness to be fixed
2.85
Unit weight
0.54 GR
Material to be drilled
Aluminium
8740 Items
3663072222366
Self Drilling Pan Head Square 3.5X9.5 Square 1 Stainless Steel A2 Other Reference : 750420MV35 95 2305230 108660 AN 3663072222366
