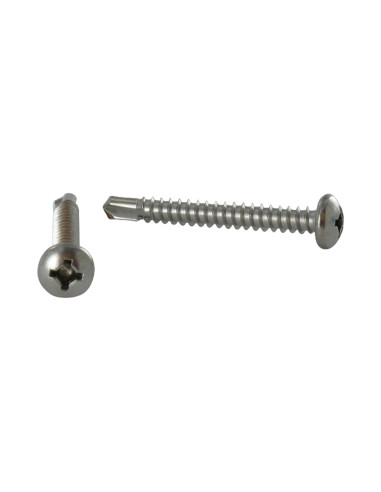

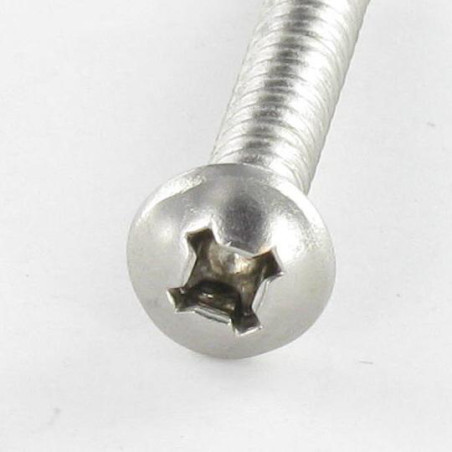

1 x Self Drilling Pan Head Square Head Phillips 4.8X25 SQ2+PH2 Stainless Steel A2

8329102518_1
In stock 475636 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.85 €7.70 €9.30 €13.70
DIN 7504 N + CARR/PH,VS3124 - Self Drilling Pan Head Square Head Phillips 4.8X25 SQ2+PH2 Stainless Steel A2

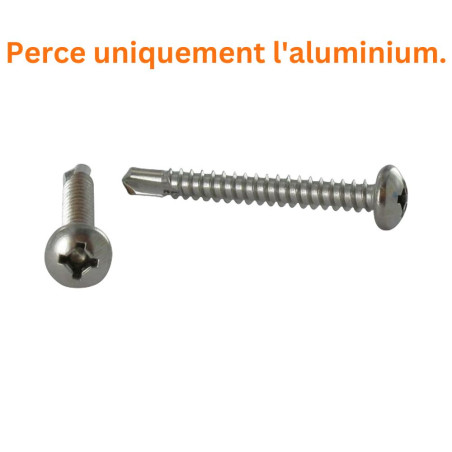

Only pierces aluminum
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Length
25
Drive Type
Square PHILLIPS
Size Drive Type
KEY Of 8
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 7504 N + CARR/PH,VS3124
Sub product family
Cylindrical Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
6.5
Maximum thickness to be fixed
14.7
Unit weight
3.3 GR
Material to be drilled
Aluminium
475636 Items
3663072154186
Self Drilling Pan Head Square Head Phillips 4.8X25 SQ2+PH2 Stainless Steel A2
Diameter = Class 4.8, Length = 25, Material = Stainless Steel A2, Drive Type = Square PHILLIPS, Norm = DIN 7504 N + CARR/PH,VS3124, Size Drive Type = Spanner 8


dimensional guide (mm)
Jauge number 6 7 8 10 12
Diameter 3.5 3.9 4.2 4.8 5.5
Head diameter 6.9 7.5 8.2 9.5 10.8
Head Tickness 2.6 2.8 3.05 3.55 3.95
PH 2 2 2 2 3

Other Reference : 3617500218100 2510302 212148 / AN B0139 3663072154186
