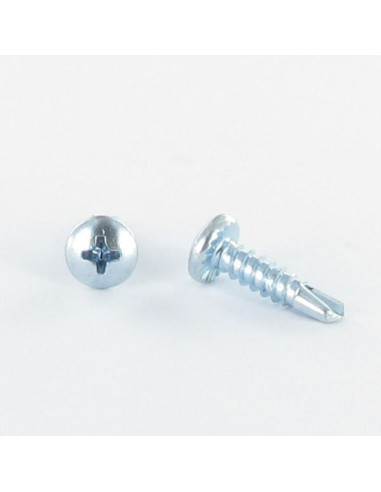

1 x Self Drilling wide domed head Pozi And...

1 x Self Drilling wide domed head Pozi And Slotted 3.5X21 Sheet Metal Thread Zinc Plated

3125602102_1
In stock 253649 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €3.85 €7.70 €9.25 €12.10
DIN 7504N + CR - VS3124 - Self Drilling wide domed head Pozi And Slotted 3.5X21 Sheet Metal Thread Zinc Plated
"Pierces steel
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
3.5
Length
21
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504N + With Serration - VS3124
Sub product family
Cylindrical Head Pan Head
WEIGHT For THERE unit
1.4 GR
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
2.8
253649 Items
3663072038745
Self Drilling wide domed head Pozi And Slotted 3.5X21 Sheet Metal Thread Zinc Plated
Diameter = 3.5, Length = 21, Coating = Zinc Plated, Material = Steel, Norm = DIN 7504N + With Serration - VS3124, Size Drive Type = Spanner 5.5


dimensional guide (mm)
Jauge number6781012
Diameter3.53.94.24.85.5
Head diameter6.97.58.29.510.8
Head Tickness2.62.83.053.553.95
PH22223

Other Reference : 3617501862951 3-VT3521-2 40000100 3663072038745
