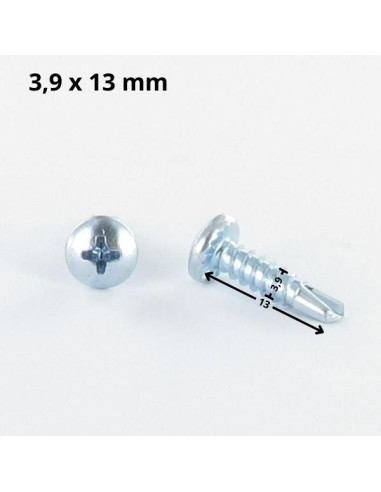

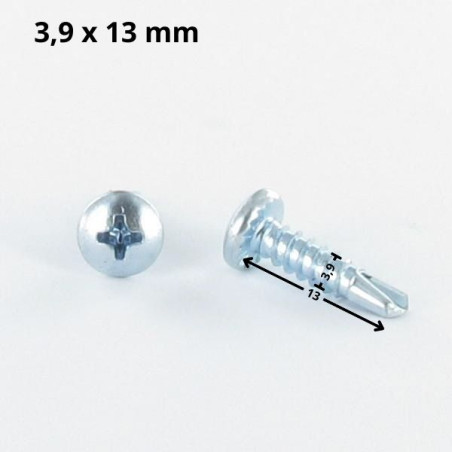

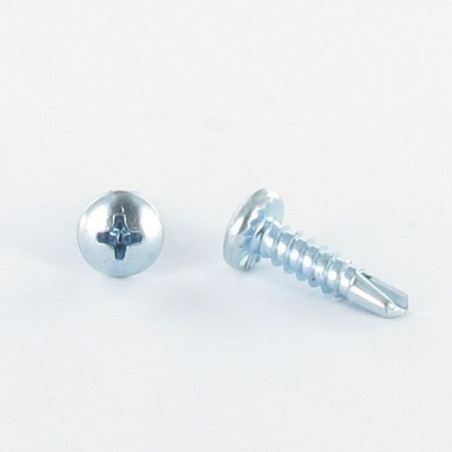

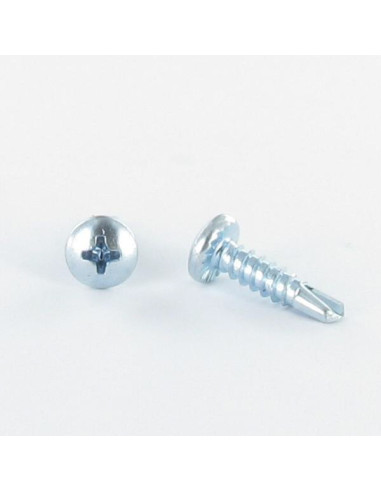

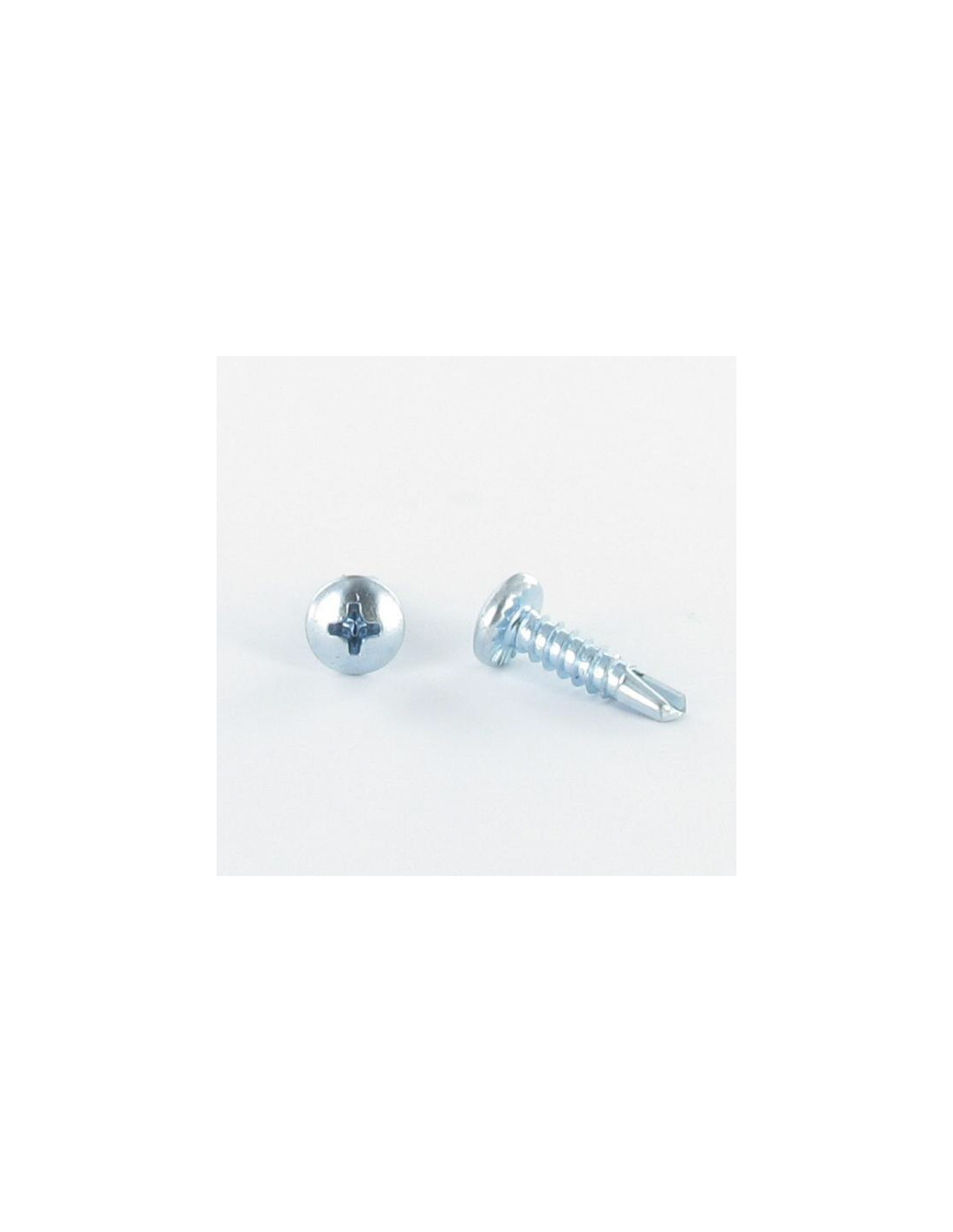

1 x Self Drilling Cylindrical Button Head Phillips 3.9X13 Sheet Metal Thread Zinc Plated
1 x Self Drilling Cylindrical Button Head Phillips 3.9X13 Sheet Metal Thread Zinc Plated
1 x Self Drilling Cylindrical Button Head...
1 x Self Drilling Cylindrical Button Head...

1 x Self Drilling Cylindrical Button Head Phillips 3.9X13 Sheet Metal Thread Zinc Plated

3125701302_1
In stock 249736 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included €1.60 €3.85 €4.20 €8.70
DIN 7504N + CR - VS3124 - Self Drilling Cylindrical Button Head Phillips 3.9X13 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
3.9
Length
13
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504N + With Serration - VS3124
Sub product family
Cylindrical Head Pan Head
WEIGHT For THERE unit
1.2 GR
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
3.4
Maximum thickness to be fixed
5.8
249736 Items
3663072038783
Self Drilling Cylindrical Button Head Phillips 3.9X13 Sheet Metal Thread Zinc Plated Other Reference : TCC39013 84978 QUVITOTB3912 9021-0013 000604 ar00770 1304688LV 59QUI301 5040139130 VS/AC/CBM/ZP 0392Z03913 606900 VIS152 F190894 24551Q AUTOPERC39X1 AUTOPERC39X1 AUTO3.9X12.7 1 AUTOPERC39X1 ISO15413.9X1 ACC22304 650023 0191459900 967385 980829 1914599 V27A-413 MV0205 VIS152 010001 010001 010001 AQVIAPT3.9X1 VIS-VDB313 02113913 000790 ZVISATCB313 S168DF 250418 FID000373/SE ACC22304 VISTCBAP3.9/ 000790 12013599 250418 0100102 1304688LV 021139 13 010001 BOUTRPF13 1104 3663072038783
