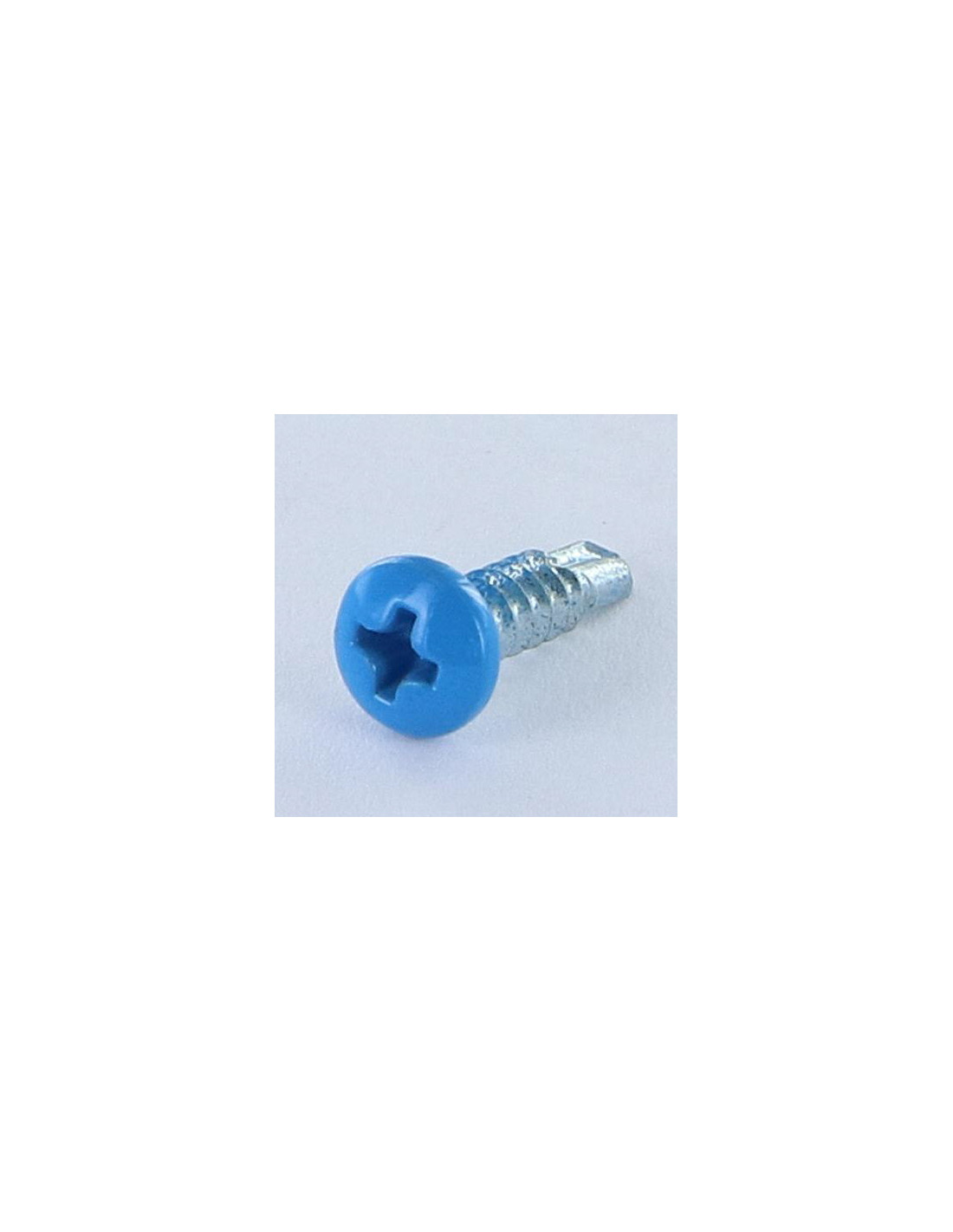

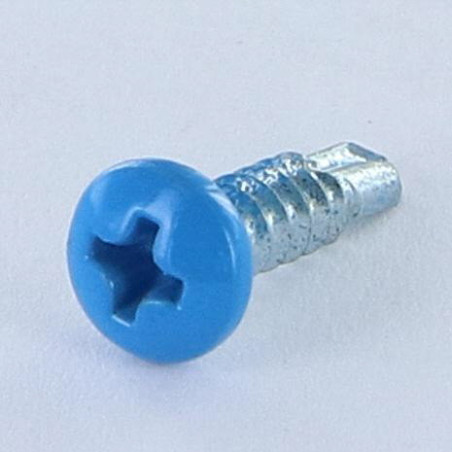

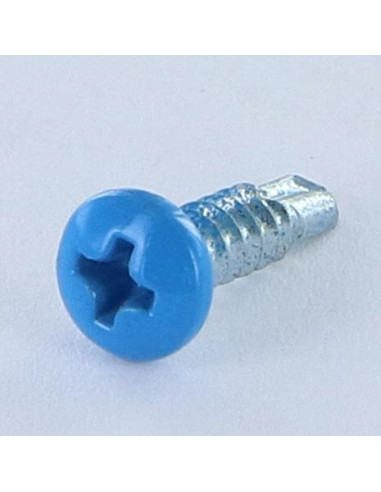

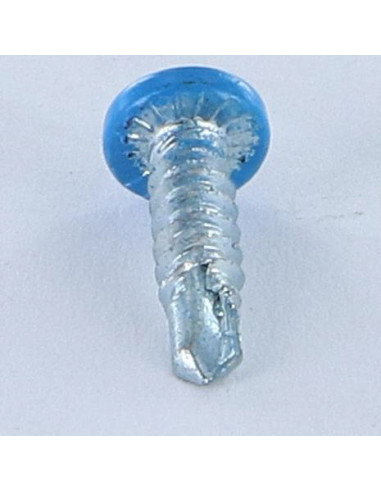

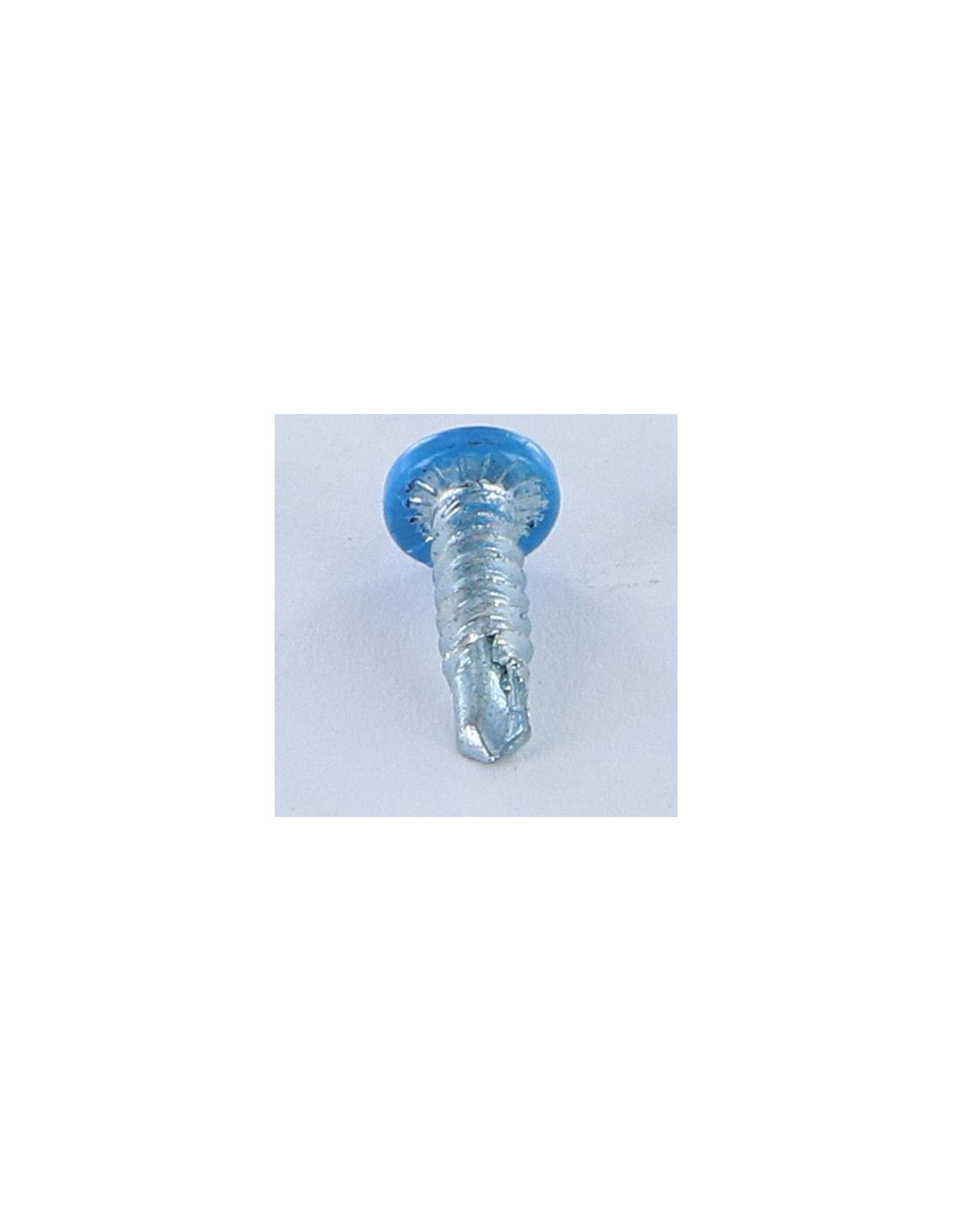

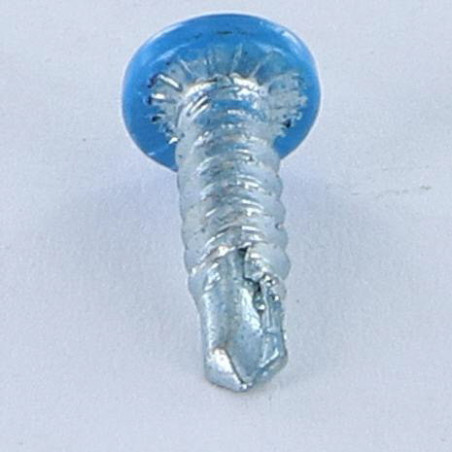

1 x Self Drilling Cylindrical Button Head Phillips 4.2X16 Zinc Plated LAQ5012 POWDER
1 x Self Drilling Cylindrical Button Head Phillips 4.2X16 Zinc Plated LAQ5012 POWDER
1 x Self Drilling Cylindrical Button Head...
1 x Self Drilling Cylindrical Button Head...

1 x Self Drilling Cylindrical Button Head Phillips 4.2X16 Zinc Plated LAQ5012 POWDER

3125801631_1
In stock 50537 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €3.85 €7.70 €9.25 €16.10
DIN 7504N + CR - VS3124 - Self Drilling Cylindrical Button Head Phillips 4.2X16 Zinc Plated LAQ5012 POWDER
"Pierces steel
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
4.2
Length
16
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504N + With Serration - VS3124
Sub product family
Cylindrical Head Pan Head
WEIGHT For THERE unit
1.7 GR
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
4.5
Maximum thickness to be fixed
7.3
50537 Items
3663072038981
Self Drilling Cylindrical Button Head Phillips 4.2X16 Zinc Plated LAQ5012 POWDER
Diameter = 4.2, Length = 16, Coating = Zinc Plated, Material = Steel, Drive Type = PHILLIPS, Norm = DIN 7504N + With Serration - VS3124, Size Drive Type = Spanner 7


dimensional guide (mm)
Jauge number6781012
Diameter3.53.94.24.85.5
Head diameter6.97.58.29.510.8
Head Tickness2.62.83.053.553.95
PH22223

Other Reference : 3617501888739 VISAAPTCOO42 3663072038981
