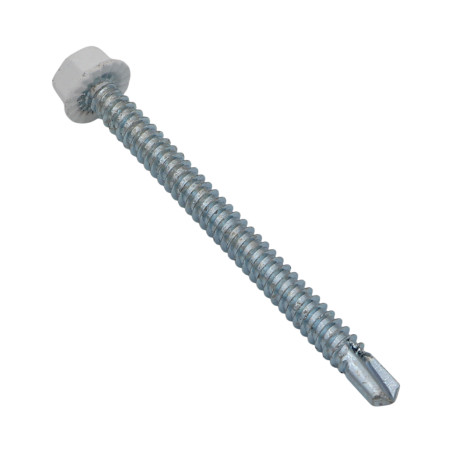

1 x Self Drilling Hexagonal Head 6.3X75 Sheet Metal Thread Zinc Plated RAL9016 LIQUID
1 x Self Drilling Hexagonal Head 6.3X75 Sheet Metal Thread Zinc Plated RAL9016 LIQUID

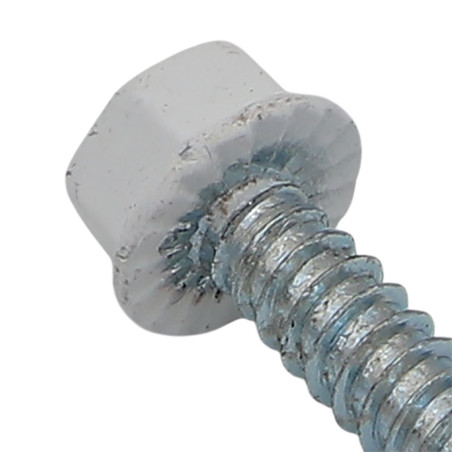

1 x Self Drilling Hexagonal Head 6.3X75 Sheet Metal Thread Zinc Plated RAL9016 LIQUID

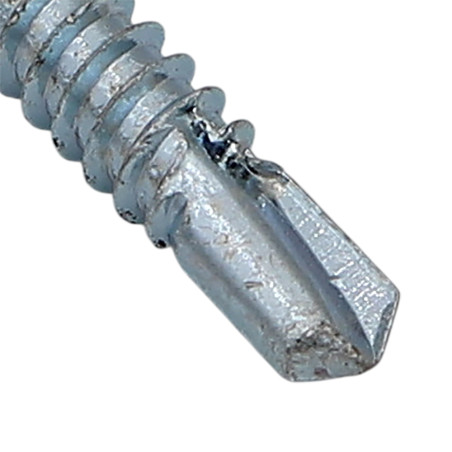

1 x Self Drilling Hexagonal Head 6.3X75 Sheet Metal Thread Zinc Plated RAL9016 LIQUID
  • On sale!
  • -30%

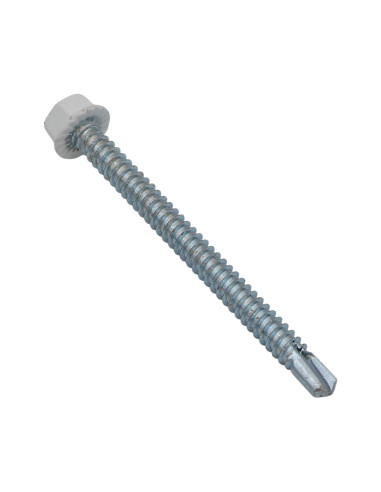

1 x Self Drilling Hexagonal Head 6.3X75 Sheet...

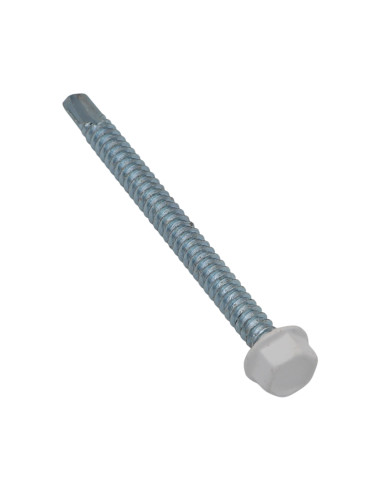

1 x Self Drilling Hexagonal Head 6.3X75 Sheet...
1 x Self Drilling Hexagonal Head 6.3X75 Sheet...
1 x Self Drilling Hexagonal Head 6.3X75 Sheet...

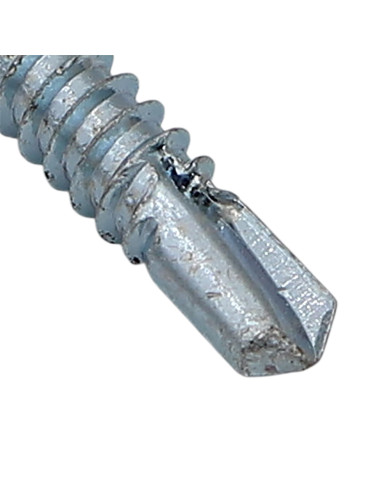

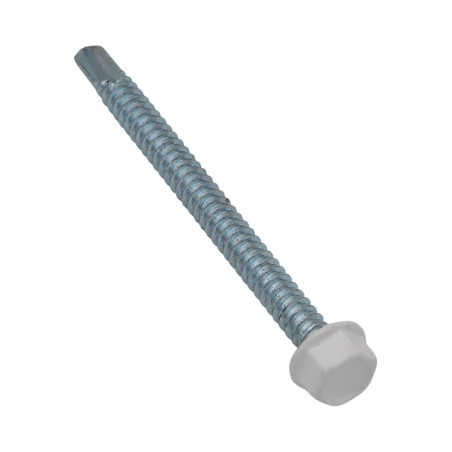

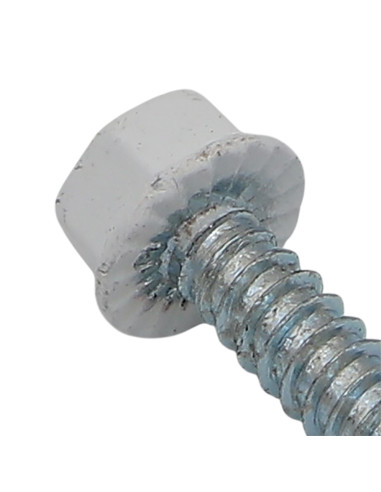

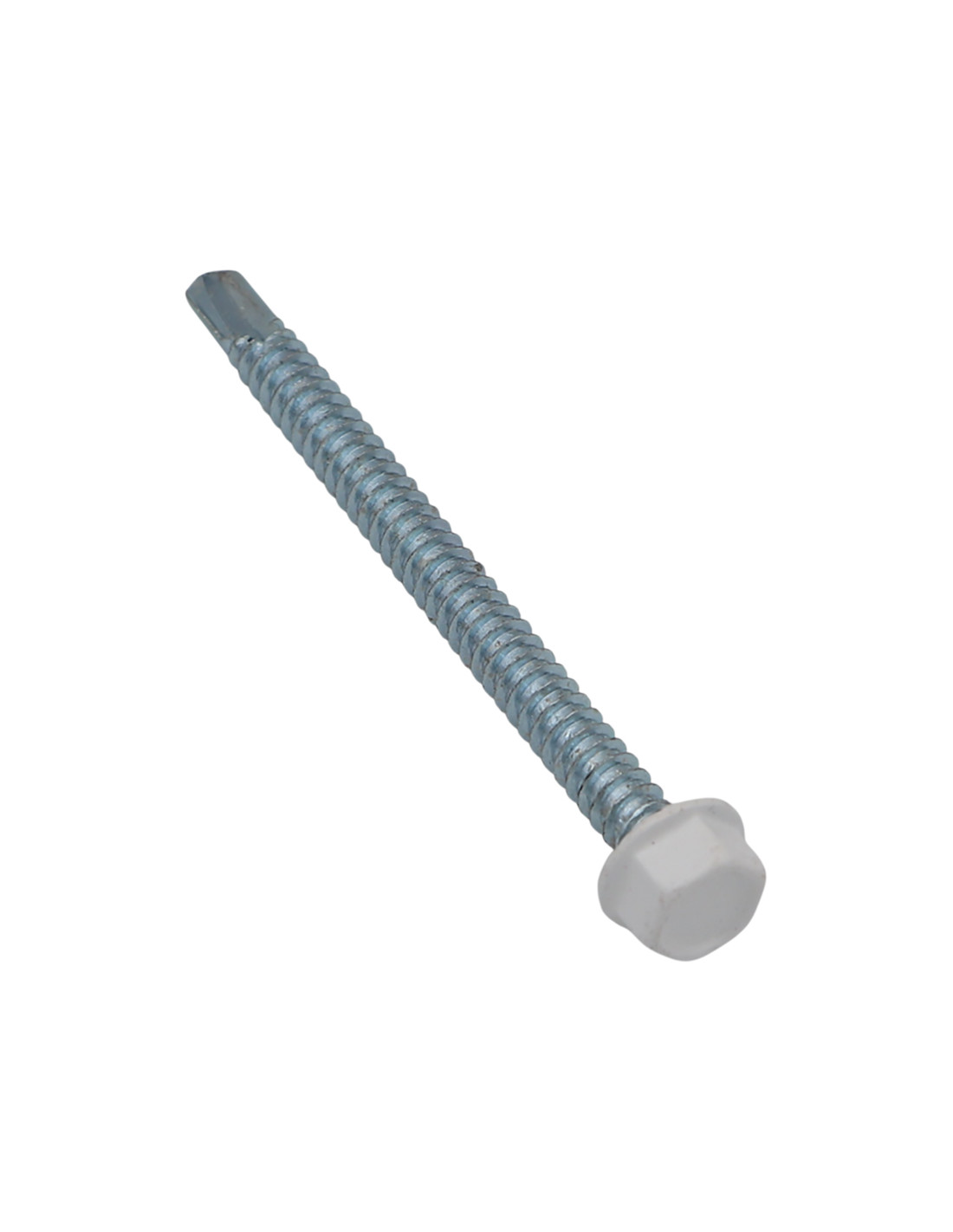

1 x Self Drilling Hexagonal Head 6.3X75 Sheet Metal Thread Zinc Plated RAL9016 LIQUID

3127147528_1
In stock 139143 Pièces
€2.98 Incl VAT €4.25 -30%
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €2.98 €5.92 €7.14 €27.30
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 6.3X75 Sheet Metal Thread Zinc Plated RAL9016 LIQUID
"Pierces steel
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
6.3
Length
75
Size Drive Type
Spanner 10
Material
Steel
Coating
Zinc Plated
COLOR
Ral9016/Traffic Signalisation
Norm
DIN 7504K+ Flange NOTCHED VS3124
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
14
Maximum thickness to be fixed
63
Head thickness
5.3-5.9
Base diameter
12.2-13.5
Unit weight
17 GR
Material to be drilled
STEEL+ALUMINUM+STAINLESS STEEL
Head shape
Hex Head
139143 Items
3663072039575
Self Drilling Hexagonal Head 6.3X75 Sheet Metal Thread Zinc Plated RAL9016 LIQUID
Diameter = 6.3, Length = 75, Coating = Zinc Plated, Material = Steel, Norm = DIN 7504K+ Flange NOTCHED VS3124, Size Drive Type = Spanner 10


dimensional guide (mm)
numero 8 10 12
Diameter 4.2 4.8 5.5
Head Tickness 4.25 4.45 5.45
Across flats 7 8 8

Other Reference : 3617500134837 3663072039575
Eric P. (vis-express.fr)
2026-04-19

fixations de tole de couvertures tole de couverture ondulée petite onde galva
