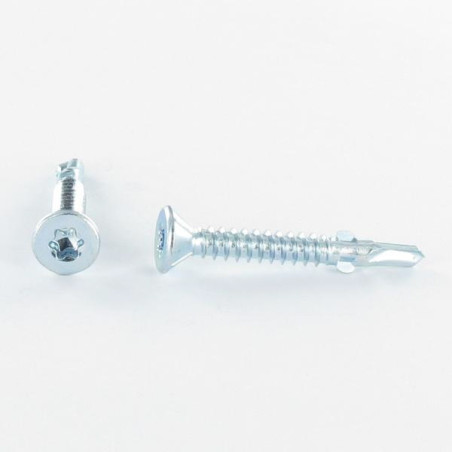

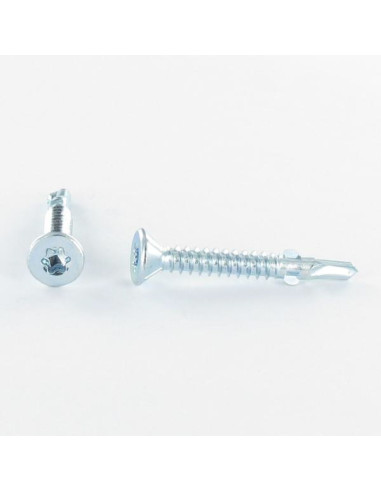

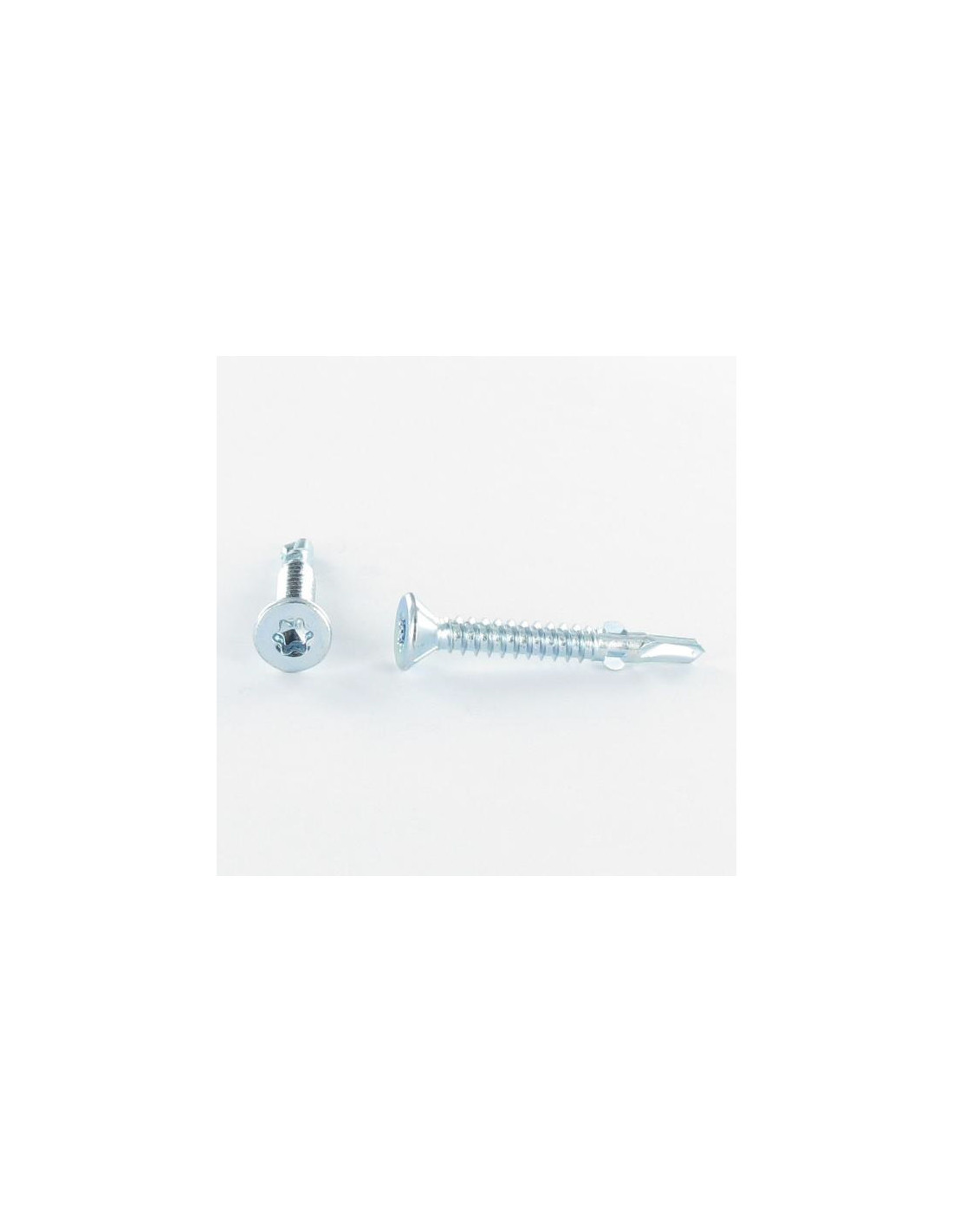

1 x Self Drilling Countersunk Head T30 5.5X45 Notched And Wings Zinc Plated

3126124502_1
In stock 67166 Pièces
£1.39 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 250
Lot price VAT included £1.39 £3.64 £7.29 £9.11

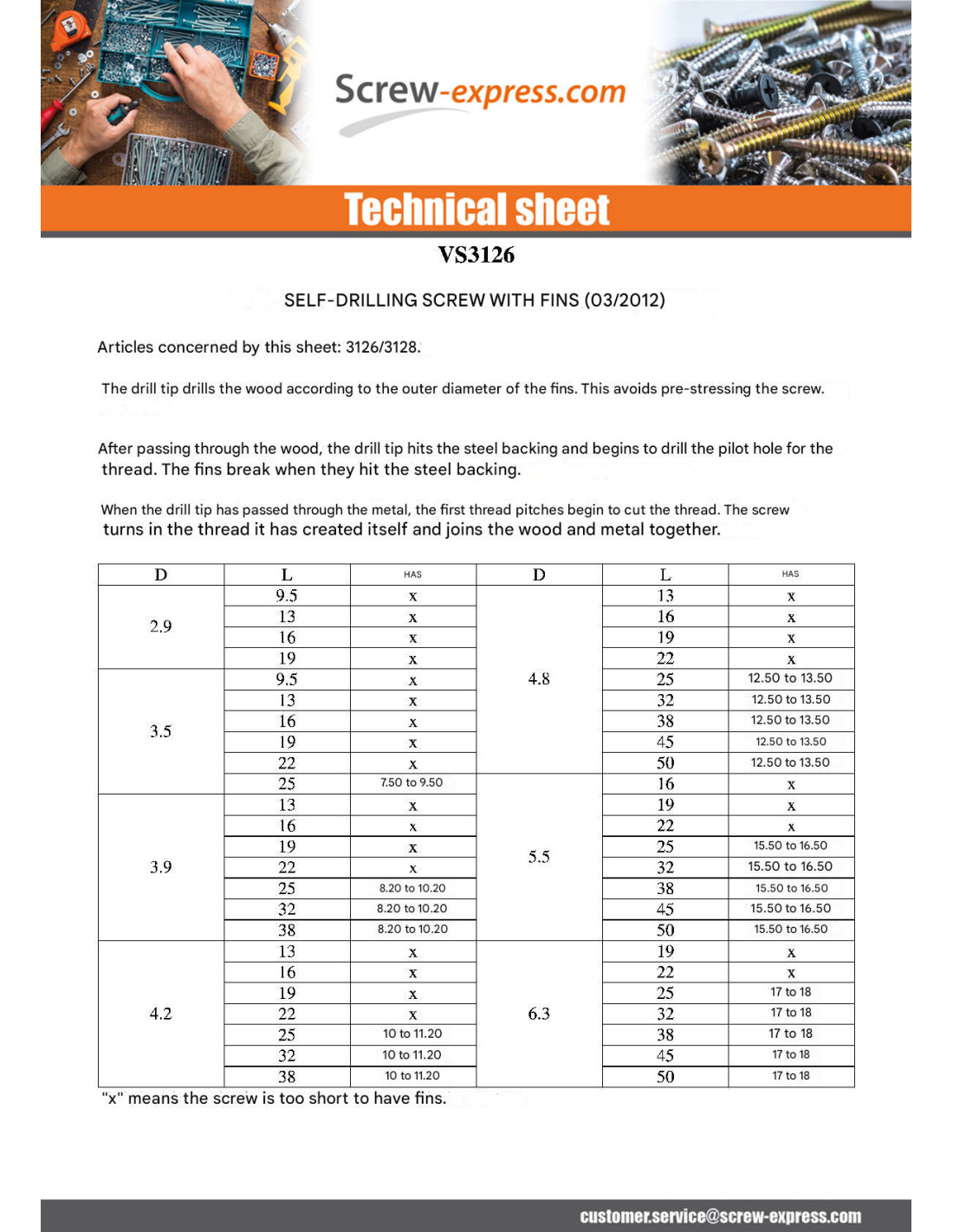

DIN7504+6LOB+CR+AIL,VS3126,VS3124 - Self Drilling Countersunk Head T30 5.5X45 Notched And Wings Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 250 units

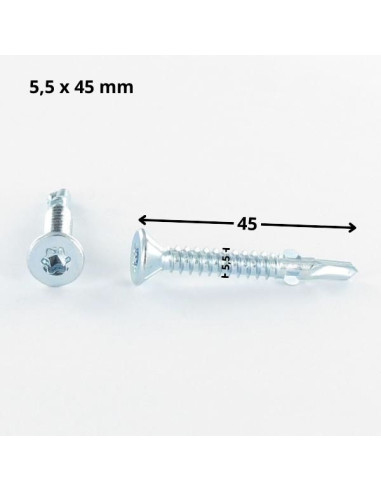

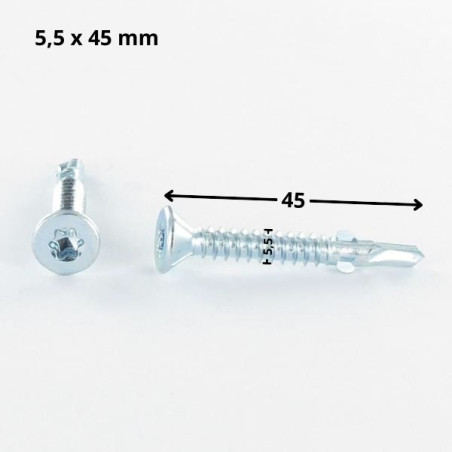

Dimensions shown in millimeters (mm)

Diameter
5.5
Length
45
Drive Type
Torx
Size Drive Type
T30
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN7504+6LOB+CR+AIL,VS3126,VS3124
Sub product family
Countersunk Head
WEIGHT For THERE unit
5.7 GR
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
10
Maximum thickness to be fixed
34.5
67166 Items
3663072299207
Self Drilling Countersunk Head T30 5.5X45 Notched And Wings Zinc Plated Other Reference : 3617500061386 4274 1034893 3663072299207
Sebastien R. (vis-express.fr)
2024-07-28

Screwing battens onto metal structure Self-drilling screw Countersunk head TF TORX T30 5.5X45 Notches and wings Zinc-plated steel


Alexis P. (vis-express.fr)
2024-04-28

Use of Countersunk head self-drilling screws TF TORX T30 5.5X45 Zinc-plated Acer teeth and wings for assembling a pica decking board on a steel structure. Use of countersunk head self-drilling screws TF TORX T30 5.5X45 Zinc-plated Acer notches and wings for assembling a pica decking board on a steel structure.
