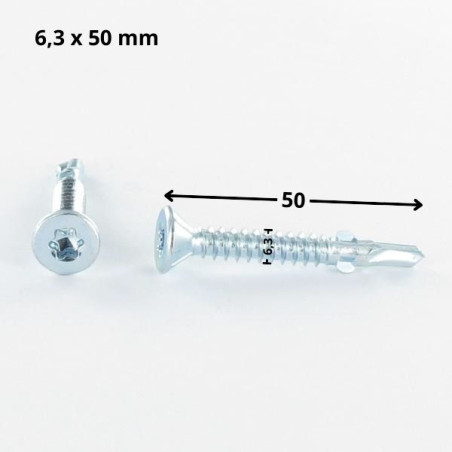

1 x Self Drilling Countersunk Head T30 6.3X50 Notched And Wings Zinc Plated
1 x Self Drilling Countersunk Head T30 6.3X50 Notched And Wings Zinc Plated
1 x Self Drilling Countersunk Head T30 6.3X50 Notched And Wings Zinc Plated
1 x Self Drilling Countersunk Head T30 6.3X50 Notched And Wings Zinc Plated

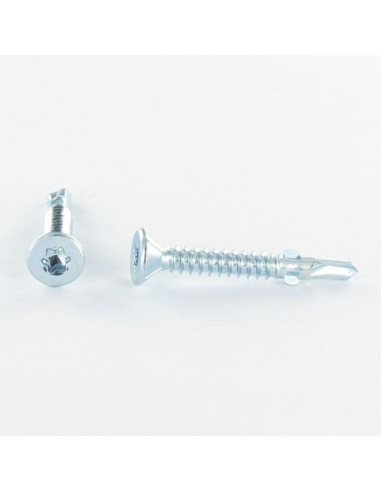

1 x Self Drilling Countersunk Head T30 6.3X50...

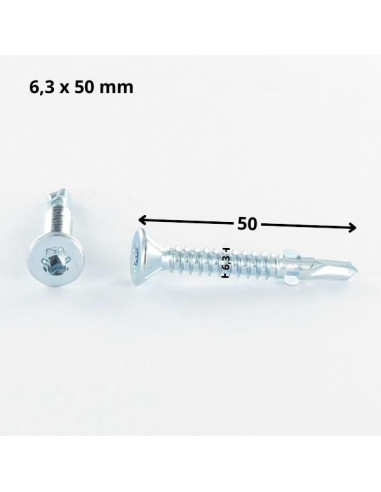

1 x Self Drilling Countersunk Head T30 6.3X50...
1 x Self Drilling Countersunk Head T30 6.3X50...
1 x Self Drilling Countersunk Head T30 6.3X50...

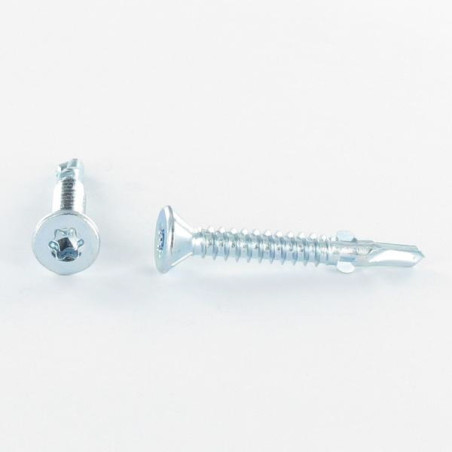

1 x Self Drilling Countersunk Head T30 6.3X50 Notched And Wings Zinc Plated

3126635102_1
In stock 65249 Pièces
£1.39 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 150
Lot price VAT included £1.39 £2.78 £3.38 £7.81
DIN7504+6LOB+CR+AIL,VS3126,VS3124 - Self Drilling Countersunk Head T30 6.3X50 Notched And Wings Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 150 units

Dimensions shown in millimeters (mm)

Diameter
6.3
Length
16
Drive Type
Torx
Size Drive Type
T30
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN7504+6LOB+CR+AIL,VS3126,VS3124
Sub product family
Countersunk Head
WEIGHT For THERE unit
9.19 GR
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
14
Maximum thickness to be fixed
38
65249 Items
3663072039148
Self Drilling Countersunk Head T30 6.3X50 Notched And Wings Zinc Plated Other Reference : 3617500208255 182650 VISA650TFX 38936 182650 3663072039148
AURELIE D. (vis-express.fr)
2024-04-21

I plan to attach OSB to a metal frame it's class 3 OSB of 22mm on IPE of 160mm and 7mm
