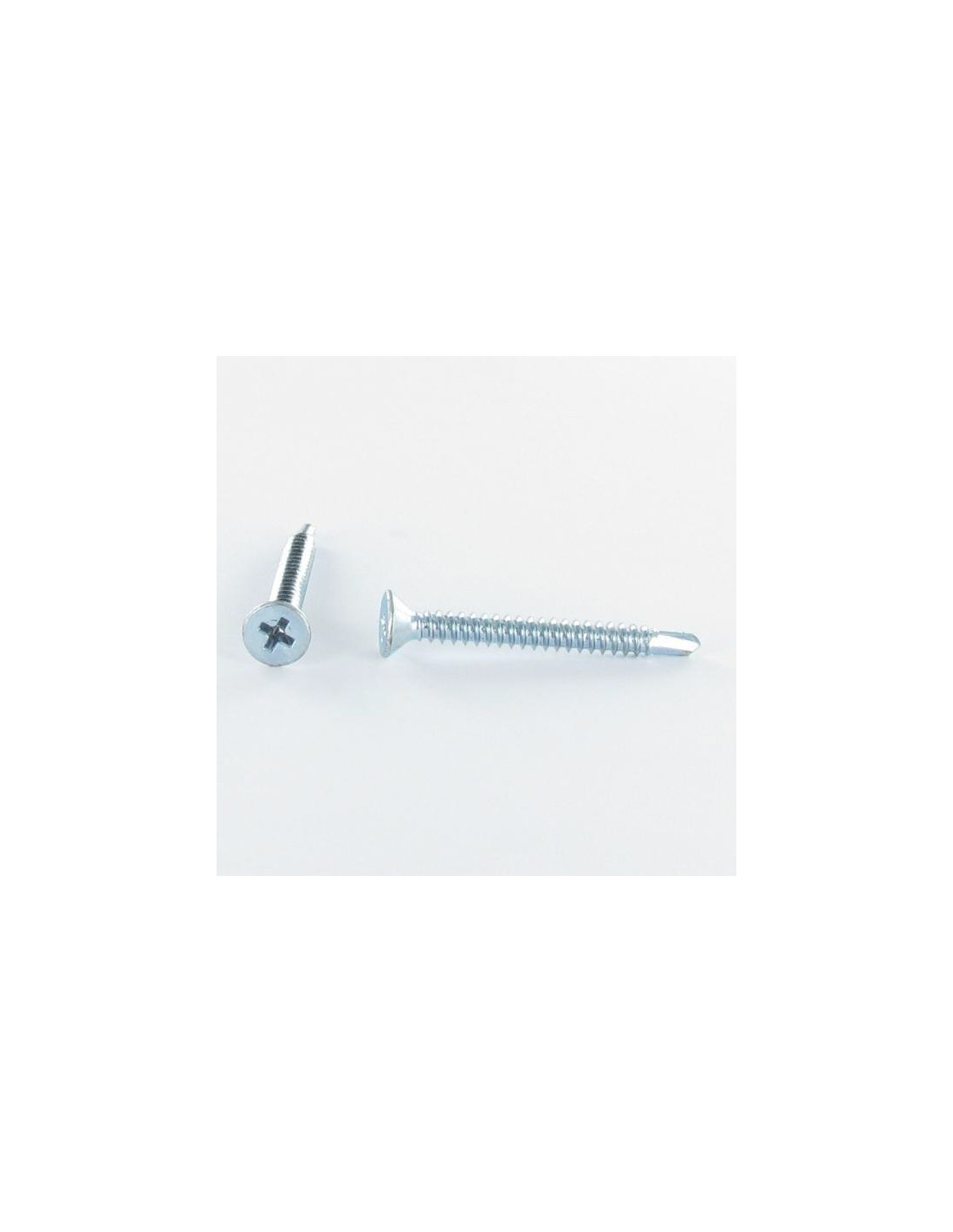

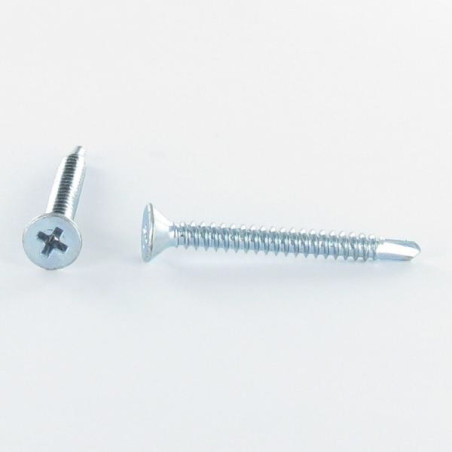

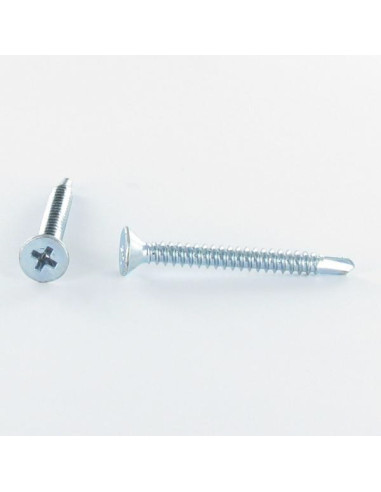

1 x Self Drilling Countersunk Head Phillips 3.5X9.5 Sheet Metal Thread Zinc Plated

3124600902_1
In stock 188603 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included £3.04 £7.33 £7.98 £7.94
DIN 7504P + VS3124 - Self Drilling Countersunk Head Phillips 3.5X9.5 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 units

Dimensions shown in millimeters (mm)

Diameter
3.5
Length
9.5
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504P + VS3124
Sub product family
Countersunk Head
WEIGHT For THERE unit
0.8 GR

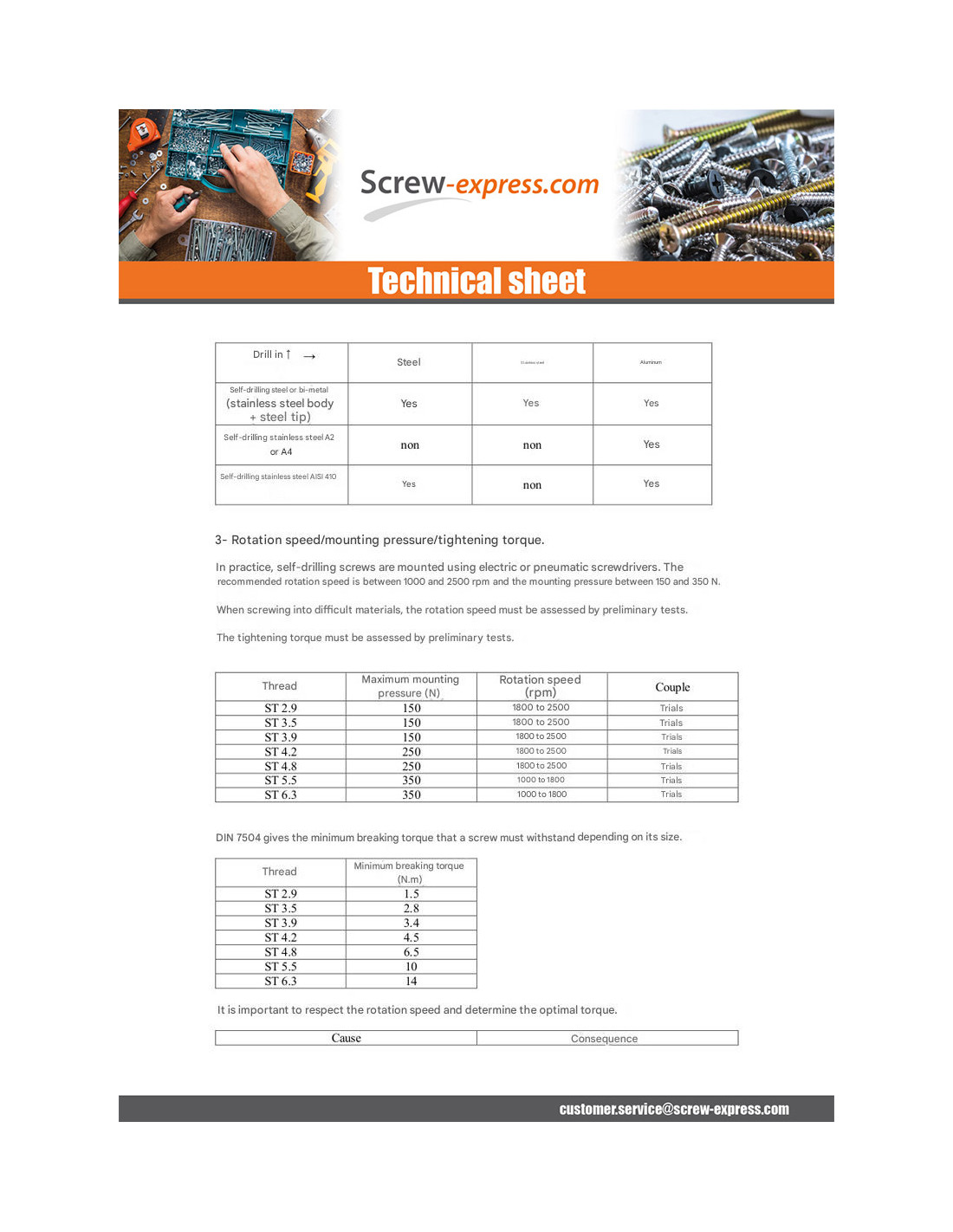

Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
2.8
Maximum thickness to be fixed
2.85
188603 Items
3663072038165
Self Drilling Countersunk Head Phillips 3.5X9.5 Sheet Metal Thread Zinc Plated Other Reference : 3617500020185 VB253 QUVM146 841038 VIS060 204110148 589320 VIS98450 VIS060 VB253 VB253 19960230 414026 AN 3663072038165
