1 x Rivet Steel/ steel HIGHTBOLT Standard round head 4.8X14

1 x Rivet Steel/ steel HIGHTBOLT Standard round...

1 x Rivet Steel/ steel HIGHTBOLT Standard round head 4.8X14

Name: 1 x Rivet Steel/ steel HIGHTBOLT Standard round head 4.8X14
Brand: Vis-Express
SKU: 3712481401
Price: 4.25 EUR
Availability: InStock

Reference 3712481401_1

In stock 326 Pièces

€4.25 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	250
Lot price VAT included	€4.25	€8.45	€10.50	€80.10

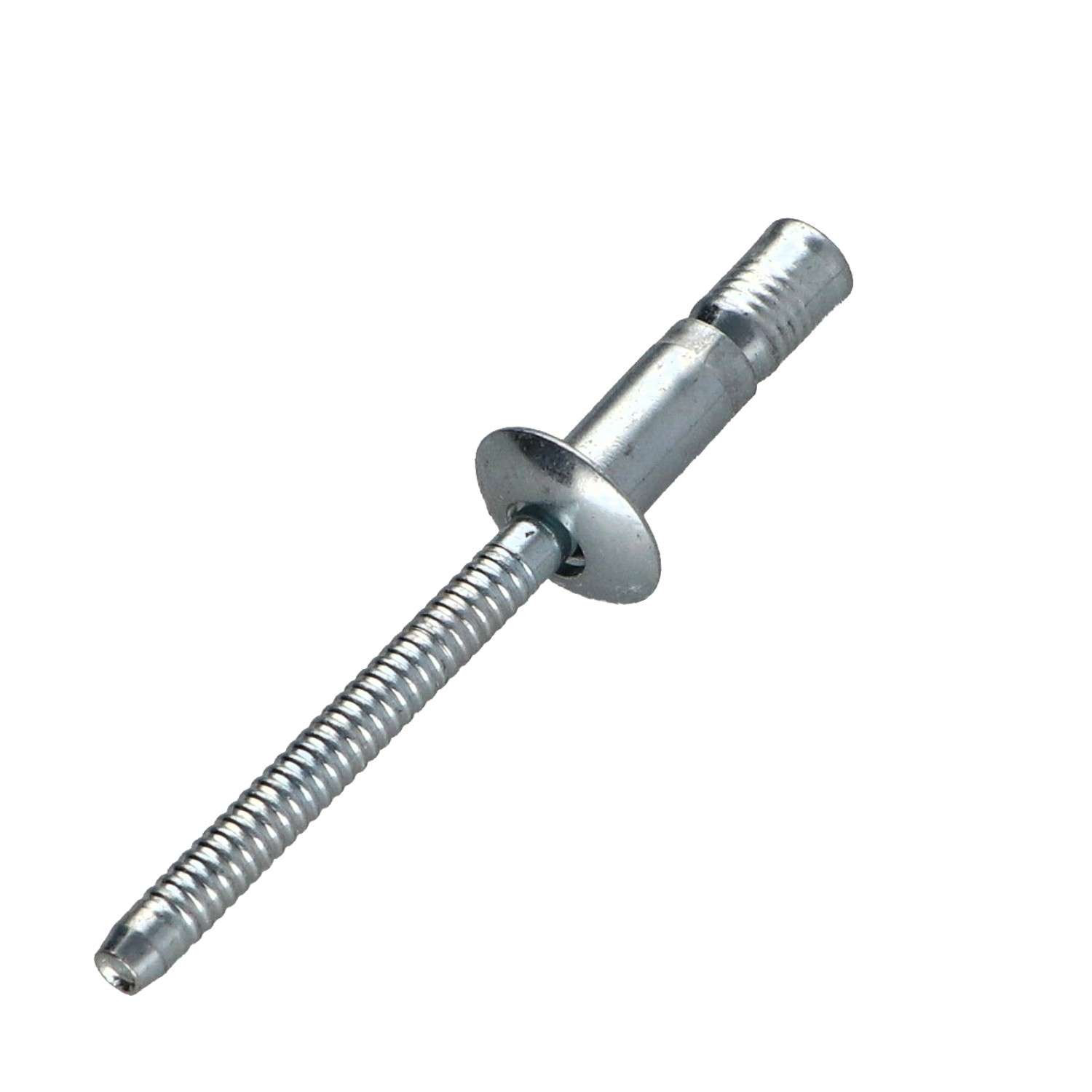

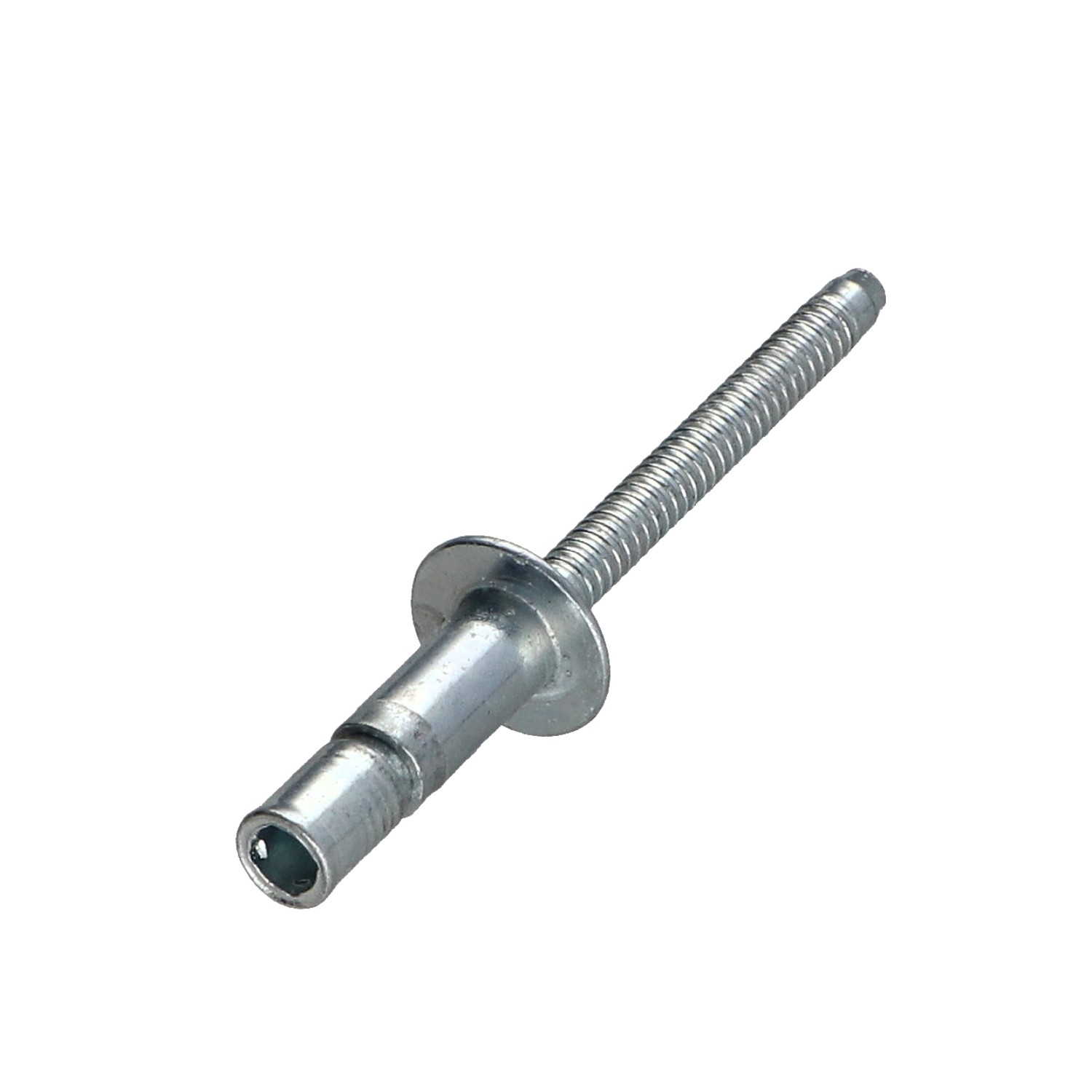

Rivet Steel/ steel HIGHTBOLT Standard round head 4.8X14

Packaging

1 unit
10 units
30 units
250 Units

Dimensions shown in millimeters (mm)

Product Details

Diameter: 4.8
Diameter Head: 10,1
Material: BODY Steel / rod Steel
Sub product family: Rivets BLIND STRUCTURAL (HIGH RESISTANCE)
Shear (N): 6440
Clamping thickness: 1,6 A 11,1
Rivet body length Rivet body length How to measure the length of a rivet? In our rivet designations, the length corresponds to the body length of the rivet (indicated by the arrow in the sketch below).: 14
Unit weight: 2.7 GR
Head shape: Round Head standard
Hole diameter: 5,2
Tensile strength

Tensile strength

Tensile Strength (Rm)
Tensile strength corresponds to the maximum force a material can withstand before breaking when it is pulled.

It is expressed in MPa (megapascals) and helps determine the strength of a screw or fastening component.

🔩 The higher the value, the more resistant the material is to breaking.: 5110

In stock 326 Items

ean13 3663072505544

Application

Fixing thick parts or parts subjected to high stress
Assembly of:
metal structures
lightweight frames
industrial machinery and equipment
Heavy goods vehicle/trailer bodywork

Description

Rivet Steel/ steel HIGHTBOLT Standard round head 4.8X14
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STRUCTURAL (HIGH RESISTANCE), Material = BODY Steel / rod Steel

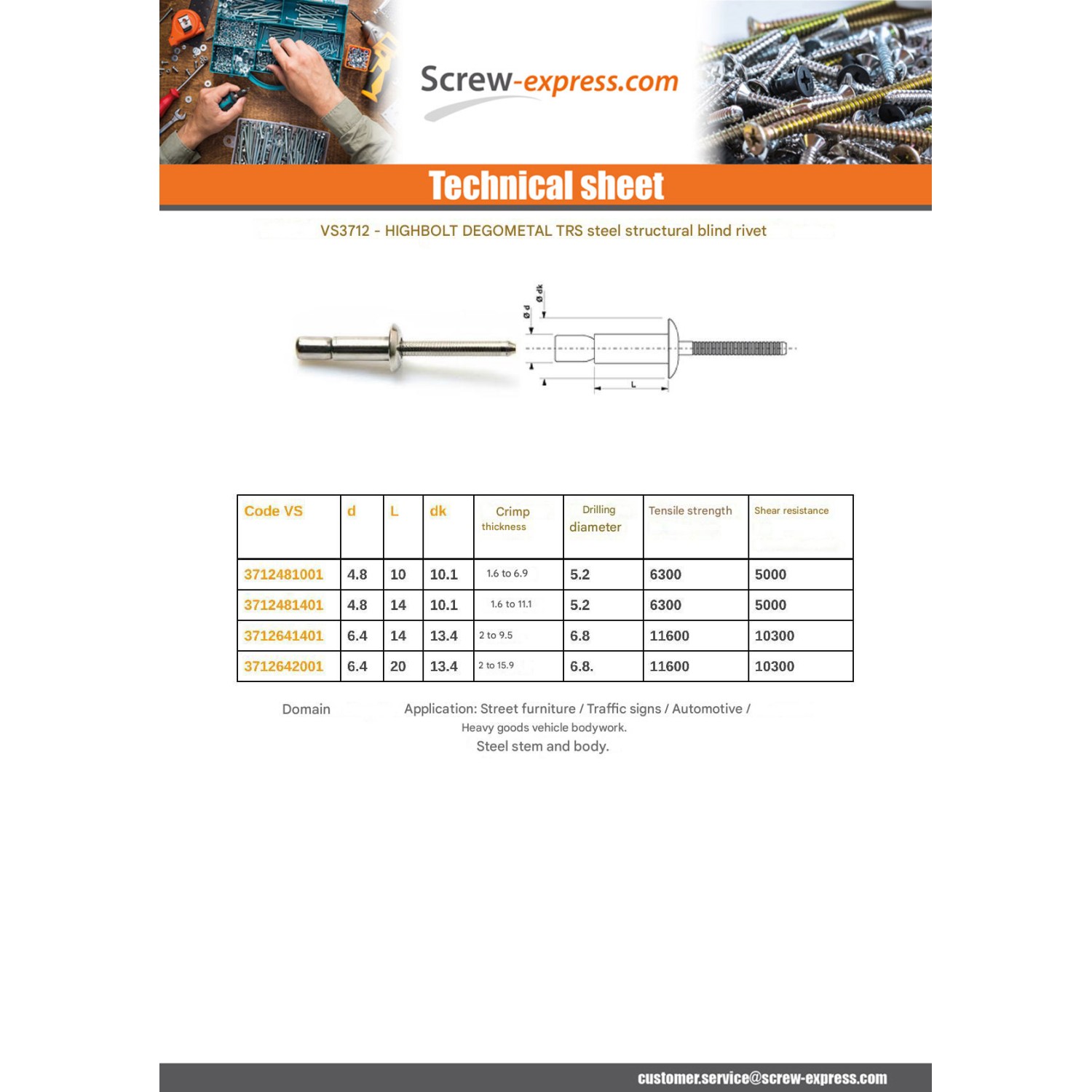

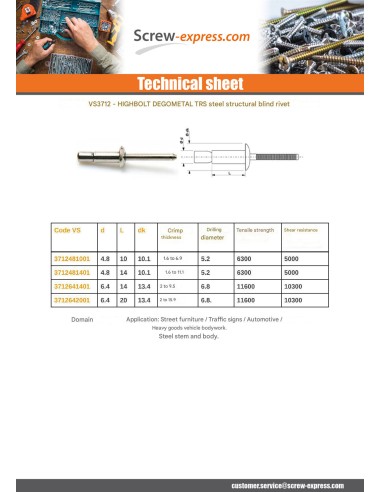

dimensional guide (mm)

Diameter	4.8	4.8	6.4	6.4
longueur utile	10	14	14	20
Head diameter	10.1	10.1	13.4	13.4
epaisseur a sertir	1.6-6.9	1.6-11.1	2-9.5	2-15.9
diametre percage	5.2	5.2	6.8	6.8
Tensile strength	6300	6300	11600	11600
Shear strength	5000	5000	10300	10300
gamme DEGOMETAL
